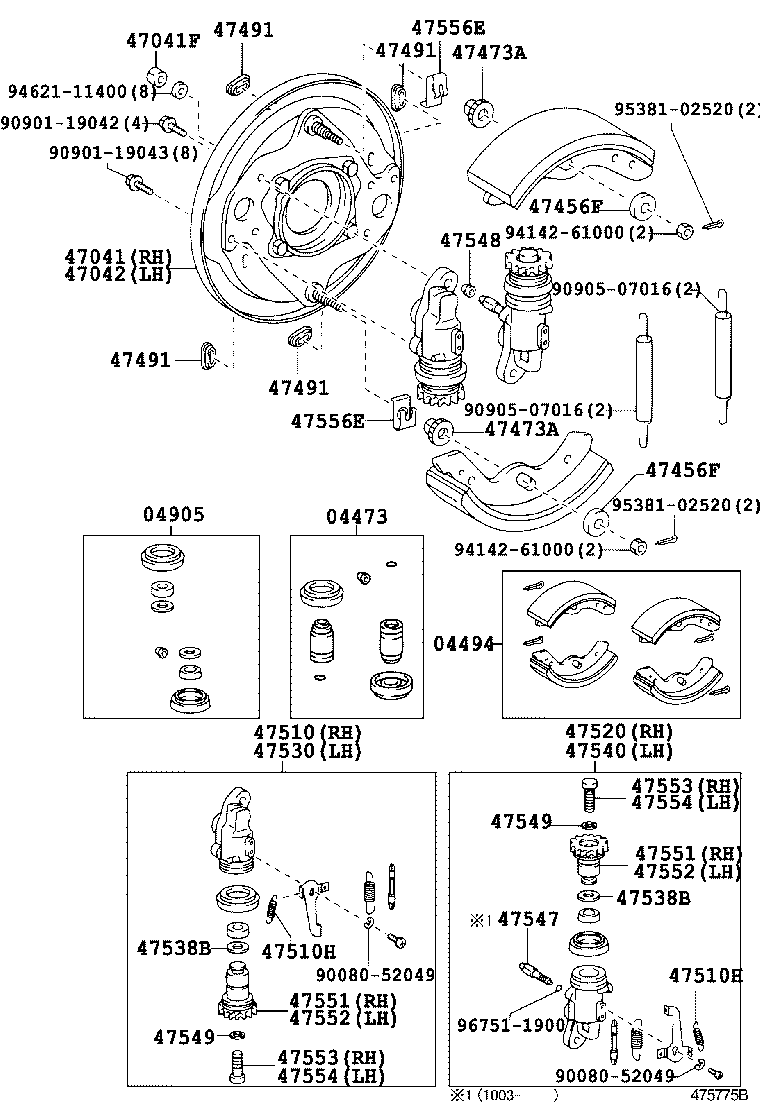

WU410R-TKMQS (2002)
Toyota Dyna
(0212- )XZU414,424..RHD..65T,75T,85T ; (0212-)WU410,420,XZU420,423,430,433,4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-37070 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) RH |
2 | ||
| 04473-37080 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) LH |
2 | ||
| 04473-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN RH |
2 | ||
| 04473-37080 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN LH |
2 | ||
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-37021 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T MARK NBK D2167 |
1 | ||
| 04494-37021 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) MARK NBK D2167 |
1 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-37080 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 04905-37080 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-37180 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47041-37180 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94130-01441 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
8 | ||
| 94130-01441 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-37180 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47042-37180 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47456F - PLATE, FRONT BRAKE SHOE GUIDE | ||||
| 47456-37010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47456-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47456F - PLATE, FRONT BRAKE SHOE GUIDE | ||||
| 47456-37010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47456-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47473A - NUT, FRONT BRAKE SHOE ADJUSTING | ||||
| 47473-37020 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47473-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47473A - NUT, FRONT BRAKE SHOE ADJUSTING | ||||
| 47473-37020 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47473-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-37090 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-37090 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-37090 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-37090 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
8 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-37080 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47510-37081 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47510-37080 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-37100 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47520-37100 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47520-37101 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-37080 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47530-37081 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47530-37080 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47538B - PLATE, WHEEL CYLINDER AJUSTER SPRING, FR | ||||
| 47538-37030 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47538-37030 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47538B - PLATE, WHEEL CYLINDER AJUSTER SPRING, FR | ||||
| 47538-37030 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47538-37030 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-37100 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47540-37100 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47540-37101 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-37130 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
2 | ||
| 31478-30010 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 31478-30010 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47553-37110 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47553-37110 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-37050 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47554-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-37050 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47554-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47556E - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47556-37010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47556-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47556E - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47556-37010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47556-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| Common parts | ||||
| 90080-52049 | ||||
| 90901-19042 | ||||
| 90901-19043 | ||||
| 90905-07016 | ||||
| 94142-61000 | ||||
| 94621-11400 | ||||
| 95381-02520 | ||||
| 96751-19007 | ||||
(0212- )BU410,420,WU410,XZU413,423..65T,75T..GEN,TAIW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-37070 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) RH |
2 | ||
| 04473-37070 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) RH |
2 | ||
| 04473-37080 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) LH |
2 | ||
| 04473-37080 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) LH |
2 | ||
| 04473-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN RH |
2 | ||
| 04473-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN RH |
2 | ||
| 04473-37080 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN LH |
2 | ||
| 04473-37080 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN LH |
2 | ||
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-37021 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T MARK NBK D2167 |
1 | ||
| 04494-37021 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T MARK NBK D2167 |
1 | ||
| 04494-37021 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) MARK NBK D2167 |
1 | ||
| 04494-37021 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) MARK NBK D2167 |
1 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-37080 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 04905-37080 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 04905-37080 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 04905-37080 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-37180 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47041-37180 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47041-37180 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47041-37180 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94130-01441 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
8 | ||
| 94130-01441 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
8 | ||
| 94130-01441 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
8 | ||
| 94130-01441 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-37180 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47042-37180 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47042-37180 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47042-37180 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47456F - PLATE, FRONT BRAKE SHOE GUIDE | ||||
| 47456-37010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47456-37010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47456-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47456-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47456F - PLATE, FRONT BRAKE SHOE GUIDE | ||||
| 47456-37010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47456-37010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47456-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47456-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47473A - NUT, FRONT BRAKE SHOE ADJUSTING | ||||
| 47473-37020 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47473-37020 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47473-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47473-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47473A - NUT, FRONT BRAKE SHOE ADJUSTING | ||||
| 47473-37020 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47473-37020 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47473-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47473-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-37090 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
8 | ||
| 47491-37090 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-37090 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
8 | ||
| 47491-37090 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-37090 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
8 | ||
| 47491-37090 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-37090 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
8 | ||
| 47491-37090 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
8 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-37080 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47510-37080 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47510-37081 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47510-37081 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47510-37080 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47510-37080 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-37100 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47520-37100 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47520-37100 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47520-37100 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47520-37101 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47520-37101 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-37080 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47530-37080 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47530-37081 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47530-37081 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47530-37080 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47530-37080 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47538B - PLATE, WHEEL CYLINDER AJUSTER SPRING, FR | ||||
| 47538-37030 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47538-37030 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47538-37030 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47538-37030 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47538B - PLATE, WHEEL CYLINDER AJUSTER SPRING, FR | ||||
| 47538-37030 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47538-37030 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47538-37030 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47538-37030 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-37100 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47540-37100 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47540-37100 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47540-37100 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47540-37101 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47540-37101 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-37130 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47547-37130 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
2 | ||
| 31478-30010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
2 | ||
| 31478-30010 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 31478-30010 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 31478-30010 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 31478-30010 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47553-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47553-37110 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47553-37110 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47553-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47553-37110 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47553-37110 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-37050 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47554-37050 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47554-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47554-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-37050 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47554-37050 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47554-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47554-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47555-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47555-37070 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47555-37070 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47555-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47555-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47555-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47555-37070 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47555-37070 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47555-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47555-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47556E - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47556-37010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47556-37010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47556-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47556-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47556E - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47556-37010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47556-37010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47556-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47556-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| Common parts | ||||
| 90901-19042 | ||||
| 90901-19043 | ||||
| 90905-07016 | ||||
| 93319-15010 | ||||
| 94142-61000 | ||||
| 94621-11400 | ||||
| 95381-02520 | ||||
| 96751-19007 | ||||
(0212-0610)WU410..GCC ; (0212- )XZU424..LHD..GEN ; (0212- )WU412,422,XZU412,4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-37070 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) RH |
2 | ||
| 04473-37070 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) RH |
2 | ||
| 04473-37080 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) LH |
2 | ||
| 04473-37080 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) LH |
2 | ||
| 04473-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN RH |
2 | ||
| 04473-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN RH |
2 | ||
| 04473-37080 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN LH |
2 | ||
| 04473-37080 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN LH |
2 | ||
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-37021 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T MARK NBK D2167 |
1 | ||
| 04494-37021 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T MARK NBK D2167 |
1 | ||
| 04494-37021 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) MARK NBK D2167 |
1 | ||
| 04494-37021 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) MARK NBK D2167 |
1 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-37080 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 04905-37080 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 04905-37080 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 04905-37080 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-37180 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47041-37180 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47041-37180 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47041-37180 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94130-01441 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
8 | ||
| 94130-01441 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
8 | ||
| 94130-01441 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
8 | ||
| 94130-01441 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-37180 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47042-37180 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47042-37180 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47042-37180 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47456F - PLATE, FRONT BRAKE SHOE GUIDE | ||||
| 47456-37010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47456-37010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47456-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47456-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47456F - PLATE, FRONT BRAKE SHOE GUIDE | ||||
| 47456-37010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47456-37010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47456-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47456-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47473A - NUT, FRONT BRAKE SHOE ADJUSTING | ||||
| 47473-37020 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47473-37020 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47473-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47473-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47473A - NUT, FRONT BRAKE SHOE ADJUSTING | ||||
| 47473-37020 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47473-37020 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47473-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47473-37020 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-37090 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
8 | ||
| 47491-37090 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-37090 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
8 | ||
| 47491-37090 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-37090 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
8 | ||
| 47491-37090 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-37090 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
8 | ||
| 47491-37090 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
8 | ||
| 47491-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
8 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-37080 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47510-37080 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47510-37081 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47510-37081 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47510-37080 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47510-37080 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-37100 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47520-37100 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47520-37100 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47520-37100 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47520-37101 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47520-37101 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-37080 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47530-37080 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47530-37081 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47530-37081 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47530-37080 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47530-37080 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47538B - PLATE, WHEEL CYLINDER AJUSTER SPRING, FR | ||||
| 47538-37030 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47538-37030 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47538-37030 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47538-37030 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47538B - PLATE, WHEEL CYLINDER AJUSTER SPRING, FR | ||||
| 47538-37030 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47538-37030 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47538-37030 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47538-37030 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-37100 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47540-37100 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 47540-37100 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47540-37100 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47540-37101 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47540-37101 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-37130 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47547-37130 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
2 | ||
| 31478-30010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
2 | ||
| 31478-30010 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 31478-30010 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 31478-30010 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 31478-30010 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47553-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47553-37110 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47553-37110 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47553-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47553-37110 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47553-37110 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-37050 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47554-37050 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47554-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47554-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-37050 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47554-37050 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 47554-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47554-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47555-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47555-37070 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47555-37070 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47555-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47555-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47555-37070 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47555-37070 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47555-37070 |
XZU424..LHD..GEN;WU410,XZU412,422..(65T,75T,85T)..(GCC,GEN) |
4 | ||
| 47555-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47555-37050 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
4 | ||
| 47556E - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47556-37010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47556-37010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47556-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47556-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47556E - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47556-37010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47556-37010 |
WU410,XZU412,414,422,424,434..(65T,75T,85T)..(ARL,GCC,GEN) |
4 | ||
| 47556-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| 47556-37010 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
4 | ||
| Common parts | ||||
| 90901-19042 | ||||
| 90901-19043 | ||||
| 90905-07016 | ||||
| 93319-15010 | ||||
| 94142-61000 | ||||
| 94621-11400 | ||||
| 95381-02520 | ||||
| 96751-19007 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
