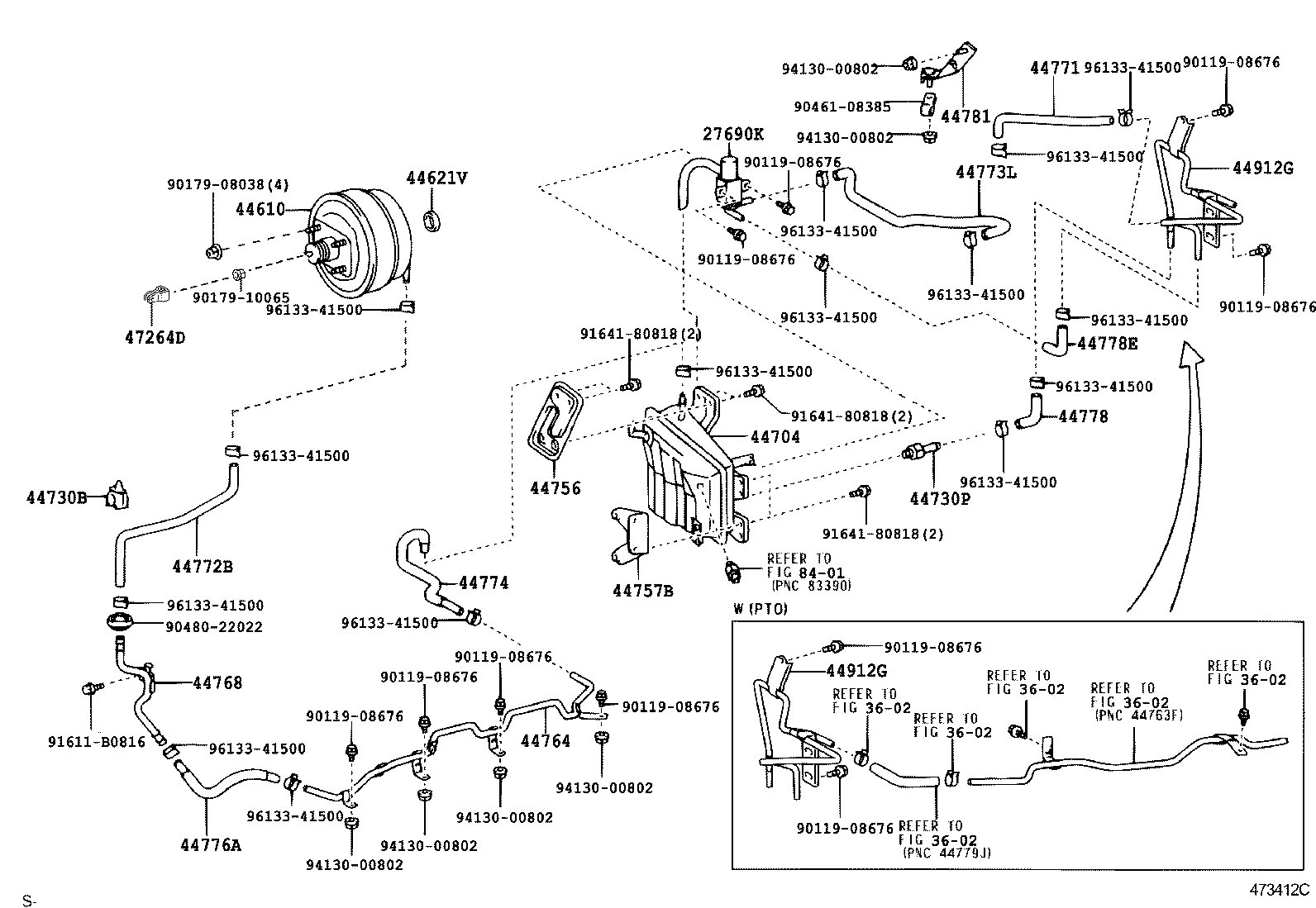

WU410R-TKMQS (2002)
Toyota Dyna
(0212-0610)WU410..RHD..GEN
W/O(ABS & CLUTCH BOOSTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78023 |
N04C..XZU415,425,435;J05C,S05C,W04D,15BFTE..BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 27690-78130 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37171 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 44610-37171 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36050 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 44621-36050 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37071 |
XZU414,424,434;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44704-37240 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL |
1 | ||
| 44704-37070 |
BU410,420,WU410,420,XZU404,41#,42#,43# |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37021 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44597-37020 |
BU410,420,WU410,420,XZU404,41#,42#,43# |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44756 - BRACKET, VACUUM RESERVOIR | ||||
| 44756-37100 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 44756-37100 |
WU412,42#;WU410..65T;WU410..75T..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 44757B - BRACKET, VACUUM TANK CLAMP, NO.2 | ||||
| 44757-37090 |
WU410,420,XZU404,41#,42#,43# |
1 | ||
| 44757-37091 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-37690 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37150 |
WU410,420,XZU404,412,414,420,422,424,430,434..RHD |
1 | ||
| 44768-37170 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37470 |
WU410..GCC,GEN |
1 | ||
| 44778-37060 |
WU412,42#;WU410..65T;WU410..75T..GEN NO.1 |
1 | ||
| 44771-37790 |
WU412,42#;WU410..65T;WU410..75T..GEN NO.2 |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-37110 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37270 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,417,423,427,433 |
1 | ||
| 44773-37120 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37110 |
XZU415,425,435;BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 44774-37320 |
WU412,422..GEN;WU412..GCC..CBU;WU410,XZU413,419,423,429,439..EUR,GCC,GEN |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37160 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 44776-37160 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44778E - HOSE, CONNECTOR TUBE TO SOLENOID | ||||
| 44778-37060 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-37080 |
WU410,420,XZU404,41#,42#,43# |
1 | ||
| 44781-37081 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-3V050 |
WU410..GCC,GEN |
1 | ||
| 44912-3V040 |
WU410..GCC,GEN W(PTO) |
1 | ||
| 44912-37B40 |
WU412,42#;WU410..65T;WU410..75T..GEN |
1 | ||
| 44912-37B50 |
WU410..65T;WU412,42#..5F;WU410..75T..GEN W(PTO) |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-3V040 |
WU410..GCC,GEN W(PTO) |
1 | ||
| 44912-3V050 |
WU410..GCC,GEN |
1 | ||
| 44912-37B40 |
WU412,42#;WU410..65T;WU410..75T..GEN |
1 | ||
| 44912-37B50 |
WU410..65T;WU412,42#..5F;WU410..75T..GEN W(PTO) |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90461-08385 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 91641-80818 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 3602 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0610- )WU412,42# ; (0610- )WU410..65T ; (0610- )WU410..75T..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78023 |
N04C..XZU415,425,435;J05C,S05C,W04D,15BFTE..BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 27690-78130 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37071 |
XZU414,424,434;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44704-37240 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL |
1 | ||
| 44704-37070 |
BU410,420,WU410,420,XZU404,41#,42#,43# |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44756 - BRACKET, VACUUM RESERVOIR | ||||
| 44756-37100 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 44756-37100 |
WU412,42#;WU410..65T;WU410..75T..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 44757B - BRACKET, VACUUM TANK CLAMP, NO.2 | ||||
| 44757-37090 |
WU410,420,XZU404,41#,42#,43# |
1 | ||
| 44757-37091 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37470 |
WU410..GCC,GEN |
1 | ||
| 44778-37060 |
WU412,42#;WU410..65T;WU410..75T..GEN NO.1 |
1 | ||
| 44771-37790 |
WU412,42#;WU410..65T;WU410..75T..GEN NO.2 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37470 |
WU410..GCC,GEN |
1 | ||
| 44778-37060 |
WU412,42#;WU410..65T;WU410..75T..GEN NO.1 |
1 | ||
| 44771-37790 |
WU412,42#;WU410..65T;WU410..75T..GEN NO.2 |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37270 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,417,423,427,433 |
1 | ||
| 44773-37120 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37110 |
XZU415,425,435;BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 44774-37320 |
WU412,422..GEN;WU412..GCC..CBU;WU410,XZU413,419,423,429,439..EUR,GCC,GEN |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-3V050 |
WU410..GCC,GEN |
1 | ||
| 44912-3V040 |
WU410..GCC,GEN W(PTO) |
1 | ||
| 44912-37B40 |
WU412,42#;WU410..65T;WU410..75T..GEN |
1 | ||
| 44912-37B50 |
WU410..65T;WU412,42#..5F;WU410..75T..GEN W(PTO) |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90461-08385 | ||||
| 91645-80825 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0610- )WU410..65T ; (0610- )WU412,42#..5F; (0610- )WU410..75T..GEN
W(PTO)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78023 |
N04C..XZU415,425,435;J05C,S05C,W04D,15BFTE..BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 27690-78130 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37071 |
XZU414,424,434;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44704-37240 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL |
1 | ||
| 44704-37070 |
BU410,420,WU410,420,XZU404,41#,42#,43# |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44756 - BRACKET, VACUUM RESERVOIR | ||||
| 44756-37100 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 44756-37100 |
WU412,42#;WU410..65T;WU410..75T..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 44757B - BRACKET, VACUUM TANK CLAMP, NO.2 | ||||
| 44757-37090 |
WU410,420,XZU404,41#,42#,43# |
1 | ||
| 44757-37091 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37470 |
WU410..GCC,GEN |
1 | ||
| 44778-37060 |
WU412,42#;WU410..65T;WU410..75T..GEN NO.1 |
1 | ||
| 44771-37790 |
WU412,42#;WU410..65T;WU410..75T..GEN NO.2 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37470 |
WU410..GCC,GEN |
1 | ||
| 44778-37060 |
WU412,42#;WU410..65T;WU410..75T..GEN NO.1 |
1 | ||
| 44771-37790 |
WU412,42#;WU410..65T;WU410..75T..GEN NO.2 |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37270 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,417,423,427,433 |
1 | ||
| 44773-37120 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37110 |
XZU415,425,435;BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 44774-37320 |
WU412,422..GEN;WU412..GCC..CBU;WU410,XZU413,419,423,429,439..EUR,GCC,GEN |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-3V050 |
WU410..GCC,GEN |
1 | ||
| 44912-3V040 |
WU410..GCC,GEN W(PTO) |
1 | ||
| 44912-37B40 |
WU412,42#;WU410..65T;WU410..75T..GEN |
1 | ||
| 44912-37B50 |
WU410..65T;WU412,42#..5F;WU410..75T..GEN W(PTO) |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90461-08385 | ||||
| 91645-80825 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 3602 | ||||
| 8401 | ||||

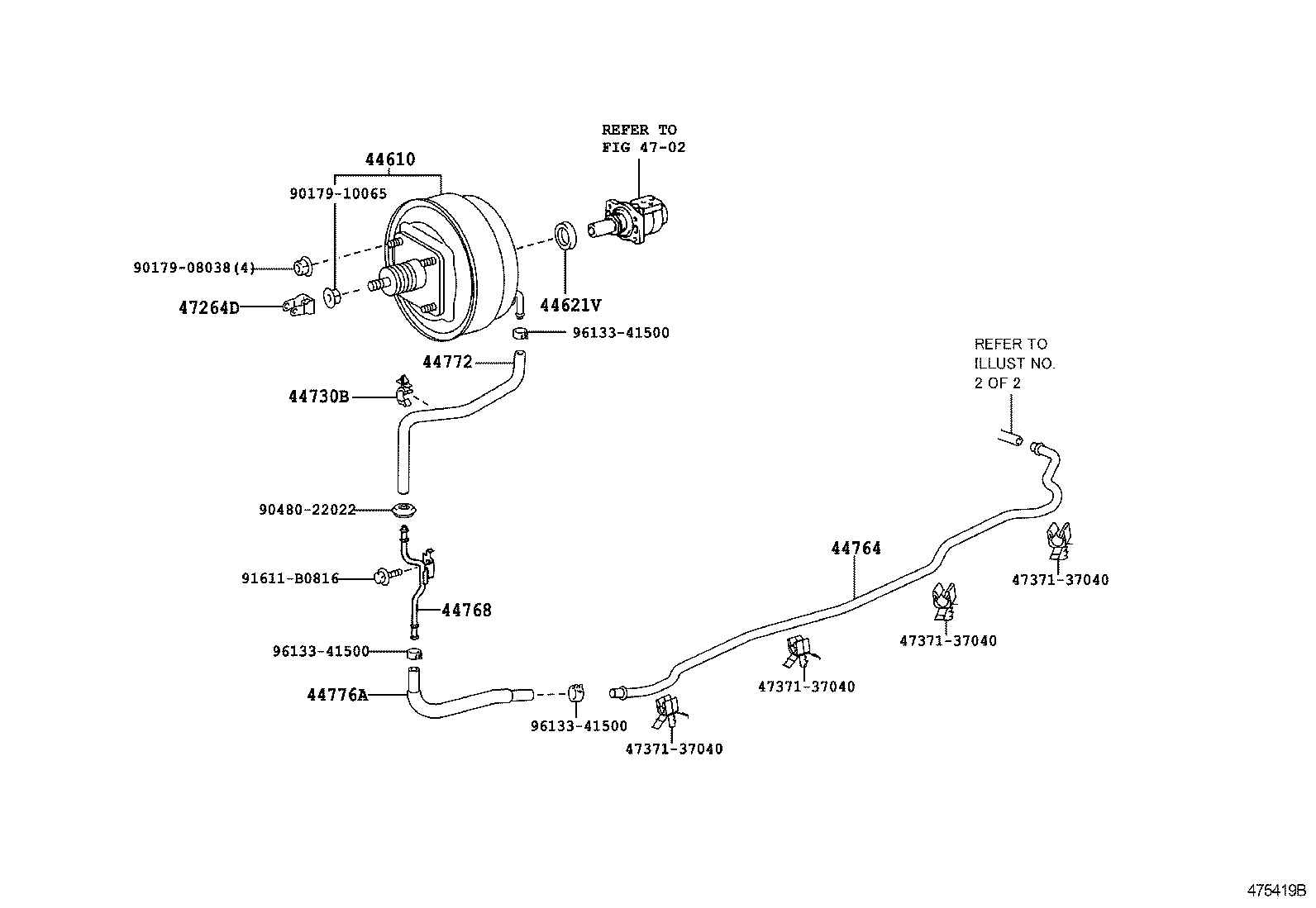

ILLUST NO. 1 OF 2(0610- )RHD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37171 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 44610-37171 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36050 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 44621-36050 |
WU41#,422,XZU413,417,423,427..GCC,GEN,TAIW |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37021 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 44597-37020 |
BU410,420,WU410,420,XZU404,41#,42#,43# |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-37690 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37150 |
WU410,420,XZU404,412,414,420,422,424,430,434..RHD |
1 | ||
| 44768-37170 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-37110 |
WU410..RHD..GEN |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37160 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 44776-37160 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4702 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
