Toyota Dyna WU410 PARKING BRAKE & CABLE

Manufacturers Home
Toyota
EU
DYNA
WU410R-TKMQS (2002)
4601 - PARKING BRAKE & CABLE

WU410R-TKMQS (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011

Engine W04D

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0110-0610)WU410,XZU412,414,422,424,434..65T,75T,85T..ARL,EUR,GCC,GEN ; (0304-0801)

Click highlighted areas on diagram

Part #	Description	Period	Qty
46210 - LEVER ASSY, PARKING BRAKE
46210-37091B0	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) DK.CHARCOAL,TRIM1#	12/2002 - 10/2006	1
46210-37091B0	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) DK.CHARCOAL,TRIM1#	12/2002 - 10/2006	1
46210-37100B0	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA DK.CHARCOAL,TRIM1#	10/2006 - 12/2009	1
46210-37100B0	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA DK.CHARCOAL,TRIM1#	10/2006 - 12/2009	1
46210-37101B0	WU410..RHD DK.CHARCOAL,TRIM1#	01/2010 - 06/2011	1
46210-37101B0	WU410..RHD DK.CHARCOAL,TRIM1#	01/2010 - 06/2011	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-37740	WU420;WU410..RHD..65T;WU410..75T..GEN	10/2006 - 06/2011	1
46420-37740	WU420;WU410..RHD..65T;WU410..75T..GEN	10/2006 - 06/2011	1
46420-37390	WU410..RHD..GEN	12/2002 - 10/2006	1
46420-37390	WU410..RHD..GEN	12/2002 - 10/2006	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-37630	WU410..GCC,GEN	12/2002 - 10/2006	1
46430-37630	WU410..GCC,GEN	12/2002 - 10/2006	1
46430-37A60	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
46430-37A60	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46452-37050	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
46452-37050	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37160	WU410..GCC,GEN	12/2002 - 10/2006	1
46453-37160	WU410..GCC,GEN	12/2002 - 10/2006	1
46453-37320	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
46453-37320	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
46453B - BRACKET, CABLE SUPPORT, NO.3
46453-37110	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
46453-37110	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
Common parts
90119-06315
90949-01167
90949-01925
91651-60816
91651-B0820
91651-B0825
94150-80800
Linked diagrams
8401

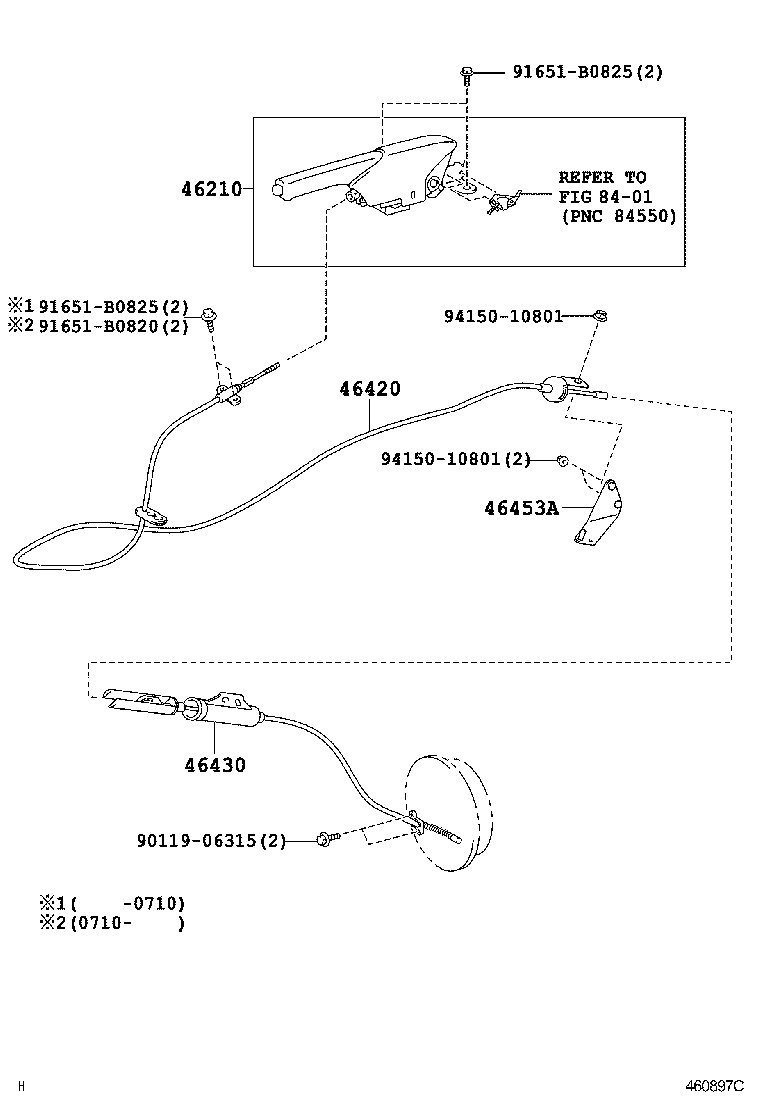

ILLUST NO. 1 OF 2(0610- )RHD..GEN ; (0801- )WU420 ; (0801-)WU410..65T..SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
46210 - LEVER ASSY, PARKING BRAKE
46210-37091B0	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) DK.CHARCOAL,TRIM1#	12/2002 - 10/2006	1
46210-37100B0	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA DK.CHARCOAL,TRIM1#	10/2006 - 12/2009	1
46210-37101B0	WU410..RHD DK.CHARCOAL,TRIM1#	01/2010 - 06/2011	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-37740	WU420;WU410..RHD..65T;WU410..75T..GEN	10/2006 - 06/2011	1
46420-37390	WU410..RHD..GEN	12/2002 - 10/2006	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-37630	WU410..GCC,GEN	12/2002 - 10/2006	1
46430-37A60	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37160	WU410..GCC,GEN	12/2002 - 10/2006	1
46453-37320	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
Common parts
90119-06315
91651-B0820
91651-B0825
94150-10801
Linked diagrams
8401

ILLUST NO. 1 OF 2(0608- )DCR ; (0610- )WU41#,422..LHD ; (0610- )XZU413,423..5F..75T ; (0701

Click highlighted areas on diagram

Part #	Description	Period	Qty
46210 - LEVER ASSY, PARKING BRAKE
46210-37091B0	WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) DK.CHARCOAL,TRIM1#	12/2002 - 10/2006	1
46210-37100B0	WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA DK.CHARCOAL,TRIM1#	10/2006 - 12/2009	1
46210-37101B0	WU410..RHD DK.CHARCOAL,TRIM1#	01/2010 - 06/2011	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-37740	WU420;WU410..RHD..65T;WU410..75T..GEN	10/2006 - 06/2011	1
46420-37390	WU410..RHD..GEN	12/2002 - 10/2006	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-37630	WU410..GCC,GEN	12/2002 - 10/2006	1
46430-37A60	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37160	WU410..GCC,GEN	12/2002 - 10/2006	1
46453-37320	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37160	WU410..GCC,GEN	12/2002 - 10/2006	1
46453-37320	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
Common parts
90119-06315
91651-B0820
91651-B0825
94150-10801
96160-01200
Linked diagrams
8401

WU410R-TKMQS (2002)

ILLUST NO. 1 OF 2(0110-0610)WU410,XZU412,414,422,424,434..65T,75T,85T..ARL,EUR,GCC,GEN ; (0304-0801)

ILLUST NO. 1 OF 2(0610- )RHD..GEN ; (0801- )WU420 ; (0801-)WU410..65T..SA

ILLUST NO. 1 OF 2(0608- )DCR ; (0610- )WU41#,422..LHD ; (0610- )XZU413,423..5F..75T ; (0701
