WU410R-TKMQS (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011
Engine W04D
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(0110-0610)RHD ; (0610-0801)SA ; (0801- )WU410,XZU420,430..75T,85T..SA

Click highlighted areas on diagram

diagram 44011 44015 44101E 44101E 44101L 44107 44107B 44107E 44107G 44108C 44108D 44108F 44142 44167 44168 45357 9002901001 9002901001 9002934002 9411551200 9453101200 9671135042
Part # Description Qty Price
44011 - PISTON SUB-ASSY, POWER
44011-37160

WU410,XZU412,414,422,424,434..RHD..(65T,75T,85T)..(ARL,GEN)

 1
44015 - SHAFT SUB-ASSY, SECTOR
44015-37110

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
44101E - RING, O(FOR STEERING WORM)
90029-20006

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

NO.2

 1
90029-20047

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

NO.1

 1
44101E - RING, O(FOR STEERING WORM)
90029-20006

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

NO.2

 1
90029-20047

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

NO.1

 1
44101L - SEAL, DUST(FOR POWER PISTON SUB-ASSY)
90029-20708

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
44107 - HOUSING SUB-ASSY, POWER STEERING GEAR
44107-37160

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90029-20061

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING)
90029-21023

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING)
90029-01515

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 2
44108C - COVER SUB-ASSY, SECTOR
44108-37160

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
44108D - RING, O(FOR SECTOR COVER)
90029-20006

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
44108F - SEAL, DUST(FOR SECTOR COVER)
90029-21023

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
44142 - NUT, LOCK
44142-37010

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
44167 - COVER, SECTOR SHAFT DUST
44167-37010

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
44168 - COVER, WORM SHAFT DUST
44168-25010

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
90029-02302

WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

 1
Common parts
90029-01001
90029-34002
94115-51200
94531-01200
96711-35042

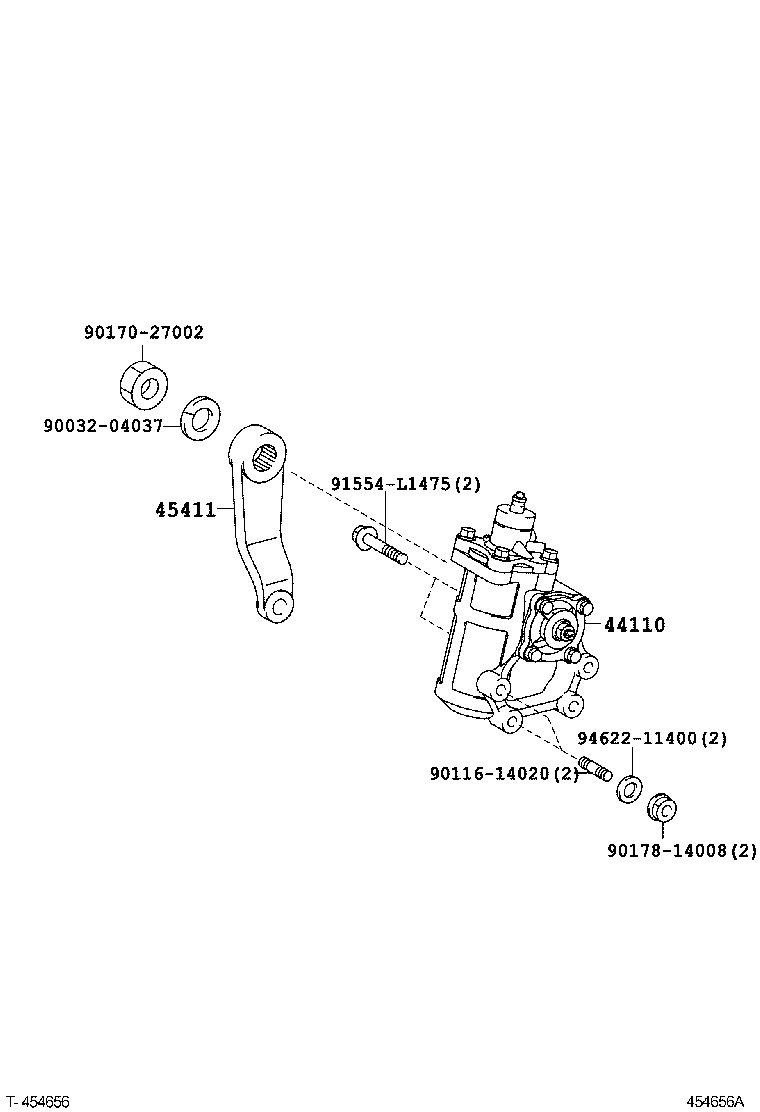

ILLUST NO. 1 OF 3(0610- )RHD..GEN ; (0801- )WU410..65T..SA; (0801- )WU420,XZU423,433..SA

Click highlighted areas on diagram

diagram 44110 45411 9003204037 9011614020 9017027002 9017814008 91554L1475 9462211400
Part # Description Qty Price
44110 - GEAR ASSY, POWER STEERING
44110-37160

WU410,XZU412,414,422,424,434..RHD..(65T,75T,85T)..(ARL,GEN)

 1
44110-37251

WU410..RHD

 1
44110-37250

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 1
45411 - ARM, PITMAN
45411-37170

WU410,XZU412,414,422,424,434..RHD..(65T,75T,85T)..(ARL,GEN)

 1
45411-37320

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 1
Common parts
90032-04037
90116-14020
90170-27002
90178-14008
91554-L1475
94622-11400

ILLUST NO. 1 OF 3(0110-0610)RHD ; (0610-0801)SA ; (0801- )WU410,XZU420,430..75T,85T..SA

Click highlighted areas on diagram

diagram 44110 45312 45411 9003116061 9010514002 9017030001 9020430040 9090101004 9413001401 9413001601 9453101400 9453101600 9453101600
Part # Description Qty Price
44110 - GEAR ASSY, POWER STEERING
44110-37160

WU410,XZU412,414,422,424,434..RHD..(65T,75T,85T)..(ARL,GEN)

 1
44110-37251

WU410..RHD

 1
44110-37250

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 1
45312 - BRACKET, STEERING GEAR HOUSING
45302-37010

WU410,420,XZU404,412,414,420,422,424,430,434..RHD

 1
45411 - ARM, PITMAN
45411-37170

WU410,XZU412,414,422,424,434..RHD..(65T,75T,85T)..(ARL,GEN)

 1
45411-37320

WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA

 1
Common parts
90031-16061
90105-14002
90170-30001
90204-30040
90901-01004
94130-01401
94130-01601
94531-01400
94531-01600
