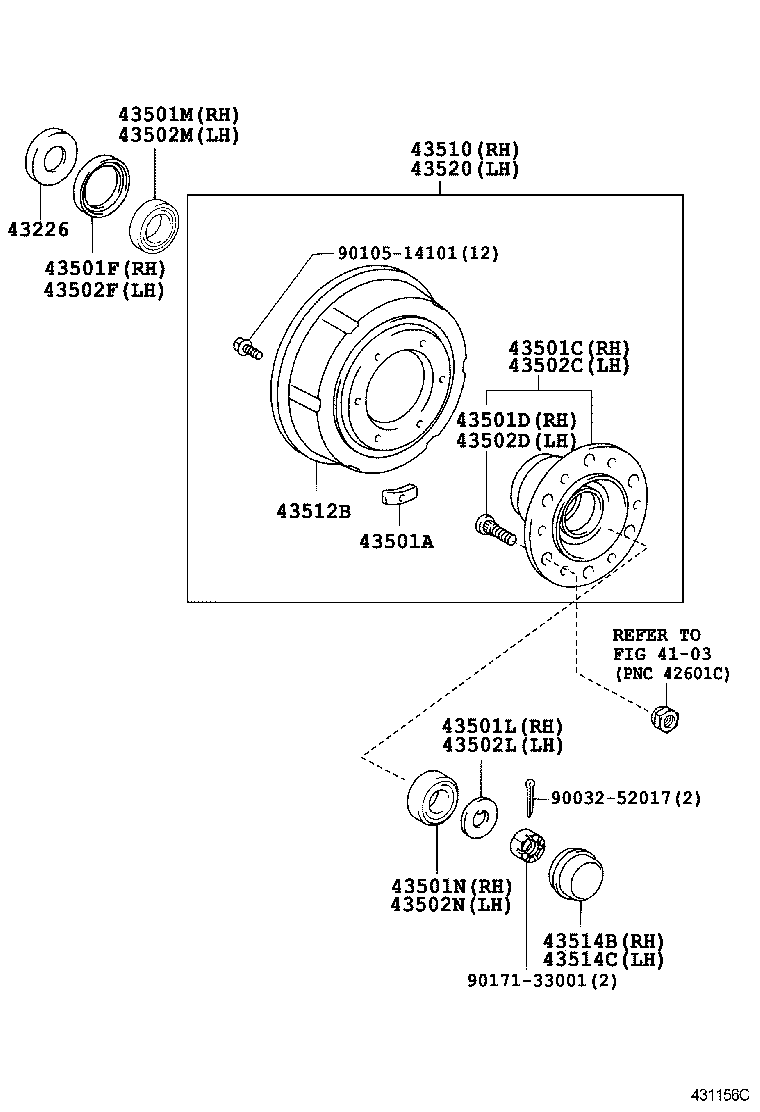

WU410R-TKMQS (2002)
Toyota Dyna
(0212-0610)XZU424..LHD..GEN ; (0212-0610)WU410,XZU412,422..65T,75T,85T..GCC,GEN ; (
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43226 - SPACER, STEERING KNUCKLE | ||||
| 43226-36010 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 43501A - PIECE, BALANCE (FOR FRONT BRAKE DRUM) | ||||
| 90937-01117 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) 10G |
1 | ||
| 90937-01119 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) 30G |
1 | ||
| 90937-01118 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) 20G |
1 | ||
| 90937-01120 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) 40G |
1 | ||
| 90937-01122 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) 60G |
1 | ||
| 90937-01121 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) 50G |
1 | ||
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43501-37110 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02071 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90033-19009 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-33001 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90368-50001 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90033-66032 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-37110 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02072 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90033-19009 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-33001 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90368-50001 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90033-66032 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH | ||||
| 43510-37240 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43512B - DRUM, BRAKE | ||||
| 43512-37130 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 43512-37130 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-37040 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-37040 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH | ||||
| 43520-37240 |
XZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90032-52017 | ||||
| 90105-14101 | ||||
| 90171-33001 | ||||
| Linked diagrams | ||||
| 4103 | ||||
(0610- )WU412,422,XZU423,433 ; (0610- )WU410,XZU413,415,417,419,425,427,429,4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43226 - SPACER, STEERING KNUCKLE | ||||
| 43226-36010 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 43226-36010 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 43501A - PIECE, BALANCE (FOR FRONT BRAKE DRUM) | ||||
| 90937-01117 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) 10G |
1 | ||
| 90937-01117 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) 10G |
1 | ||
| 90937-01119 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) 30G |
1 | ||
| 90937-01119 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) 30G |
1 | ||
| 90937-01118 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) 20G |
1 | ||
| 90937-01118 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) 20G |
1 | ||
| 90937-01120 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) 40G |
1 | ||
| 90937-01120 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) 40G |
1 | ||
| 90937-01122 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) 60G |
1 | ||
| 90937-01122 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) 60G |
1 | ||
| 90937-01121 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) 50G |
1 | ||
| 90937-01121 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) 50G |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02071 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90942-02071 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90033-19009 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 90033-19009 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-33001 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 90214-33001 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90368-50001 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 90368-50001 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90033-66032 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 90033-66032 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02072 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90942-02072 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90033-19009 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 90033-19009 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-33001 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 90214-33001 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90368-50001 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 90368-50001 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90033-66032 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 90033-66032 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43510H - HUB & DISC(DRUM) ASSY, FRONT AXLE, RH | ||||
| 43510-39295 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 43510-39295 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 43512B - DRUM, BRAKE | ||||
| 43512-37130 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 43512-37130 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
2 | ||
| 43512-37130 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
2 | ||
| 43512-37130 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-37040 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43514-37040 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-37040 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43514-37040 |
XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN) |
1 | ||
| 43520A - HUB & DISC(DRUM) ASSY, FRONT AXLE, LH | ||||
| 43520-39275 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| 43520-39275 |
WU412,422;WU410,XZU413,423..(65T,75T)..GEN |
1 | ||
| Common parts | ||||
| 90032-52017 | ||||
| 90105-14101 | ||||
| 90171-33001 | ||||
| Linked diagrams | ||||
| 4103 | ||||
