WU410R-TKMQS (2002)
Toyota Dyna

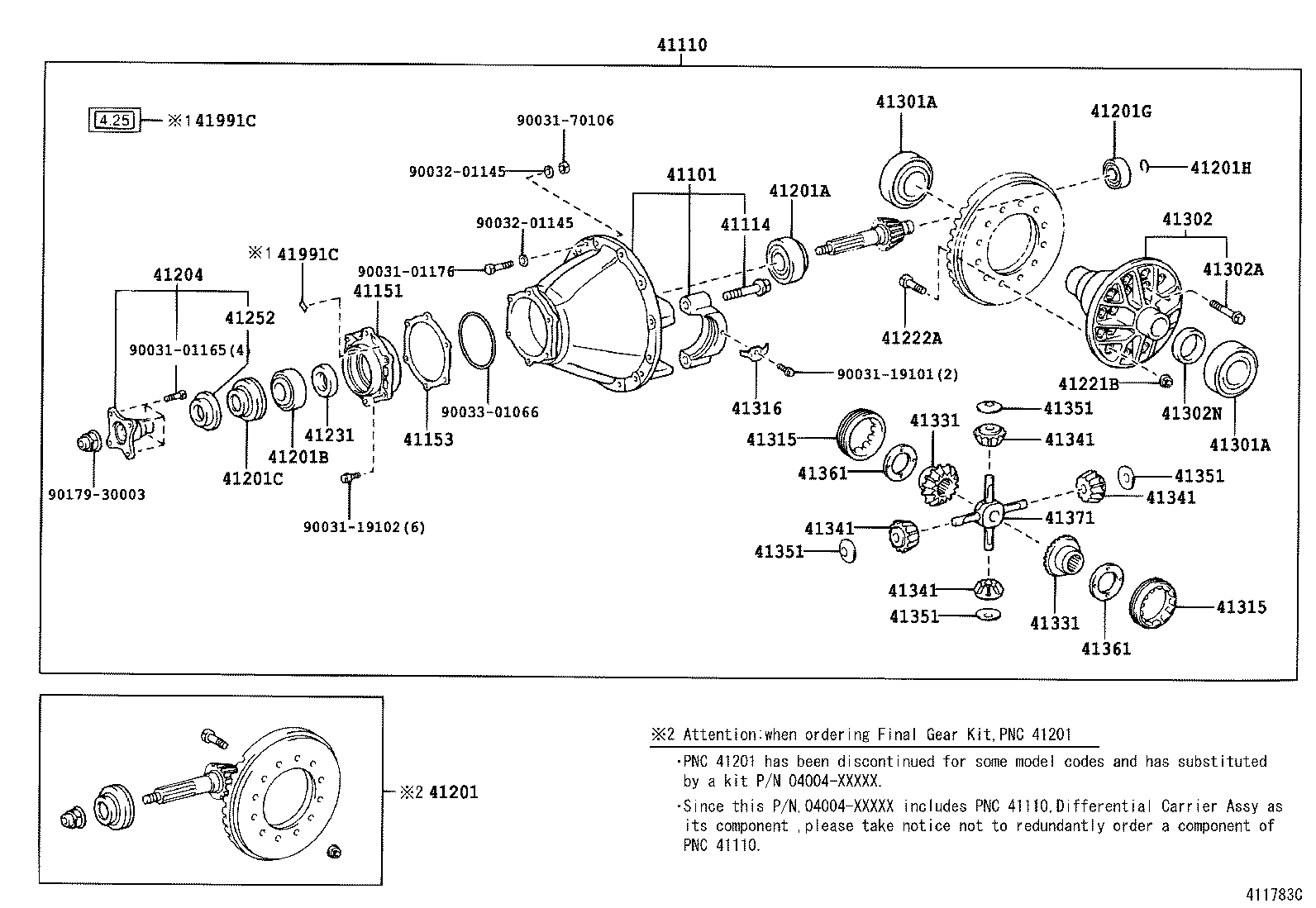

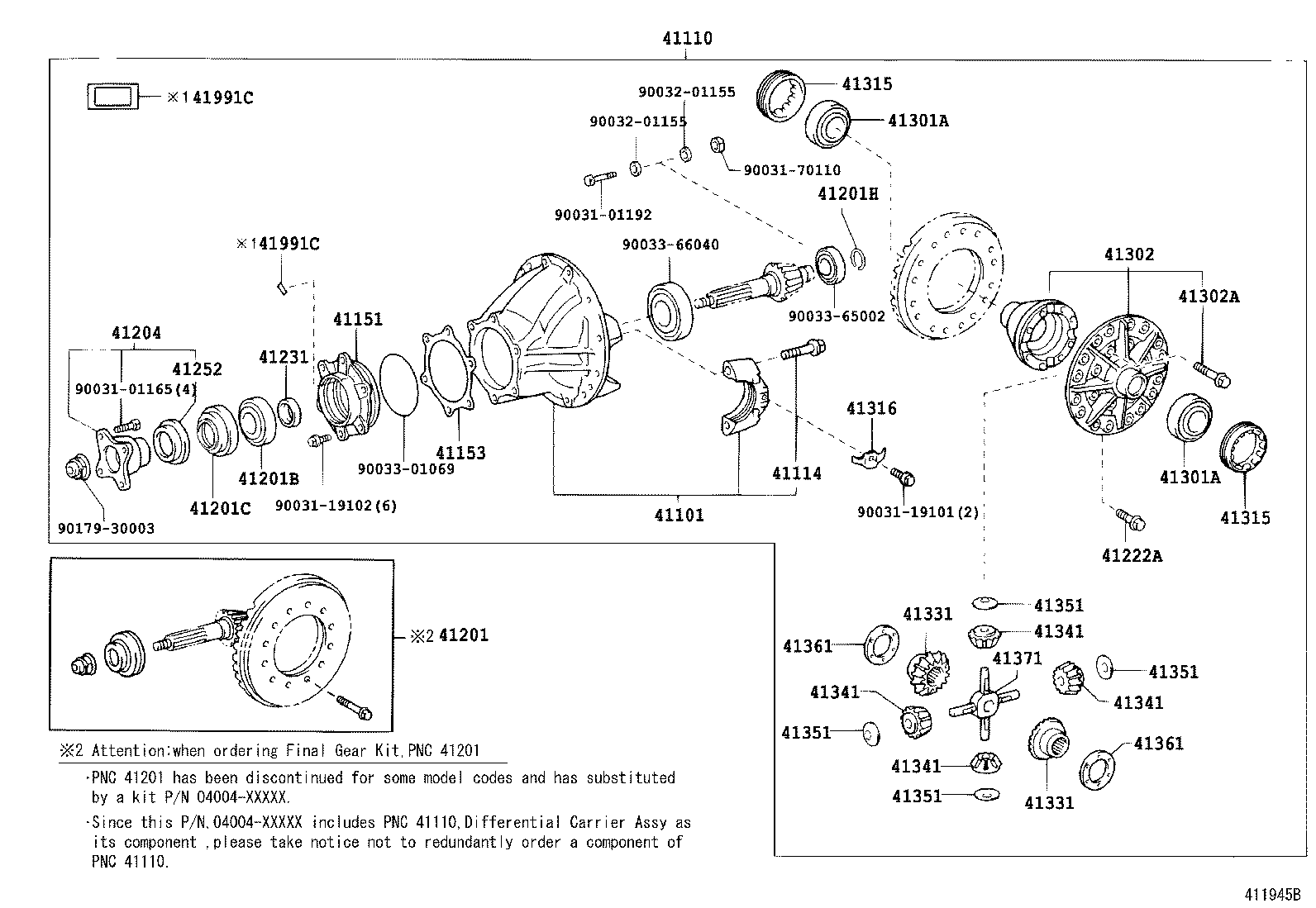

ILLUST NO. 1 OF 2(0110-0311)55T,65T,75T
12 INCHES DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-36040 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41101-37060 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,435..(55T,65T,75T)..(DCRTJ,DCRTK,DSL) |
1 | ||
| 41101-37060 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
1 | ||
| 41101B - PIN, RING (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90253-22002 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-37180 |
WU410..GEN;WU410..75T..SA;XZU412..LHD..65T;WU420,XZU412,420,422..75T *FGR=37:6=6.167 |
1 | ||
| 41110-37170 |
WU410..65T;WU410..75T..SA;XZU412..LHD..55T;WU420,XZU412,422..65T,75T *FGR=35:6=5.833 |
1 | ||
| 41110-37390 |
WU410..65T;XZU423..SA;WU412,42#..5F *FGR=35:6=5.833 |
1 | ||
| 41110-37390 |
WU410..65T;WU410..75T..SA;XZU412..LHD..55T;WU420,XZU412,422..65T,75T *FGR=35:6=5.833 |
1 | ||
| 41110-37400 |
WU420..75T;WU412,422..5F;WU410,XZU413,423..5F..(65T,75T)..GEN *FGR=37:6=6.167 |
1 | ||
| 41110-37410 |
WU41#,422..GEN *FGR=39:6=6.500 |
1 | ||
| 41110-37400 |
WU410..GEN;WU410..75T..SA;WU420,XZU412,420,422..75T;BU410,420,XZU412..LHD..65T *FGR=37:6=6.167 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-16009 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 90031-05043 |
XZU412,422..5F..(55T,65T,75T);WU410,420,XZU404,414,420,424,434..55T,65T,75T |
4 | ||
| 41151 - CAGE, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41151-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
1 | ||
| 41151-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41151-37030 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,435,439..(55T,65T,75T)..(DCRTJ,DCRTK,DSL) |
1 | ||
| 41153 - SHIM, DIFFERENTIAL DRIVE PINION CAGE | ||||
| 41153-36030 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=0.25 |
1 | ||
| 41153-36010 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=0.10 |
1 | ||
| 41153-36020 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=0.15 |
1 | ||
| 41153-36040 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=0.45 |
1 | ||
| 41153-37110 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=0.45 |
1 | ||
| 41153-37120 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=0.50 |
1 | ||
| 41153-37090 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=0.30 |
1 | ||
| 41153-37100 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=0.40 |
1 | ||
| 41162 - GASKET, DIFFERENTIAL DRIVE PINION COVER | ||||
| 41162-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
2 | ||
| 41162 - GASKET, DIFFERENTIAL DRIVE PINION COVER | ||||
| 41162-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
2 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80153 |
WU410..65T;WU410..75T..SA;XZU412..LHD..55T;WU420,XZU412,422..65T,75T *FGR=35:6=5.833 |
1 | ||
| 41201-80287 |
WU410..65T;WU410..75T..SA;XZU412..LHD..55T;WU420,XZU412,422..65T,75T *FGR=35:6=5.833 |
1 | ||
| 41201-80293 |
WU410..GEN;WU410..75T..SA;WU420,XZU412,420,422..75T;BU410,420,XZU412..LHD..65T *FGR=37:6=6.167 |
1 | ||
| 41201-80287 |
WU412,422..5F;WU410..65T..(GCC,GEN) *FGR=35:6=5.833 |
1 | ||
| 41201-80549 |
WU410..65T;XZU423..SA;WU412,42#..5F *FGR=35:6=5.833 |
1 | ||
| 41201-80554 |
WU420..75T;WU412,422..5F;WU410,XZU413,423..5F..(65T,75T)..GEN *FGR=37:6=6.167 |
1 | ||
| 41201-80293 |
WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN *FGR=37:6=6.167 |
1 | ||
| 41201-80555 |
WU41#,422..GEN *FGR=39:6=6.500 |
1 | ||
| 41201-80351 |
WU41#,422..GEN *FGR=39:6=6.500 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-49001 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90033-66038 |
XZU412,422..5F..(55T,65T,75T);WU410,420,XZU404,414,420,424,434..55T,65T,75T |
1 | ||
| 90366-45001 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90033-11039 |
XZU412,422..5F..(55T,65T,75T);WU410,420,XZU404,414,420,424,434..55T,65T,75T |
1 | ||
| 90311-58010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-45021 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.82 |
1 | ||
| 90564-45025 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.90 |
1 | ||
| 90564-45020 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.80 |
1 | ||
| 90564-45022 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.84 |
1 | ||
| 90564-45026 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=2.00 |
1 | ||
| 90564-45027 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=2.10 |
1 | ||
| 90564-45024 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.88 |
1 | ||
| 90564-45023 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.86 |
1 | ||
| 90564-45034 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=2.80 |
1 | ||
| 90564-45030 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=2.40 |
1 | ||
| 90564-45032 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=2.60 |
1 | ||
| 90564-45028 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=2.20 |
1 | ||
| 90564-45029 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=2.30 |
1 | ||
| 90564-45036 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=3.00 |
1 | ||
| 90564-45037 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=3.10 |
1 | ||
| 90564-45033 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=2.70 |
1 | ||
| 90564-45039 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=3.30 |
1 | ||
| 90564-45046 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.81 |
1 | ||
| 90564-45049 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.87 |
1 | ||
| 90564-45038 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=3.20 |
1 | ||
| 90564-45047 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.83 |
1 | ||
| 90564-45050 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.89 |
1 | ||
| 90564-45031 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=2.50 |
1 | ||
| 90564-45048 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.85 |
1 | ||
| 90564-45035 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=2.90 |
1 | ||
| 41201G - BEARING, DIFFERENTIAL DRIVE PINION CYLINDLICAL ROLLER | ||||
| 90365-25030 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41201H - RING, DRIVE PINION CYLINDRICAL ROLLER BEARING LOCKING | ||||
| 90035-20024 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
1 | ||
| 90520-23034 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37030 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41204-37080 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-24001 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-36020 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-36030 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
6 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90031-01193 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..55T,65T,75T |
16 | ||
| 90031-01193 |
WU41#,422,XZU413,423..5F..(GCC,GEN) |
16 | ||
| 90101-16015 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-36050 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41231-37470 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.525 |
1 | ||
| 41231-37420 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.400 |
1 | ||
| 41231-37500 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.600 |
1 | ||
| 41231-37490 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.575 |
1 | ||
| 41231-37520 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.650 |
1 | ||
| 41231-37480 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.550 |
1 | ||
| 41231-37430 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.425 |
1 | ||
| 41231-37440 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.450 |
1 | ||
| 41231-37530 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.675 |
1 | ||
| 41231-37450 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.475 |
1 | ||
| 41231-37510 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.625 |
1 | ||
| 41231-37460 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.500 |
1 | ||
| 41231-37550 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.725 |
1 | ||
| 41231-37560 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.750 |
1 | ||
| 41231-37580 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.800 |
1 | ||
| 41231-37540 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.700 |
1 | ||
| 41231-37570 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.775 |
1 | ||
| 41231-37600 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.850 |
1 | ||
| 41231-37610 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.875 |
1 | ||
| 41231-37590 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.825 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-37030 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 37341-89203 |
XZU412,422..5F..(55T,65T,75T);WU410,420,XZU404,414,420,424,434..55T,65T,75T |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60001 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
2 | ||
| 90366-55054 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60001 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
2 | ||
| 90366-55054 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-36040 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41301-37040 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-12047 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
12 | ||
| 90031-05098 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
8 | ||
| 41314 - RETAINER, DRIVE PINION BEARING | ||||
| 41304-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) FRONT |
1 | ||
| 41314-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) REAR |
2 | ||
| 41314 - RETAINER, DRIVE PINION BEARING | ||||
| 41304-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) FRONT |
1 | ||
| 41314-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) REAR |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36020 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
2 | ||
| 41315-37020 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36020 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
2 | ||
| 41315-37020 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-36020 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) TYPE B:REFER ILLUST. |
2 | ||
| 41316-36020 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) TYPE A:REFER ILLUST. |
2 | ||
| 41316-37010 |
XZU412,422..5F..(55T,65T,75T);WU410,420,XZU404,414,420,424,434..55T,65T,75T |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-36020 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) TYPE B:REFER ILLUST. |
2 | ||
| 41316-36020 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) TYPE A:REFER ILLUST. |
2 | ||
| 41316-37010 |
XZU412,422..5F..(55T,65T,75T);WU410,420,XZU404,414,420,424,434..55T,65T,75T |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36031 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
2 | ||
| 41331-37040 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36031 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
2 | ||
| 41331-37040 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41341-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41341-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41341-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41341-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41351-37020 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41351-37020 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41351-37020 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41351-37020 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-36020 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.5 |
2 | ||
| 41361-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=2.0 |
2 | ||
| 41361-36010 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.4 |
2 | ||
| 41361-36040 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.7 |
2 | ||
| 41361-36030 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.6 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-36020 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.5 |
2 | ||
| 41361-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=2.0 |
2 | ||
| 41361-36010 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.4 |
2 | ||
| 41361-36040 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.7 |
2 | ||
| 41361-36030 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.6 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-37020 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T |
1 | ||
| 41371-36020 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41371-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
1 | ||
| Common parts | ||||
| 91112-81440 | ||||
| 91512-61240 | ||||
| 91611-60635 | ||||
| 91611-60814 | ||||
| 94531-01400 | ||||

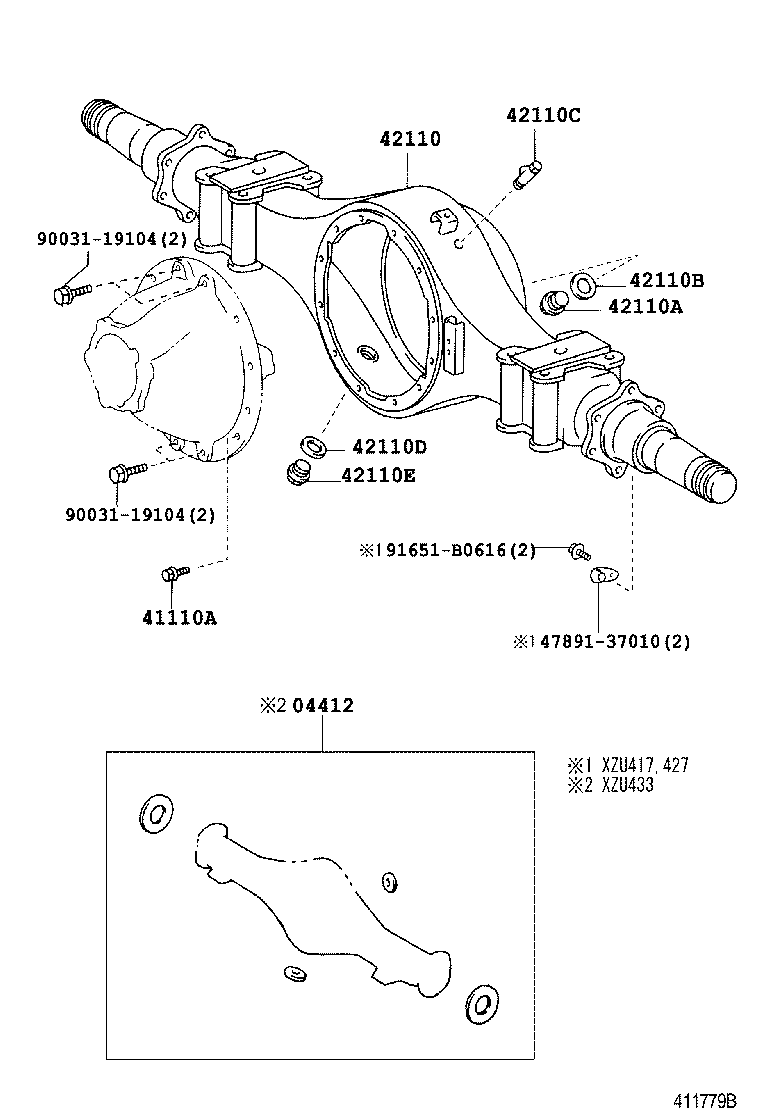

ILLUST NO. 2 OF 2(0212- )XZU412,422,424..85T ; (0212- )BU410,420,WU412,422,XZU417,427,430,433,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-37090 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,415,423,425,435..(65T,75T)..(DCRTJ,DCRTK,DSL) |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10060 |
XZU412,422..5F..(55T,65T,75T);WU410,XZU404,414,424..(55T,65T,75T)..(ARL,GCC,GEN) S=19 & 12,L=46 |
2 | ||
| 90116-10059 |
XZU412,422..5F..(55T,65T,75T);WU410,XZU404,414,424..(55T,65T,75T)..(ARL,GCC,GEN) S=19 & 12,L=57 |
2 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-37350 |
XZU414,424..(65T,75T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T)..(GCC,GEN) |
1 | ||
| 42110-37350 |
WU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423..65T,75T |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
XZU412,422..5F..(55T,65T,75T);WU410,XZU404,414,424..(55T,65T,75T)..(ARL,GCC,GEN) |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
XZU412,422..5F..(55T,65T,75T);WU410,XZU404,414,424..(55T,65T,75T)..(ARL,GCC,GEN) |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03138 |
XZU412,422..5F..(55T,65T,75T);WU410,XZU404,414,424..(55T,65T,75T)..(ARL,GCC,GEN) |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
XZU412,422..5F..(55T,65T,75T);WU410,XZU404,414,424..(55T,65T,75T)..(ARL,GCC,GEN) |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
XZU412,422..5F..(55T,65T,75T);WU410,XZU404,414,424..(55T,65T,75T)..(ARL,GCC,GEN) |
1 | ||
| Common parts | ||||
| 47891-37010 | ||||
| 90031-19104 | ||||
| 91651-B0616 | ||||
ILLUST NO. 1 OF 2(0212- )XZU412,422,424..85T ; (0212- )BU410,420,WU412,422,XZU417,427,430,433,
13 INCHES DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-36040 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41101-37060 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,435..(55T,65T,75T)..(DCRTJ,DCRTK,DSL) |
1 | ||
| 41101-37060 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-37180 |
WU410..GEN;WU410..75T..SA;XZU412..LHD..65T;WU420,XZU412,420,422..75T *FGR=37:6=6.167 |
1 | ||
| 41110-37170 |
WU410..65T;WU410..75T..SA;XZU412..LHD..55T;WU420,XZU412,422..65T,75T *FGR=35:6=5.833 |
1 | ||
| 41110-37390 |
WU410..65T;XZU423..SA;WU412,42#..5F *FGR=35:6=5.833 |
1 | ||
| 41110-37390 |
WU410..65T;WU410..75T..SA;XZU412..LHD..55T;WU420,XZU412,422..65T,75T *FGR=35:6=5.833 |
1 | ||
| 41110-37400 |
WU420..75T;WU412,422..5F;WU410,XZU413,423..5F..(65T,75T)..GEN *FGR=37:6=6.167 |
1 | ||
| 41110-37410 |
WU41#,422..GEN *FGR=39:6=6.500 |
1 | ||
| 41110-37400 |
WU410..GEN;WU410..75T..SA;WU420,XZU412,420,422..75T;BU410,420,XZU412..LHD..65T *FGR=37:6=6.167 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-16009 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 90031-05043 |
XZU412,422..5F..(55T,65T,75T);WU410,420,XZU404,414,420,424,434..55T,65T,75T |
4 | ||
| 41151 - CAGE, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41151-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
1 | ||
| 41151-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41151-37030 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,435,439..(55T,65T,75T)..(DCRTJ,DCRTK,DSL) |
1 | ||
| 41153 - SHIM, DIFFERENTIAL DRIVE PINION CAGE | ||||
| 41153-36030 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=0.25 |
1 | ||
| 41153-36010 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=0.10 |
1 | ||
| 41153-36020 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=0.15 |
1 | ||
| 41153-36040 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=0.45 |
1 | ||
| 41153-37110 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=0.45 |
1 | ||
| 41153-37120 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=0.50 |
1 | ||
| 41153-37090 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=0.30 |
1 | ||
| 41153-37100 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=0.40 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80153 |
WU410..65T;WU410..75T..SA;XZU412..LHD..55T;WU420,XZU412,422..65T,75T *FGR=35:6=5.833 |
1 | ||
| 41201-80287 |
WU410..65T;WU410..75T..SA;XZU412..LHD..55T;WU420,XZU412,422..65T,75T *FGR=35:6=5.833 |
1 | ||
| 41201-80293 |
WU410..GEN;WU410..75T..SA;WU420,XZU412,420,422..75T;BU410,420,XZU412..LHD..65T *FGR=37:6=6.167 |
1 | ||
| 41201-80287 |
WU412,422..5F;WU410..65T..(GCC,GEN) *FGR=35:6=5.833 |
1 | ||
| 41201-80549 |
WU410..65T;XZU423..SA;WU412,42#..5F *FGR=35:6=5.833 |
1 | ||
| 41201-80554 |
WU420..75T;WU412,422..5F;WU410,XZU413,423..5F..(65T,75T)..GEN *FGR=37:6=6.167 |
1 | ||
| 41201-80293 |
WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN *FGR=37:6=6.167 |
1 | ||
| 41201-80555 |
WU41#,422..GEN *FGR=39:6=6.500 |
1 | ||
| 41201-80351 |
WU41#,422..GEN *FGR=39:6=6.500 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-49001 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90033-66038 |
XZU412,422..5F..(55T,65T,75T);WU410,420,XZU404,414,420,424,434..55T,65T,75T |
1 | ||
| 90366-45001 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90033-11039 |
XZU412,422..5F..(55T,65T,75T);WU410,420,XZU404,414,420,424,434..55T,65T,75T |
1 | ||
| 90311-58010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41201G - BEARING, DIFFERENTIAL DRIVE PINION CYLINDLICAL ROLLER | ||||
| 90365-25030 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41201H - RING, DRIVE PINION CYLINDRICAL ROLLER BEARING LOCKING | ||||
| 90035-20024 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
1 | ||
| 90520-23034 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37030 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41204-37080 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90031-01193 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..55T,65T,75T |
16 | ||
| 90031-01193 |
WU41#,422,XZU413,423..5F..(GCC,GEN) |
16 | ||
| 90101-16015 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-36050 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41231-37470 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.525 |
1 | ||
| 41231-37420 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.400 |
1 | ||
| 41231-37500 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.600 |
1 | ||
| 41231-37490 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.575 |
1 | ||
| 41231-37520 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.650 |
1 | ||
| 41231-37480 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.550 |
1 | ||
| 41231-37430 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.425 |
1 | ||
| 41231-37440 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.450 |
1 | ||
| 41231-37530 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.675 |
1 | ||
| 41231-37450 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.475 |
1 | ||
| 41231-37510 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.625 |
1 | ||
| 41231-37460 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.500 |
1 | ||
| 41231-37550 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.725 |
1 | ||
| 41231-37560 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.750 |
1 | ||
| 41231-37580 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.800 |
1 | ||
| 41231-37540 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.700 |
1 | ||
| 41231-37570 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.775 |
1 | ||
| 41231-37600 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.850 |
1 | ||
| 41231-37610 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.875 |
1 | ||
| 41231-37590 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.825 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-37030 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 37341-89203 |
XZU412,422..5F..(55T,65T,75T);WU410,420,XZU404,414,420,424,434..55T,65T,75T |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60001 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
2 | ||
| 90366-55054 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60001 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
2 | ||
| 90366-55054 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-36040 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41301-37040 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-12047 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
12 | ||
| 90031-05098 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36020 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
2 | ||
| 41315-37020 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36020 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
2 | ||
| 41315-37020 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-36020 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) TYPE B:REFER ILLUST. |
2 | ||
| 41316-36020 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) TYPE A:REFER ILLUST. |
2 | ||
| 41316-37010 |
XZU412,422..5F..(55T,65T,75T);WU410,420,XZU404,414,420,424,434..55T,65T,75T |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36031 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
2 | ||
| 41331-37040 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36031 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
2 | ||
| 41331-37040 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41341-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41341-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41341-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41341-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41351-37020 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41351-37020 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41351-37020 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41351-37020 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-36020 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.5 |
2 | ||
| 41361-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=2.0 |
2 | ||
| 41361-36010 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.4 |
2 | ||
| 41361-36040 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.7 |
2 | ||
| 41361-36030 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.6 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-36020 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.5 |
2 | ||
| 41361-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=2.0 |
2 | ||
| 41361-36010 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.4 |
2 | ||
| 41361-36040 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.7 |
2 | ||
| 41361-36030 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.6 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-37020 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T |
1 | ||
| 41371-36020 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41371-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
1 | ||
| 41991C - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-37100 |
XZU412..LHD..55T;WU410..65T..(GCC,GEN);XZU412,422..5F..(65T,75T) MARK 5.83 |
1 | ||
| 41991-37110 |
WU410..GEN;XZU412..LHD..65T;XZU412,422..5F..75T MARK 6.16 |
1 | ||
| 41991-37100 |
WU410..65T;XZU423..SA;WU412,42#..5F MARK 5.83 |
1 | ||
| 41991-37120 |
WU41#,422..GEN MARK 6.50 |
1 | ||
| 41991-37110 |
WU420..75T;WU412,422..5F;WU410,XZU413,423..5F..(65T,75T)..GEN MARK 6.16 |
1 | ||
| 41991C - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-37100 |
XZU412..LHD..55T;WU410..65T..(GCC,GEN);XZU412,422..5F..(65T,75T) MARK 5.83 |
1 | ||
| 41991-37110 |
WU410..GEN;XZU412..LHD..65T;XZU412,422..5F..75T MARK 6.16 |
1 | ||
| 41991-37100 |
WU410..65T;XZU423..SA;WU412,42#..5F MARK 5.83 |
1 | ||
| 41991-37120 |
WU41#,422..GEN MARK 6.50 |
1 | ||
| 41991-37110 |
WU420..75T;WU412,422..5F;WU410,XZU413,423..5F..(65T,75T)..GEN MARK 6.16 |
1 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01176 | ||||
| 90031-19101 | ||||
| 90031-19102 | ||||
| 90031-70106 | ||||
| 90032-01145 | ||||
| 90033-01066 | ||||
| 90179-30003 | ||||
ILLUST NO. 1 OF 2(0311- )BU410,420,XZU404,417,427..55T,65T ; (0311- )WU41#,42#,XZU412,413,414,
12 INCHES DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-36040 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41101-37060 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,435..(55T,65T,75T)..(DCRTJ,DCRTK,DSL) |
1 | ||
| 41101-37060 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-37180 |
WU410..GEN;WU410..75T..SA;XZU412..LHD..65T;WU420,XZU412,420,422..75T *FGR=37:6=6.167 |
1 | ||
| 41110-37170 |
WU410..65T;WU410..75T..SA;XZU412..LHD..55T;WU420,XZU412,422..65T,75T *FGR=35:6=5.833 |
1 | ||
| 41110-37390 |
WU410..65T;XZU423..SA;WU412,42#..5F *FGR=35:6=5.833 |
1 | ||
| 41110-37390 |
WU410..65T;WU410..75T..SA;XZU412..LHD..55T;WU420,XZU412,422..65T,75T *FGR=35:6=5.833 |
1 | ||
| 41110-37400 |
WU420..75T;WU412,422..5F;WU410,XZU413,423..5F..(65T,75T)..GEN *FGR=37:6=6.167 |
1 | ||
| 41110-37410 |
WU41#,422..GEN *FGR=39:6=6.500 |
1 | ||
| 41110-37400 |
WU410..GEN;WU410..75T..SA;WU420,XZU412,420,422..75T;BU410,420,XZU412..LHD..65T *FGR=37:6=6.167 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-16009 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 90031-05043 |
XZU412,422..5F..(55T,65T,75T);WU410,420,XZU404,414,420,424,434..55T,65T,75T |
4 | ||
| 41151 - CAGE, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41151-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
1 | ||
| 41151-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41151-37030 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,435,439..(55T,65T,75T)..(DCRTJ,DCRTK,DSL) |
1 | ||
| 41153 - SHIM, DIFFERENTIAL DRIVE PINION CAGE | ||||
| 41153-36030 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=0.25 |
1 | ||
| 41153-36010 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=0.10 |
1 | ||
| 41153-36020 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=0.15 |
1 | ||
| 41153-36040 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=0.45 |
1 | ||
| 41153-37110 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=0.45 |
1 | ||
| 41153-37120 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=0.50 |
1 | ||
| 41153-37090 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=0.30 |
1 | ||
| 41153-37100 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=0.40 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80153 |
WU410..65T;WU410..75T..SA;XZU412..LHD..55T;WU420,XZU412,422..65T,75T *FGR=35:6=5.833 |
1 | ||
| 41201-80287 |
WU410..65T;WU410..75T..SA;XZU412..LHD..55T;WU420,XZU412,422..65T,75T *FGR=35:6=5.833 |
1 | ||
| 41201-80293 |
WU410..GEN;WU410..75T..SA;WU420,XZU412,420,422..75T;BU410,420,XZU412..LHD..65T *FGR=37:6=6.167 |
1 | ||
| 41201-80287 |
WU412,422..5F;WU410..65T..(GCC,GEN) *FGR=35:6=5.833 |
1 | ||
| 41201-80549 |
WU410..65T;XZU423..SA;WU412,42#..5F *FGR=35:6=5.833 |
1 | ||
| 41201-80554 |
WU420..75T;WU412,422..5F;WU410,XZU413,423..5F..(65T,75T)..GEN *FGR=37:6=6.167 |
1 | ||
| 41201-80293 |
WU412,422..5F;WU410,XZU413,423..(65T,75T)..GEN *FGR=37:6=6.167 |
1 | ||
| 41201-80555 |
WU41#,422..GEN *FGR=39:6=6.500 |
1 | ||
| 41201-80351 |
WU41#,422..GEN *FGR=39:6=6.500 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90033-66038 |
XZU412,422..5F..(55T,65T,75T);WU410,420,XZU404,414,420,424,434..55T,65T,75T |
1 | ||
| 90366-45001 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90033-11039 |
XZU412,422..5F..(55T,65T,75T);WU410,420,XZU404,414,420,424,434..55T,65T,75T |
1 | ||
| 90311-58010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41201H - RING, DRIVE PINION CYLINDRICAL ROLLER BEARING LOCKING | ||||
| 90035-20024 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
1 | ||
| 90520-23034 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37030 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41204-37080 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90031-01193 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..55T,65T,75T |
16 | ||
| 90031-01193 |
WU41#,422,XZU413,423..5F..(GCC,GEN) |
16 | ||
| 90101-16015 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-36050 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41231-37470 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.525 |
1 | ||
| 41231-37420 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.400 |
1 | ||
| 41231-37500 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.600 |
1 | ||
| 41231-37490 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.575 |
1 | ||
| 41231-37520 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.650 |
1 | ||
| 41231-37480 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.550 |
1 | ||
| 41231-37430 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.425 |
1 | ||
| 41231-37440 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.450 |
1 | ||
| 41231-37530 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.675 |
1 | ||
| 41231-37450 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.475 |
1 | ||
| 41231-37510 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.625 |
1 | ||
| 41231-37460 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.500 |
1 | ||
| 41231-37550 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.725 |
1 | ||
| 41231-37560 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.750 |
1 | ||
| 41231-37580 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.800 |
1 | ||
| 41231-37540 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.700 |
1 | ||
| 41231-37570 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.775 |
1 | ||
| 41231-37600 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.850 |
1 | ||
| 41231-37610 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.875 |
1 | ||
| 41231-37590 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=14.825 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-37030 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 37341-89203 |
XZU412,422..5F..(55T,65T,75T);WU410,420,XZU404,414,420,424,434..55T,65T,75T |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60001 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
2 | ||
| 90366-55054 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60001 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
2 | ||
| 90366-55054 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-36040 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41301-37040 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-12047 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
12 | ||
| 90031-05098 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36020 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
2 | ||
| 41315-37020 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36020 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
2 | ||
| 41315-37020 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41317-36020 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) TYPE B:REFER ILLUST. |
2 | ||
| 41316-36020 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) TYPE A:REFER ILLUST. |
2 | ||
| 41316-37010 |
XZU412,422..5F..(55T,65T,75T);WU410,420,XZU404,414,420,424,434..55T,65T,75T |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36031 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
2 | ||
| 41331-37040 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36031 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
2 | ||
| 41331-37040 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41341-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41341-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41341-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-36011 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41341-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41351-37020 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41351-37020 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41351-37020 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-36010 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
4 | ||
| 41351-37020 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-36020 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.5 |
2 | ||
| 41361-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=2.0 |
2 | ||
| 41361-36010 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.4 |
2 | ||
| 41361-36040 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.7 |
2 | ||
| 41361-36030 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.6 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-36020 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.5 |
2 | ||
| 41361-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) T=2.0 |
2 | ||
| 41361-36010 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.4 |
2 | ||
| 41361-36040 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.7 |
2 | ||
| 41361-36030 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T T=1.6 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-37020 |
WU410,420,XZU404,41#,42#,434..55T,65T,75T |
1 | ||
| 41371-36020 |
XZU414..6F;XZU424..55T,75T;XZU414..RHD..GEN;WU410,420,XZU404,412,420,422,434..(55T,65T,75T)..(EUR,GCC,GEN,SA) |
1 | ||
| 41371-37030 |
BU410,420,XZU404..55T,65T;WU410,420,XZU412,414,415,420,422,424,425,434,435..(55T,65T,75T)..(DCR,DSL,TD) |
1 | ||
| 41991C - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-37100 |
XZU412..LHD..55T;WU410..65T..(GCC,GEN);XZU412,422..5F..(65T,75T) MARK 5.83 |
1 | ||
| 41991-37110 |
WU410..GEN;XZU412..LHD..65T;XZU412,422..5F..75T MARK 6.16 |
1 | ||
| 41991-37100 |
WU410..65T;XZU423..SA;WU412,42#..5F MARK 5.83 |
1 | ||
| 41991-37120 |
WU41#,422..GEN MARK 6.50 |
1 | ||
| 41991-37110 |
WU420..75T;WU412,422..5F;WU410,XZU413,423..5F..(65T,75T)..GEN MARK 6.16 |
1 | ||
| 41991C - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-37100 |
XZU412..LHD..55T;WU410..65T..(GCC,GEN);XZU412,422..5F..(65T,75T) MARK 5.83 |
1 | ||
| 41991-37110 |
WU410..GEN;XZU412..LHD..65T;XZU412,422..5F..75T MARK 6.16 |
1 | ||
| 41991-37100 |
WU410..65T;XZU423..SA;WU412,42#..5F MARK 5.83 |
1 | ||
| 41991-37120 |
WU41#,422..GEN MARK 6.50 |
1 | ||
| 41991-37110 |
WU420..75T;WU412,422..5F;WU410,XZU413,423..5F..(65T,75T)..GEN MARK 6.16 |
1 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01192 | ||||
| 90031-19101 | ||||
| 90031-19102 | ||||
| 90031-70110 | ||||
| 90032-01155 | ||||
| 90033-01069 | ||||
| 90033-65002 | ||||
| 90033-66040 | ||||
| 90179-30003 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
