WU410R-TKMQS (2002)
Toyota Dyna

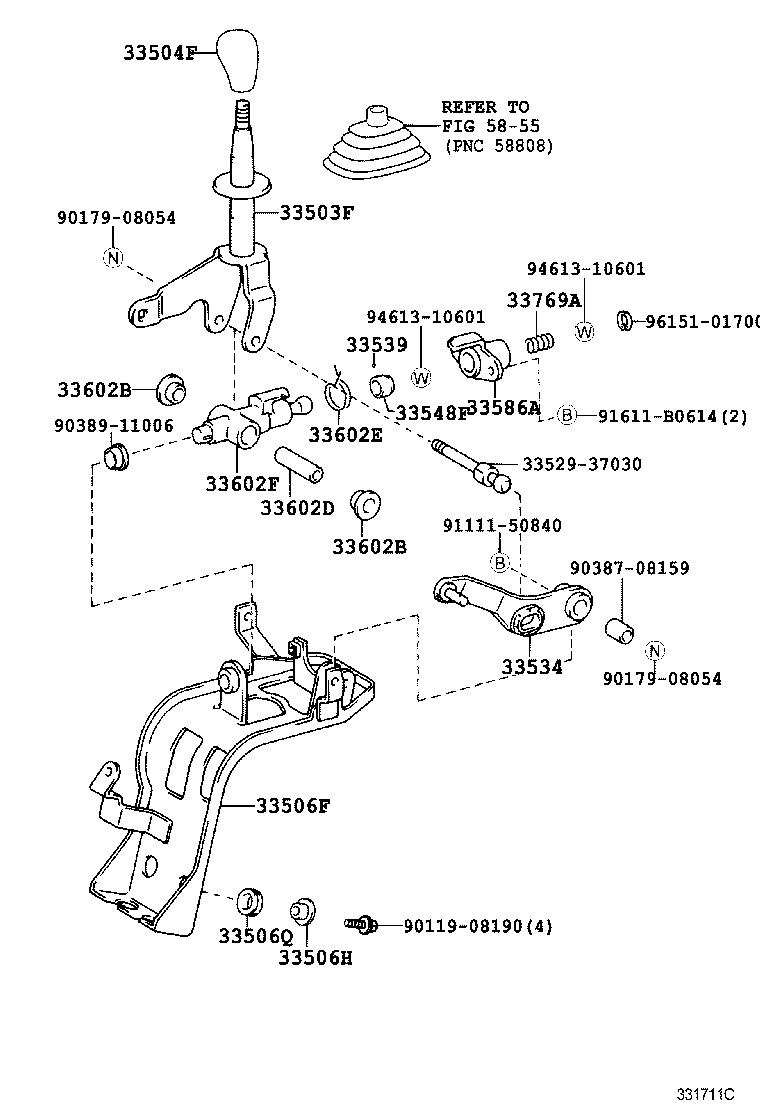

ILLUST NO. 1 OF 2(0110-0412)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-37060 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-36051B1 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F DK.CHARCOAL,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-37031 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 90386-12056 |
WU410,420,XZU404,41#,42#,43#..RHD |
4 | ||
| 33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33577-37060 |
WU410,420,XZU404,41#,42#,43#..RHD |
4 | ||
| 33534 - BELLCRANK, SELECTING | ||||
| 33534-37060 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-12010 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12040 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 33586A - STOPPER, CONTROL LEVER (FOR FLOOR SHIFT) | ||||
| 33586-37020 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
WU410,420,XZU404,41#,42#,43#..RHD |
2 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
WU410,420,XZU404,41#,42#,43#..RHD |
2 | ||
| 33602D - COLLAR (FOR SELECT LEVER) | ||||
| 90387-08063 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 33602E - SPRING, TORSION (FOR SELECT LEVER) | ||||
| 90949-03034 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT) | ||||
| 33602-37020 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 33769A - SPRING, CROSS SHAFT END | ||||
| 33769-37020 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| Common parts | ||||
| 33529-37030 | ||||
| 90119-08190 | ||||
| 90179-08054 | ||||
| 90387-08159 | ||||
| 90389-11006 | ||||
| 91111-50840 | ||||
| 91611-B0614 | ||||
| 94613-10601 | ||||
| 96151-01700 | ||||
| Linked diagrams | ||||
| 5855 | ||||

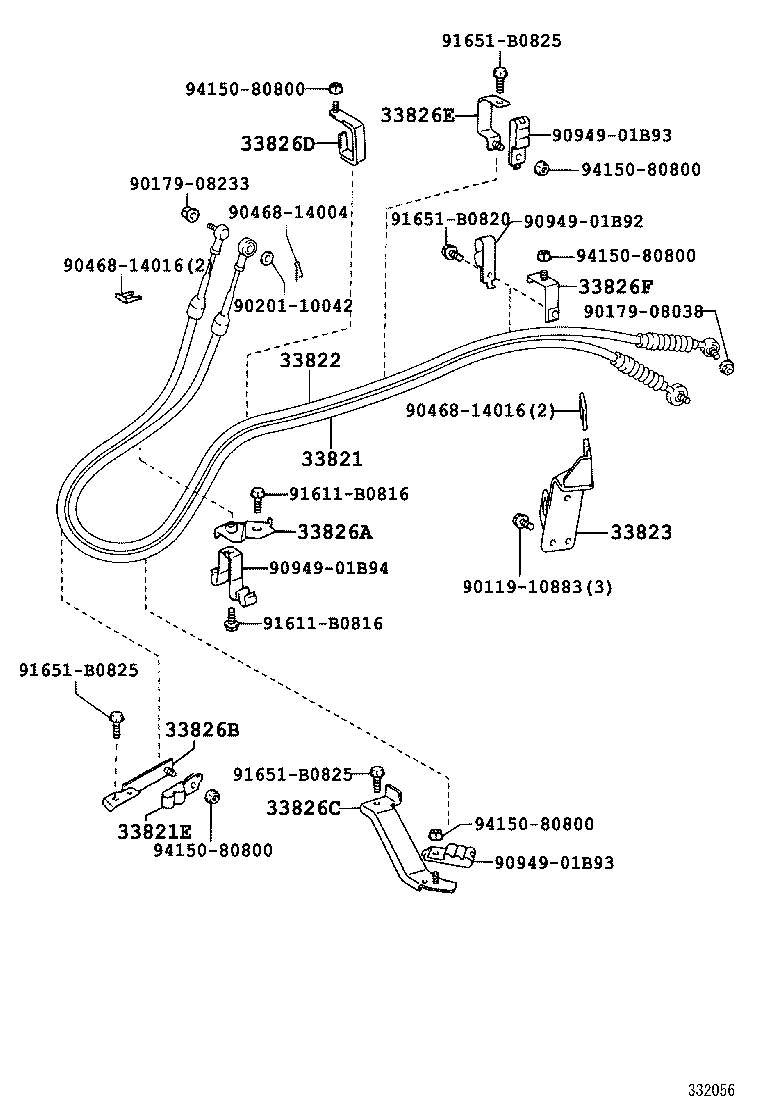

ILLUST NO. 2 OF 2(0212-0610)WU410..RHD..GEN ; (0212- )WU410,420..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33910-37040 |
WU410,420..RHD |
1 | ||
| 33910-37042 |
WU410,420..RHD |
1 | ||
| 33910-37043 |
WU410..RHD..GEN |
1 | ||
| 33820-37G60 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 87124-37090 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33830-37290 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 33910-37050 |
WU410,420..RHD |
1 | ||
| 33910-37051 |
WU410,420..RHD |
1 | ||
| 33910-37052 |
WU410..RHD..GEN |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37750 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33823-37610 |
WU410..GCC,GEN |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37180 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37321 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33826-37330 |
WU410,XZU412,422..RHD..GEN..DSL |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33826-37340 |
WU410,XZU412,422..RHD..DSL |
1 | ||
| 33826-37341 |
WU410,XZU412,422..RHD..GEN..DSL |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33826-37540 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33826-37550 |
WU410,XZU412,422..(GCC,GEN)..DSL |
1 | ||
| Common parts | ||||
| 90119-10883 | ||||
| 90179-08038 | ||||
| 90179-08233 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90949-01B92 | ||||
| 90949-01B93 | ||||
| 90949-01B94 | ||||
| 91611-B0816 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94150-80800 | ||||

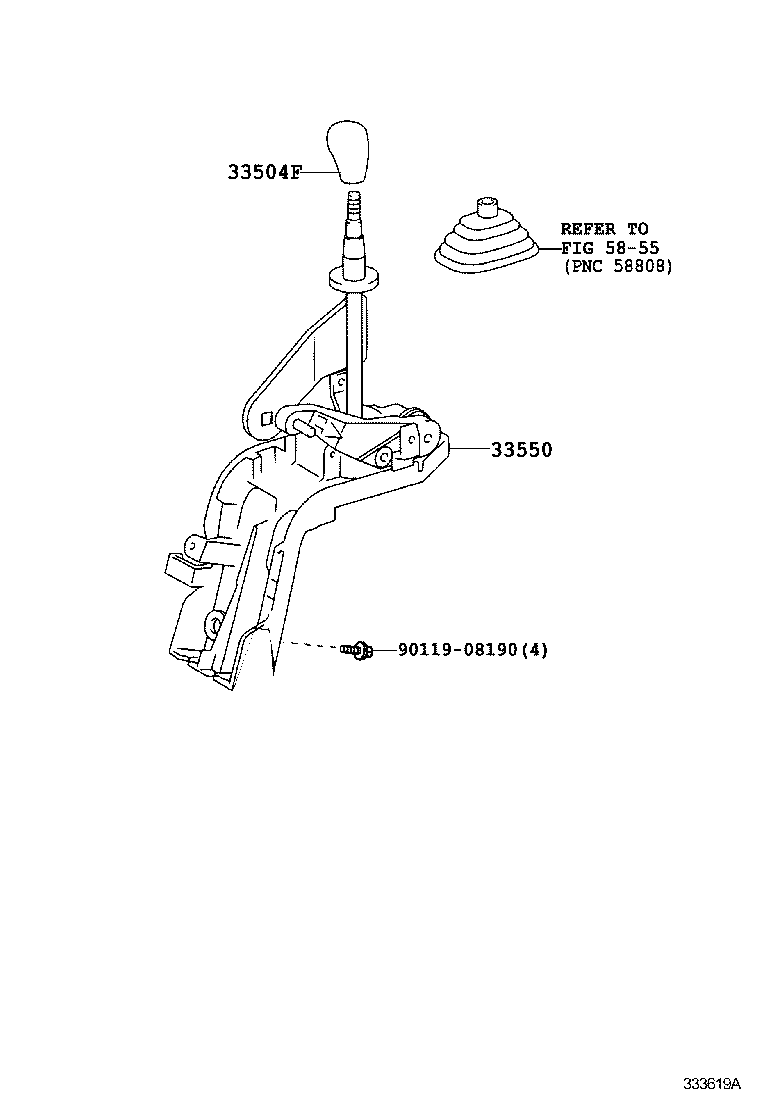

ILLUST NO. 1 OF 2(0610- )WU410..RHD..65T ; (0610- )WU410..75T..GEN ; (0610- )WU420,XZU423,4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-36051B1 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F DK.CHARCOAL,TRIM1# |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-37151 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 33550-37150 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 33550-37151 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90119-08190 | ||||
| Linked diagrams | ||||
| 5855 | ||||

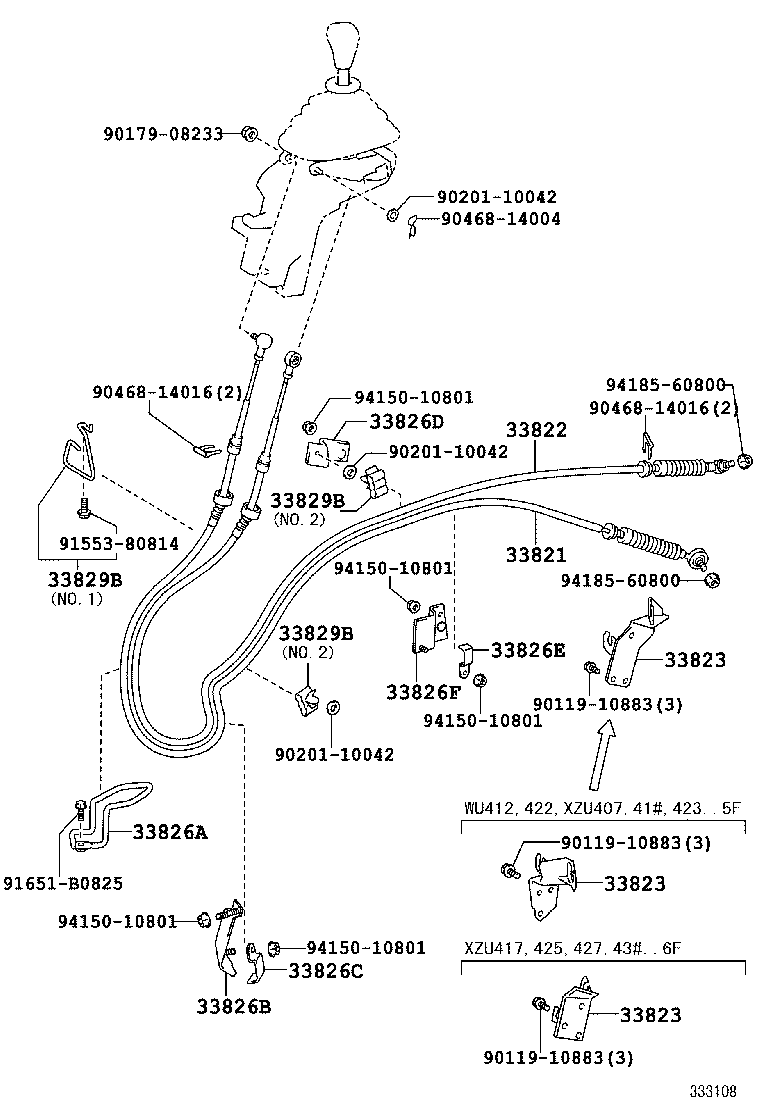

ILLUST NO. 2 OF 2(0610- )WU410..RHD..65T ; (0610- )WU410..75T..GEN ; (0610- )WU420,XZU423,4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33910-37040 |
WU410,420..RHD |
1 | ||
| 33910-37042 |
WU410,420..RHD |
1 | ||
| 33910-37043 |
WU410..RHD..GEN |
1 | ||
| 33820-37G60 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33830-37290 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 33910-37050 |
WU410,420..RHD |
1 | ||
| 33910-37051 |
WU410,420..RHD |
1 | ||
| 33910-37052 |
WU410..RHD..GEN |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37750 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33823-37610 |
WU410..GCC,GEN |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37750 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33823-37610 |
WU410..GCC,GEN |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37750 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33823-37610 |
WU410..GCC,GEN |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37180 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37321 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33826-37330 |
WU410,XZU412,422..RHD..GEN..DSL |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33826-37340 |
WU410,XZU412,422..RHD..DSL |
1 | ||
| 33826-37341 |
WU410,XZU412,422..RHD..GEN..DSL |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33826-37540 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33826-37550 |
WU410,XZU412,422..(GCC,GEN)..DSL |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37280 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA NO.1 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37280 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA NO.1 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37280 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA NO.1 |
1 | ||
| Common parts | ||||
| 90119-10883 | ||||
| 90179-08233 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 91553-80814 | ||||
| 91651-B0825 | ||||
| 94150-10801 | ||||
| 94185-60800 | ||||

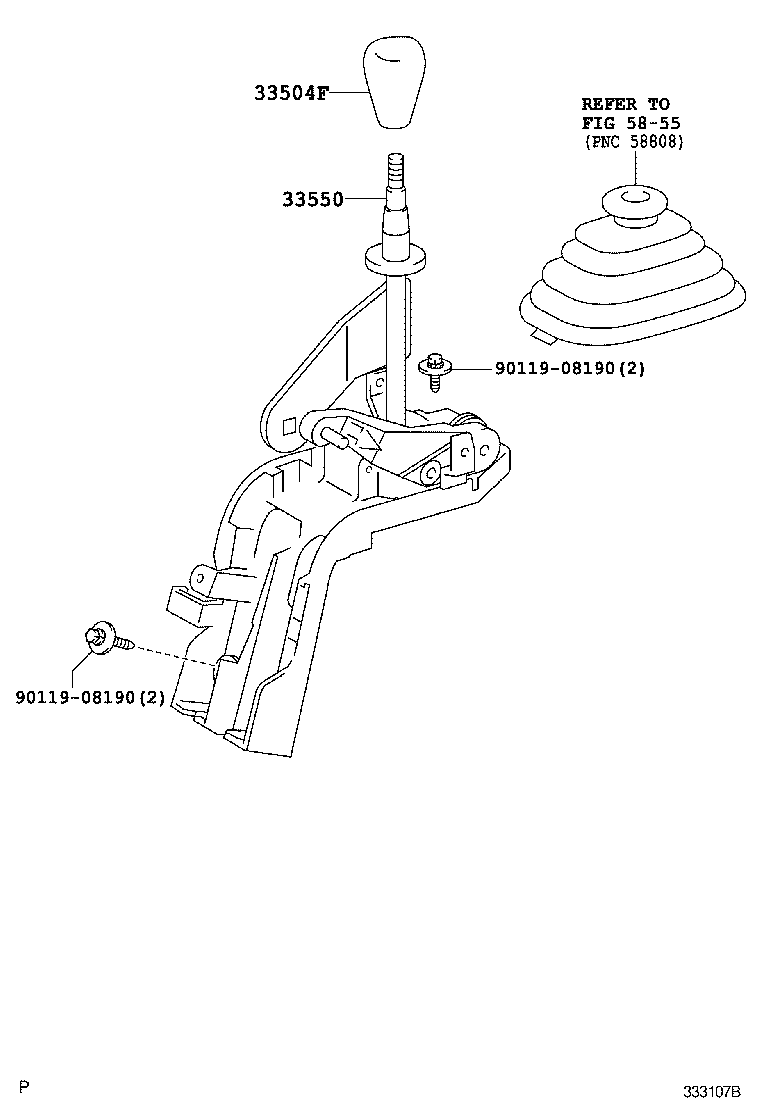

ILLUST NO. 1 OF 2(0212-0610)WU410..RHD..GEN ; (0412-0610)XZU404,412,414,422,424,434..RHD ; (0412-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-36051B1 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F DK.CHARCOAL,TRIM1# |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-37151 |
WU420;WU410..RHD..65T;WU410..75T..GEN |
1 | ||
| 33550-37150 |
WU410,420,XZU404,41#,42#,43#..RHD |
1 | ||
| 33550-37151 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90119-08190 | ||||
| Linked diagrams | ||||
| 5855 | ||||
