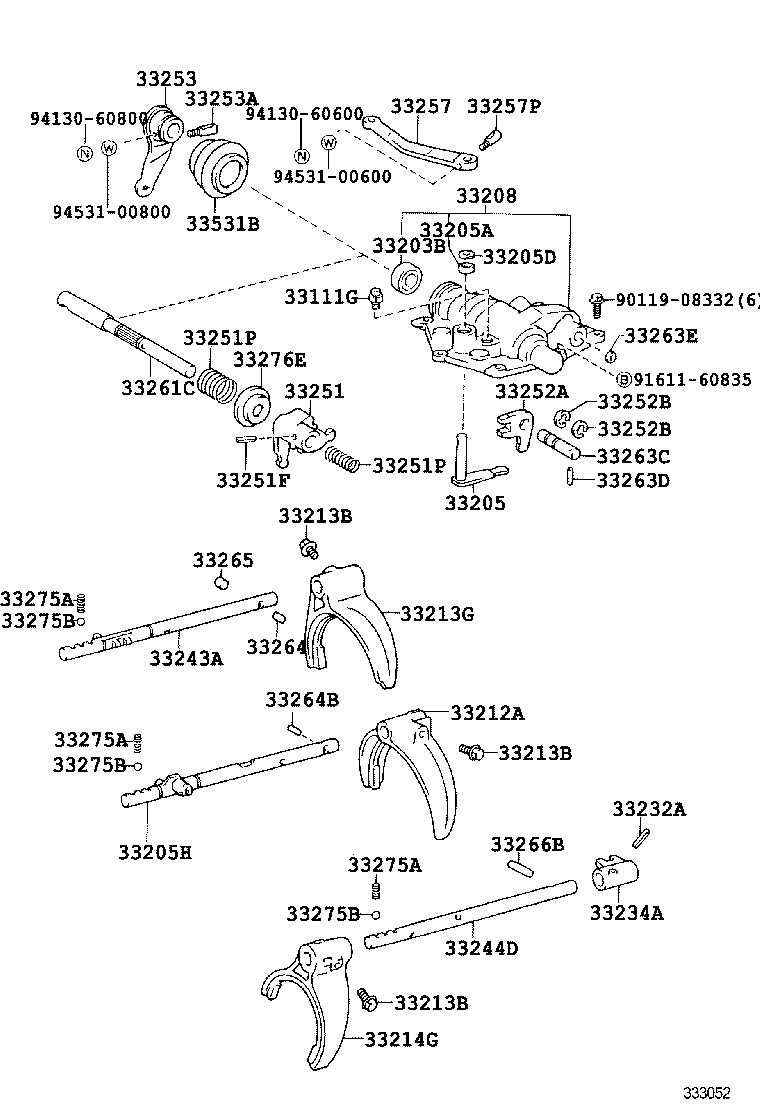

WU410R-TKMQS (2002)
Toyota Dyna
(0610- )WU420 ; (0610- )WU410..65T ; (0610- )WU410..75T..GEN
M153
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03090 |
XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90930-03090 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-22009 |
XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90311-22009 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33262-36050 |
WU410..GCC,GEN |
1 | ||
| 33262-36050 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90311-13001 |
XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90311-13001 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 90201-13029 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) OD=28 |
1 | ||
| 90201-13029 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F OD=28 |
1 | ||
| 33205H - SHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1 | ||||
| 33205-37030 |
WU410..GCC,GEN |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33207-36031 |
WU410..GCC,GEN |
1 | ||
| 33207-36031 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-36031 |
WU410..GCC,GEN |
1 | ||
| 33212-36031 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07001 |
WU420;WU410..65T;WU410..75T..GEN |
3 | ||
| 90105-07001 |
WU410..GCC,GEN |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07001 |
WU420;WU410..65T;WU410..75T..GEN |
3 | ||
| 90105-07001 |
WU410..GCC,GEN |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07001 |
WU420;WU410..65T;WU410..75T..GEN |
3 | ||
| 90105-07001 |
WU410..GCC,GEN |
3 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-36050 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33213-36050 |
WU410,420 |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-36060 |
WU410..GCC,GEN |
1 | ||
| 33214-36060 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05016 |
WU410,420 |
1 | ||
| 90254-05016 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| 33234-36011 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33234-36011 |
WU410..GCC,GEN |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-37020 |
WU410..GCC,GEN |
1 | ||
| 33243-37020 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33244D - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-37020 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33244-37020 |
WU410..GCC,GEN |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-36090 |
WU410..GCC,GEN |
1 | ||
| 33251-36090 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33251F - PIN OR BOLT (FOR SHIFT & SELECT LEVER) | ||||
| 90254-05016 |
XZU414..5F;XZU424..55T,85T;XZU424..75T..GEN;BU410,420,WU410,420,XZU404,412,420,422,430,434..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-16090 |
WU410..GCC,GEN LH |
1 | ||
| 90501-18121 |
WU410..GCC,GEN RH |
1 | ||
| 90501-16090 |
WU420;WU410..65T;WU410..75T..GEN LH |
1 | ||
| 90501-18121 |
WU420;WU410..65T;WU410..75T..GEN RH |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-16090 |
WU410..GCC,GEN LH |
1 | ||
| 90501-18121 |
WU410..GCC,GEN RH |
1 | ||
| 90501-16090 |
WU420;WU410..65T;WU410..75T..GEN LH |
1 | ||
| 90501-18121 |
WU420;WU410..65T;WU410..75T..GEN RH |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-36010 |
WU410..GCC,GEN |
1 | ||
| 33252-36010 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33252B - RING, E (FOR SHIFT INNER LEVER) | ||||
| 90523-12001 |
WU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN) |
2 | ||
| 33252B - RING, E (FOR SHIFT INNER LEVER) | ||||
| 90523-12001 |
WU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN) |
2 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-37070 |
WU410..GCC,GEN |
1 | ||
| 33253-37070 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33282-36030 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-37060 |
WU410..GCC,GEN |
1 | ||
| 33257-37060 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-35010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 33282-35010 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-36070 |
WU410..GCC,GEN |
1 | ||
| 33263C - SHAFT, SHIFT LEVER, NO.2 | ||||
| 33263-36010 |
WU410..GCC,GEN |
1 | ||
| 33263D - PIN (FOR SHIFT LEVER SHAFT) | ||||
| 90250-04060 |
WU410..GCC,GEN |
1 | ||
| 33263E - PLUG (FOR SHIFT LEVER SHAFT) | ||||
| 90331-14004 |
WU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN) |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-10011 |
WU410..GCC,GEN L=13.4,OD=9.53 |
1 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-05001 |
WU410..GCC,GEN L=13 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-10015 |
WU410..GCC,GEN L=7.5,OD=9.67 |
1 | ||
| 33266B - PIN, SHIFT INTER LOCK, NO.3 | ||||
| 90250-10014 |
WU410..GCC,GEN |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16145 |
WU410..GCC,GEN L=28.8 |
3 | ||
| 90501-16145 |
WU420;WU410..65T;WU410..75T..GEN L=28.8 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16145 |
WU410..GCC,GEN L=28.8 |
3 | ||
| 90501-16145 |
WU420;WU410..65T;WU410..75T..GEN L=28.8 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16145 |
WU410..GCC,GEN L=28.8 |
3 | ||
| 90501-16145 |
WU420;WU410..65T;WU410..75T..GEN L=28.8 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
WU410..GCC,GEN |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
WU410..GCC,GEN |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
WU410..GCC,GEN |
3 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-36011 |
WU410..GCC,GEN |
1 | ||
| 33276-36011 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-36060 |
WU410..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 91611-60835 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94531-00600 | ||||
| 94531-00800 | ||||
(0212-0610)WU410..GCC,GEN ; (0304- )WU410,420..SA
M153
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03090 |
XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90930-03090 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-22009 |
XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90311-22009 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33262-36050 |
WU410..GCC,GEN |
1 | ||
| 33262-36050 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90311-13001 |
XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90311-13001 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 90201-13029 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) OD=28 |
1 | ||
| 90201-13029 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F OD=28 |
1 | ||
| 33205H - SHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1 | ||||
| 33205-37030 |
WU410..GCC,GEN |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33207-36031 |
WU410..GCC,GEN |
1 | ||
| 33207-36031 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-36031 |
WU410..GCC,GEN |
1 | ||
| 33212-36031 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07001 |
WU420;WU410..65T;WU410..75T..GEN |
3 | ||
| 90105-07001 |
WU410..GCC,GEN |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07001 |
WU420;WU410..65T;WU410..75T..GEN |
3 | ||
| 90105-07001 |
WU410..GCC,GEN |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07001 |
WU420;WU410..65T;WU410..75T..GEN |
3 | ||
| 90105-07001 |
WU410..GCC,GEN |
3 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-36050 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33213-36050 |
WU410,420 |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-36060 |
WU410..GCC,GEN |
1 | ||
| 33214-36060 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05016 |
WU410,420 |
1 | ||
| 90254-05016 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| 33234-36011 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33234-36011 |
WU410..GCC,GEN |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-37020 |
WU410..GCC,GEN |
1 | ||
| 33243-37020 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33244D - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-37020 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33244-37020 |
WU410..GCC,GEN |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-36090 |
WU410..GCC,GEN |
1 | ||
| 33251-36090 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33251F - PIN OR BOLT (FOR SHIFT & SELECT LEVER) | ||||
| 90254-05016 |
XZU414..5F;XZU424..55T,85T;XZU424..75T..GEN;BU410,420,WU410,420,XZU404,412,420,422,430,434..ARL,GCC,GEN,SA,TAIW |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-16090 |
WU410..GCC,GEN LH |
1 | ||
| 90501-18121 |
WU410..GCC,GEN RH |
1 | ||
| 90501-16090 |
WU420;WU410..65T;WU410..75T..GEN LH |
1 | ||
| 90501-18121 |
WU420;WU410..65T;WU410..75T..GEN RH |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| 90501-16090 |
WU410..GCC,GEN LH |
1 | ||
| 90501-18121 |
WU410..GCC,GEN RH |
1 | ||
| 90501-16090 |
WU420;WU410..65T;WU410..75T..GEN LH |
1 | ||
| 90501-18121 |
WU420;WU410..65T;WU410..75T..GEN RH |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-36010 |
WU410..GCC,GEN |
1 | ||
| 33252-36010 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33252B - RING, E (FOR SHIFT INNER LEVER) | ||||
| 90523-12001 |
WU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN) |
2 | ||
| 33252B - RING, E (FOR SHIFT INNER LEVER) | ||||
| 90523-12001 |
WU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN) |
2 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-37070 |
WU410..GCC,GEN |
1 | ||
| 33253-37070 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33282-36030 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-37060 |
WU410..GCC,GEN |
1 | ||
| 33257-37060 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-35010 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 33282-35010 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-36070 |
WU410..GCC,GEN |
1 | ||
| 33263C - SHAFT, SHIFT LEVER, NO.2 | ||||
| 33263-36010 |
WU410..GCC,GEN |
1 | ||
| 33263D - PIN (FOR SHIFT LEVER SHAFT) | ||||
| 90250-04060 |
WU410..GCC,GEN |
1 | ||
| 33263E - PLUG (FOR SHIFT LEVER SHAFT) | ||||
| 90331-14004 |
WU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN) |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-10011 |
WU410..GCC,GEN L=13.4,OD=9.53 |
1 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-05001 |
WU410..GCC,GEN L=13 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-10015 |
WU410..GCC,GEN L=7.5,OD=9.67 |
1 | ||
| 33266B - PIN, SHIFT INTER LOCK, NO.3 | ||||
| 90250-10014 |
WU410..GCC,GEN |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16145 |
WU410..GCC,GEN L=28.8 |
3 | ||
| 90501-16145 |
WU420;WU410..65T;WU410..75T..GEN L=28.8 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16145 |
WU410..GCC,GEN L=28.8 |
3 | ||
| 90501-16145 |
WU420;WU410..65T;WU410..75T..GEN L=28.8 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16145 |
WU410..GCC,GEN L=28.8 |
3 | ||
| 90501-16145 |
WU420;WU410..65T;WU410..75T..GEN L=28.8 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
WU410..GCC,GEN |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
WU410..GCC,GEN |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
WU410..GCC,GEN |
3 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-36011 |
WU410..GCC,GEN |
1 | ||
| 33276-36011 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-36060 |
WU410..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 91611-60835 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94531-00600 | ||||
| 94531-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
