WU410R-TKMQS (2002)
Toyota Dyna
(0110-0610)BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434
H260,H261,H350,H351,M153

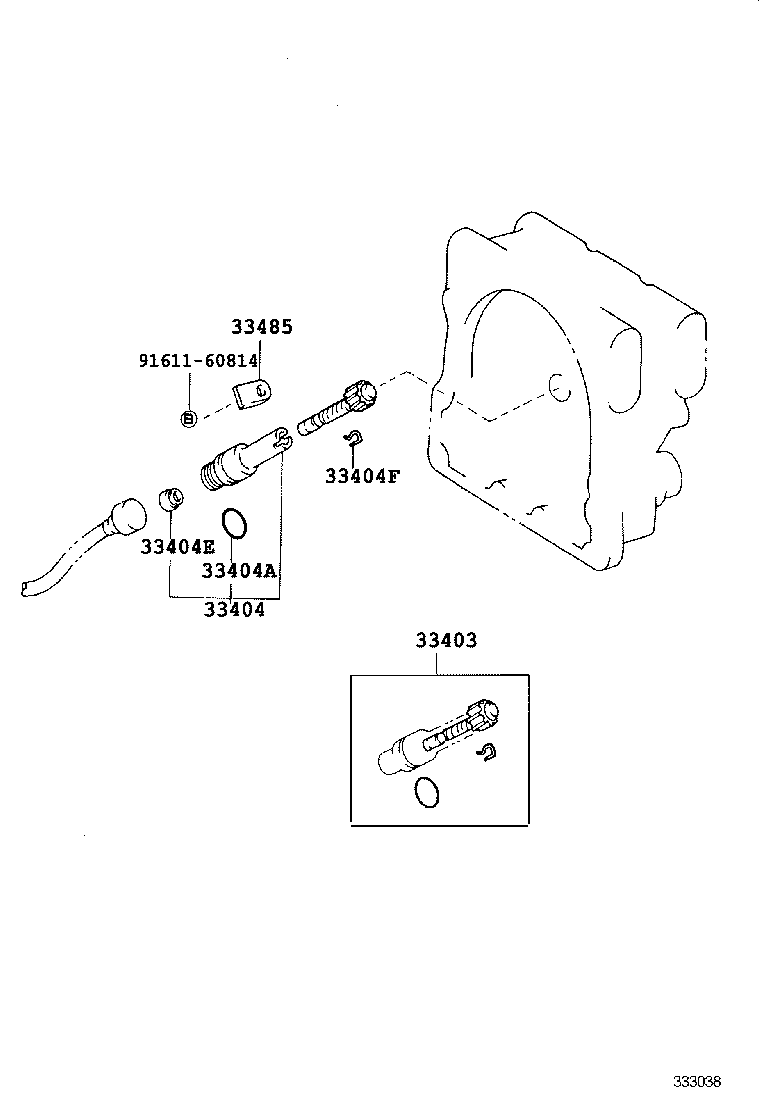

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM) | ||||
| 33482-39235 |
WU410..GEN;XZU412,422..5F..75T;XZU412..LHD..(55T,65T) N=23,MARK 23:6 |
1 | ||
| 33482-39225 |
XZU412,422..DSL;XZU412..LHD..55T;XZU424..85T..GEN;XZU412,422..5F..(65T,75T)..TD;XZU414,424..RHD..(65T,75T,85T);WU410,XZU434..(65T,85T)..(ARL,GCC,GEN) N=22,MARK 22:6 |
1 | ||
| 33482-39225 |
WU410..65T;WU412,42#..5F N=22,MARK 22:6 |
1 | ||
| 33482-39235 |
WU420..75T;WU41#,422,XZU413,423..5F..(65T,75T)..(GCC,GEN) N=23,MARK 23:6 |
1 | ||
| 33482-39245 |
WU41#,422..GEN N=24,MARK 24:6 |
1 | ||
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-36020 |
XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN) |
1 | ||
| 33404-36020 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90301-18018 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 90310-09001 |
XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN) |
1 | ||
| 33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 90468-12005 |
XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN) |
1 | ||
| 33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM) | ||||
| 33485-30020 |
XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN) |
1 | ||
| 33485-30020 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
(0610- )WU420 ; (0610- )WU410..65T ; (0610- )WU410..75T..GEN
M153
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM) | ||||
| 33482-39235 |
WU410..GEN;XZU412,422..5F..75T;XZU412..LHD..(55T,65T) N=23,MARK 23:6 |
1 | ||
| 33482-39225 |
XZU412,422..DSL;XZU412..LHD..55T;XZU424..85T..GEN;XZU412,422..5F..(65T,75T)..TD;XZU414,424..RHD..(65T,75T,85T);WU410,XZU434..(65T,85T)..(ARL,GCC,GEN) N=22,MARK 22:6 |
1 | ||
| 33482-39225 |
WU410..65T;WU412,42#..5F N=22,MARK 22:6 |
1 | ||
| 33482-39235 |
WU420..75T;WU41#,422,XZU413,423..5F..(65T,75T)..(GCC,GEN) N=23,MARK 23:6 |
1 | ||
| 33482-39245 |
WU41#,422..GEN N=24,MARK 24:6 |
1 | ||
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-36020 |
XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN) |
1 | ||
| 33404-36020 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90301-18018 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 90310-09001 |
XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN) |
1 | ||
| 33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| 90468-12005 |
XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN) |
1 | ||
| 33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM) | ||||
| 33485-30020 |
XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN) |
1 | ||
| 33485-30020 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
