Toyota Dyna WU410 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Manufacturers Home
Toyota
EU
DYNA
WU410R-TKMQS (2002)
3302 - CLUTCH HOUSING & TRANSMISSION CASE (MTM)

WU410R-TKMQS (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011

Engine W04D

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0212-0610)WU410..GCC,GEN ; (0304- )WU410,420..SA

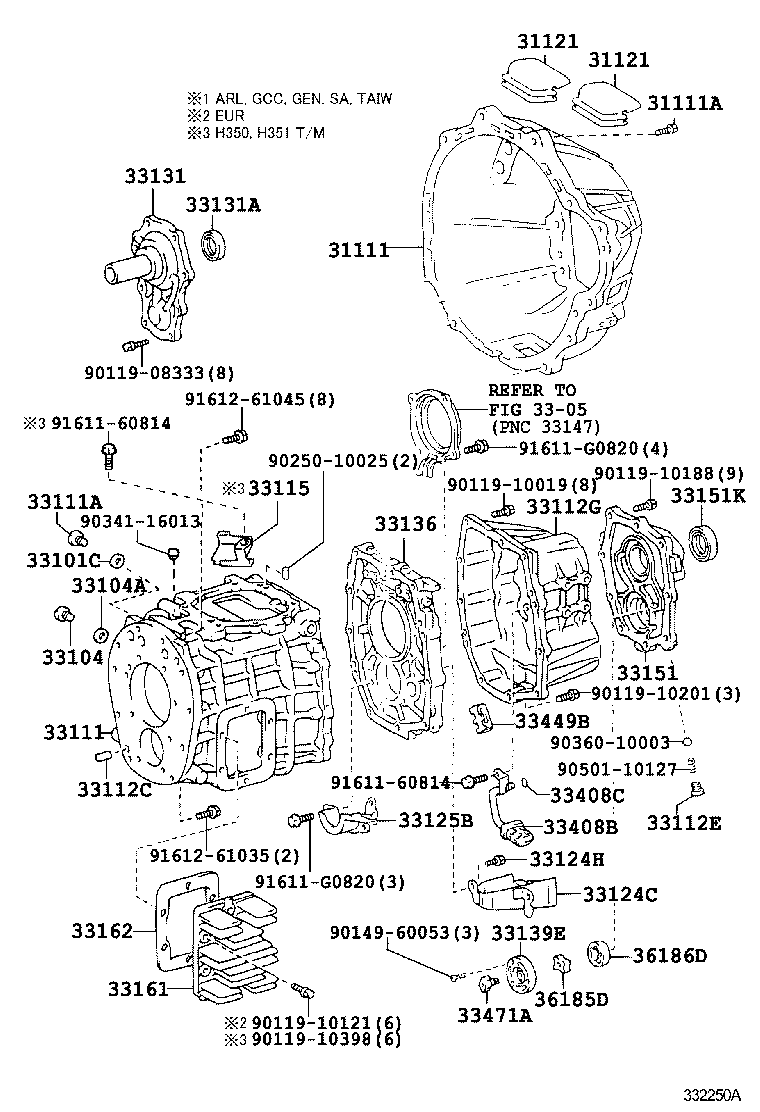

Click highlighted areas on diagram

M153

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-37090	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
31111-37090	WU410..GCC,GEN	12/2002 - 10/2006	1
31111A - BOLT(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING)
90119-10898	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	12
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	2
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	2
33101 - CASE SUB-ASSY, MANUAL TRANSMISSION
33101-36084	WU410..GCC,GEN	12/2002 - 10/2006	1
33101-36084	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
90341-18006	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
90430-18008	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F	10/2006 - 06/2011	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006	XZU424..85T;XZU414..LHD..GEN;XZU414,424..75T..GEN;XZU404,414,434..(55T,85T)..ARL;WU410,XZU412,422..5F..(GCC,GEN)	10/2001 - 10/2006	1
90341-18006	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33111C - PLUG(FOR TRANSMISSION CASE)
96411-11600	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	3
96411-11600	WU410..GCC,GEN	12/2002 - 10/2006	3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	WU410,420 L=16,OD=12	12/2002 - 02/2008	4
90250-12002	WU420;WU410..65T;WU410..75T..GEN L=16,OD=12	10/2006 - 06/2011	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	WU410,420 L=16,OD=12	12/2002 - 02/2008	4
90250-12002	WU420;WU410..65T;WU410..75T..GEN L=16,OD=12	10/2006 - 06/2011	4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-13017	WU410..GCC,GEN L=12,OD=13	12/2002 - 10/2006	2
90253-11001	WU420;WU410..65T;WU410..75T..GEN L=11,OD=11	10/2006 - 06/2011	1
90253-11001	WU410..GCC,GEN L=11,OD=11	12/2002 - 10/2006	1
90253-13017	WU420;WU410..65T;WU410..75T..GEN L=12,OD=13	10/2006 - 06/2011	2
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008	WU410..GCC,GEN	12/2002 - 10/2006	1
90430-18008	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-36030	WU410..GCC,GEN	12/2002 - 10/2006	1
33124-36030	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33125B - RECEIVER, MANUAL TRANSMISSION CASE
33125-36020	WU410..GCC,GEN	12/2002 - 10/2006	1
33125-36020	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-37010	WU410..GCC,GEN	12/2002 - 10/2006	1
33018-37010	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-35023	XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
90311-35023	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F	10/2006 - 06/2011	1
33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)
90311-48011	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F	10/2006 - 06/2011	1
90311-48011	WU410..GCC,GEN	12/2002 - 10/2006	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33017-36031	WU410..GCC,GEN	12/2002 - 10/2006	1
33017-36031	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161-36010	XZU414..5F;XZU424..55T,85T;XZU424..75T..GEN;WU410,XZU404,412,422,434..ARL,GCC,GEN	10/2001 - 10/2006	1
33161-36010	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F	10/2006 - 06/2011	1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
33162-36020	XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
33162-36020	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F	10/2006 - 06/2011	1
33449B - MAGNET, TRANSMISSION
33449-36010	WU410..GCC,GEN	12/2002 - 10/2006	1
33449-36010	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
Common parts
90119-08332
90119-08421
90119-10121
90119-10186
90119-10390
91611-B0610
91611-B0812
91612-61030
91612-61040
91612-61045

(0110-0610)XZU404,412,414,422,424,434..EUR,GCC,GEN ; (0212- )XZU404,414,420,424,

Click highlighted areas on diagram

H260,H261,H350,H351

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-37090	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
31111-37090	WU410..GCC,GEN	12/2002 - 10/2006	1
31111A - BOLT(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING)
90119-10898	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	12
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	2
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	2
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
90341-18006	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
90430-18008	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F	10/2006 - 06/2011	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006	XZU424..85T;XZU414..LHD..GEN;XZU414,424..75T..GEN;XZU404,414,434..(55T,85T)..ARL;WU410,XZU412,422..5F..(GCC,GEN)	10/2001 - 10/2006	1
90341-18006	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-36030	WU410..GCC,GEN	12/2002 - 10/2006	1
33124-36030	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33125B - RECEIVER, MANUAL TRANSMISSION CASE
33125-36020	WU410..GCC,GEN	12/2002 - 10/2006	1
33125-36020	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-37010	WU410..GCC,GEN	12/2002 - 10/2006	1
33018-37010	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-35023	XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
90311-35023	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F	10/2006 - 06/2011	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33017-36031	WU410..GCC,GEN	12/2002 - 10/2006	1
33017-36031	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161-36010	XZU414..5F;XZU424..55T,85T;XZU424..75T..GEN;WU410,XZU404,412,422,434..ARL,GCC,GEN	10/2001 - 10/2006	1
33161-36010	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F	10/2006 - 06/2011	1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
33162-36020	XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
33162-36020	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F	10/2006 - 06/2011	1
33449B - MAGNET, TRANSMISSION
33449-36010	WU410..GCC,GEN	12/2002 - 10/2006	1
33449-36010	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
Common parts
90119-08333
90119-10019
90119-10121
90119-10188
90119-10201
90119-10398
90149-60053
90250-10025
90341-16013
90360-10003
90501-10127
91611-60814
91611-G0820
91612-61035
91612-61045
Linked diagrams
3305

(0610- )XZU425,435..DCRTK ; (0610- )WU412,422,XZU413,415,417,419,423,427,429,

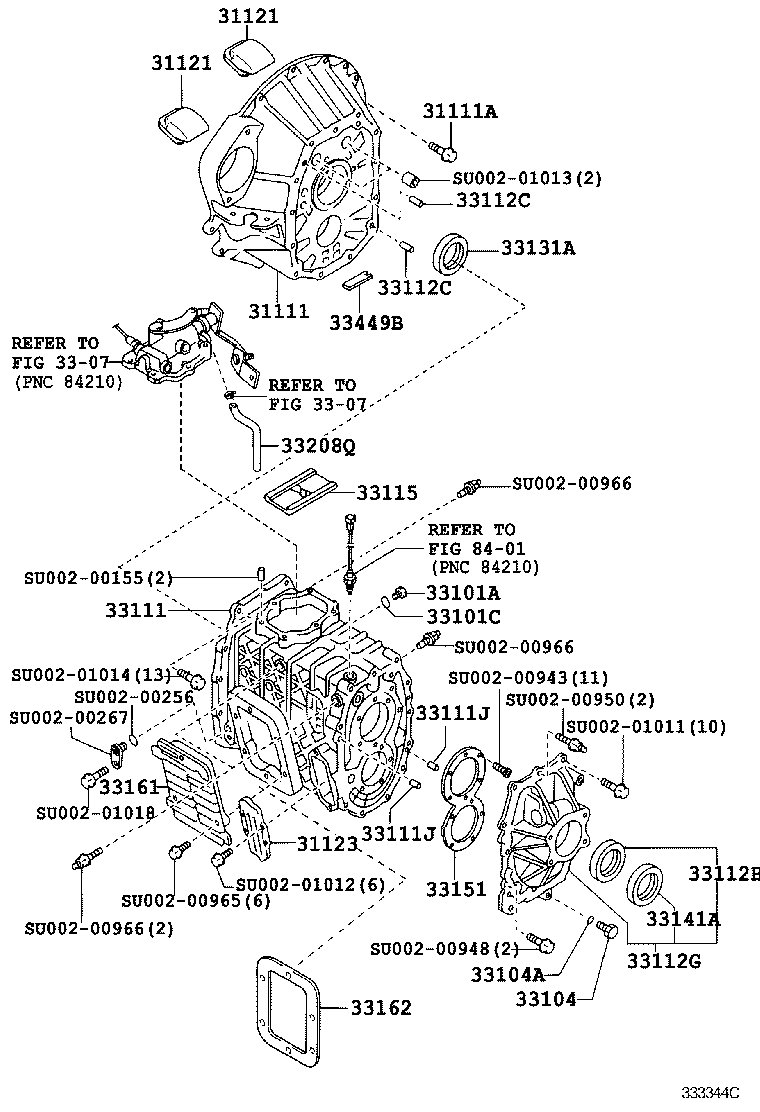

Click highlighted areas on diagram

MYY6S

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-37090	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
31111-37090	WU410..GCC,GEN	12/2002 - 10/2006	1
31111A - BOLT(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING)
90119-10898	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	12
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	2
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	2
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
90341-18006	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
90430-18008	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F	10/2006 - 06/2011	1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	WU410,420 L=16,OD=12	12/2002 - 02/2008	4
90250-12002	WU420;WU410..65T;WU410..75T..GEN L=16,OD=12	10/2006 - 06/2011	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	WU410,420 L=16,OD=12	12/2002 - 02/2008	4
90250-12002	WU420;WU410..65T;WU410..75T..GEN L=16,OD=12	10/2006 - 06/2011	4
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-35023	XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
90311-35023	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F	10/2006 - 06/2011	1
33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)
90311-48011	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F	10/2006 - 06/2011	1
90311-48011	WU410..GCC,GEN	12/2002 - 10/2006	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33017-36031	WU410..GCC,GEN	12/2002 - 10/2006	1
33017-36031	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161-36010	XZU414..5F;XZU424..55T,85T;XZU424..75T..GEN;WU410,XZU404,412,422,434..ARL,GCC,GEN	10/2001 - 10/2006	1
33161-36010	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F	10/2006 - 06/2011	1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
33162-36020	XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
33162-36020	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F	10/2006 - 06/2011	1
33449B - MAGNET, TRANSMISSION
33449-36010	WU410..GCC,GEN	12/2002 - 10/2006	1
33449-36010	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
Common parts
SU002-00155
SU002-00256
SU002-00267
SU002-00943
SU002-00948
SU002-00950
SU002-00965
SU002-00966
SU002-01011
SU002-01012
SU002-01013
SU002-01014
SU002-01018
Linked diagrams
3307
8401

(0610- )WU420 ; (0610- )WU410..65T ; (0610- )WU410..75T..GEN

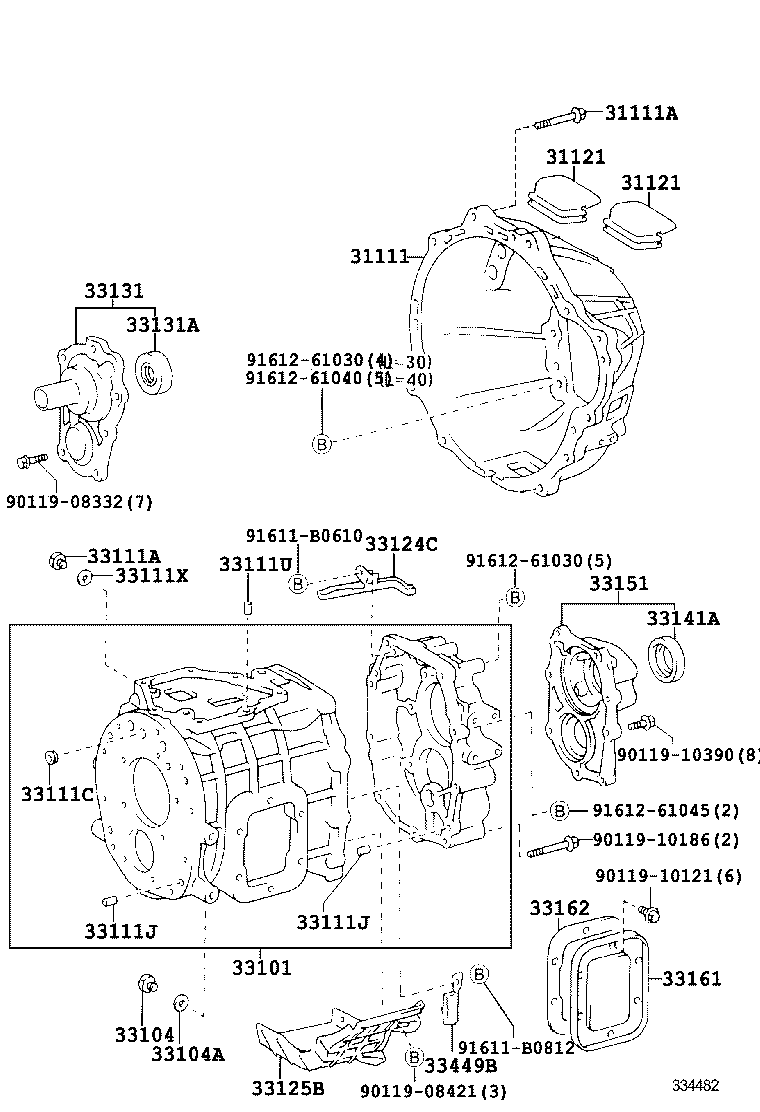

Click highlighted areas on diagram

M153

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-37090	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
31111-37090	WU410..GCC,GEN	12/2002 - 10/2006	1
31111A - BOLT(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING)
90119-10898	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	12
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	2
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	2
33101 - CASE SUB-ASSY, MANUAL TRANSMISSION
33101-36084	WU410..GCC,GEN	12/2002 - 10/2006	1
33101-36084	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
90341-18006	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
90430-18008	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F	10/2006 - 06/2011	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006	XZU424..85T;XZU414..LHD..GEN;XZU414,424..75T..GEN;XZU404,414,434..(55T,85T)..ARL;WU410,XZU412,422..5F..(GCC,GEN)	10/2001 - 10/2006	1
90341-18006	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33111C - PLUG(FOR TRANSMISSION CASE)
96411-11600	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	3
96411-11600	WU410..GCC,GEN	12/2002 - 10/2006	3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	WU410,420 L=16,OD=12	12/2002 - 02/2008	4
90250-12002	WU420;WU410..65T;WU410..75T..GEN L=16,OD=12	10/2006 - 06/2011	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	WU410,420 L=16,OD=12	12/2002 - 02/2008	4
90250-12002	WU420;WU410..65T;WU410..75T..GEN L=16,OD=12	10/2006 - 06/2011	4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-13017	WU410..GCC,GEN L=12,OD=13	12/2002 - 10/2006	2
90253-11001	WU420;WU410..65T;WU410..75T..GEN L=11,OD=11	10/2006 - 06/2011	1
90253-11001	WU410..GCC,GEN L=11,OD=11	12/2002 - 10/2006	1
90253-13017	WU420;WU410..65T;WU410..75T..GEN L=12,OD=13	10/2006 - 06/2011	2
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008	WU410..GCC,GEN	12/2002 - 10/2006	1
90430-18008	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-36030	WU410..GCC,GEN	12/2002 - 10/2006	1
33124-36030	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33125B - RECEIVER, MANUAL TRANSMISSION CASE
33125-36020	WU410..GCC,GEN	12/2002 - 10/2006	1
33125-36020	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-37010	WU410..GCC,GEN	12/2002 - 10/2006	1
33018-37010	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-35023	XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
90311-35023	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F	10/2006 - 06/2011	1
33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)
90311-48011	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F	10/2006 - 06/2011	1
90311-48011	WU410..GCC,GEN	12/2002 - 10/2006	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33017-36031	WU410..GCC,GEN	12/2002 - 10/2006	1
33017-36031	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161-36010	XZU414..5F;XZU424..55T,85T;XZU424..75T..GEN;WU410,XZU404,412,422,434..ARL,GCC,GEN	10/2001 - 10/2006	1
33161-36010	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F	10/2006 - 06/2011	1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
33162-36020	XZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
33162-36020	WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F	10/2006 - 06/2011	1
33449B - MAGNET, TRANSMISSION
33449-36010	WU410..GCC,GEN	12/2002 - 10/2006	1
33449-36010	WU420;WU410..65T;WU410..75T..GEN	10/2006 - 06/2011	1
Common parts
90119-08332
90119-08421
90119-10121
90119-10186
90119-10390
91611-B0610
91611-B0812
91612-61030
91612-61040
91612-61045

WU410R-TKMQS (2002)

(0212-0610)WU410..GCC,GEN ; (0304- )WU410,420..SA

(0110-0610)XZU404,412,414,422,424,434..EUR,GCC,GEN ; (0212- )XZU404,414,420,424,

(0610- )XZU425,435..DCRTK ; (0610- )WU412,422,XZU413,415,417,419,423,427,429,

(0610- )WU420 ; (0610- )WU410..65T ; (0610- )WU410..75T..GEN

Part Price Details
