WU410R-TKMQS (2002)
Toyota Dyna
Production
Dec 2002
-
Jun 2011
Engine
W04D
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0212- )XZU404,414,424..ARL ; (0212- )WU410,420,XZU412,420,422,423,430,433,43

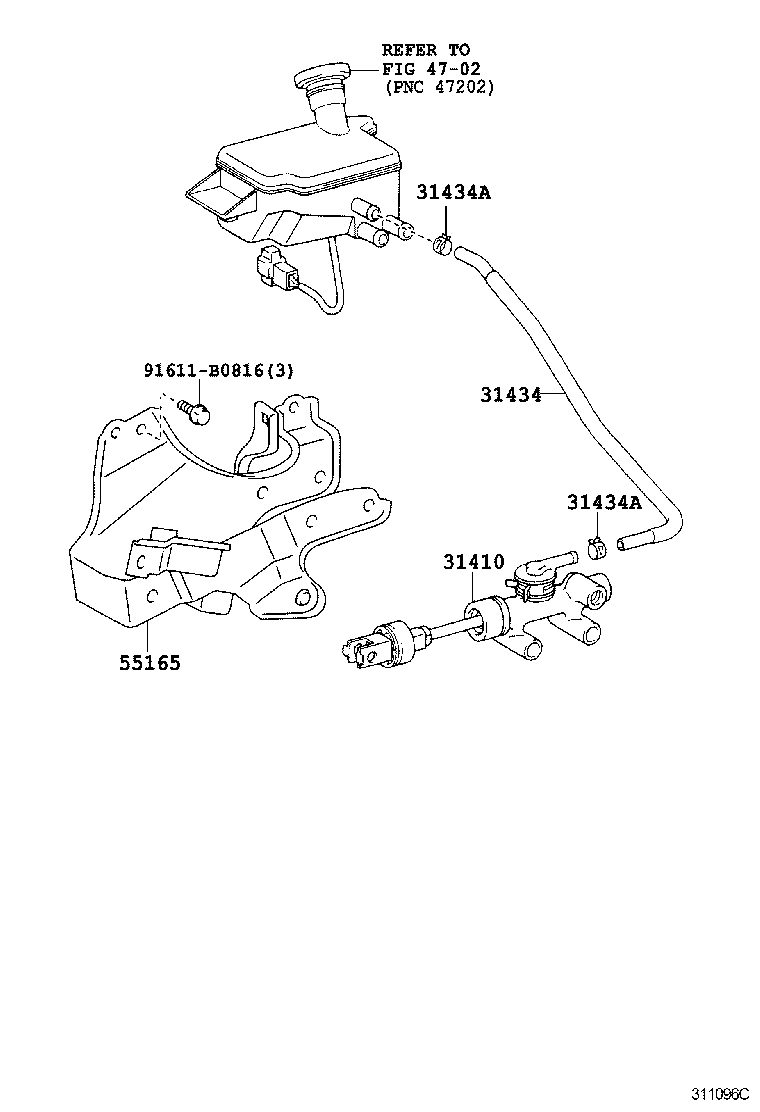

Click highlighted areas on diagram
W/O(CLUCH BOOSTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-37140 |
XZU414,424..LHD..GEN;WU410,420,XZU412,420,422,430 |
1 | ||
| 31420-37141 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| 31420-37141 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-37190 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 31434-37190 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96133-41300 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96133-41300 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
2 | ||
| 55165 - SUPPORT, CLUTCH MASTER CYLINDER | ||||
| 55107-37052 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 55107-37051 |
XZU414,424..LHD..GEN;WU410,420,XZU412,420,422,430 |
1 | ||
| 55107-37052 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| Common parts | ||||
| 91611-B0816 | ||||
| Linked diagrams | ||||
| 4702 | ||||
