WU410R-TKMQS (2002)
Toyota Dyna

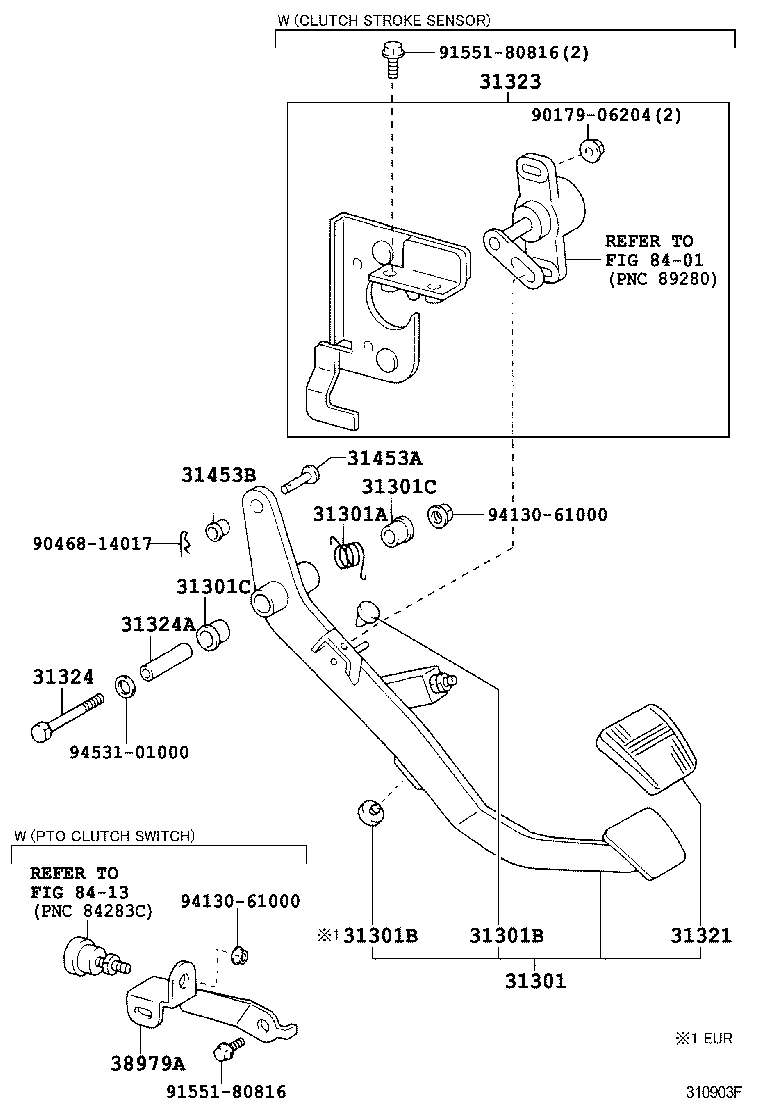

ILLUST NO. 1 OF 2(0110-0610)XZU404,434 ; (0110-0610)XZU414,424..RHD ; (0110-0610)XZU414,424..EUR ; (
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-37240 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 31301-37240 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-18032 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| 90507-18032 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90541-06036 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90541-06036 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91112-61070 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 38979A - BRACKET, POWER TAKE-OFF CLUTCH SWITCH | ||||
| 38979-37110 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) NO.1 |
1 | ||
| 38979-37120 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) NO.2 |
1 | ||
| 38979-37110 |
WU410..65T;XZU423..SA;WU412,42#,XZU433;WU410,XZU413,423..5F..(55T,75T)..GEN NO.1 |
1 | ||
| 38979-37120 |
WU410..65T;XZU423..SA;WU412,42#,XZU433;WU410,XZU413,423..5F..(55T,75T)..GEN NO.2 |
1 | ||
| Common parts | ||||
| 90179-06204 | ||||
| 90468-14017 | ||||
| 91551-80816 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8413 | ||||

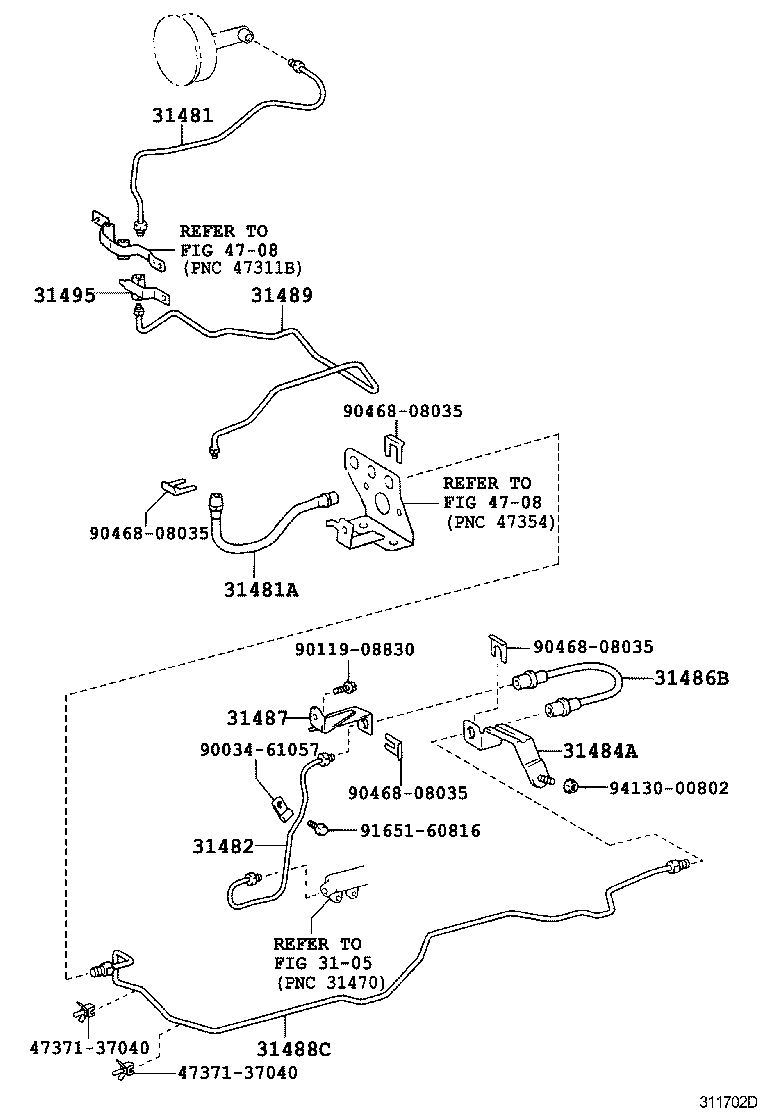

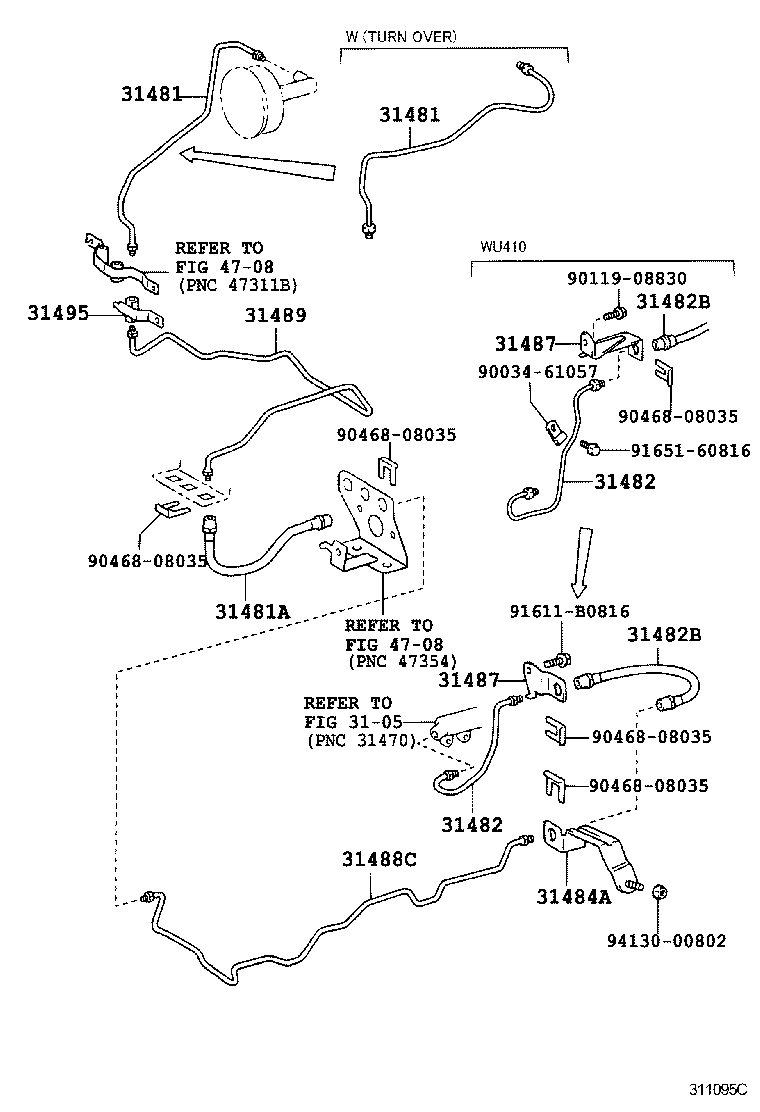

ILLUST NO. 2 OF 2(0110-0610)RHD..ARL,GEN ; (0212- )WU410,420,XZU420,430..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-25220 |
WU410,420,XZU412,420,422,430..RHD |
1 | ||
| 31481-37260 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 31481-37260 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-25220 |
WU410,420,XZU412,420,422,430..RHD |
1 | ||
| 31481-37260 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 31481-37260 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01143 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-37150 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 31482-37150 |
WU410..GCC,GEN |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-37150 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 31482-37150 |
WU410..GCC,GEN |
1 | ||
| 31482B - HOSE, CLUTCH, NO.2 | ||||
| 90931-01142 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 31482B - HOSE, CLUTCH, NO.2 | ||||
| 90931-01142 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-37180 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 31484-37180 |
WU412,42#;WU410..65T;WU410..75T..GEN |
1 | ||
| 31487 - PLATE, RELEASE TUBE SET | ||||
| 31487-37130 |
WU410..GCC,GEN |
1 | ||
| 31487-37130 |
WU412,42#;WU410..65T;WU410..75T..GEN |
1 | ||
| 31487 - PLATE, RELEASE TUBE SET | ||||
| 31487-37130 |
WU410..GCC,GEN |
1 | ||
| 31487-37130 |
WU412,42#;WU410..65T;WU410..75T..GEN |
1 | ||
| 31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE | ||||
| 31488-37430 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN W/O(ABS) |
1 | ||
| 31481-37310 |
WU412,42#;WU410..65T;WU410..75T..GEN |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31481-37160 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 31481-37160 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 31495 - WAY, CLUTCH TUBE | ||||
| 31495-37020 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90034-61057 | ||||
| 90119-08830 | ||||
| 90468-08035 | ||||
| 91611-B0816 | ||||
| 91651-60816 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3105 | ||||
| 4708 | ||||

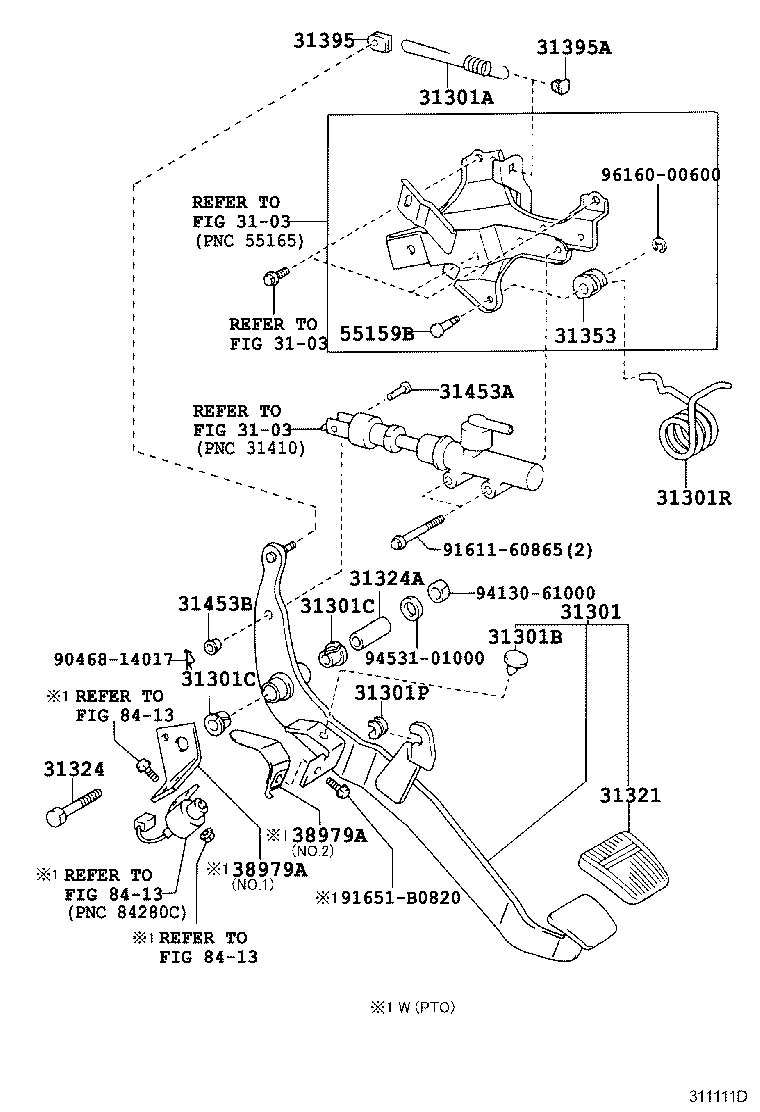

ILLUST NO. 1 OF 2(0212-0610)XZU414,424..LHD..GEN ; (0212-0610)WU410,XZU412,422..GCC,GEN ; (0304-
TURN OVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-37240 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 31301-37240 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-18032 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| 90507-18032 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90541-06036 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| 90389-06055 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 90959-03331 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 90959-03331 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91112-61070 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-35010 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| 31353-35010 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 31395 - HOOK, PEDAL SPRING | ||||
| 31395-33010 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 31395-33010 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| 31395A - HOOK, PEDAL SPRING, NO.1 | ||||
| 31395-33020 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 31395-33020 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 38979A - BRACKET, POWER TAKE-OFF CLUTCH SWITCH | ||||
| 38979-37110 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) NO.1 |
1 | ||
| 38979-37120 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) NO.2 |
1 | ||
| 38979-37110 |
WU410..65T;XZU423..SA;WU412,42#,XZU433;WU410,XZU413,423..5F..(55T,75T)..GEN NO.1 |
1 | ||
| 38979-37120 |
WU410..65T;XZU423..SA;WU412,42#,XZU433;WU410,XZU413,423..5F..(55T,75T)..GEN NO.2 |
1 | ||
| 38979A - BRACKET, POWER TAKE-OFF CLUTCH SWITCH | ||||
| 38979-37110 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) NO.1 |
1 | ||
| 38979-37120 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) NO.2 |
1 | ||
| 38979-37110 |
WU410..65T;XZU423..SA;WU412,42#,XZU433;WU410,XZU413,423..5F..(55T,75T)..GEN NO.1 |
1 | ||
| 38979-37120 |
WU410..65T;XZU423..SA;WU412,42#,XZU433;WU410,XZU413,423..5F..(55T,75T)..GEN NO.2 |
1 | ||
| 55159B - PIN, CLUTCH PEDAL TURN OVER SPRING | ||||
| 55159-37060 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 55159-37060 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| Common parts | ||||
| 90468-14017 | ||||
| 91611-60865 | ||||
| 91651-B0820 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 8413 | ||||
ILLUST NO. 1 OF 2(0610- )WU410..65T ; (0610- )WU410..75T..GEN ; (0610- )WU412,42#,XZU413,42
TURN OVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-37240 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 31301-37240 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-18032 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| 90507-18032 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 90541-06036 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
2 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| 90389-06055 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 90959-03331 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 90959-03331 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91112-61070 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-35010 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| 31353-35010 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 31395 - HOOK, PEDAL SPRING | ||||
| 31395-33010 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 31395-33010 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| 31395A - HOOK, PEDAL SPRING, NO.1 | ||||
| 31395-33020 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 31395-33020 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 38979A - BRACKET, POWER TAKE-OFF CLUTCH SWITCH | ||||
| 38979-37110 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) NO.1 |
1 | ||
| 38979-37120 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) NO.2 |
1 | ||
| 38979-37110 |
WU410..65T;XZU423..SA;WU412,42#,XZU433;WU410,XZU413,423..5F..(55T,75T)..GEN NO.1 |
1 | ||
| 38979-37120 |
WU410..65T;XZU423..SA;WU412,42#,XZU433;WU410,XZU413,423..5F..(55T,75T)..GEN NO.2 |
1 | ||
| 38979A - BRACKET, POWER TAKE-OFF CLUTCH SWITCH | ||||
| 38979-37110 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) NO.1 |
1 | ||
| 38979-37120 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) NO.2 |
1 | ||
| 38979-37110 |
WU410..65T;XZU423..SA;WU412,42#,XZU433;WU410,XZU413,423..5F..(55T,75T)..GEN NO.1 |
1 | ||
| 38979-37120 |
WU410..65T;XZU423..SA;WU412,42#,XZU433;WU410,XZU413,423..5F..(55T,75T)..GEN NO.2 |
1 | ||
| 55159B - PIN, CLUTCH PEDAL TURN OVER SPRING | ||||
| 55159-37060 |
XZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN) |
1 | ||
| 55159-37060 |
WU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433 |
1 | ||
| Common parts | ||||
| 90468-14017 | ||||
| 91551-80816 | ||||
| 91611-60865 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 8413 | ||||
ILLUST NO. 2 OF 2(0610- )WU420 ; (0610- )WU410..RHD..65T ;(0610- )WU410..75T..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-25220 |
WU410,420,XZU412,420,422,430..RHD |
1 | ||
| 31481-37260 |
WU410,XZU412,422..RHD..GEN |
1 | ||
| 31481-37260 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01143 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-37150 |
WU420;WU410..65T;WU410..75T..GEN |
1 | ||
| 31482-37150 |
WU410..GCC,GEN |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-37180 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 31484-37180 |
WU412,42#;WU410..65T;WU410..75T..GEN |
1 | ||
| 31486B - HOSE, MASTER CYLINDER TO RELEASE CYLINDER | ||||
| 31486-37060 |
WU412,42#;WU410..65T;WU410..75T..GEN |
1 | ||
| 31487 - PLATE, RELEASE TUBE SET | ||||
| 31487-37130 |
WU410..GCC,GEN |
1 | ||
| 31487-37130 |
WU412,42#;WU410..65T;WU410..75T..GEN |
1 | ||
| 31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE | ||||
| 31488-37430 |
XZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN W/O(ABS) |
1 | ||
| 31481-37310 |
WU412,42#;WU410..65T;WU410..75T..GEN |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31481-37160 |
WU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA |
1 | ||
| 31481-37160 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| 31495 - WAY, CLUTCH TUBE | ||||
| 31495-37020 |
WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90034-61057 | ||||
| 90119-08830 | ||||
| 90468-08035 | ||||
| 91651-60816 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3105 | ||||
| 4708 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
