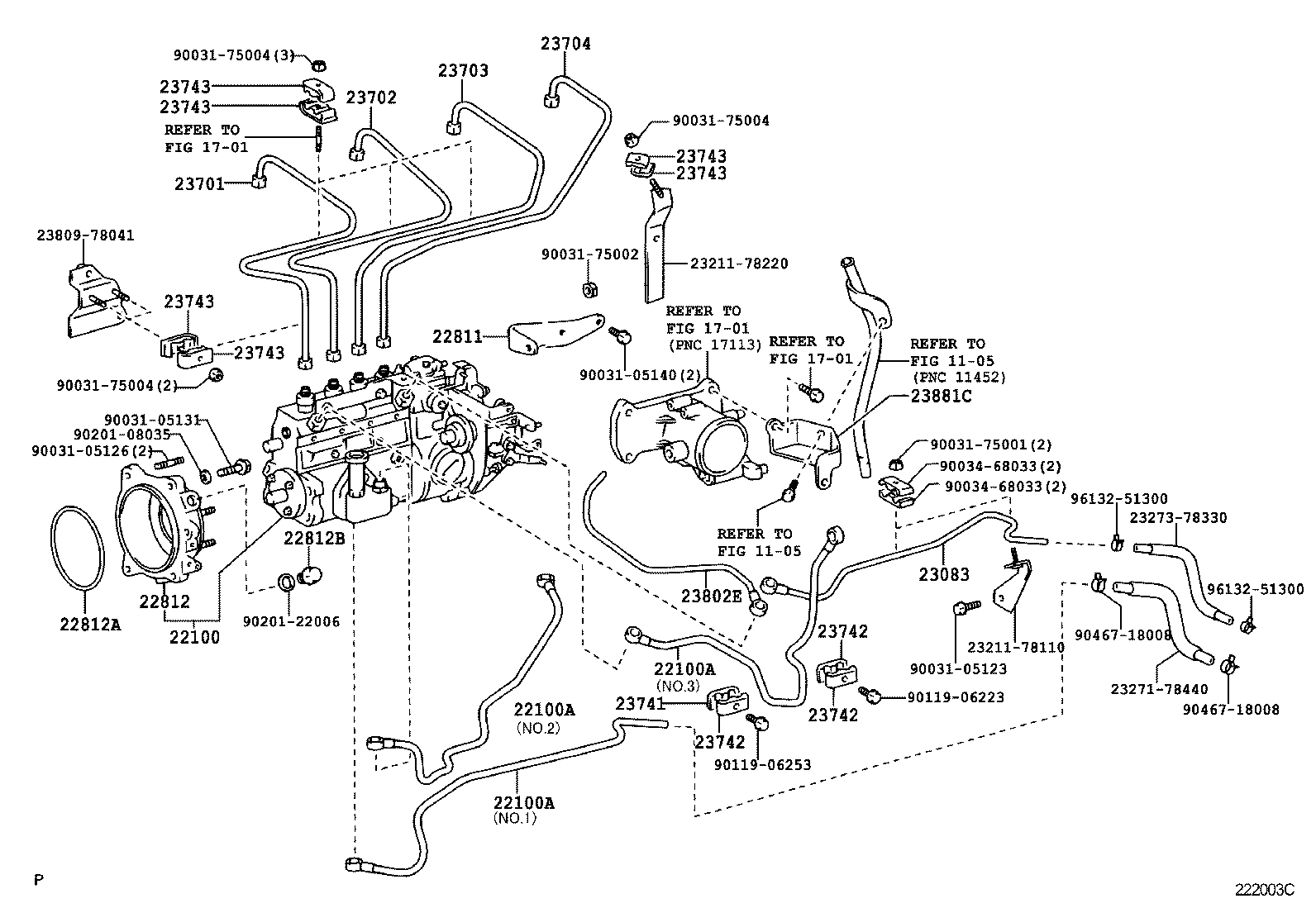

WU410R-TKMQS (2002)
Toyota Dyna
(0212-0610)W04D..WU410..GCC,GEN ; (0304- )W04D..WU410,420..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22010-78330 |
W04D..WU410..GCC,GEN |
1 | ||
| 22010-78370 |
W04D..WU410..GEN W(HIGH ALTITUDE COMPENSATOR) |
1 | ||
| 22010-78330 |
W04D..WU410..GCC,GEN |
1 | ||
| 22010-78370 |
W04D..WU410..GEN W(HIGH ALTITUDE COMPENSATOR) |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23812-78050 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 23812-78040 |
W04D..WU410..GCC,GEN NO.3 |
1 | ||
| 23814-78040 |
W04D..WU410..GCC,GEN NO.2 |
1 | ||
| 23812-78050 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 23814-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
1 | ||
| 23812-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.3 |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23812-78050 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 23812-78040 |
W04D..WU410..GCC,GEN NO.3 |
1 | ||
| 23814-78040 |
W04D..WU410..GCC,GEN NO.2 |
1 | ||
| 23812-78050 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 23814-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
1 | ||
| 23812-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.3 |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23812-78050 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 23812-78040 |
W04D..WU410..GCC,GEN NO.3 |
1 | ||
| 23814-78040 |
W04D..WU410..GCC,GEN NO.2 |
1 | ||
| 23812-78050 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 23814-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
1 | ||
| 23812-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.3 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 22811-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 22812 - RETAINER, INJECTION PUMP | ||||
| 22802-78040 |
W04D..WU410..GCC,GEN |
1 | ||
| 22802-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 22812A - RING, O | ||||
| 90301-99019 |
W04D..WU410..GCC,GEN |
1 | ||
| 90301-99019 |
W04D..WU410..GCC,GEN |
1 | ||
| 90099-14072 |
W04D..WU410..GEN W(HIGH ALTITUDE COMPENSATOR) |
1 | ||
| 22812B - PLUG, W/HEAD STRAIGHT SCREW(FOR INJECTION PUMP RETAINER | ||||
| 90341-22002 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 90341-22002 |
W04D..WU410..GCC,GEN |
1 | ||
| 23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3 | ||||
| 23803-78110 |
W04D..WU410..GCC,GEN |
1 | ||
| 23803-78110 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-78020 |
W04D..WU410..GCC,GEN |
1 | ||
| 23701-78020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-78020 |
W04D..WU410..GCC,GEN |
1 | ||
| 23702-78020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-78020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 23703-78020 |
W04D..WU410..GCC,GEN |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-78020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 23704-78020 |
W04D..WU410..GCC,GEN |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90929-01058 |
W04D..WU410..GCC,GEN |
1 | ||
| 90929-01058 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 90929-01057 |
W04D..WU410..GCC,GEN |
3 | ||
| 90929-01057 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
3 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 90929-01057 |
W04D..WU410..GCC,GEN |
3 | ||
| 90929-01057 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
3 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 90929-01057 |
W04D..WU410..GCC,GEN |
3 | ||
| 90929-01057 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
3 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 90929-01056 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
12 | ||
| 90929-01056 |
W04D..WU410..GCC,GEN |
10 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 90929-01056 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
12 | ||
| 90929-01056 |
W04D..WU410..GCC,GEN |
10 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 90929-01056 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
12 | ||
| 90929-01056 |
W04D..WU410..GCC,GEN |
10 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 90929-01056 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
12 | ||
| 90929-01056 |
W04D..WU410..GCC,GEN |
10 | ||
| 23802E - PIPE SUB-ASSY, FUEL | ||||
| 23803-78090 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 23803-78090 |
W04D..WU410..GCC,GEN |
1 | ||
| 23881C - BRACKET, FUEL HOSE | ||||
| 23881-78021 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 23881-78021 |
W04D..WU410..GCC,GEN |
1 | ||
| 23881-78020 |
W04D..WU410,420 |
1 | ||
| Common parts | ||||
| 23211-78110 | ||||
| 23211-78220 | ||||
| 23271-78200 | ||||
| 23273-78050 | ||||
| 23809-78020 | ||||
| 23809-78041 | ||||
| 90031-05123 | ||||
| 90031-05126 | ||||
| 90031-05131 | ||||
| 90031-05140 | ||||
| 90031-75001 | ||||
| 90031-75002 | ||||
| 90031-75004 | ||||
| 90031-75012 | ||||
| 90034-68033 | ||||
| 90099-05119 | ||||
| 90119-06223 | ||||
| 90119-06253 | ||||
| 90201-08035 | ||||
| 90201-22006 | ||||
| 90467-18008 | ||||
| 90929-01056 | ||||
| 94110-71000 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1701 | ||||
(0610- )W04D..WU420 ; (0610- )W04D..WU410..65T ; (0610- )W04D..WU410..75T.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22010-78330 |
W04D..WU410..GCC,GEN |
1 | ||
| 22010-78370 |
W04D..WU410..GEN W(HIGH ALTITUDE COMPENSATOR) |
1 | ||
| 22010-78330 |
W04D..WU410..GCC,GEN |
1 | ||
| 22010-78370 |
W04D..WU410..GEN W(HIGH ALTITUDE COMPENSATOR) |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23812-78050 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 23812-78040 |
W04D..WU410..GCC,GEN NO.3 |
1 | ||
| 23814-78040 |
W04D..WU410..GCC,GEN NO.2 |
1 | ||
| 23812-78050 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 23814-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
1 | ||
| 23812-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.3 |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23812-78050 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 23812-78040 |
W04D..WU410..GCC,GEN NO.3 |
1 | ||
| 23814-78040 |
W04D..WU410..GCC,GEN NO.2 |
1 | ||
| 23812-78050 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 23814-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
1 | ||
| 23812-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.3 |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23812-78050 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 23812-78040 |
W04D..WU410..GCC,GEN NO.3 |
1 | ||
| 23814-78040 |
W04D..WU410..GCC,GEN NO.2 |
1 | ||
| 23812-78050 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 23814-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
1 | ||
| 23812-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.3 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 22811-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 22812 - RETAINER, INJECTION PUMP | ||||
| 22802-78040 |
W04D..WU410..GCC,GEN |
1 | ||
| 22802-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 22812A - RING, O | ||||
| 90301-99019 |
W04D..WU410..GCC,GEN |
1 | ||
| 90301-99019 |
W04D..WU410..GCC,GEN |
1 | ||
| 90099-14072 |
W04D..WU410..GEN W(HIGH ALTITUDE COMPENSATOR) |
1 | ||
| 22812B - PLUG, W/HEAD STRAIGHT SCREW(FOR INJECTION PUMP RETAINER | ||||
| 90341-22002 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 90341-22002 |
W04D..WU410..GCC,GEN |
1 | ||
| 23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3 | ||||
| 23803-78110 |
W04D..WU410..GCC,GEN |
1 | ||
| 23803-78110 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-78020 |
W04D..WU410..GCC,GEN |
1 | ||
| 23701-78020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-78020 |
W04D..WU410..GCC,GEN |
1 | ||
| 23702-78020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-78020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 23703-78020 |
W04D..WU410..GCC,GEN |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-78020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 23704-78020 |
W04D..WU410..GCC,GEN |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90929-01058 |
W04D..WU410..GCC,GEN |
1 | ||
| 90929-01058 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 90929-01057 |
W04D..WU410..GCC,GEN |
3 | ||
| 90929-01057 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
3 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 90929-01057 |
W04D..WU410..GCC,GEN |
3 | ||
| 90929-01057 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
3 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 90929-01057 |
W04D..WU410..GCC,GEN |
3 | ||
| 90929-01057 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
3 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 90929-01056 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
12 | ||
| 90929-01056 |
W04D..WU410..GCC,GEN |
10 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 90929-01056 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
12 | ||
| 90929-01056 |
W04D..WU410..GCC,GEN |
10 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 90929-01056 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
12 | ||
| 90929-01056 |
W04D..WU410..GCC,GEN |
10 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 90929-01056 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
12 | ||
| 90929-01056 |
W04D..WU410..GCC,GEN |
10 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 90929-01056 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
12 | ||
| 90929-01056 |
W04D..WU410..GCC,GEN |
10 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 90929-01056 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
12 | ||
| 90929-01056 |
W04D..WU410..GCC,GEN |
10 | ||
| 23802E - PIPE SUB-ASSY, FUEL | ||||
| 23803-78090 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 23803-78090 |
W04D..WU410..GCC,GEN |
1 | ||
| 23881C - BRACKET, FUEL HOSE | ||||
| 23881-78021 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 23881-78021 |
W04D..WU410..GCC,GEN |
1 | ||
| 23881-78020 |
W04D..WU410,420 |
1 | ||
| Common parts | ||||
| 23211-78110 | ||||
| 23211-78220 | ||||
| 23271-78440 | ||||
| 23273-78330 | ||||
| 23809-78041 | ||||
| 90031-05123 | ||||
| 90031-05126 | ||||
| 90031-05131 | ||||
| 90031-05140 | ||||
| 90031-75001 | ||||
| 90031-75002 | ||||
| 90031-75004 | ||||
| 90034-68033 | ||||
| 90119-06223 | ||||
| 90119-06253 | ||||
| 90201-08035 | ||||
| 90201-22006 | ||||
| 90467-18008 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
