WU410R-TKMQS (2002)
Toyota Dyna
(0212- )W04D..WU410,420

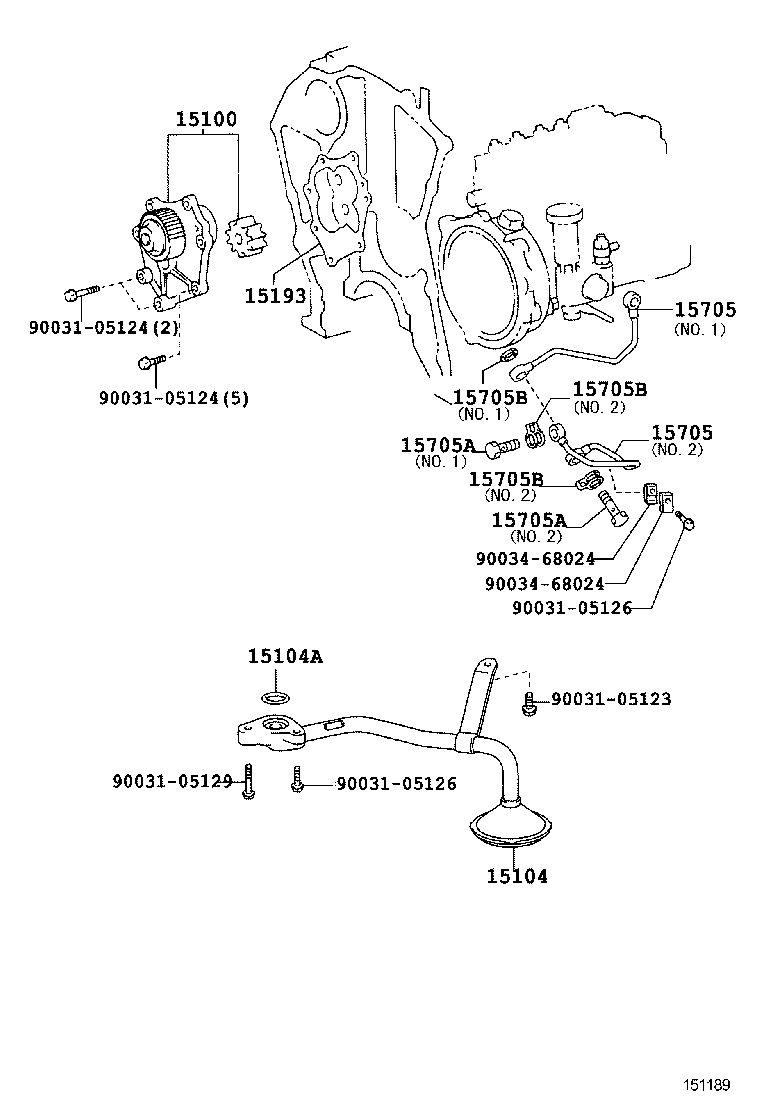

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15012 - COVER SUB-ASSY, OIL PUMP | ||||
| 15012-78010 |
W04D..WU410,420 |
1 | ||
| 15100 - PUMP ASSY, OIL | ||||
| 15100-78030 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 15110-78010 |
W04D..WU410,420 |
1 | ||
| 15100-78030 |
W04D..WU410..GCC,GEN |
1 | ||
| 15100-78020 |
W04D..WU410,420 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15401-78020 |
W04D..WU410..GCC,GEN |
1 | ||
| 15401-78020 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 15104A - RING, O(FOR OIL STRAINER) | ||||
| 90301-21003 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 90301-21003 |
W04D..WU410..GCC,GEN |
1 | ||
| 90033-01104 |
W04D..WU41#,422 |
1 | ||
| 15122 - GEAR, OIL PUMP DRIVEN | ||||
| 15122-78010 |
W04D..WU410,420 |
1 | ||
| 15193 - GASKET, OIL PUMP | ||||
| 15193-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 15193-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 15705 - PIPE SUB-ASSY, OIL, INJECTION PUMP INLET | ||||
| 15771-78040 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 15772-78030 |
W04D..WU410..GCC,GEN NO.2 |
1 | ||
| 15771-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 15772-78030 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
1 | ||
| 15705 - PIPE SUB-ASSY, OIL, INJECTION PUMP INLET | ||||
| 15771-78040 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 15772-78030 |
W04D..WU410..GCC,GEN NO.2 |
1 | ||
| 15771-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 15772-78030 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
1 | ||
| 15705 - PIPE SUB-ASSY, OIL, INJECTION PUMP INLET | ||||
| 15771-78040 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 15772-78030 |
W04D..WU410..GCC,GEN NO.2 |
1 | ||
| 15771-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 15772-78030 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
1 | ||
| 15705 - PIPE SUB-ASSY, OIL, INJECTION PUMP INLET | ||||
| 15771-78040 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 15772-78030 |
W04D..WU410..GCC,GEN NO.2 |
1 | ||
| 15771-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 15772-78030 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
1 | ||
| 15705A - UNION(FOR INJECTION PUMP INLET PIPE) | ||||
| 90401-10016 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 90401-10017 |
W04D..WU410..GCC,GEN NO.2 |
1 | ||
| 90401-10016 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 90401-10017 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
1 | ||
| 15705A - UNION(FOR INJECTION PUMP INLET PIPE) | ||||
| 90401-10016 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 90401-10017 |
W04D..WU410..GCC,GEN NO.2 |
1 | ||
| 90401-10016 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 90401-10017 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
1 | ||
| 15705A - UNION(FOR INJECTION PUMP INLET PIPE) | ||||
| 90401-10016 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 90401-10017 |
W04D..WU410..GCC,GEN NO.2 |
1 | ||
| 90401-10016 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 90401-10017 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
1 | ||
| 15705A - UNION(FOR INJECTION PUMP INLET PIPE) | ||||
| 90401-10016 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 90401-10017 |
W04D..WU410..GCC,GEN NO.2 |
1 | ||
| 90401-10016 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 90401-10017 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
1 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90032-09021 |
W04D..WU410..GCC,GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN |
5 | ||
| 90032-09021 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90032-09021 |
W04D..WU410..GCC,GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN |
5 | ||
| 90032-09021 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90032-09021 |
W04D..WU410..GCC,GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN |
5 | ||
| 90032-09021 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90032-09021 |
W04D..WU410..GCC,GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN |
5 | ||
| 90032-09021 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90032-09021 |
W04D..WU410..GCC,GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN |
5 | ||
| 90032-09021 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90032-09021 |
W04D..WU410..GCC,GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN |
5 | ||
| 90032-09021 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90032-09021 |
W04D..WU410..GCC,GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN |
5 | ||
| 90032-09021 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90032-09021 |
W04D..WU410..GCC,GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN |
5 | ||
| 90032-09021 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| Common parts | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05126 | ||||
| 90031-05129 | ||||
| 90034-68024 | ||||
| 94613-10800 | ||||
(0610- )W04D..WU420 ; (0610- )W04D..WU410..65T ; (0610- )W04D..WU410..75T.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-78030 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 15110-78010 |
W04D..WU410,420 |
1 | ||
| 15100-78030 |
W04D..WU410..GCC,GEN |
1 | ||
| 15100-78020 |
W04D..WU410,420 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15401-78020 |
W04D..WU410..GCC,GEN |
1 | ||
| 15401-78020 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 15104A - RING, O(FOR OIL STRAINER) | ||||
| 90301-21003 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 90301-21003 |
W04D..WU410..GCC,GEN |
1 | ||
| 90033-01104 |
W04D..WU41#,422 |
1 | ||
| 15193 - GASKET, OIL PUMP | ||||
| 15193-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 15193-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 15705 - PIPE SUB-ASSY, OIL, INJECTION PUMP INLET | ||||
| 15771-78040 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 15772-78030 |
W04D..WU410..GCC,GEN NO.2 |
1 | ||
| 15771-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 15772-78030 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
1 | ||
| 15705 - PIPE SUB-ASSY, OIL, INJECTION PUMP INLET | ||||
| 15771-78040 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 15772-78030 |
W04D..WU410..GCC,GEN NO.2 |
1 | ||
| 15771-78040 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 15772-78030 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
1 | ||
| 15705A - UNION(FOR INJECTION PUMP INLET PIPE) | ||||
| 90401-10016 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 90401-10017 |
W04D..WU410..GCC,GEN NO.2 |
1 | ||
| 90401-10016 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 90401-10017 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
1 | ||
| 15705A - UNION(FOR INJECTION PUMP INLET PIPE) | ||||
| 90401-10016 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 90401-10017 |
W04D..WU410..GCC,GEN NO.2 |
1 | ||
| 90401-10016 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 90401-10017 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
1 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90032-09021 |
W04D..WU410..GCC,GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN |
5 | ||
| 90032-09021 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90032-09021 |
W04D..WU410..GCC,GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN |
5 | ||
| 90032-09021 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| 15705B - GASKET(FOR INJECTION PUMP INLET PIPE) | ||||
| 90032-09021 |
W04D..WU410..GCC,GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN NO.1 |
1 | ||
| 90202-10011 |
W04D..WU410..GCC,GEN |
5 | ||
| 90032-09021 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.2 |
2 | ||
| 90202-10011 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN NO.1 |
1 | ||
| Common parts | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05126 | ||||
| 90031-05129 | ||||
| 90034-68024 | ||||
