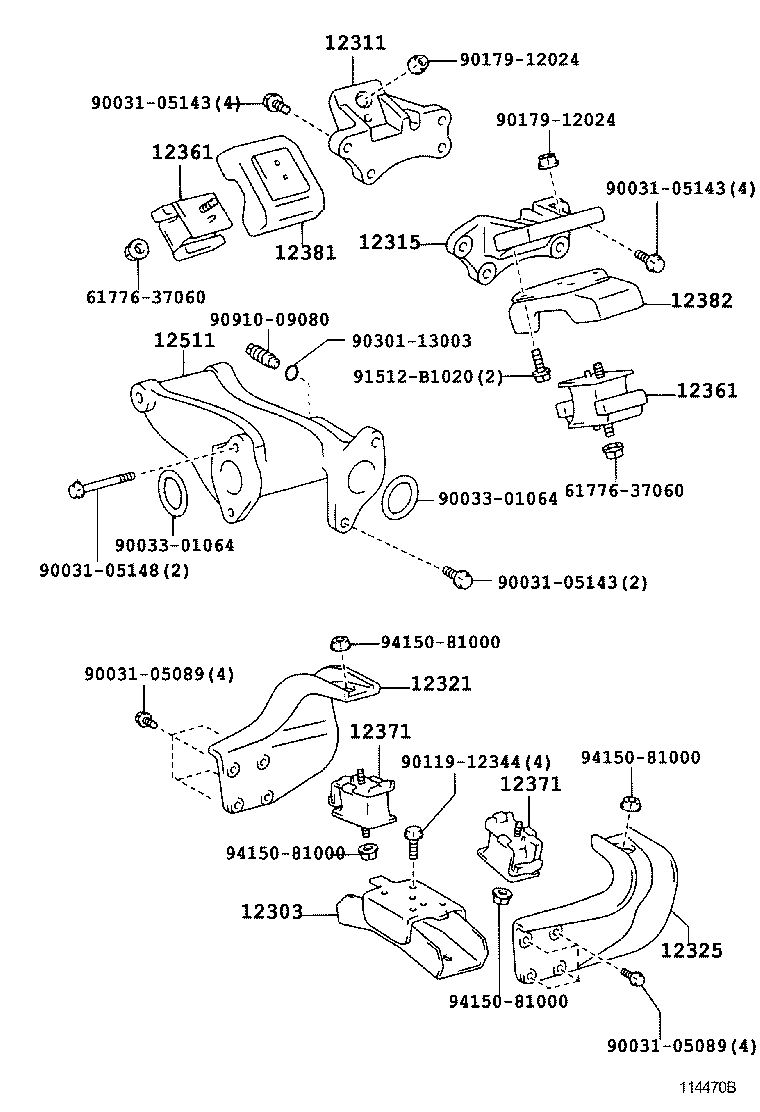

WU410R-TKMQS (2002)
Toyota Dyna
(0212-0610)W04D..WU410..GCC,GEN ; (0304- )W04D..WU410,420..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 12303-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-78050 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12311-78050 |
W04D..WU410..GCC,GEN |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-78030 |
W04D..WU410..GCC,GEN |
1 | ||
| 12315-78030 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78170 |
W04D..WU410,420 |
1 | ||
| 12321-78171 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12321-78171 |
W04D..WU410..GCC,GEN |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-78150 |
W04D..WU410,420 |
1 | ||
| 12325-78151 |
W04D..WU410..GCC,GEN |
1 | ||
| 12325-78151 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-78110 |
W04D..WU410..GCC,GEN |
2 | ||
| 12361-78110 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-78110 |
W04D..WU410..GCC,GEN |
2 | ||
| 12361-78110 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
W04D..WU410..GCC,GEN |
2 | ||
| 12371-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
W04D..WU410..GCC,GEN |
2 | ||
| 12371-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-58011 |
W04D..WU410..GCC,GEN |
1 | ||
| 12381-58011 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12382 - STABILIZER, ENGINE MOUNTING, LH | ||||
| 12382-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 12382-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12501-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 12501-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| Common parts | ||||
| 61776-37060 | ||||
| 90031-05089 | ||||
| 90031-05143 | ||||
| 90031-05148 | ||||
| 90033-01064 | ||||
| 90119-12344 | ||||
| 90179-12024 | ||||
| 90201-12023 | ||||
| 90301-13003 | ||||
| 90910-09080 | ||||
| 91512-B1020 | ||||
| 94150-81000 | ||||
(0610- )W04D..WU420 ; (0610- )W04D..WU410..65T ; (0610- )W04D..WU410..75T.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 12303-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-78050 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12311-78050 |
W04D..WU410..GCC,GEN |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-78030 |
W04D..WU410..GCC,GEN |
1 | ||
| 12315-78030 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78170 |
W04D..WU410,420 |
1 | ||
| 12321-78171 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12321-78171 |
W04D..WU410..GCC,GEN |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-78150 |
W04D..WU410,420 |
1 | ||
| 12325-78151 |
W04D..WU410..GCC,GEN |
1 | ||
| 12325-78151 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-78110 |
W04D..WU410..GCC,GEN |
2 | ||
| 12361-78110 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-78110 |
W04D..WU410..GCC,GEN |
2 | ||
| 12361-78110 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
W04D..WU410..GCC,GEN |
2 | ||
| 12371-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
W04D..WU410..GCC,GEN |
2 | ||
| 12371-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-58011 |
W04D..WU410..GCC,GEN |
1 | ||
| 12381-58011 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12382 - STABILIZER, ENGINE MOUNTING, LH | ||||
| 12382-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 12382-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12501-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 12501-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| Common parts | ||||
| 61776-37060 | ||||
| 90031-05089 | ||||
| 90031-05143 | ||||
| 90031-05148 | ||||
| 90033-01064 | ||||
| 90119-12344 | ||||
| 90179-12024 | ||||
| 90301-13003 | ||||
| 90910-09080 | ||||
| 91512-B1020 | ||||
| 94150-81000 | ||||
