WU410R-TKMQS (2002)
Toyota Dyna

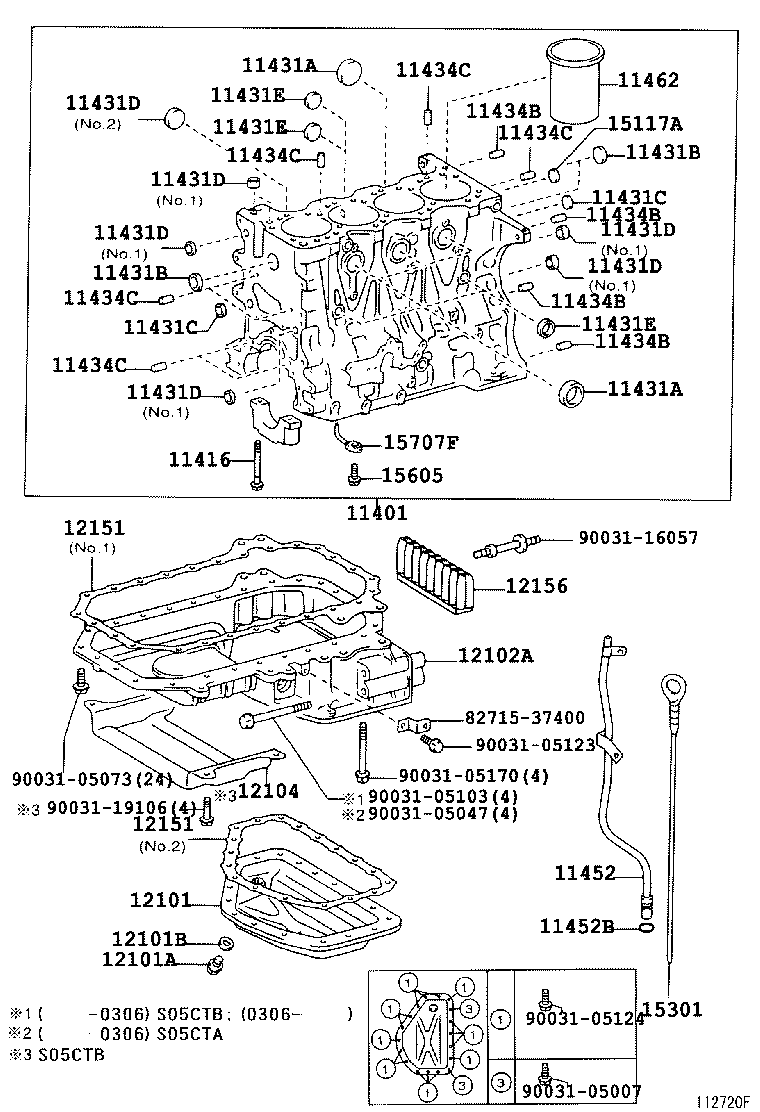

(0212- )S05C..XZU412,422..TD ; (0212- )S05C..XZU414,424..LHD..GEN ; (0212-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-78230 |
W04D..WU410..GCC,GEN |
1 | ||
| 11401-78230 |
W04D..WU410,420 |
1 | ||
| 11410-78070 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02156 |
W04D..WU410..GCC,GEN |
10 | ||
| 90910-02156 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
10 | ||
| 90910-02156 |
W04D..WU410..GCC,GEN |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90033-31026 |
W04D..WU410..GCC,GEN |
3 | ||
| 90033-31026 |
W04D..WU410..GCC,GEN |
3 | ||
| 90033-31026 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
3 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90033-31026 |
W04D..WU410..GCC,GEN |
3 | ||
| 90033-31026 |
W04D..WU410..GCC,GEN |
3 | ||
| 90033-31026 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90033-31035 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
3 | ||
| 90033-31035 |
W04D..WU410..GCC,GEN |
3 | ||
| 90033-31035 |
W04D..WU410..GCC,GEN |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90033-31035 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
3 | ||
| 90033-31035 |
W04D..WU410..GCC,GEN |
3 | ||
| 90033-31035 |
W04D..WU410..GCC,GEN |
3 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
5 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
5 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
5 | ||
| 90033-31020 |
W04D..WU41#,422..GCC,GEN |
5 | ||
| 90033-31020 |
W04D..WU410..GCC,GEN |
5 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
5 | ||
| 90033-31020 |
W04D..WU41#,422..GCC,GEN |
5 | ||
| 90033-31020 |
W04D..WU410..GCC,GEN |
5 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
5 | ||
| 90033-31020 |
W04D..WU41#,422..GCC,GEN |
5 | ||
| 90033-31020 |
W04D..WU410..GCC,GEN |
5 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90032-50060 |
W04D..WU410..GCC,GEN L=24,OD=12 |
2 | ||
| 90032-50060 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN L=24,OD=12 |
2 | ||
| 90032-50060 |
W04D..WU410..GCC,GEN L=24,OD=12 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90032-50060 |
W04D..WU410..GCC,GEN L=24,OD=12 |
2 | ||
| 90032-50060 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN L=24,OD=12 |
2 | ||
| 90032-50060 |
W04D..WU410..GCC,GEN L=24,OD=12 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90032-50060 |
W04D..WU410..GCC,GEN L=24,OD=12 |
2 | ||
| 90032-50060 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN L=24,OD=12 |
2 | ||
| 90032-50060 |
W04D..WU410..GCC,GEN L=24,OD=12 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90032-50060 |
W04D..WU410..GCC,GEN L=24,OD=12 |
2 | ||
| 90032-50060 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN L=24,OD=12 |
2 | ||
| 90032-50060 |
W04D..WU410..GCC,GEN L=24,OD=12 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90032-50049 |
W04D..WU410..GCC,GEN L=16,OD=8 |
2 | ||
| 90032-50049 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN L=16,OD=8 |
2 | ||
| 90032-50049 |
W04D..WU41#,422..GCC,GEN L=16,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90032-50049 |
W04D..WU410..GCC,GEN L=16,OD=8 |
2 | ||
| 90032-50049 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN L=16,OD=8 |
2 | ||
| 90032-50049 |
W04D..WU41#,422..GCC,GEN L=16,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90032-50049 |
W04D..WU410..GCC,GEN L=16,OD=8 |
2 | ||
| 90032-50049 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN L=16,OD=8 |
2 | ||
| 90032-50049 |
W04D..WU41#,422..GCC,GEN L=16,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90032-50049 |
W04D..WU410..GCC,GEN L=16,OD=8 |
2 | ||
| 90032-50049 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN L=16,OD=8 |
2 | ||
| 90032-50049 |
W04D..WU41#,422..GCC,GEN L=16,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90032-50049 |
W04D..WU410..GCC,GEN L=16,OD=8 |
2 | ||
| 90032-50049 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN L=16,OD=8 |
2 | ||
| 90032-50049 |
W04D..WU41#,422..GCC,GEN L=16,OD=8 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-78100 |
W04D..WU410..GCC,GEN |
1 | ||
| 11452-78100 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 90033-01058 |
W04D..WU410..GCC,GEN |
1 | ||
| 90033-01058 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 11462 - LINER, CYLINDER | ||||
| 11461-78031 |
W04D..WU410..GCC,GEN MARK B |
4 | ||
| 11461-78021 |
W04D..WU410..GCC,GEN MARK A |
4 | ||
| 11461-78051 |
W04D..WU410..GCC,GEN MARK C |
4 | ||
| 11461-78021 |
W04D..WU410..GCC,GEN MARK A |
4 | ||
| 11461-78031 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN MARK B |
4 | ||
| 11461-78031 |
W04D..WU410..GCC,GEN MARK B |
4 | ||
| 11461-78051 |
W04D..WU410..GCC,GEN MARK C |
4 | ||
| 11461-78051 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN MARK C |
4 | ||
| 11461-78021 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN MARK A |
4 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12111-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12111-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90033-41020 |
W04D..WU410..GCC,GEN |
1 | ||
| 90033-41020 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90034-30046 |
W04D..WU410,420 |
1 | ||
| 90034-30047 |
W04D..WU41#,42# |
1 | ||
| 90034-30046 |
W04D..WU41#,422..GCC,GEN |
1 | ||
| 90202-18002 |
W04D..WU410,420 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 15301-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| Common parts | ||||
| 82715-37400 | ||||
| 90031-05007 | ||||
| 90031-05047 | ||||
| 90031-05073 | ||||
| 90031-05103 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05170 | ||||
| 90031-16057 | ||||
| 90031-19106 | ||||

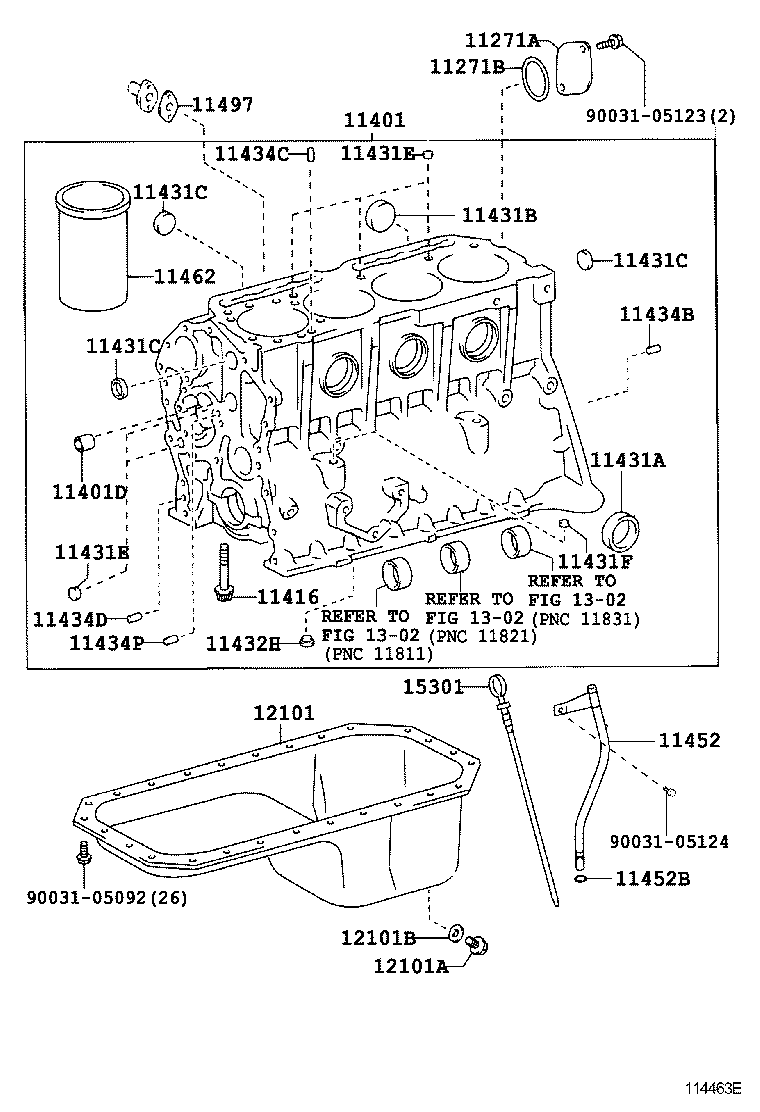

(0212-0704)W04D..WU410,420
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11271A - COVER, CYLINDER BLOCK, REAR | ||||
| 11271-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 11271-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 11271-78020 |
W04D..WU410,420 |
1 | ||
| 11271B - RING, O(FOR CYLINDER BLOCK REAR PLATE) | ||||
| 90301-69001 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 90301-69001 |
W04D..WU410..GCC,GEN |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-78230 |
W04D..WU410..GCC,GEN |
1 | ||
| 11401-78230 |
W04D..WU410,420 |
1 | ||
| 11410-78070 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 11401D - BUSH(FOR OIL PUMP COVER) | ||||
| 90999-71055 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 90999-71055 |
W04D..WU410..GCC,GEN |
1 | ||
| 90999-71055 |
W04D..WU410..GCC,GEN |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02156 |
W04D..WU410..GCC,GEN |
10 | ||
| 90910-02156 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
10 | ||
| 90910-02156 |
W04D..WU410..GCC,GEN |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90033-31026 |
W04D..WU410..GCC,GEN |
3 | ||
| 90033-31026 |
W04D..WU410..GCC,GEN |
3 | ||
| 90033-31026 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90033-31035 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
3 | ||
| 90033-31035 |
W04D..WU410..GCC,GEN |
3 | ||
| 90033-31035 |
W04D..WU410..GCC,GEN |
3 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
5 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
5 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
5 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
5 | ||
| 90033-31020 |
W04D..WU41#,422..GCC,GEN |
5 | ||
| 90033-31020 |
W04D..WU410..GCC,GEN |
5 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
5 | ||
| 90033-31020 |
W04D..WU41#,422..GCC,GEN |
5 | ||
| 90033-31020 |
W04D..WU410..GCC,GEN |
5 | ||
| 11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) | ||||
| 90331-14005 |
W04D..WU41#,422..GCC,GEN |
1 | ||
| 90331-14005 |
W04D..WU410..GCC,GEN |
1 | ||
| 90331-14005 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 11432H - PLUG, W/HEAD TAPER SCREW, NO.5 | ||||
| 90344-21001 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 90344-21001 |
W04D..WU410..GCC,GEN |
2 | ||
| 90344-21001 |
W04D..WU41#,422..GCC,GEN |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90032-50060 |
W04D..WU410..GCC,GEN L=24,OD=12 |
2 | ||
| 90032-50060 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN L=24,OD=12 |
2 | ||
| 90032-50060 |
W04D..WU410..GCC,GEN L=24,OD=12 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90032-50049 |
W04D..WU410..GCC,GEN L=16,OD=8 |
2 | ||
| 90032-50049 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN L=16,OD=8 |
2 | ||
| 90032-50049 |
W04D..WU41#,422..GCC,GEN L=16,OD=8 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90032-50050 |
W04D..WU410..GCC,GEN L=24,OD=8 |
2 | ||
| 90032-50050 |
W04D..WU410..GCC,GEN L=24,OD=8 |
2 | ||
| 90032-50050 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN L=24,OD=8 |
2 | ||
| 11434P - PIN, STRAIGHT(FOR OIL PUMP SET) | ||||
| 90250-05022 |
W04D..WU410..GCC,GEN L=10,OD=5 |
1 | ||
| 90250-05022 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN L=10,OD=5 |
1 | ||
| 90250-05022 |
W04D..WU410..GCC,GEN L=10,OD=5 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-78100 |
W04D..WU410..GCC,GEN |
1 | ||
| 11452-78100 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 90033-01058 |
W04D..WU410..GCC,GEN |
1 | ||
| 90033-01058 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 11462 - LINER, CYLINDER | ||||
| 11461-78031 |
W04D..WU410..GCC,GEN MARK B |
4 | ||
| 11461-78021 |
W04D..WU410..GCC,GEN MARK A |
4 | ||
| 11461-78051 |
W04D..WU410..GCC,GEN MARK C |
4 | ||
| 11461-78021 |
W04D..WU410..GCC,GEN MARK A |
4 | ||
| 11461-78031 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN MARK B |
4 | ||
| 11461-78031 |
W04D..WU410..GCC,GEN MARK B |
4 | ||
| 11461-78051 |
W04D..WU410..GCC,GEN MARK C |
4 | ||
| 11461-78051 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN MARK C |
4 | ||
| 11461-78021 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN MARK A |
4 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12111-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 12111-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90033-41020 |
W04D..WU410..GCC,GEN |
1 | ||
| 90033-41020 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90034-30046 |
W04D..WU410,420 |
1 | ||
| 90034-30047 |
W04D..WU41#,42# |
1 | ||
| 90034-30046 |
W04D..WU41#,422..GCC,GEN |
1 | ||
| 90202-18002 |
W04D..WU410,420 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 15301-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| Common parts | ||||
| 90031-05092 | ||||
| 90031-05124 | ||||
| Linked diagrams | ||||
| 1302 | ||||
(0704- )W04D..WU420 ; (0704- )W04D..WU410..65T ; (0704- )W04D..WU410..75T.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11271A - COVER, CYLINDER BLOCK, REAR | ||||
| 11271-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 11271-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 11271-78020 |
W04D..WU410,420 |
1 | ||
| 11271B - RING, O(FOR CYLINDER BLOCK REAR PLATE) | ||||
| 90301-69001 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 90301-69001 |
W04D..WU410..GCC,GEN |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-78230 |
W04D..WU410..GCC,GEN |
1 | ||
| 11401-78230 |
W04D..WU410,420 |
1 | ||
| 11410-78070 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 11401D - BUSH(FOR OIL PUMP COVER) | ||||
| 90999-71055 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 90999-71055 |
W04D..WU410..GCC,GEN |
1 | ||
| 90999-71055 |
W04D..WU410..GCC,GEN |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02156 |
W04D..WU410..GCC,GEN |
10 | ||
| 90910-02156 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
10 | ||
| 90910-02156 |
W04D..WU410..GCC,GEN |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90033-31026 |
W04D..WU410..GCC,GEN |
3 | ||
| 90033-31026 |
W04D..WU410..GCC,GEN |
3 | ||
| 90033-31026 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90033-31035 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
3 | ||
| 90033-31035 |
W04D..WU410..GCC,GEN |
3 | ||
| 90033-31035 |
W04D..WU410..GCC,GEN |
3 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
5 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
5 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
5 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
5 | ||
| 90033-31020 |
W04D..WU41#,422..GCC,GEN |
5 | ||
| 90033-31020 |
W04D..WU410..GCC,GEN |
5 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
5 | ||
| 90033-31020 |
W04D..WU41#,422..GCC,GEN |
5 | ||
| 90033-31020 |
W04D..WU410..GCC,GEN |
5 | ||
| 11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) | ||||
| 90331-14005 |
W04D..WU41#,422..GCC,GEN |
1 | ||
| 90331-14005 |
W04D..WU410..GCC,GEN |
1 | ||
| 90331-14005 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 11432H - PLUG, W/HEAD TAPER SCREW, NO.5 | ||||
| 90344-21001 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 90344-21001 |
W04D..WU410..GCC,GEN |
2 | ||
| 90344-21001 |
W04D..WU41#,422..GCC,GEN |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90032-50060 |
W04D..WU410..GCC,GEN L=24,OD=12 |
2 | ||
| 90032-50060 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN L=24,OD=12 |
2 | ||
| 90032-50060 |
W04D..WU410..GCC,GEN L=24,OD=12 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90032-50049 |
W04D..WU410..GCC,GEN L=16,OD=8 |
2 | ||
| 90032-50049 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN L=16,OD=8 |
2 | ||
| 90032-50049 |
W04D..WU41#,422..GCC,GEN L=16,OD=8 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90032-50050 |
W04D..WU410..GCC,GEN L=24,OD=8 |
2 | ||
| 90032-50050 |
W04D..WU410..GCC,GEN L=24,OD=8 |
2 | ||
| 90032-50050 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN L=24,OD=8 |
2 | ||
| 11434P - PIN, STRAIGHT(FOR OIL PUMP SET) | ||||
| 90250-05022 |
W04D..WU410..GCC,GEN L=10,OD=5 |
1 | ||
| 90250-05022 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN L=10,OD=5 |
1 | ||
| 90250-05022 |
W04D..WU410..GCC,GEN L=10,OD=5 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-78100 |
W04D..WU410..GCC,GEN |
1 | ||
| 11452-78100 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 90033-01058 |
W04D..WU410..GCC,GEN |
1 | ||
| 90033-01058 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 11462 - LINER, CYLINDER | ||||
| 11461-78031 |
W04D..WU410..GCC,GEN MARK B |
4 | ||
| 11461-78021 |
W04D..WU410..GCC,GEN MARK A |
4 | ||
| 11461-78051 |
W04D..WU410..GCC,GEN MARK C |
4 | ||
| 11461-78021 |
W04D..WU410..GCC,GEN MARK A |
4 | ||
| 11461-78031 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN MARK B |
4 | ||
| 11461-78031 |
W04D..WU410..GCC,GEN MARK B |
4 | ||
| 11461-78051 |
W04D..WU410..GCC,GEN MARK C |
4 | ||
| 11461-78051 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN MARK C |
4 | ||
| 11461-78021 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN MARK A |
4 | ||
| 11497 - GASKET, CYLINDER BLOCK OIL HOLE | ||||
| 15471-78011 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12111-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 12111-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90033-41020 |
W04D..WU410..GCC,GEN |
1 | ||
| 90033-41020 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90034-30047 |
W04D..WU41#,42# |
1 | ||
| 90034-30046 |
W04D..WU410,420 |
1 | ||
| 90034-30046 |
W04D..WU41#,422..GCC,GEN |
1 | ||
| 90202-18002 |
W04D..WU410,420 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 15301-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| Common parts | ||||
| 90031-05092 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| Linked diagrams | ||||
| 1302 | ||||
(0610-0704)W04D..WU410..GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11271A - COVER, CYLINDER BLOCK, REAR | ||||
| 11271-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 11271-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 11271-78020 |
W04D..WU410,420 |
1 | ||
| 11271B - RING, O(FOR CYLINDER BLOCK REAR PLATE) | ||||
| 90301-69001 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 90301-69001 |
W04D..WU410..GCC,GEN |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-78230 |
W04D..WU410..GCC,GEN |
1 | ||
| 11401-78230 |
W04D..WU410,420 |
1 | ||
| 11410-78070 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 11401D - BUSH(FOR OIL PUMP COVER) | ||||
| 90999-71055 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 90999-71055 |
W04D..WU410..GCC,GEN |
1 | ||
| 90999-71055 |
W04D..WU410..GCC,GEN |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02156 |
W04D..WU410..GCC,GEN |
10 | ||
| 90910-02156 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
10 | ||
| 90910-02156 |
W04D..WU410..GCC,GEN |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90033-31026 |
W04D..WU410..GCC,GEN |
3 | ||
| 90033-31026 |
W04D..WU410..GCC,GEN |
3 | ||
| 90033-31026 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90033-31035 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
3 | ||
| 90033-31035 |
W04D..WU410..GCC,GEN |
3 | ||
| 90033-31035 |
W04D..WU410..GCC,GEN |
3 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
5 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
5 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU410..GCC,GEN |
5 | ||
| 90033-31034 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
5 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
5 | ||
| 90033-31020 |
W04D..WU41#,422..GCC,GEN |
5 | ||
| 90033-31020 |
W04D..WU410..GCC,GEN |
5 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
5 | ||
| 90033-31020 |
W04D..WU41#,422..GCC,GEN |
5 | ||
| 90033-31020 |
W04D..WU410..GCC,GEN |
5 | ||
| 11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) | ||||
| 90331-14005 |
W04D..WU41#,422..GCC,GEN |
1 | ||
| 90331-14005 |
W04D..WU410..GCC,GEN |
1 | ||
| 90331-14005 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 11432H - PLUG, W/HEAD TAPER SCREW, NO.5 | ||||
| 90344-21001 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
2 | ||
| 90344-21001 |
W04D..WU410..GCC,GEN |
2 | ||
| 90344-21001 |
W04D..WU41#,422..GCC,GEN |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90032-50060 |
W04D..WU410..GCC,GEN L=24,OD=12 |
2 | ||
| 90032-50060 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN L=24,OD=12 |
2 | ||
| 90032-50060 |
W04D..WU410..GCC,GEN L=24,OD=12 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90032-50049 |
W04D..WU410..GCC,GEN L=16,OD=8 |
2 | ||
| 90032-50049 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN L=16,OD=8 |
2 | ||
| 90032-50049 |
W04D..WU41#,422..GCC,GEN L=16,OD=8 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90032-50050 |
W04D..WU410..GCC,GEN L=24,OD=8 |
2 | ||
| 90032-50050 |
W04D..WU410..GCC,GEN L=24,OD=8 |
2 | ||
| 90032-50050 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN L=24,OD=8 |
2 | ||
| 11434P - PIN, STRAIGHT(FOR OIL PUMP SET) | ||||
| 90250-05022 |
W04D..WU410..GCC,GEN L=10,OD=5 |
1 | ||
| 90250-05022 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN L=10,OD=5 |
1 | ||
| 90250-05022 |
W04D..WU410..GCC,GEN L=10,OD=5 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-78100 |
W04D..WU410..GCC,GEN |
1 | ||
| 11452-78100 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 90033-01058 |
W04D..WU410..GCC,GEN |
1 | ||
| 90033-01058 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 11462 - LINER, CYLINDER | ||||
| 11461-78031 |
W04D..WU410..GCC,GEN MARK B |
4 | ||
| 11461-78021 |
W04D..WU410..GCC,GEN MARK A |
4 | ||
| 11461-78051 |
W04D..WU410..GCC,GEN MARK C |
4 | ||
| 11461-78021 |
W04D..WU410..GCC,GEN MARK A |
4 | ||
| 11461-78031 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN MARK B |
4 | ||
| 11461-78031 |
W04D..WU410..GCC,GEN MARK B |
4 | ||
| 11461-78051 |
W04D..WU410..GCC,GEN MARK C |
4 | ||
| 11461-78051 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN MARK C |
4 | ||
| 11461-78021 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN MARK A |
4 | ||
| 11497 - GASKET, CYLINDER BLOCK OIL HOLE | ||||
| 15471-78011 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12111-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 12111-78010 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90033-41020 |
W04D..WU410..GCC,GEN |
1 | ||
| 90033-41020 |
W04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90034-30046 |
W04D..WU410,420 |
1 | ||
| 90034-30047 |
W04D..WU41#,42# |
1 | ||
| 90034-30046 |
W04D..WU41#,422..GCC,GEN |
1 | ||
| 90202-18002 |
W04D..WU410,420 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-78010 |
W04D..WU410..GCC,GEN |
1 | ||
| 15301-78010 |
W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN |
1 | ||
| Common parts | ||||
| 90031-05092 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| Linked diagrams | ||||
| 1302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
