Toyota Dyna WU410 ENGINE OVERHAUL GASKET KIT

Manufacturers Home
Toyota
EU
DYNA
WU410R-TKMQS (2002)
1103 - ENGINE OVERHAUL GASKET KIT

WU410R-TKMQS (2002)

Toyota Dyna

Production Dec 2002 - Jun 2011

Engine W04D

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

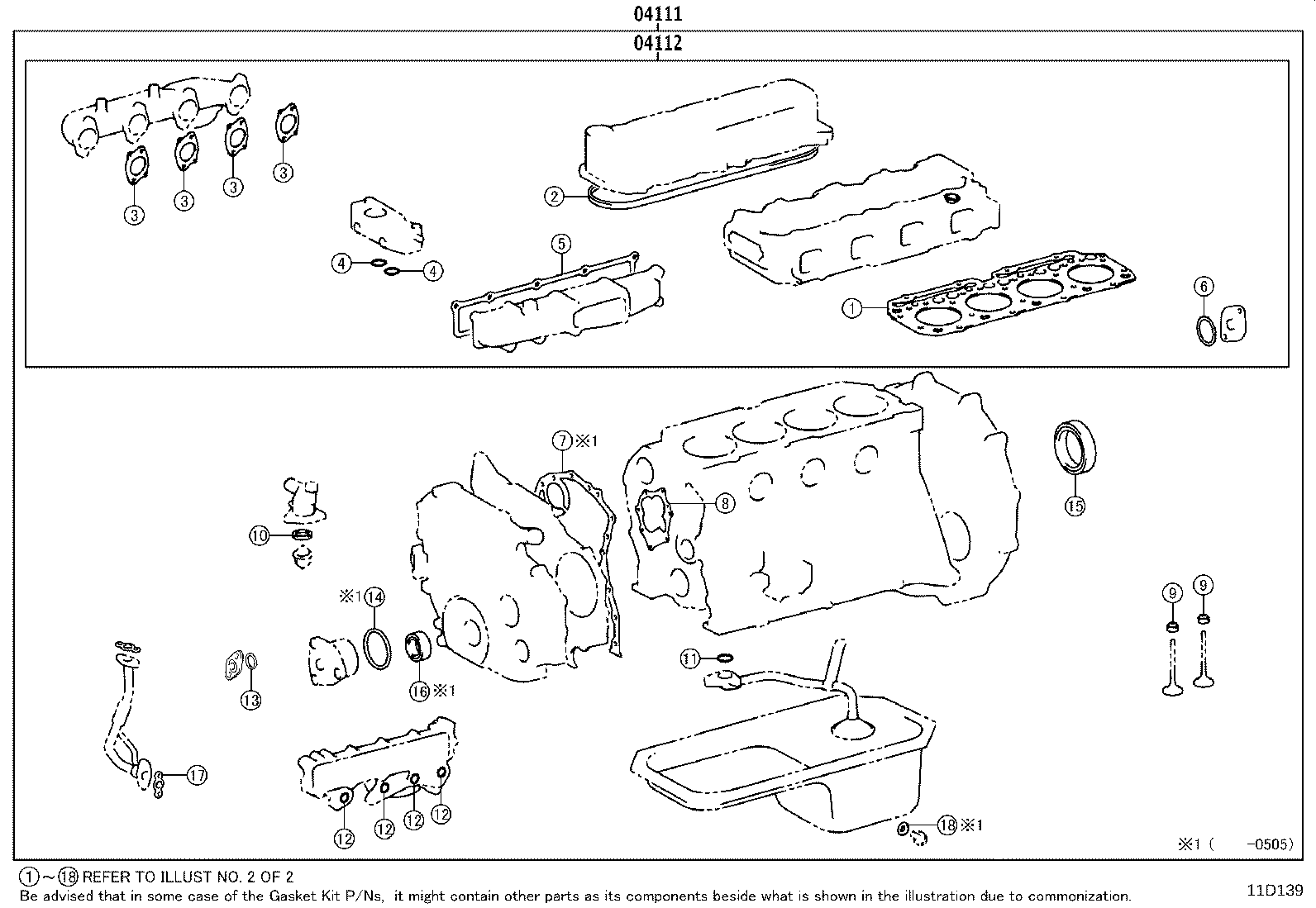

ILLUST NO. 1 OF 2(0212- )W04D..WU410,420

Click highlighted areas on diagram

WITH (TACHOMATER)

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-78370	W04D..WU410 W(TACHOMATER)	12/2002 - 01/2003	1
04111-80380	W04D..WU410..GCC,GEN W(TACHOMATER)	01/2003 - 05/2005	1
04111-80020	W04D..WU410..GCC,GEN	12/2002 - 05/2005	1
04111-78330	W04D..WU420;W04D..WU410..GCC,GEN;W04D..WU410..75T..SA W(FRONT HEATER)	12/2002 - 05/2005	1
04111-80560	W04D..WU410..GCC,GEN W(FRONT HEATER)	06/2005 - 10/2006	1
04111-80580	W04D..WU410..GCC,GEN W(TACHOMATER)	06/2005 - 10/2006	1
04111-80460	W04D..WU410..GCC,GEN	06/2005 - 10/2006	1
04111-7C150	W04D..WU410..GCC,GEN	10/2006 - 02/2008	1
04111-7C161	W04D..WU410,420 W(TACHOMETER)	02/2008 - 06/2009	1
04111-7C351	W04D..WU410 STD SPEC	04/2009 - 06/2009	1
04111-7C160	W04D..WU410..GCC,GEN W(TACHOMETER)	10/2006 - 02/2008	1
04111-7C350	W04D..WU410..GCC,GEN	02/2008 - 05/2009	1
04111-7C352	W04D..WU410	06/2009 - 06/2011	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-78100	W04D..WU420;W04D..WU410..GCC,GEN;W04D..WU410..75T..SA W(FRONT HEATER OR TACHOMETER)	12/2002 - 10/2006	1
04112-78250	W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN	10/2006 - 06/2011	1
04112-78240	W04D..WU410,420	12/2002 - 10/2006	1

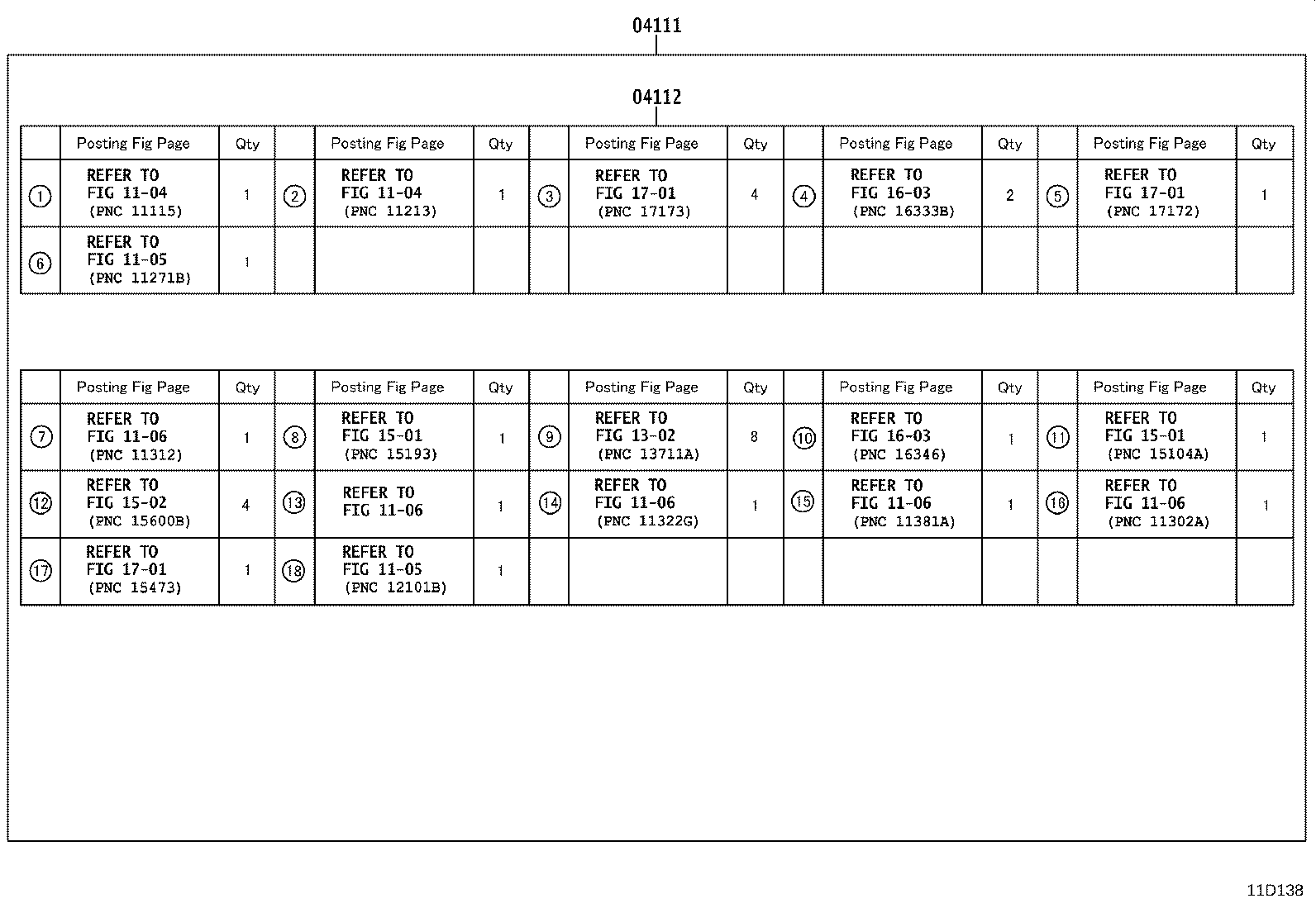

ILLUST NO. 2 OF 2(0212- )W04D..WU410,420

Click highlighted areas on diagram

WITH (TACHOMATER)

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-78370	W04D..WU410 W(TACHOMATER)	12/2002 - 01/2003	1
04111-80380	W04D..WU410..GCC,GEN W(TACHOMATER)	01/2003 - 05/2005	1
04111-80020	W04D..WU410..GCC,GEN	12/2002 - 05/2005	1
04111-78330	W04D..WU420;W04D..WU410..GCC,GEN;W04D..WU410..75T..SA W(FRONT HEATER)	12/2002 - 05/2005	1
04111-80560	W04D..WU410..GCC,GEN W(FRONT HEATER)	06/2005 - 10/2006	1
04111-80580	W04D..WU410..GCC,GEN W(TACHOMATER)	06/2005 - 10/2006	1
04111-80460	W04D..WU410..GCC,GEN	06/2005 - 10/2006	1
04111-7C150	W04D..WU410..GCC,GEN	10/2006 - 02/2008	1
04111-7C161	W04D..WU410,420 W(TACHOMETER)	02/2008 - 06/2009	1
04111-7C351	W04D..WU410 STD SPEC	04/2009 - 06/2009	1
04111-7C160	W04D..WU410..GCC,GEN W(TACHOMETER)	10/2006 - 02/2008	1
04111-7C350	W04D..WU410..GCC,GEN	02/2008 - 05/2009	1
04111-7C352	W04D..WU410	06/2009 - 06/2011	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-78100	W04D..WU420;W04D..WU410..GCC,GEN;W04D..WU410..75T..SA W(FRONT HEATER OR TACHOMETER)	12/2002 - 10/2006	1
04112-78250	W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN	10/2006 - 06/2011	1
04112-78240	W04D..WU410,420	12/2002 - 10/2006	1
Linked diagrams
1104
1105
1106
1107
1302
1501
1502
1603
1701
2201

ILLUST NO. 2 OF 2(0212- )W04D..WU420 ; (0212- )W04D..WU410..GCC,GEN ; (0212- )W04D..WU410..

Click highlighted areas on diagram

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-78370	W04D..WU410 W(TACHOMATER)	12/2002 - 01/2003	1
04111-80380	W04D..WU410..GCC,GEN W(TACHOMATER)	01/2003 - 05/2005	1
04111-80020	W04D..WU410..GCC,GEN	12/2002 - 05/2005	1
04111-78330	W04D..WU420;W04D..WU410..GCC,GEN;W04D..WU410..75T..SA W(FRONT HEATER)	12/2002 - 05/2005	1
04111-80560	W04D..WU410..GCC,GEN W(FRONT HEATER)	06/2005 - 10/2006	1
04111-80580	W04D..WU410..GCC,GEN W(TACHOMATER)	06/2005 - 10/2006	1
04111-80460	W04D..WU410..GCC,GEN	06/2005 - 10/2006	1
04111-7C150	W04D..WU410..GCC,GEN	10/2006 - 02/2008	1
04111-7C161	W04D..WU410,420 W(TACHOMETER)	02/2008 - 06/2009	1
04111-7C351	W04D..WU410 STD SPEC	04/2009 - 06/2009	1
04111-7C160	W04D..WU410..GCC,GEN W(TACHOMETER)	10/2006 - 02/2008	1
04111-7C350	W04D..WU410..GCC,GEN	02/2008 - 05/2009	1
04111-7C352	W04D..WU410	06/2009 - 06/2011	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-78100	W04D..WU420;W04D..WU410..GCC,GEN;W04D..WU410..75T..SA W(FRONT HEATER OR TACHOMETER)	12/2002 - 10/2006	1
04112-78250	W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN	10/2006 - 06/2011	1
04112-78240	W04D..WU410,420	12/2002 - 10/2006	1
Linked diagrams
1104
1105
1106
1302
1501
1502
1603
1701

ILLUST NO. 1 OF 2(0212- )W04D..WU420 ; (0212- )W04D..WU410..GCC,GEN ; (0212- )W04D..WU410..

Click highlighted areas on diagram

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-78370	W04D..WU410 W(TACHOMATER)	12/2002 - 01/2003	1
04111-80380	W04D..WU410..GCC,GEN W(TACHOMATER)	01/2003 - 05/2005	1
04111-80020	W04D..WU410..GCC,GEN	12/2002 - 05/2005	1
04111-78330	W04D..WU420;W04D..WU410..GCC,GEN;W04D..WU410..75T..SA W(FRONT HEATER)	12/2002 - 05/2005	1
04111-80560	W04D..WU410..GCC,GEN W(FRONT HEATER)	06/2005 - 10/2006	1
04111-80580	W04D..WU410..GCC,GEN W(TACHOMATER)	06/2005 - 10/2006	1
04111-80460	W04D..WU410..GCC,GEN	06/2005 - 10/2006	1
04111-7C150	W04D..WU410..GCC,GEN	10/2006 - 02/2008	1
04111-7C161	W04D..WU410,420 W(TACHOMETER)	02/2008 - 06/2009	1
04111-7C351	W04D..WU410 STD SPEC	04/2009 - 06/2009	1
04111-7C160	W04D..WU410..GCC,GEN W(TACHOMETER)	10/2006 - 02/2008	1
04111-7C350	W04D..WU410..GCC,GEN	02/2008 - 05/2009	1
04111-7C352	W04D..WU410	06/2009 - 06/2011	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-78100	W04D..WU420;W04D..WU410..GCC,GEN;W04D..WU410..75T..SA W(FRONT HEATER OR TACHOMETER)	12/2002 - 10/2006	1
04112-78250	W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN	10/2006 - 06/2011	1
04112-78240	W04D..WU410,420	12/2002 - 10/2006	1

ILLUST NO. 1 OF 2(0212-0905)W04D..WU410..GCC,GEN ; (0904-1106)W04D..WU410

Click highlighted areas on diagram

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-78370	W04D..WU410 W(TACHOMATER)	12/2002 - 01/2003	1
04111-80380	W04D..WU410..GCC,GEN W(TACHOMATER)	01/2003 - 05/2005	1
04111-80020	W04D..WU410..GCC,GEN	12/2002 - 05/2005	1
04111-78330	W04D..WU420;W04D..WU410..GCC,GEN;W04D..WU410..75T..SA W(FRONT HEATER)	12/2002 - 05/2005	1
04111-80560	W04D..WU410..GCC,GEN W(FRONT HEATER)	06/2005 - 10/2006	1
04111-80580	W04D..WU410..GCC,GEN W(TACHOMATER)	06/2005 - 10/2006	1
04111-80460	W04D..WU410..GCC,GEN	06/2005 - 10/2006	1
04111-7C150	W04D..WU410..GCC,GEN	10/2006 - 02/2008	1
04111-7C161	W04D..WU410,420 W(TACHOMETER)	02/2008 - 06/2009	1
04111-7C351	W04D..WU410 STD SPEC	04/2009 - 06/2009	1
04111-7C160	W04D..WU410..GCC,GEN W(TACHOMETER)	10/2006 - 02/2008	1
04111-7C350	W04D..WU410..GCC,GEN	02/2008 - 05/2009	1
04111-7C352	W04D..WU410	06/2009 - 06/2011	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-78100	W04D..WU420;W04D..WU410..GCC,GEN;W04D..WU410..75T..SA W(FRONT HEATER OR TACHOMETER)	12/2002 - 10/2006	1
04112-78250	W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN	10/2006 - 06/2011	1
04112-78240	W04D..WU410,420	12/2002 - 10/2006	1

ILLUST NO. 2 OF 2(0212-0905)W04D..WU410..GCC,GEN ; (0304- )W04D..WU410,420..SA ; (0904-1106)W04D.

Click highlighted areas on diagram

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-78370	W04D..WU410 W(TACHOMATER)	12/2002 - 01/2003	1
04111-80380	W04D..WU410..GCC,GEN W(TACHOMATER)	01/2003 - 05/2005	1
04111-80020	W04D..WU410..GCC,GEN	12/2002 - 05/2005	1
04111-78330	W04D..WU420;W04D..WU410..GCC,GEN;W04D..WU410..75T..SA W(FRONT HEATER)	12/2002 - 05/2005	1
04111-80560	W04D..WU410..GCC,GEN W(FRONT HEATER)	06/2005 - 10/2006	1
04111-80580	W04D..WU410..GCC,GEN W(TACHOMATER)	06/2005 - 10/2006	1
04111-80460	W04D..WU410..GCC,GEN	06/2005 - 10/2006	1
04111-7C150	W04D..WU410..GCC,GEN	10/2006 - 02/2008	1
04111-7C161	W04D..WU410,420 W(TACHOMETER)	02/2008 - 06/2009	1
04111-7C351	W04D..WU410 STD SPEC	04/2009 - 06/2009	1
04111-7C160	W04D..WU410..GCC,GEN W(TACHOMETER)	10/2006 - 02/2008	1
04111-7C350	W04D..WU410..GCC,GEN	02/2008 - 05/2009	1
04111-7C352	W04D..WU410	06/2009 - 06/2011	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-78100	W04D..WU420;W04D..WU410..GCC,GEN;W04D..WU410..75T..SA W(FRONT HEATER OR TACHOMETER)	12/2002 - 10/2006	1
04112-78250	W04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN	10/2006 - 06/2011	1
04112-78240	W04D..WU410,420	12/2002 - 10/2006	1
Linked diagrams
1104
1105
1106
1107
1302
1501
1502
1603
1701
2201

WU410R-TKMQS (2002)

ILLUST NO. 1 OF 2(0212- )W04D..WU410,420

ILLUST NO. 2 OF 2(0212- )W04D..WU410,420

ILLUST NO. 2 OF 2(0212- )W04D..WU420 ; (0212- )W04D..WU410..GCC,GEN ; (0212- )W04D..WU410..

ILLUST NO. 1 OF 2(0212- )W04D..WU420 ; (0212- )W04D..WU410..GCC,GEN ; (0212- )W04D..WU410..

ILLUST NO. 1 OF 2(0212-0905)W04D..WU410..GCC,GEN ; (0904-1106)W04D..WU410

ILLUST NO. 2 OF 2(0212-0905)W04D..WU410..GCC,GEN ; (0304- )W04D..WU410,420..SA ; (0904-1106)W04D.
