WU40R-MRDT3 (1983)

Toyota Dyna

Production Apr 1983 - Aug 1984
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8304-8408)WU40..RHD

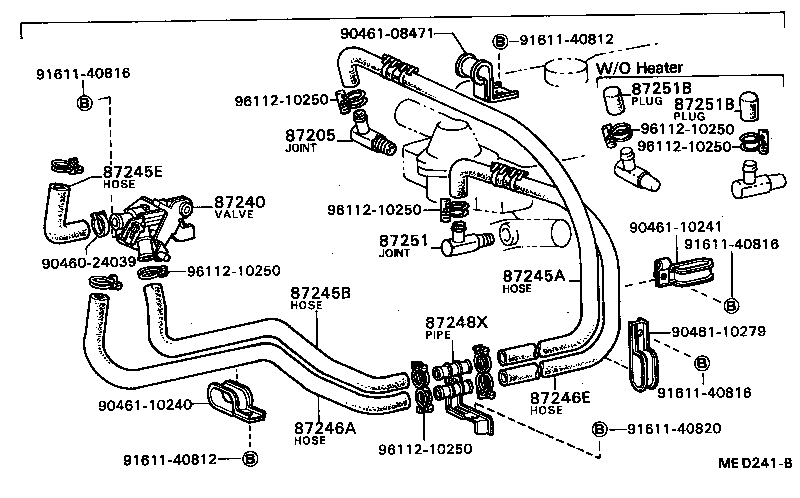

Click highlighted areas on diagram

diagram 87205 87240 87245A 87245B 87245E 87246A 87246E 87248X 87251 87251B 87251B 9046024039 9046108471 9046110240 9046110241 9046110279 9161140812 9161140812 9161140816 9161140816 9161140816 9161140820 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-95432

WU40..RHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95405

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95433

WU40..RHD

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30190

WU40,50

 1
87251B - PLUG, HEATER WATER
90339-16007

WU40,50

 2
87251B - PLUG, HEATER WATER
90339-16007

WU40,50

 2
Common parts
90460-24039
90461-08471
90461-10240
90461-10241
90461-10279
91611-40812
91611-40816
91611-40820
96112-10250
