WU40R-MRDT3 (1983)
Toyota Dyna
(8304-8408)1W

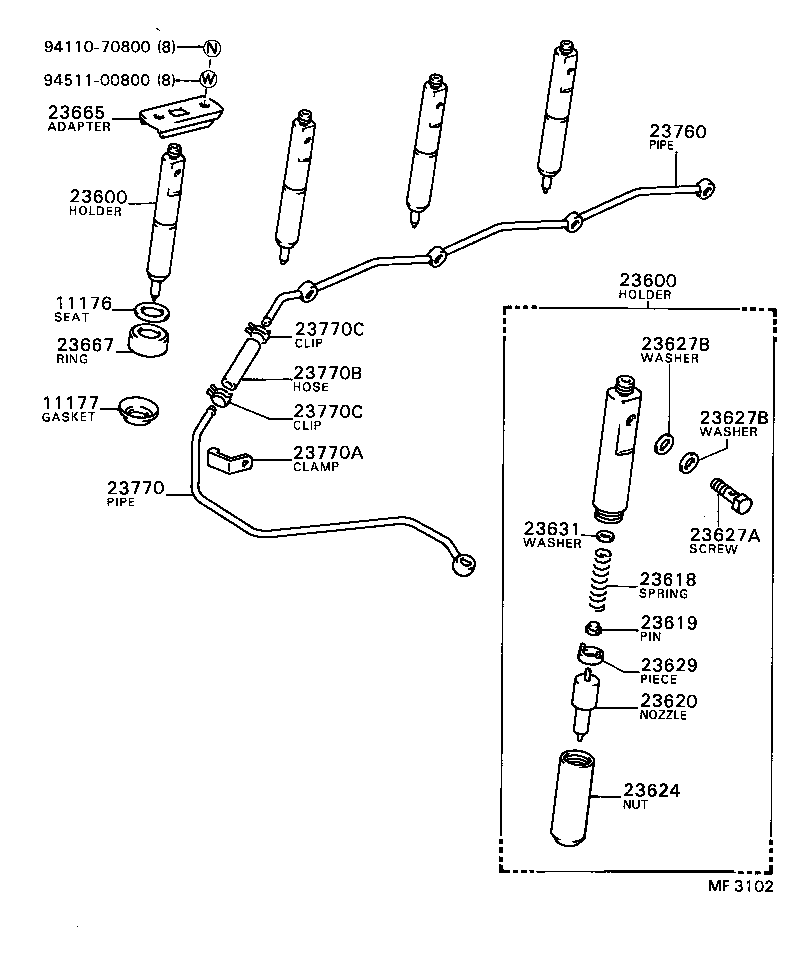

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 90564-21001 |
1W..WU40,50 |
4 | ||
| 11176-56010 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 11176-56010 |
H,2H..HU30,40,50 |
6 | ||
| 11177 - GASKET, INJECTION NOZZLE SEAT | ||||
| 11177-56010 |
B,2B,3B..BU2#,3#,40 |
4 | ||
| 11177-78010 |
1W..WU40,50 |
4 | ||
| 23600 - HOLDER & NOZZLE SET, NOZZLE | ||||
| 23600-78010 |
1W..WU40,50 |
4 | ||
| 23600-56011 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 23600 - HOLDER & NOZZLE SET, NOZZLE | ||||
| 23600-78010 |
1W..WU40,50 |
4 | ||
| 23600-56011 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 23618 - SPRING, NOZZLE HOLDER PRESSURE | ||||
| 23618-56010 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 23618-56010 |
H,2H..HU30,40,50 |
6 | ||
| 23618-78030 |
1W..WU40,50 |
4 | ||
| 23619 - PIN, NOZZLE HOLDER PRESSURE | ||||
| 23619-46010 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 23619-78030 |
1W..WU40,50 |
4 | ||
| 23619-46010 |
H,2H..HU30,40,50 |
6 | ||
| 23620 - NOZZLE ASSY | ||||
| 23620-78030 |
1W..WU40,50 |
4 | ||
| 23620-54010 |
B,2B,3B..BU2#,3#,40 |
4 | ||
| 23624 - NUT, NOZZLE RETAINING | ||||
| 23624-78030 |
1W..WU40,50 |
4 | ||
| 23624-47011 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 23624-47011 |
H,2H..HU30,40,50 |
6 | ||
| 23627A - SCREW, FOLLOW(FOR NOZZLE) | ||||
| 23656-78030 |
1W..WU40,50 |
4 | ||
| 23627B - WASHER, COPPER PLATE(FOR NOZZLE) | ||||
| 90099-01503 |
1W..WU40,50 |
8 | ||
| 23627B - WASHER, COPPER PLATE(FOR NOZZLE) | ||||
| 90099-01503 |
1W..WU40,50 |
8 | ||
| 23629 - PIECE, DISTANCE(FOR NOZZLE) | ||||
| 23659-78030 |
1W..WU40,50 |
4 | ||
| 23629-46010 |
H,2H..HU30,40,50 |
6 | ||
| 23629-46010 |
B,2B,3B..BU2#,3#,40 |
6 | ||
| 23631 - WASHER(FOR NOZZLE HOLDER PRESSURE SPRING) | ||||
| 23631-78032 |
1W..WU40,50 T=0.800,T=0.800 |
1 | ||
| 23631-78030 |
1W..WU40,50 T=0.700,T=0.700 |
1 | ||
| 23631-78031 |
1W..WU40,50 T=0.750,T=0.750 |
1 | ||
| 23631-78038 |
1W..WU40,50 T=1.100,T=1.100 |
1 | ||
| 23631-78035 |
1W..WU40,50 T=0.950,T=0.950 |
1 | ||
| 23632-78032 |
1W..WU40,50 T=1.300,T=1.300 |
1 | ||
| 23632-78030 |
1W..WU40,50 T=1.200,T=1.200 |
1 | ||
| 23632-78036 |
1W..WU40,50 T=1.500,T=1.500 |
1 | ||
| 23632-78031 |
1W..WU40,50 T=1.250,T=1.250 |
1 | ||
| 23632-78033 |
1W..WU40,50 T=1.350,T=1.350 |
1 | ||
| 23631-78034 |
1W..WU40,50 T=0.900,T=0.900 |
1 | ||
| 23632-78034 |
1W..WU40,50 T=1.400,T=1.400 |
1 | ||
| 23631-78033 |
1W..WU40,50 T=0.850,T=0.850 |
1 | ||
| 23632-78035 |
1W..WU40,50 T=1.450,T=1.450 |
1 | ||
| 23633-78034 |
1W..WU40,50 T=1.075,T=1.075 |
1 | ||
| 23632-78039 |
1W..WU40,50 T=0.825,T=0.825 |
1 | ||
| 23633-78033 |
1W..WU40,50 T=1.025,T=1.025 |
1 | ||
| 23631-78039 |
1W..WU40,50 T=1.150,T=1.150 |
1 | ||
| 23633-78032 |
1W..WU40,50 T=0.975,T=0.975 |
1 | ||
| 23633-78035 |
1W..WU40,50 T=1.125,T=1.125 |
1 | ||
| 23633-78036 |
1W..WU40,50 T=1.175,T=1.175 |
1 | ||
| 23631-78037 |
1W..WU40,50 T=1.050,T=1.050 |
1 | ||
| 23633-78030 |
1W..WU40,50 T=0.875,T=0.875 |
1 | ||
| 23631-78036 |
1W..WU40,50 T=1.000,T=1.000 |
1 | ||
| 23632-78037 |
1W..WU40,50 T=0.725,T=0.725 |
1 | ||
| 23634-78030 |
1W..WU40,50 T=1.375,T=1.375 |
1 | ||
| 23631-46010 |
B,2B,3B..BU2#,3#,40 T=1.000 |
1 | ||
| 23633-78031 |
1W..WU40,50 T=0.925,T=0.925 |
1 | ||
| 23633-46010 |
B,2B,3B..BU2#,3#,40 T=1.100 |
1 | ||
| 23632-78038 |
1W..WU40,50 T=0.775,T=0.775 |
1 | ||
| 23633-78038 |
1W..WU40,50 T=1.275,T=1.275 |
1 | ||
| 23633-78037 |
1W..WU40,50 T=1.225,T=1.225 |
1 | ||
| 23633-78039 |
1W..WU40,50 T=1.325,T=1.325 |
1 | ||
| 23634-78032 |
1W..WU40,50 T=1.475,T=1.475 |
1 | ||
| 23633-46010 |
H,2H..HU30,40,50 T=1.100 |
1 | ||
| 23634-46010 |
H,2H..HU30,40,50 T=1.150 |
1 | ||
| 23635-46010 |
H,2H..HU30,40,50 T=1.200 |
1 | ||
| 23632-46010 |
B,2B,3B..BU2#,3#,40 T=1.050 |
1 | ||
| 23634-78031 |
1W..WU40,50 T=1.425,T=1.425 |
1 | ||
| 23631-46010 |
H,2H..HU30,40,50 T=1.000 |
1 | ||
| 23635-46010 |
B,2B,3B..BU2#,3#,40 T=1.200 |
1 | ||
| 23636-46010 |
B,2B,3B..BU2#,3#,40 T=1.250 |
1 | ||
| 23632-46010 |
H,2H..HU30,40,50 T=1.050 |
1 | ||
| 23637-46010 |
H,2H..HU30,40,50 T=1.300 |
1 | ||
| 23637-46010 |
B,2B,3B..BU2#,3#,40 T=1.300 |
1 | ||
| 23634-46010 |
B,2B,3B..BU2#,3#,40 T=1.150 |
1 | ||
| 23638-46010 |
B,2B,3B..BU2#,3#,40 T=1.350 |
1 | ||
| 23642-46010 |
B,2B,3B..BU2#,3#,40 T=1.500 |
1 | ||
| 23636-46010 |
H,2H..HU30,40,50 T=1.250 |
1 | ||
| 23641-46010 |
B,2B,3B..BU2#,3#,40 T=1.450 |
1 | ||
| 23642-46010 |
H,2H..HU30,40,50 T=1.500 |
1 | ||
| 23641-46010 |
H,2H..HU30,40,50 T=1.450 |
1 | ||
| 23638-46010 |
H,2H..HU30,40,50 T=1.350 |
1 | ||
| 23643-46010 |
B,2B,3B..BU2#,3#,40 T=1.550 |
1 | ||
| 23639-46010 |
H,2H..HU30,40,50 T=1.400 |
1 | ||
| 23639-46010 |
B,2B,3B..BU2#,3#,40 T=1.400 |
1 | ||
| 23646-46010 |
B,2B,3B..BU2#,3#,40 T=1.700 |
1 | ||
| 23645-46010 |
H,2H..HU30,40,50 T=1.650 |
1 | ||
| 23647-46010 |
H,2H..HU30,40,50 T=1.750 |
1 | ||
| 23646-46010 |
H,2H..HU30,40,50 T=1.700 |
1 | ||
| 23644-46010 |
H,2H..HU30,40,50 T=1.600 |
1 | ||
| 23645-46010 |
B,2B,3B..BU2#,3#,40 T=1.650 |
1 | ||
| 23644-46010 |
B,2B,3B..BU2#,3#,40 T=1.600 |
1 | ||
| 23647-46010 |
B,2B,3B..BU2#,3#,40 T=1.750 |
1 | ||
| 23648-46010 |
H,2H..HU30,40,50 T=1.800 |
1 | ||
| 23643-46010 |
H,2H..HU30,40,50 T=1.550 |
1 | ||
| 23649-46010 |
H,2H..HU30,40,50 T=1.850 |
1 | ||
| 23651-46010 |
B,2B,3B..BU2#,3#,40 T=1.900 |
1 | ||
| 23648-46010 |
B,2B,3B..BU2#,3#,40 T=1.800 |
1 | ||
| 23652-46010 |
H,2H..HU30,40,50 T=1.950 |
1 | ||
| 23649-46010 |
B,2B,3B..BU2#,3#,40 T=1.850 |
1 | ||
| 23651-46010 |
H,2H..HU30,40,50 T=1.900 |
1 | ||
| 23652-46010 |
B,2B,3B..BU2#,3#,40 T=1.950 |
1 | ||
| 23665 - ADAPTER, NOZZLE HOLDER | ||||
| 22433-78010 |
1W..WU40,50 |
4 | ||
| 23667 - RING, PACKING, NO.2(FOR NOZZLE) | ||||
| 23667-78010 |
1W..WU40,50 |
4 | ||
| 23760 - PIPE ASSY, NOZZLE LEAKAGE | ||||
| 23761-78010 |
1W..WU40,50 |
1 | ||
| 23760-56020 |
B,2B,3B..BU2#,3# |
1 | ||
| 23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2 | ||||
| 23762-78010 |
1W..WU40,50 |
1 | ||
| 23770A - CLAMP OR CLIP(FOR NOZZLE LEAKAGE PIPE SET) | ||||
| 90929-01059 |
1W..WU40,50 |
1 | ||
| 23770B - HOSE, FUEL | ||||
| 90445-11066 |
1W..WU40,50 L=55 |
1 | ||
| 23770C - CLAMP OR CLIP(FOR FUEL HOSE SET) | ||||
| 90467-10040 |
1W..WU40,50 |
2 | ||
| 23770C - CLAMP OR CLIP(FOR FUEL HOSE SET) | ||||
| 90467-10040 |
1W..WU40,50 |
2 | ||
| Common parts | ||||
| 94110-70800 | ||||
| 94511-00800 | ||||
