WU40L-MRDT (1983)

Toyota Dyna

Production Apr 1983 - Aug 1984
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8304-8408)1W

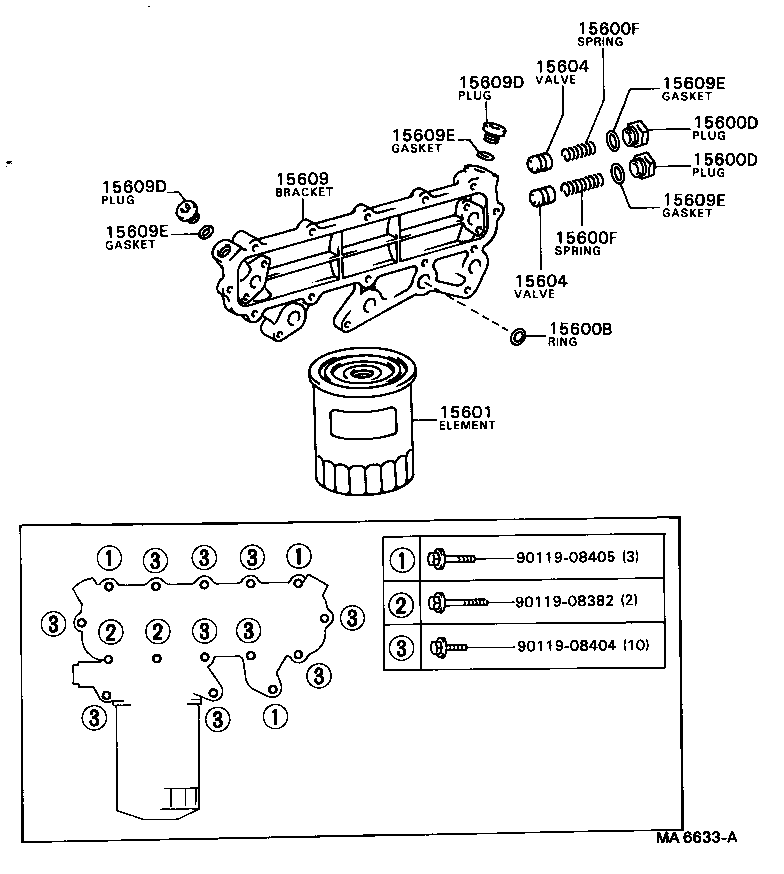

Click highlighted areas on diagram

diagram 15600B 15600D 15600D 15600F 15600F 15601 15604 15604 15609 15609D 15609D 15609E 15609E 15609E 15609E 9011908382 9011908404 9011908405
Part # Description Qty Price
15600B - RING, O, NO.1(FOR OIL FILTER)
90301-19005

1W..WU40,50

 4
15600D - PLUG(FOR OIL FILTER)
15798-78010

1W..WU40,50

 2
15600D - PLUG(FOR OIL FILTER)
15798-78010

1W..WU40,50

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
15661-78010

1W..WU40,50

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
15661-78010

1W..WU40,50

 2
15601 - FILTER SUB-ASSY, OIL
15600-41010

B,2B,3B..BU2#,3#,40

CARTRIDGE

 1
15601-78010

1W..WU40,50

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15624-78010

1W..WU40,50

 2
15604 - VALVE SUB-ASSY, OIL SAFETY
15624-78010

1W..WU40,50

 2
15609 - BRACKET SUB-ASSY, OIL FILTER
15701-78010

1W..WU40,50

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20006

1W..WU40,50

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20006

1W..WU40,50

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90301-99025

1W..WU40,50

 4
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90301-99025

1W..WU40,50

 4
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90301-99025

1W..WU40,50

 4
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90301-99025

1W..WU40,50

 4
Common parts
90119-08382
90119-08404
90119-08405
