RU85L-MDDHT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

diagram 15104 15104C 15104C 15115 15115 15121 15121 15122 15122 15131 15132 15133 15134 15403 15403A 15403B 15403B 15706 15706A 15706B 15706B 9017908088 9017908088 9166160816 9212260832 9212260832 9322016012 9322016012
Part # Description Qty Price
Common parts
90179-08088
91661-60816
92122-60832
93220-16012

(8409- )22R

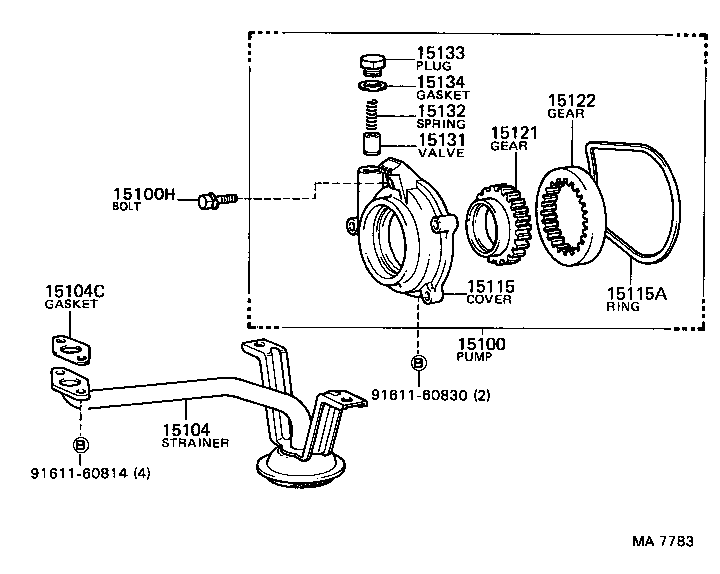

Click highlighted areas on diagram

diagram 15100 15100H 15104 15104C 15115 15115A 15121 15122 15131 15132 15133 15134 9161160814 9161160830
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-35020

22R..RU75,85

 1
15100H - BOLT, SEAL
15189-38020

22R..RU75,85

 1
15104 - STRAINER SUB-ASSY, OIL
15104-38040

22R..RU75,85

 1
15104C - GASKET(FOR OIL STRAINER)
15147-38020

22R..RU75,85

 1
15115 - COVER, OIL PUMP
15115-35020

22R..RU75,85

 1
15115A - RING, O(FOR OIL PUMP COVER)
15188-38030

22R..RU75,85

 1
15121 - GEAR, OIL PUMP DRIVE
15121-38020

22R..RU75,85

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-38020

22R..RU75,85

 1
15131 - VALVE, OIL PUMP RELIEF
15131-38030

22R..RU75,85

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46010

22R..RU75,85

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

22R..RU75,85

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

22R..RU75,85

 1
Common parts
91611-60814
91611-60830
