RU85L-MDDHT3 (1984)
Toyota Dyna
Production
Sep 1984
-
Aug 1987
Engine
22R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-60814 | ||||
| 91611-60825 | ||||
| 91611-61016 | ||||
| Linked diagrams | ||||
| 1501 | ||||
(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08145 | ||||
| 90119-10073 | ||||
| 91611-60825 | ||||
| 91611-60835 | ||||
| 91611-60840 | ||||
| 91611-61060 | ||||

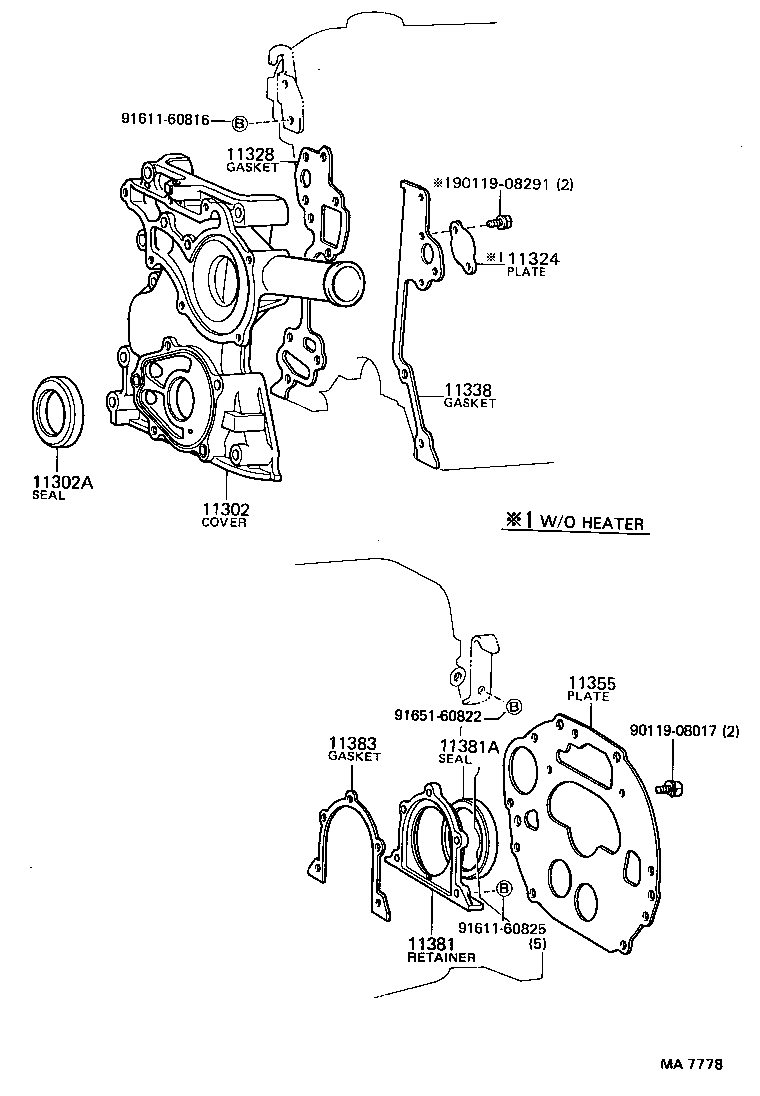

(8409- )22R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11302-35010 |
22R..RU75,85 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-45006 |
22R..RU75,85 |
1 | ||
| 11324 - PLATE, TIMING CHAIN COVER | ||||
| 11324-38020 |
22R..RU75,85..GEN W/O HEATER |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-35020 |
22R..RU75,85 |
1 | ||
| 11338 - GASKET, TIMING CHAIN COVER, NO.2 | ||||
| 11329-35020 |
22R..RU75,85 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-35010 |
22R..RU75,85 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-38010 |
22R..RU75,85 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-80004 |
22R..RU75,85 HTC 80 100 12 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-35010 |
22R..RU75,85 |
1 | ||
| Common parts | ||||
| 90119-08017 | ||||
| 90119-08291 | ||||
| 91611-60816 | ||||
| 91611-60825 | ||||
| 91651-60822 | ||||

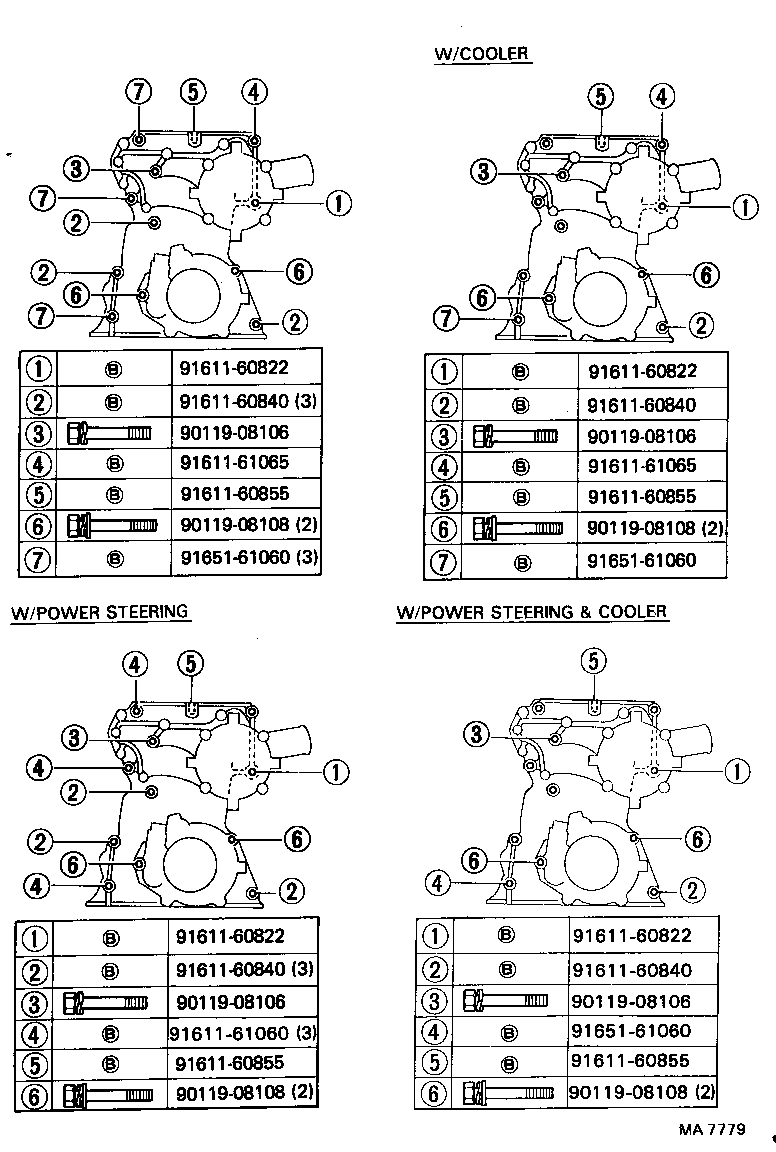

(8409- )22R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08106 | ||||
| 90119-08108 | ||||
| 91611-60822 | ||||
| 91611-60840 | ||||
| 91611-60855 | ||||
| 91611-61060 | ||||
| 91611-61065 | ||||
| 91651-61060 | ||||
