RU75L-MDDT3 (1984)
Toyota Dyna
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-26150 |
RU75,85 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-26150 |
RU75,85 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-16010 |
RU75,85 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-16010 |
RU75,85 |
1 | ||
| Common parts | ||||
| 88899-20090 | ||||
| 90099-04312 | ||||
| 90099-04313 | ||||
| 90099-04315 | ||||
| 90099-04316 | ||||
| 90099-04317 | ||||
| 90099-04914 | ||||
| 90099-04993 | ||||
| 90119-08200 | ||||
| 90119-10079 | ||||
| 91611-60850 | ||||
| Linked diagrams | ||||
| 1605 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-14020 |
RU75,85 |
1 | ||
| 88412-22030 |
YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-35160 |
RU75,85 |
1 | ||
| 88320-36190 |
RU75,85 |
1 | ||
| 88320-36160 |
YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| 88320-36191 |
RU75,85 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-22080 |
YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| 88410-14100 |
RU75,85 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
RU75,85 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-12030 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| Common parts | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
(8409- )RU75,85,YU6#,7#,8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-26150 |
RU75,85 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-26150 |
RU75,85 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-16010 |
RU75,85 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-16010 |
RU75,85 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-16010 |
RU75,85 |
1 | ||
| Common parts | ||||
| 88446-35010 | ||||
| 88899-20090 | ||||
| 90119-10019 | ||||
| 90119-10172 | ||||
| 91611-60855 | ||||
| 91611-61065 | ||||
| 91651-60850 | ||||
| 91651-61025 | ||||
| Linked diagrams | ||||
| 1605 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-14020 |
RU75,85 |
1 | ||
| 88412-22030 |
YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-35160 |
RU75,85 |
1 | ||
| 88320-36190 |
RU75,85 |
1 | ||
| 88320-36160 |
YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| 88320-36191 |
RU75,85 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-22080 |
YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| 88410-14100 |
RU75,85 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
RU75,85 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-12030 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| Common parts | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
(8409-8608)RU75,85,WU9#..ARL,GEN ; (8409- )YU6#,7#,8#..ARL,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-14021 |
RU75,85,YU6#,70,80..ARL,GEN,SA |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-14011 |
RU75,85,YU6#,70,80..ARL,GEN,SA |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-14010 |
RU75,85,YU6#,70,80..ARL,GEN,SA |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13012 |
RU75,85,YU6#,70,80..ARL,GEN,SA |
1 | ||
| 90099-13024 |
RU75,85 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-35160 |
RU75,85 |
1 | ||
| 88320-36190 |
RU75,85 |
1 | ||
| 88320-36160 |
YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| 88320-36191 |
RU75,85 |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04958 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04255 |
YU6#,7#,8#..ARL,GEN,SA |
4 | ||
| 90099-04905 |
RU75,85 |
4 | ||
| 90099-04924 |
RU75,85 |
4 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04255 |
YU6#,7#,8#..ARL,GEN,SA |
4 | ||
| 90099-04905 |
RU75,85 |
4 | ||
| 90099-04924 |
RU75,85 |
4 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14011 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA RR |
1 | ||
| 88321-14011 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14011 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA RR |
1 | ||
| 88321-14011 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA FR |
1 | ||
| 88342-14010 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA FR |
1 | ||
| 88342-14010 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA RR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-36110 |
YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| 88371-35020 |
RU75,85 |
1 | ||
| 88371-36150 |
RU75,85 |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-14020 |
RU75,85,YU6#,70,80..ARL,GEN,SA |
5 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
RU75,85,YU6#,70,80..ARL,GEN,SA |
10 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
RU75,85,YU6#,70,80..ARL,GEN,SA |
10 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-36110 |
RU75,85 |
1 | ||
| 88372-36111 |
RU75,85 |
1 | ||
| 88372-14130 |
RU75,85 |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 04881-10010 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| 88335-12030 |
RU75,85,YU6#,71,81 |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-40010 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| 88360-14020 |
RU75,85,YU6#,70,80..ARL,GEN,SA |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-14010 |
RU75,85,YU6#,70,80..ARL,GEN,SA |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
2 | ||

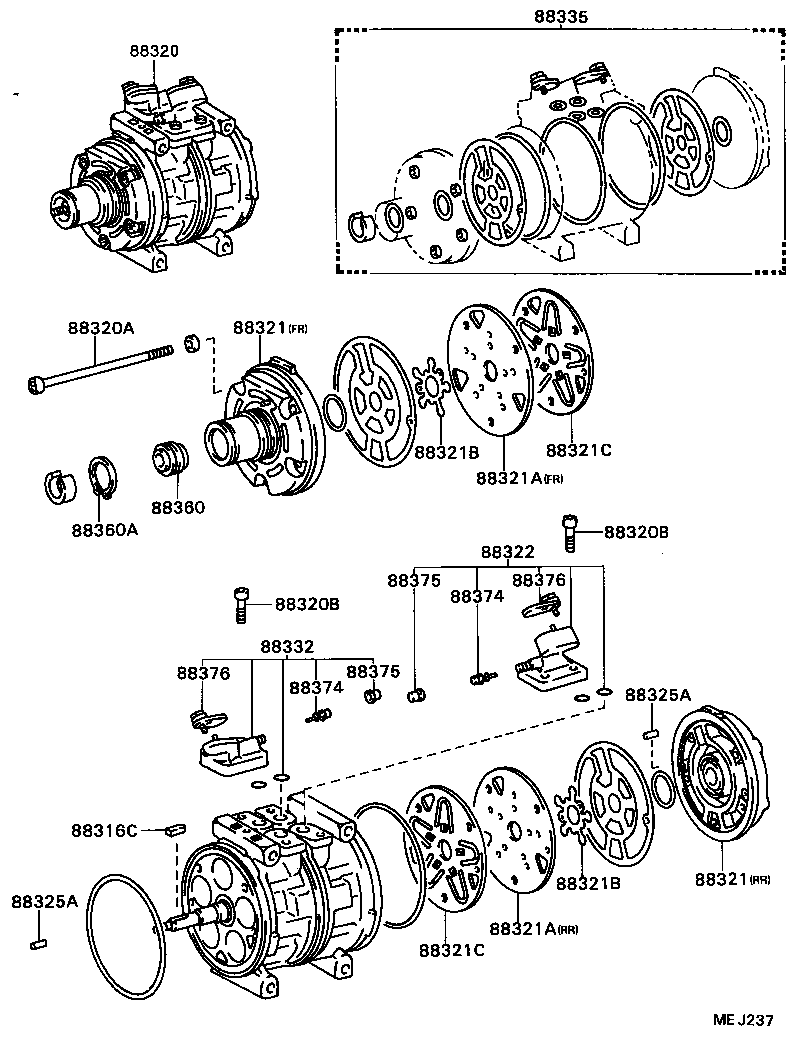

(8608- )RU75,85 ; (8608- )WU9#..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13012 |
RU75,85,YU6#,70,80..ARL,GEN,SA |
1 | ||
| 90099-13024 |
RU75,85 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-35160 |
RU75,85 |
1 | ||
| 88320-36190 |
RU75,85 |
1 | ||
| 88320-36160 |
YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| 88320-36191 |
RU75,85 |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04958 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04255 |
YU6#,7#,8#..ARL,GEN,SA |
4 | ||
| 90099-04905 |
RU75,85 |
4 | ||
| 90099-04924 |
RU75,85 |
4 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04255 |
YU6#,7#,8#..ARL,GEN,SA |
4 | ||
| 90099-04905 |
RU75,85 |
4 | ||
| 90099-04924 |
RU75,85 |
4 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14011 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA RR |
1 | ||
| 88321-14011 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14011 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA RR |
1 | ||
| 88321-14011 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA FR |
1 | ||
| 88342-14010 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA FR |
1 | ||
| 88342-14010 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA RR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-36110 |
YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| 88371-35020 |
RU75,85 |
1 | ||
| 88371-36150 |
RU75,85 |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
4 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
4 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-36110 |
RU75,85 |
1 | ||
| 88372-36111 |
RU75,85 |
1 | ||
| 88372-14130 |
RU75,85 |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 04881-10010 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| 88335-12030 |
RU75,85,YU6#,71,81 |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-40010 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| 88360-14020 |
RU75,85,YU6#,70,80..ARL,GEN,SA |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
RU75,85,YU6#,7#,8#..ARL,GEN,SA |
2 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
RU75,85 SUCTION |
1 | ||
| 88376-22020 |
RU75,85 DISCHARGE |
1 | ||
| 88376-17020 |
RU75,85 SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
RU75,85 SUCTION |
1 | ||
| 88376-22020 |
RU75,85 DISCHARGE |
1 | ||
| 88376-17020 |
RU75,85 SUCTION |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
