RU30R-QRPTQ3 (1978)
Toyota Dyna
(7708-8408)BU32,HU30,40,50,RU25,30..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36090 |
RU30;RU20..EUR..IV3;RU20..T3..(ARL,GEN) EVAPO SYSTEM |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06038 |
RU30;RU20..T3 *H,L=380 |
1 | ||
| 95332-08030 |
BU20,RU20..T3;BU25,3#,40,HU40,50,RU25,30 *H,L=280,ID=7.6 |
2 | ||
| 95332-08028 |
BU20,RU20..T3;BU25,30,HU30,JU20,RU25,30..DMP,TR *H,L=280,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06038 |
RU30;RU20..T3 *H,L=380 |
1 | ||
| 95332-08030 |
BU20,RU20..T3;BU25,3#,40,HU40,50,RU25,30 *H,L=280,ID=7.6 |
2 | ||
| 95332-08028 |
BU20,RU20..T3;BU25,30,HU30,JU20,RU25,30..DMP,TR *H,L=280,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06038 |
RU30;RU20..T3 *H,L=380 |
1 | ||
| 95332-08030 |
BU20,RU20..T3;BU25,3#,40,HU40,50,RU25,30 *H,L=280,ID=7.6 |
2 | ||
| 95332-08028 |
BU20,RU20..T3;BU25,30,HU30,JU20,RU25,30..DMP,TR *H,L=280,ID=7.6 |
2 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 69058-95401 |
BU2#,3#,40,HU30,40,50,JU20 W/TANK CAP KEY |
1 | ||
| 77310-12041 |
RU2#,30..ARL,GEN |
1 | ||
| 69058-95400 |
RU2#,30 W/TANK CAP KEY |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 69058-95401 |
BU2#,3#,40,HU30,40,50,JU20 W/TANK CAP KEY |
1 | ||
| 77310-12041 |
RU2#,30..ARL,GEN |
1 | ||
| 69058-95400 |
RU2#,30 W/TANK CAP KEY |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12040 |
RU2#,30..ARL,GEN |
1 | ||
| 77316-12031 |
BU2#,30,31,32,HU30,JU20,RU2#,30,WU50 W/TANK CAP KEY |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-36360 |
BU3#,HU30,RU30..ARL,GEN,GHI |
1 | ||
| 77001-36240 |
BU32,36,HU30,40,RU30..ARL |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50 |
1 | ||
| 77100X - VALVE, CHECK | ||||
| 90917-10041 |
BU32,36,HU30,40,50,RU25,30..ARL |
1 | ||
| 77100Y - GASKET(FOR CHECK VALVE) | ||||
| 90430-37001 |
BU32,36,HU30,40,50,RU25,30..ARL |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77258-36010 |
HU30,RU2#,30 EVAPO SYSTEM |
1 | ||
| 77243-36010 |
BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
BU2#,30,31,36,40,HU40,50,RU2#,30,WU40,50..ARL,GEN,GHI |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36051 |
BU20,RU20..T3;BU25,30,HU30,JU20,RU25,30..DMP,TR |
2 | ||
| 77601-55050 |
BU32,RU30..TS..ARL |
2 | ||
| 77601-36051 |
HU30,RU30..TS..ARL |
2 | ||
| 77601-36051 |
HU30,RU20..T3;BU20,30,JU20,RU30..T3,TW1 |
2 | ||
| 77601-36100 |
BU32,RU30..TS |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
RU20..T1,T3;BU2#,3#,40,HU30,40,50,JU20,RU25,30,WU40,50..DMP,TR |
2 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77633-36090 |
RU20..T3;BU20,30,HU30,RU30..T3,TW1 |
2 | ||
| 77633-36090 |
RU30..TS..ARL;BU20,3#..T3,TW1;HU30,RU20,30..T3 |
2 | ||
| 77633-36090 |
HU30,RU20..T3;HU30..TS..CBU;BU20,30,RU30..T3,TW1 |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-36050 |
BU20,RU20..T3;BU25,3#,40,HU30,40,50,JU20,RU25,30..DMP,TR |
2 | ||
| Common parts | ||||
| 91611-40820 | ||||
| 91611-41025 | ||||
| 91651-40616 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94612-11001 | ||||
| 95332-08024 | ||||
| 95332-08026 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
(7708-8408)RU25,30 ; (7708-8408)RU20..RHD ; (7708-8408)RU20..LHD..TS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77258-36010 |
HU30,RU2#,30 EVAPO SYSTEM |
1 | ||
| 77243-36010 |
BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77258-36010 |
HU30,RU2#,30 EVAPO SYSTEM |
1 | ||
| 77243-36010 |
BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77258-36010 |
HU30,RU2#,30 EVAPO SYSTEM |
1 | ||
| 77243-36010 |
BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36490 |
RU30..TS |
1 | ||
| 77251-36491 |
RU30..TS |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36490 |
RU30..TS |
1 | ||
| 77251-36491 |
RU30..TS |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36490 |
RU30..TS |
1 | ||
| 77251-36491 |
RU30..TS |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08010 |
RU20,30 *H,L=100,ID=7.6 |
1 | ||
| 95332-08024 |
BU2#,30 *H,L=240,ID=7.6 |
1 | ||
| 95332-08060 |
BU20,30..TR *H,L=500,ID=7.6,W/SEDIMENTER |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08010 |
RU20,30 *H,L=100,ID=7.6 |
1 | ||
| 95332-08024 |
BU2#,30 *H,L=240,ID=7.6 |
1 | ||
| 95332-08060 |
BU20,30..TR *H,L=500,ID=7.6,W/SEDIMENTER |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08010 |
RU20,30 *H,L=100,ID=7.6 |
1 | ||
| 95332-08024 |
BU2#,30 *H,L=240,ID=7.6 |
1 | ||
| 95332-08060 |
BU20,30..TR *H,L=500,ID=7.6,W/SEDIMENTER |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08028 |
HU30,RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
HU30,RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08028 |
HU30,RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
HU30,RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08028 |
HU30,RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
HU30,RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-36070 |
RU30..TS EVAPO SYSTEM |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-36070 |
RU30..TS EVAPO SYSTEM |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-36070 |
RU30..TS EVAPO SYSTEM |
1 | ||
| 77283 - BRACKET, FUEL TUBE | ||||
| 58266-36020 |
BU20,30 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-36060 |
RU20,30..ARL |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-36060 |
RU20,30..ARL |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-36060 |
RU20,30..ARL |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90445-08170 |
RU20,30 L=1200 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90445-08170 |
RU20,30 L=1200 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90445-08170 |
RU20,30 L=1200 |
1 | ||
| 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 95332-06013 |
RU2#,30 *H,L=130 |
1 | ||
| 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 95332-06013 |
RU2#,30 *H,L=130 |
1 | ||
| 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 95332-06013 |
RU2#,30 *H,L=130 |
1 | ||
| Common parts | ||||
| 90159-60038 | ||||
| 90461-08422 | ||||
| 90461-10874 | ||||
| 90462-16019 | ||||
| 90463-15067 | ||||
| 90464-00079 | ||||
| 90467-12058 | ||||
| 91611-40820 | ||||
| 91651-40820 | ||||
| 94110-40800 | ||||
| 94110-40820 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| 96221-20906 | ||||

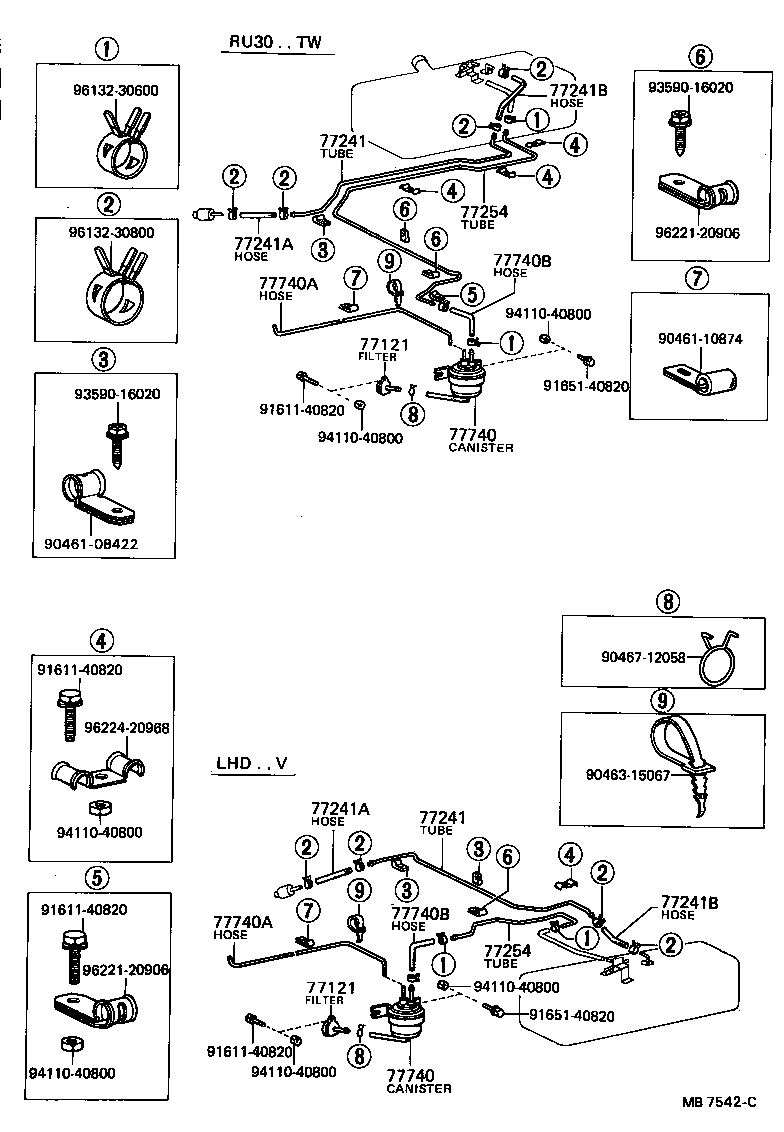

(7708-8408)RU30..TS ; (7708-8408)RU20..LHD..V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77258-36010 |
HU30,RU2#,30 EVAPO SYSTEM |
1 | ||
| 77243-36010 |
BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77258-36010 |
HU30,RU2#,30 EVAPO SYSTEM |
1 | ||
| 77243-36010 |
BU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36490 |
RU30..TS |
1 | ||
| 77251-36491 |
RU30..TS |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36490 |
RU30..TS |
1 | ||
| 77251-36491 |
RU30..TS |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08010 |
RU20,30 *H,L=100,ID=7.6 |
1 | ||
| 95332-08024 |
BU2#,30 *H,L=240,ID=7.6 |
1 | ||
| 95332-08060 |
BU20,30..TR *H,L=500,ID=7.6,W/SEDIMENTER |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08010 |
RU20,30 *H,L=100,ID=7.6 |
1 | ||
| 95332-08024 |
BU2#,30 *H,L=240,ID=7.6 |
1 | ||
| 95332-08060 |
BU20,30..TR *H,L=500,ID=7.6,W/SEDIMENTER |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08028 |
HU30,RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
HU30,RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08028 |
HU30,RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
HU30,RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-36070 |
RU30..TS EVAPO SYSTEM |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-36070 |
RU30..TS EVAPO SYSTEM |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-36060 |
RU20,30..ARL |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-36060 |
RU20,30..ARL |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90445-08170 |
RU20,30 L=1200 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90445-08170 |
RU20,30 L=1200 |
1 | ||
| 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 95332-06013 |
RU2#,30 *H,L=130 |
1 | ||
| 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 95332-06013 |
RU2#,30 *H,L=130 |
1 | ||
| Common parts | ||||
| 90461-08422 | ||||
| 90461-10874 | ||||
| 90463-15067 | ||||
| 90467-12058 | ||||
| 91611-40820 | ||||
| 91651-40820 | ||||
| 93590-16020 | ||||
| 94110-40800 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| 96221-20906 | ||||
| 96224-20968 | ||||
(7912- )BU2#,30,31,32
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36490 |
RU30..TS |
1 | ||
| 77251-36491 |
RU30..TS |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36490 |
RU30..TS |
1 | ||
| 77251-36491 |
RU30..TS |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36490 |
RU30..TS |
1 | ||
| 77251-36491 |
RU30..TS |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08010 |
RU20,30 *H,L=100,ID=7.6 |
1 | ||
| 95332-08024 |
BU2#,30 *H,L=240,ID=7.6 |
1 | ||
| 95332-08060 |
BU20,30..TR *H,L=500,ID=7.6,W/SEDIMENTER |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08010 |
RU20,30 *H,L=100,ID=7.6 |
1 | ||
| 95332-08024 |
BU2#,30 *H,L=240,ID=7.6 |
1 | ||
| 95332-08060 |
BU20,30..TR *H,L=500,ID=7.6,W/SEDIMENTER |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08028 |
HU30,RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
HU30,RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08028 |
HU30,RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
HU30,RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08028 |
HU30,RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
HU30,RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 95332-08030 |
RU30..TS *H,L=280,ID=7.6 |
1 | ||
| 77283 - BRACKET, FUEL TUBE | ||||
| 58266-36020 |
BU20,30 |
1 | ||
| Common parts | ||||
| 90159-60038 | ||||
| 90179-08146 | ||||
| 90461-08422 | ||||
| 90461-08613 | ||||
| 91611-40820 | ||||
| 94110-40800 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 2302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
