RU30R-QRDHT3 (1977)

Toyota Dyna

Production Aug 1977 - Aug 1984
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )BU20,30,32,HU30,RU2#,30..RHD

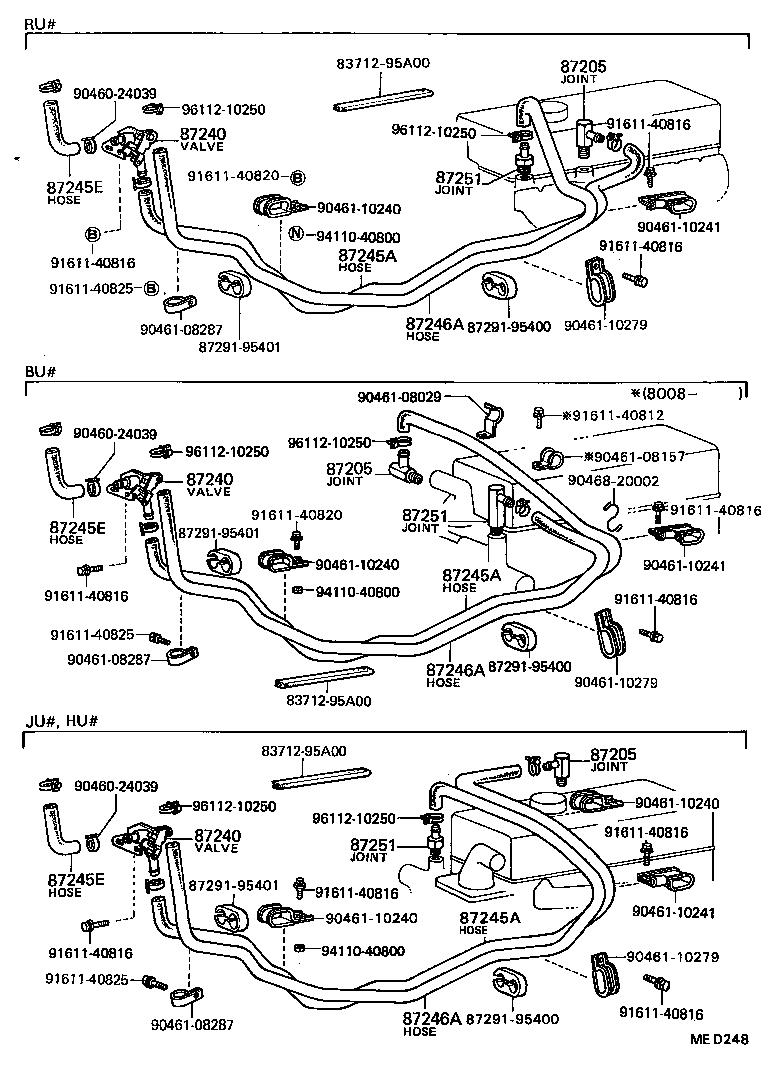

Click highlighted areas on diagram

diagram 8371295A00 8371295A00 8371295A00 87205 87205 87205 87240 87240 87240 87245A 87245A 87245A 87245E 87245E 87245E 87246A 87246A 87246A 87251 87251 87251 8729195400 8729195400 8729195400 8729195401 8729195401 8729195401 9046024039 9046024039 9046024039 9046108029 9046108157 9046108287 9046108287 9046108287 9046110240 9046110240 9046110240 9046110240 9046110241 9046110241 9046110241 9046110279 9046110279 9046110279 9046820002 9161140812 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140820 9161140820 9161140825 9161140825 9161140825 9411040800 9411040800 9411040800 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-36020

BU20,30

 1
87251-95400

RU2#,30

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-36020

BU20,30

 1
87251-95400

RU2#,30

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-36020

BU20,30

 1
87251-95400

RU2#,30

 1
87240 - VALVE ASSY, HEATER WATER
87240-95400

BU20,30,32,HU30,RU2#,30..RHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-95400

BU20,30,32,HU30,RU2#,30..RHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-95400

BU20,30,32,HU30,RU2#,30..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95400

BU20,30,HU30..RHD

 1
87245-95402

RU2#,30..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95400

BU20,30,HU30..RHD

 1
87245-95402

RU2#,30..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95400

BU20,30,HU30..RHD

 1
87245-95402

RU2#,30..RHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95405

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95405

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95405

BU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95407

RU2#,30..RHD

 1
87245-95406

BU20,30..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95407

RU2#,30..RHD

 1
87245-95406

BU20,30..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95407

RU2#,30..RHD

 1
87245-95406

BU20,30..RHD

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-20070

HU30,JU20,RU20,30

 1
87251-95400

BU2#,30

 1
87251-30200

RU2#,30

 1
87251-30200

HU30,40,50,RU2#,30

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-20070

HU30,JU20,RU20,30

 1
87251-95400

BU2#,30

 1
87251-30200

RU2#,30

 1
87251-30200

HU30,40,50,RU2#,30

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-20070

HU30,JU20,RU20,30

 1
87251-95400

BU2#,30

 1
87251-30200

RU2#,30

 1
87251-30200

HU30,40,50,RU2#,30

 1
Common parts
83712-95A00
87291-95400
87291-95401
90460-24039
90461-08029
90461-08157
90461-08287
90461-10240
90461-10241
90461-10279
90468-20002
91611-40812
91611-40816
91611-40820
91611-40825
94110-40800
96112-10250
