RU30L-QRPT (1977)

Toyota Dyna

Production Aug 1977 - Aug 1984
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8104)H

Click highlighted areas on diagram

diagram 11301 11301A 11301A 11301B 11302 11302A 11312 11328 11345 11351 11351A 11381 11381A 11383 11391 9116151245 9161160818 9161160822 9161160825 9161160828 9161160828 9161160855 9161961230 9451201200 9538103018
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-56022

B..BU2#,30

 1
11301-56030

B,2B,3B..BU2#,3#,40

 1
11301-56020

B..BU2#,30

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

B,2B,3B..BU2#,3#,40

L=18,OD=8,L=18,OD=8

 2
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

B,2B,3B..BU2#,3#,40

L=18,OD=8,L=18,OD=8

 2
11301B - BOLT,STUD(FOR TIMING GEAR CASE)
90116-10048

B,2B,3B..BU2#,3#,40

L=40,S=19&12

 3
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-44050

5R..RU2#,30

 1
11302-56020

B..BU2#,30

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45002

5R..RU2#,30

TC 45 68 12

 1
90311-45069

5R..RU2#,30

TC3 45 68 12

 1
90311-45006

5R..RU2#,30

TC 45 68 12

 1
90311-50002

B,2B,3B..BU2#,3#,40

 1
11312 - GASKET, FRONT END PLATE
11312-56020

B..BU2#,30

 1
11312-44011

5R..RU2#,30

 1
11312-56030

B,2B,3B..BU2#,3#,40

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-44010

5R..RU2#,30

 1
11328-56020

B..BU2#,30

 1
11345 - BEARING, INJECTION PUMP GEAR THRUST
11345-48010

B,2B,3B..BU2#,3#,40

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-56020

B..BU2#,30

 1
11381-56030

B,2B,3B..BU2#,3#,40

 1
11381-44011

5R..RU2#,30

 1
11381A - SEAL, ENGINE REAR OIL
90311-80002

5R..RU2#,30

HTCY 80 100 12 13.5

 1
90311-80139

5R..RU2#,30

HTC 80 100 12

 1
90311-95001

B,2B,3B..BU2#,3#,40

HTC 95 115 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-56030

B,2B,3B..BU2#,3#,40

 1
11383-44010

5R..RU2#,30

 1
11383-56020

B..BU2#,30

 1
11391 - POINTER, TIMING
11391-44020

5R..RU2#,30

 1
11391-56020

B,2B,3B..BU2#,3#,40

 1
Common parts
91161-51245
91611-60818
91611-60822
91611-60825
91611-60828
91611-60855
91619-61230
94512-01200
95381-03018

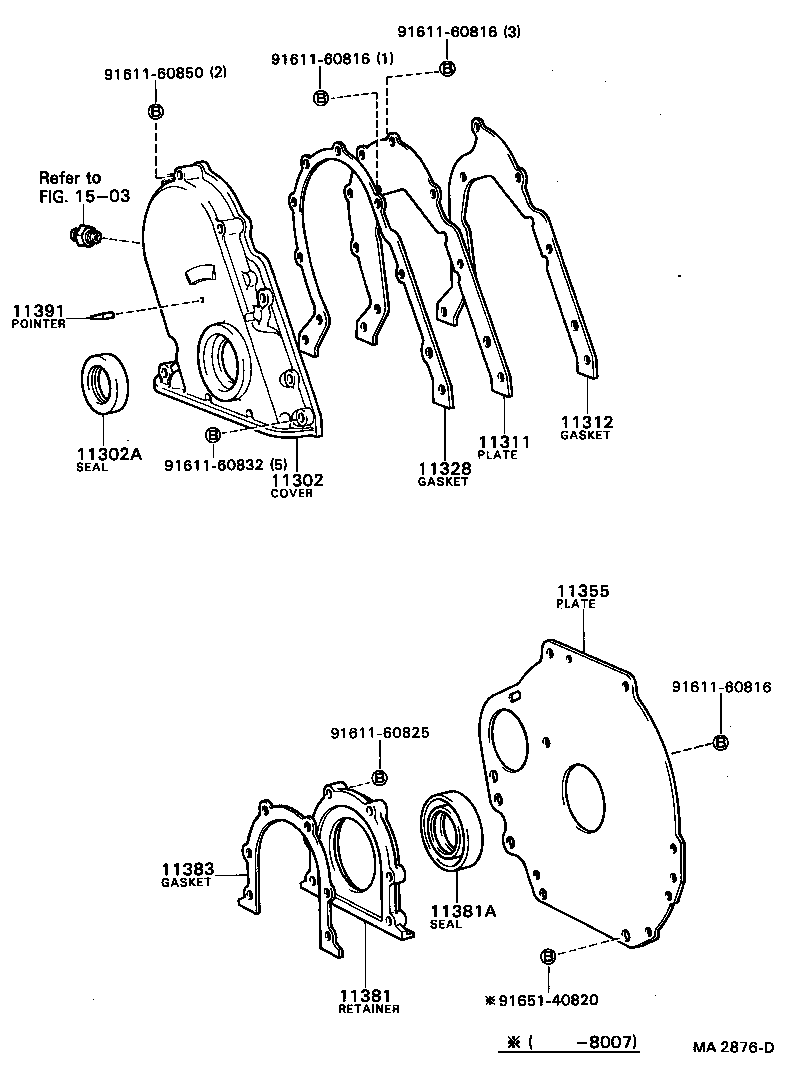

(7708-8408)5R

Click highlighted areas on diagram

diagram 11302 11302A 11311 11312 11328 11355 11381 11381A 11383 11391 1503 9161160816 9161160816 9161160816 9161160825 9161160832 9161160850 9165140820
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-44050

5R..RU2#,30

 1
11302-56020

B..BU2#,30

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45002

5R..RU2#,30

TC 45 68 12

 1
90311-45069

5R..RU2#,30

TC3 45 68 12

 1
90311-45006

5R..RU2#,30

TC 45 68 12

 1
90311-50002

B,2B,3B..BU2#,3#,40

 1
11311 - PLATE, FRONT END
11311-44011

5R..RU2#,30

 1
11312 - GASKET, FRONT END PLATE
11312-56020

B..BU2#,30

 1
11312-44011

5R..RU2#,30

 1
11312-56030

B,2B,3B..BU2#,3#,40

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-44010

5R..RU2#,30

 1
11328-56020

B..BU2#,30

 1
11355 - PLATE, REAR END
11355-44010

5R..RU2#,30

 1
11355-56030

B..BU2#,30

 1
11355-44011

5R..RU2#,30

 1
11355-56050

B,2B,3B..BU2#,3#,40

 1
11355-56051

B,2B,3B..BU2#,3#,40

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-56030

B,2B,3B..BU2#,3#,40

 1
11381-56020

B..BU2#,30

 1
11381-44011

5R..RU2#,30

 1
11381A - SEAL, ENGINE REAR OIL
90311-80002

5R..RU2#,30

HTCY 80 100 12 13.5

 1
90311-80139

5R..RU2#,30

HTC 80 100 12

 1
90311-95001

B,2B,3B..BU2#,3#,40

HTC 95 115 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-56030

B,2B,3B..BU2#,3#,40

 1
11383-44010

5R..RU2#,30

 1
11383-56020

B..BU2#,30

 1
11391 - POINTER, TIMING
11391-44020

5R..RU2#,30

 1
11391-56020

B,2B,3B..BU2#,3#,40

 1
Common parts
91611-60816
91611-60825
91611-60832
91611-60850
91651-40820
Linked diagrams
1503

(7708-8008)B

Click highlighted areas on diagram

diagram 11301 11301A 11301B 11302 11302A 11312 11328 11345 11355 11381 11381A 11383 11391 1501 9011908145 9011910073 9161140814 9161160818 9161160825 9161160832 9161160840 9161161016 9161161020
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-56022

B..BU2#,30

 1
11301-56030

B,2B,3B..BU2#,3#,40

 1
11301-56020

B..BU2#,30

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

B,2B,3B..BU2#,3#,40

L=18,OD=8,L=18,OD=8

 2
11301B - BOLT,STUD(FOR TIMING GEAR CASE)
90116-10048

B,2B,3B..BU2#,3#,40

L=40,S=19&12

 3
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-44050

5R..RU2#,30

 1
11302-56020

B..BU2#,30

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45002

5R..RU2#,30

TC 45 68 12

 1
90311-45069

5R..RU2#,30

TC3 45 68 12

 1
90311-45006

5R..RU2#,30

TC 45 68 12

 1
90311-50002

B,2B,3B..BU2#,3#,40

 1
11312 - GASKET, FRONT END PLATE
11312-56020

B..BU2#,30

 1
11312-44011

5R..RU2#,30

 1
11312-56030

B,2B,3B..BU2#,3#,40

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-44010

5R..RU2#,30

 1
11328-56020

B..BU2#,30

 1
11345 - BEARING, INJECTION PUMP GEAR THRUST
11345-48010

B,2B,3B..BU2#,3#,40

 1
11355 - PLATE, REAR END
11355-44010

5R..RU2#,30

 1
11355-56030

B..BU2#,30

 1
11355-44011

5R..RU2#,30

 1
11355-56050

B,2B,3B..BU2#,3#,40

 1
11355-56051

B,2B,3B..BU2#,3#,40

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-56020

B..BU2#,30

 1
11381-44011

5R..RU2#,30

 1
11381-56030

B,2B,3B..BU2#,3#,40

 1
11381A - SEAL, ENGINE REAR OIL
90311-80002

5R..RU2#,30

HTCY 80 100 12 13.5

 1
90311-80139

5R..RU2#,30

HTC 80 100 12

 1
90311-95001

B,2B,3B..BU2#,3#,40

HTC 95 115 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-56030

B,2B,3B..BU2#,3#,40

 1
11383-44010

5R..RU2#,30

 1
11383-56020

B..BU2#,30

 1
11391 - POINTER, TIMING
11391-44020

5R..RU2#,30

 1
11391-56020

B,2B,3B..BU2#,3#,40

 1
Common parts
90119-08145
90119-10073
91611-40814
91611-60818
91611-60825
91611-60832
91611-60840
91611-61016
91611-61020
Linked diagrams
1501

(8008- )B,2B,3B

Click highlighted areas on diagram

diagram 9011908145 9011910073 9011910073 9161160825 9161160835 9161161060
Part # Description Qty Price
Common parts
90119-08145
90119-10073
91611-60825
91611-60835
91611-61060

(8008- )B,2B,3B

Click highlighted areas on diagram

diagram 11301 11301A 11301B 11302 11302A 11312 11328 11345 11355 11381 11381A 11383 11391 1501 9161160814 9161160825 9161161016 9161161016
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-56022

B..BU2#,30

 1
11301-56030

B,2B,3B..BU2#,3#,40

 1
11301-56020

B..BU2#,30

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

B,2B,3B..BU2#,3#,40

L=18,OD=8,L=18,OD=8

 2
11301B - BOLT,STUD(FOR TIMING GEAR CASE)
90116-10048

B,2B,3B..BU2#,3#,40

L=40,S=19&12

 3
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-44050

5R..RU2#,30

 1
11302-56020

B..BU2#,30

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45002

5R..RU2#,30

TC 45 68 12

 1
90311-45069

5R..RU2#,30

TC3 45 68 12

 1
90311-45006

5R..RU2#,30

TC 45 68 12

 1
90311-50002

B,2B,3B..BU2#,3#,40

 1
11312 - GASKET, FRONT END PLATE
11312-56020

B..BU2#,30

 1
11312-44011

5R..RU2#,30

 1
11312-56030

B,2B,3B..BU2#,3#,40

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-44010

5R..RU2#,30

 1
11328-56020

B..BU2#,30

 1
11345 - BEARING, INJECTION PUMP GEAR THRUST
11345-48010

B,2B,3B..BU2#,3#,40

 1
11355 - PLATE, REAR END
11355-44010

5R..RU2#,30

 1
11355-56030

B..BU2#,30

 1
11355-44011

5R..RU2#,30

 1
11355-56050

B,2B,3B..BU2#,3#,40

 1
11355-56051

B,2B,3B..BU2#,3#,40

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-56020

B..BU2#,30

 1
11381-44011

5R..RU2#,30

 1
11381-56030

B,2B,3B..BU2#,3#,40

 1
11381A - SEAL, ENGINE REAR OIL
90311-80002

5R..RU2#,30

HTCY 80 100 12 13.5

 1
90311-80139

5R..RU2#,30

HTC 80 100 12

 1
90311-95001

B,2B,3B..BU2#,3#,40

HTC 95 115 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-56030

B,2B,3B..BU2#,3#,40

 1
11383-44010

5R..RU2#,30

 1
11383-56020

B..BU2#,30

 1
11391 - POINTER, TIMING
11391-44020

5R..RU2#,30

 1
11391-56020

B,2B,3B..BU2#,3#,40

 1
Common parts
91611-60814
91611-60825
91611-61016
Linked diagrams
1501
