RU30L-MRPT (1977)

Toyota Dyna

Production Aug 1977 - Aug 1984
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8408)TW1

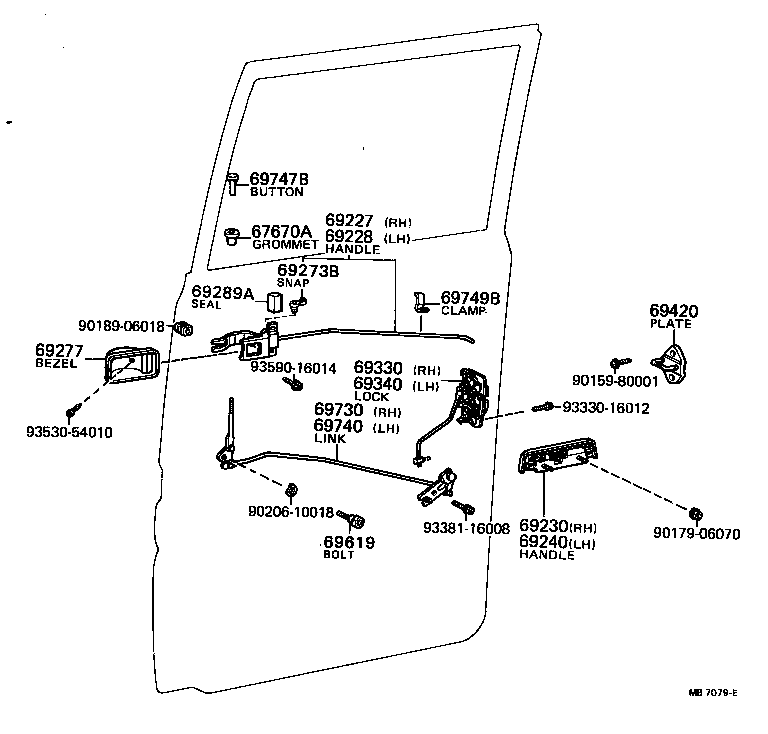

Click highlighted areas on diagram

diagram 67670A 69227 69228 69230 69240 69273B 69277 69289A 69330 69340 69420 69619 69730 69740 69747B 69749B 9015980001 9017906070 9018906018 9020610018 9333016012 9338116008 9353054010 9359016014
Part # Description Qty Price
67670A - GROMMET(FOR REAR DOOR PANEL LOCK BUTTON)
90480-10102

BU20,32,HU30,JU20,RU20,30..TW1,VSG,VSP

 1
69227 - HANDLE, REAR DOOR INSIDE, RH
69750-95A00

BU32,HU30,RU20,30..TW1

 1
69750-95401

BU32,RU20,30..TW1

 1
69228 - HANDLE, REAR DOOR INSIDE, LH
69760-95401

BU32,RU20,30..TW1

 1
69760-95A00

BU32,HU30,RU20,30..TW1

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69210-95403

BU32,HU30,RU20,30..TW1

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69220-95403

BU32,HU30,RU20,30..TW1

 1
69273B - SNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)
69279-12010

BU32,HU30,RU20,30..TW1

 2
69277 - BEZEL, REAR DOOR INSIDE HANDLE
69276-95A00

BU32,HU30,RU20,30..TW1

 2
69276-95400

BU32,RU20,30..TW1

 2
69289A - SEAL, DOOR INSIDE HANDLE, NO.2
69289-12010

HU30,RU20,30..TW1

 2
69330 - LOCK ASSY, REAR DOOR, RH
69330-95400

BU32,HU30,RU20,30..TW1

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-95400

BU32,HU30,RU20,30..TW1

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-95010

BU32,HU30,RU20,30..TW1

 2
69619 - BOLT, REAR DOOR LOCKING CONTROL
69619-95010

BU32,HU30,RU20,30..TW1

 2
69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH
69701-95A00

BU32,HU30,RU20,30..TW1

 1
69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH
69702-95A00

BU32,HU30,RU20,30..TW1

 1
69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR)
69747-20020

BU20,32,HU30,JU20,RU20,30..TW1,VSG,VSP

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12010

BU32,HU30,RU20,30..TW1

 2
69749-30020

BU32,RU20,30..TW1

 2
Common parts
90159-80001
90179-06070
90189-06018
90206-10018
93330-16012
93381-16008
93530-54010
93590-16014
