RU30L-MRDHT3 (1977)
Toyota Dyna
(7708-8003)5R..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56023 |
B..BU2#,30..ARL,GEN 12V 35A |
1 | ||
| 27020-40065 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27020-57061 |
B,2B,3B..BU2#,3#..ARL,GEN,GHI 12V 40A |
1 | ||
| 27020-23022 |
5R..RU2#,30 12V 30A |
1 | ||
| 27020-44100 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-18011 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27039-26020 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27039-11014 |
5R..RU2#,30 12V 30A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27113-10012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27312-31011 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27312-56011 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27312-56070 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-54040 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27212-39050 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-19068 |
5R..RU2#,30 12V 30A |
1 | ||
| 27212-56010 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27310-18010 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27310-57061 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27310-22012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27310-56011 |
B..BU2#,30 12V 35A,24V 20A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-19075 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27412-31040 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27314-56010 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27412-56040 |
5R..RU2#,30 12V 30A |
1 | ||
| 90099-19251 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10120 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 90099-10109 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-10082 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 90099-10126 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-10012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02009 |
5R..RU2#,30 12V 30A |
1 | ||
| 90099-02207 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 90099-02004 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-31011 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27315-56070 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27313-39010 |
5R..RU2#,30 12V 30A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-33010 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27330-46031 |
B,H..BU2#,30,HU30..ARL,GEN 12V 35A |
1 | ||
| 27330-22012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27330-54040 |
B,2B,3B..BU2#,3#..ARL,GEN,GHI 12V 40A |
1 | ||
| 27330-26050 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10103 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-10111 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 97110-06201 |
5R..RU2#,30 12V 30A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07108 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 90099-07048 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-07103 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-31101 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27350-57061 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27350-31090 |
5R..RU2#,30 12V 30A |
1 | ||
| 27350-56013 |
B..BU2#,30 12V 35A,24V 20A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27351-24020 |
5R..RU2#,30 12V 30A |
1 | ||
| 27351-56013 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 35A,40A,24V 15A,20A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-26030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27353-56011 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-56010 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27356-26030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-36061 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27359-13050 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27359-31090 |
5R..RU2#,30 12V 30A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-15030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27362-26040 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
B,H,2J,5R..BU2#,30,HU30,JU20,RU2#,30 12V 30A,35A,40A,24V 15A,20A |
2 | ||
| 27371-31011 |
H,5R..HU30,RU2#,30 12V 30A,35A,40A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
B,H,2J,5R..BU2#,30,HU30,JU20,RU2#,30 12V 30A,35A,40A,24V 15A,20A |
2 | ||
| 27372-31011 |
H,5R..HU30,RU2#,30 12V 30A,35A,40A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-46031 |
B,H..BU2#,30,HU30..ARL,GEN 12V 35A |
1 | ||
| 27410-26020 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27410-11014 |
5R..RU2#,30 12V 30A |
1 | ||
| 27410-54020 |
B,2B,3B..BU2#,3#..ARL,GEN,GHI 12V 40A |
1 | ||
| 27410-15030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-45010 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27411-57061 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27411-23022 |
5R..RU2#,30 12V 30A |
1 | ||
| 27411-56020 |
B..BU2#,30 12V 35A,24V 20A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-31090 |
5R..RU2#,30 12V 30A |
1 | ||
| 27441-54040 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27441-46031 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27441-34030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-38020 |
5R..RU20,30;B,H,5R..BU2#,30,HU30,RU25..ARL,GEN 12V |
1 | ||
| Common parts | ||||
| 27378-26020 | ||||
| 27387-31011 | ||||
| 90099-00862 | ||||
| 90099-02310 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08127 | ||||
| 91651-40616 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
| 94611-11001 | ||||
(7708-8408)5R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56023 |
B..BU2#,30..ARL,GEN 12V 35A |
1 | ||
| 27020-40065 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27020-57061 |
B,2B,3B..BU2#,3#..ARL,GEN,GHI 12V 40A |
1 | ||
| 27020-23022 |
5R..RU2#,30 12V 30A |
1 | ||
| 27020-44100 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-18011 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27039-26020 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27039-11014 |
5R..RU2#,30 12V 30A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27113-10012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27312-31011 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27312-56011 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27312-56070 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-54040 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27212-39050 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-19068 |
5R..RU2#,30 12V 30A |
1 | ||
| 27212-56010 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27310-18010 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27310-57061 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27310-22012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27310-56011 |
B..BU2#,30 12V 35A,24V 20A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-19075 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27412-31040 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27314-56010 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27412-56040 |
5R..RU2#,30 12V 30A |
1 | ||
| 90099-19251 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10120 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 90099-10109 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-10082 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 90099-10126 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-10012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02009 |
5R..RU2#,30 12V 30A |
1 | ||
| 90099-02207 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 90099-02004 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-31011 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27315-56070 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27313-39010 |
5R..RU2#,30 12V 30A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-33010 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27330-46031 |
B,H..BU2#,30,HU30..ARL,GEN 12V 35A |
1 | ||
| 27330-22012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27330-54040 |
B,2B,3B..BU2#,3#..ARL,GEN,GHI 12V 40A |
1 | ||
| 27330-26050 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10103 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-10111 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 97110-06201 |
5R..RU2#,30 12V 30A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-31101 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27350-57061 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27350-31090 |
5R..RU2#,30 12V 30A |
1 | ||
| 27350-56013 |
B..BU2#,30 12V 35A,24V 20A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27351-24020 |
5R..RU2#,30 12V 30A |
1 | ||
| 27351-56013 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 35A,40A,24V 15A,20A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-56011 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27357-11014 |
5R..RU2#,30 12V 30A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-36061 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27359-13050 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27359-31090 |
5R..RU2#,30 12V 30A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-60080 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27370-31090 |
5R..RU2#,30 12V 30A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
B,H,2J,5R..BU2#,30,HU30,JU20,RU2#,30 12V 30A,35A,40A,24V 15A,20A |
2 | ||
| 27371-31011 |
H,5R..HU30,RU2#,30 12V 30A,35A,40A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
B,H,2J,5R..BU2#,30,HU30,JU20,RU2#,30 12V 30A,35A,40A,24V 15A,20A |
2 | ||
| 27372-31011 |
H,5R..HU30,RU2#,30 12V 30A,35A,40A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-46031 |
B,H..BU2#,30,HU30..ARL,GEN 12V 35A |
1 | ||
| 27410-26020 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27410-11014 |
5R..RU2#,30 12V 30A |
1 | ||
| 27410-54020 |
B,2B,3B..BU2#,3#..ARL,GEN,GHI 12V 40A |
1 | ||
| 27410-15030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-45010 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27411-57061 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27411-23022 |
5R..RU2#,30 12V 30A |
1 | ||
| 27411-56020 |
B..BU2#,30 12V 35A,24V 20A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-31090 |
5R..RU2#,30 12V 30A |
1 | ||
| 27441-54040 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27441-46031 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27441-34030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-38020 |
5R..RU20,30;B,H,5R..BU2#,30,HU30,RU25..ARL,GEN 12V |
1 | ||
| Common parts | ||||
| 27378-31050 | ||||
| 27387-31011 | ||||
| 90099-00862 | ||||
| 90099-01423 | ||||
| 90099-04808 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-08164 | ||||
| 90119-08127 | ||||
| 90179-08146 | ||||
| 91651-40616 | ||||
| 94511-00500 | ||||
| 94511-01400 | ||||
| 94612-10800 | ||||
(8008- )3B..BU40 ; (8204-8408)B,2B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56023 |
B..BU2#,30..ARL,GEN 12V 35A |
1 | ||
| 27020-40065 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27020-57061 |
B,2B,3B..BU2#,3#..ARL,GEN,GHI 12V 40A |
1 | ||
| 27020-23022 |
5R..RU2#,30 12V 30A |
1 | ||
| 27020-44100 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-56011 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27113-10012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27312-31011 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27312-56011 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27312-56070 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-54040 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27212-39050 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-19068 |
5R..RU2#,30 12V 30A |
1 | ||
| 27212-56010 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27310-18010 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27310-57061 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27310-22012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27310-56011 |
B..BU2#,30 12V 35A,24V 20A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-19075 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27412-31040 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27314-56010 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27412-56040 |
5R..RU2#,30 12V 30A |
1 | ||
| 90099-19251 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10120 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 90099-10109 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-10082 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 90099-10126 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-10012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02009 |
5R..RU2#,30 12V 30A |
1 | ||
| 90099-02207 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 90099-02004 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-31011 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27315-56070 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27313-39010 |
5R..RU2#,30 12V 30A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-33010 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27330-46031 |
B,H..BU2#,30,HU30..ARL,GEN 12V 35A |
1 | ||
| 27330-22012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27330-54040 |
B,2B,3B..BU2#,3#..ARL,GEN,GHI 12V 40A |
1 | ||
| 27330-26050 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07108 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 90099-07048 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-07103 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-31101 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27350-57061 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27350-31090 |
5R..RU2#,30 12V 30A |
1 | ||
| 27350-56013 |
B..BU2#,30 12V 35A,24V 20A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27351-24020 |
5R..RU2#,30 12V 30A |
1 | ||
| 27351-56013 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 35A,40A,24V 15A,20A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-26030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27353-56011 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-56010 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27356-26030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-60080 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27370-31090 |
5R..RU2#,30 12V 30A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
B,H,2J,5R..BU2#,30,HU30,JU20,RU2#,30 12V 30A,35A,40A,24V 15A,20A |
2 | ||
| 27371-31011 |
H,5R..HU30,RU2#,30 12V 30A,35A,40A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
B,H,2J,5R..BU2#,30,HU30,JU20,RU2#,30 12V 30A,35A,40A,24V 15A,20A |
2 | ||
| 27372-31011 |
H,5R..HU30,RU2#,30 12V 30A,35A,40A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-46031 |
B,H..BU2#,30,HU30..ARL,GEN 12V 35A |
1 | ||
| 27410-26020 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27410-11014 |
5R..RU2#,30 12V 30A |
1 | ||
| 27410-54020 |
B,2B,3B..BU2#,3#..ARL,GEN,GHI 12V 40A |
1 | ||
| 27410-15030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-45010 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27411-57061 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27411-23022 |
5R..RU2#,30 12V 30A |
1 | ||
| 27411-56020 |
B..BU2#,30 12V 35A,24V 20A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-31090 |
5R..RU2#,30 12V 30A |
1 | ||
| 27441-54040 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27441-46031 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27441-34030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-38020 |
5R..RU20,30;B,H,5R..BU2#,30,HU30,RU25..ARL,GEN 12V |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90041-79064 | ||||
| 90099-01437 | ||||
| 90099-02181 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90105-10041 | ||||
| 90119-08344 | ||||
| 90179-06158 | ||||
| 91651-40616 | ||||
| 93315-15010 | ||||
(8003-8408)5R..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56023 |
B..BU2#,30..ARL,GEN 12V 35A |
1 | ||
| 27020-40065 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27020-57061 |
B,2B,3B..BU2#,3#..ARL,GEN,GHI 12V 40A |
1 | ||
| 27020-23022 |
5R..RU2#,30 12V 30A |
1 | ||
| 27020-44100 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-18011 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27039-26020 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27039-11014 |
5R..RU2#,30 12V 30A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-54040 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27212-39050 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-19068 |
5R..RU2#,30 12V 30A |
1 | ||
| 27212-56010 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27310-18010 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27310-57061 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27310-22012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27310-56011 |
B..BU2#,30 12V 35A,24V 20A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-19075 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27412-31040 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27314-56010 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27412-56040 |
5R..RU2#,30 12V 30A |
1 | ||
| 90099-19251 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10120 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 90099-10109 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-10082 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 90099-10126 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-10012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-33010 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27330-46031 |
B,H..BU2#,30,HU30..ARL,GEN 12V 35A |
1 | ||
| 27330-22012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27330-54040 |
B,2B,3B..BU2#,3#..ARL,GEN,GHI 12V 40A |
1 | ||
| 27330-26050 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10103 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-10111 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 97110-06201 |
5R..RU2#,30 12V 30A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07108 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 90099-07048 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-07103 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27351-24020 |
5R..RU2#,30 12V 30A |
1 | ||
| 27351-56013 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 35A,40A,24V 15A,20A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-36061 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27359-13050 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27359-31090 |
5R..RU2#,30 12V 30A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-15030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27362-26040 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
B,H,2J,5R..BU2#,30,HU30,JU20,RU2#,30 12V 30A,35A,40A,24V 15A,20A |
2 | ||
| 27371-31011 |
H,5R..HU30,RU2#,30 12V 30A,35A,40A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
B,H,2J,5R..BU2#,30,HU30,JU20,RU2#,30 12V 30A,35A,40A,24V 15A,20A |
2 | ||
| 27372-31011 |
H,5R..HU30,RU2#,30 12V 30A,35A,40A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-46031 |
B,H..BU2#,30,HU30..ARL,GEN 12V 35A |
1 | ||
| 27410-26020 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27410-11014 |
5R..RU2#,30 12V 30A |
1 | ||
| 27410-54020 |
B,2B,3B..BU2#,3#..ARL,GEN,GHI 12V 40A |
1 | ||
| 27410-15030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-45010 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27411-57061 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27411-23022 |
5R..RU2#,30 12V 30A |
1 | ||
| 27411-56020 |
B..BU2#,30 12V 35A,24V 20A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-31090 |
5R..RU2#,30 12V 30A |
1 | ||
| 27441-54040 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27441-46031 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27441-34030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-38020 |
5R..RU20,30;B,H,5R..BU2#,30,HU30,RU25..ARL,GEN 12V |
1 | ||
| Common parts | ||||
| 27378-15030 | ||||
| 27378-38040 | ||||
| 27387-45022 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 91651-40616 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||

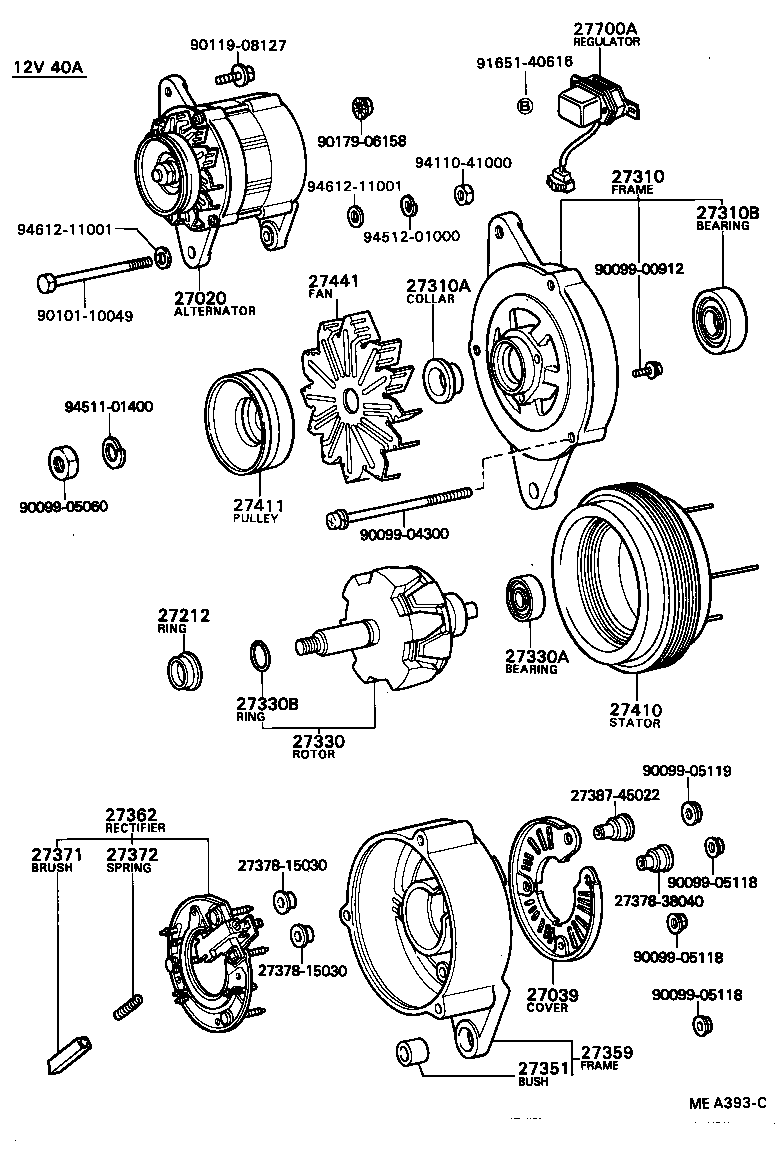

(8204- )B,3B..BU2#,30,32,36
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56023 |
B..BU2#,30..ARL,GEN 12V 35A |
1 | ||
| 27020-40065 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27020-57061 |
B,2B,3B..BU2#,3#..ARL,GEN,GHI 12V 40A |
1 | ||
| 27020-23022 |
5R..RU2#,30 12V 30A |
1 | ||
| 27020-44100 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-56011 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27113-10012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27312-31011 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27312-56011 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27312-56070 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-54040 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27212-39050 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-19068 |
5R..RU2#,30 12V 30A |
1 | ||
| 27212-56010 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27310-18010 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27310-57061 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27310-22012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27310-56011 |
B..BU2#,30 12V 35A,24V 20A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-19075 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27412-31040 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27314-56010 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27412-56040 |
5R..RU2#,30 12V 30A |
1 | ||
| 90099-19251 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10120 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 90099-10109 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-10082 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 90099-10126 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-10012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02009 |
5R..RU2#,30 12V 30A |
1 | ||
| 90099-02207 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 90099-02004 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02009 |
5R..RU2#,30 12V 30A |
1 | ||
| 90099-02207 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 90099-02004 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-31011 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27315-56070 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27313-39010 |
5R..RU2#,30 12V 30A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-33010 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27330-46031 |
B,H..BU2#,30,HU30..ARL,GEN 12V 35A |
1 | ||
| 27330-22012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27330-54040 |
B,2B,3B..BU2#,3#..ARL,GEN,GHI 12V 40A |
1 | ||
| 27330-26050 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07108 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 90099-07048 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-07103 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-31101 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27350-57061 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27350-31090 |
5R..RU2#,30 12V 30A |
1 | ||
| 27350-56013 |
B..BU2#,30 12V 35A,24V 20A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27351-24020 |
5R..RU2#,30 12V 30A |
1 | ||
| 27351-56013 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 35A,40A,24V 15A,20A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-26030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27353-56011 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-56010 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27356-26030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-60080 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27370-31090 |
5R..RU2#,30 12V 30A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
B,H,2J,5R..BU2#,30,HU30,JU20,RU2#,30 12V 30A,35A,40A,24V 15A,20A |
2 | ||
| 27371-31011 |
H,5R..HU30,RU2#,30 12V 30A,35A,40A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
B,H,2J,5R..BU2#,30,HU30,JU20,RU2#,30 12V 30A,35A,40A,24V 15A,20A |
2 | ||
| 27372-31011 |
H,5R..HU30,RU2#,30 12V 30A,35A,40A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-46031 |
B,H..BU2#,30,HU30..ARL,GEN 12V 35A |
1 | ||
| 27410-26020 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27410-11014 |
5R..RU2#,30 12V 30A |
1 | ||
| 27410-54020 |
B,2B,3B..BU2#,3#..ARL,GEN,GHI 12V 40A |
1 | ||
| 27410-15030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-45010 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27411-57061 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27411-23022 |
5R..RU2#,30 12V 30A |
1 | ||
| 27411-56020 |
B..BU2#,30 12V 35A,24V 20A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-31090 |
5R..RU2#,30 12V 30A |
1 | ||
| 27441-54040 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27441-46031 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27441-34030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-38020 |
5R..RU20,30;B,H,5R..BU2#,30,HU30,RU25..ARL,GEN 12V |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90041-79064 | ||||
| 90099-01437 | ||||
| 90099-02208 | ||||
| 90099-04947 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90105-10041 | ||||
| 90119-08344 | ||||
| 90179-06158 | ||||
| 91651-40616 | ||||
| 93315-15010 | ||||

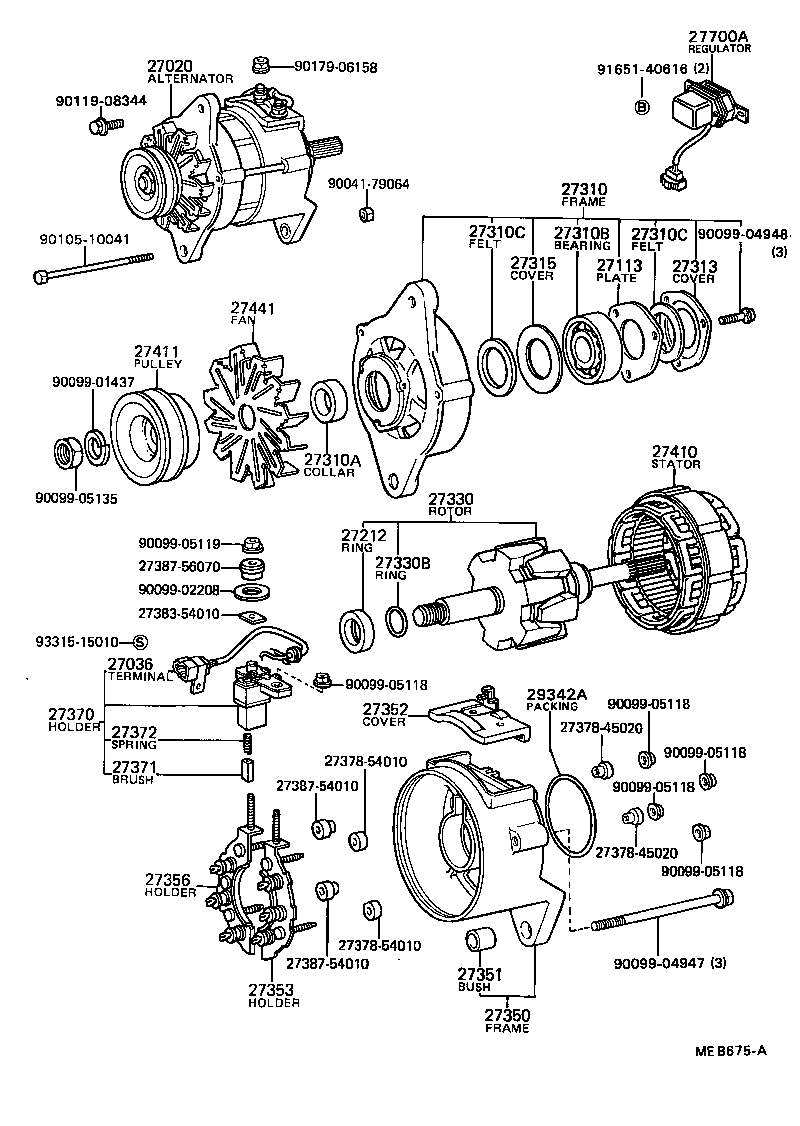

(7708-8008)B,H,2J ; (8008-8104)H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56023 |
B..BU2#,30..ARL,GEN 12V 35A |
1 | ||
| 27020-40065 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27020-57061 |
B,2B,3B..BU2#,3#..ARL,GEN,GHI 12V 40A |
1 | ||
| 27020-23022 |
5R..RU2#,30 12V 30A |
1 | ||
| 27020-44100 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-56011 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27113-10012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27312-31011 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27312-56011 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27312-56070 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-54040 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27212-39050 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-19068 |
5R..RU2#,30 12V 30A |
1 | ||
| 27212-56010 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27310-18010 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27310-57061 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27310-22012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27310-56011 |
B..BU2#,30 12V 35A,24V 20A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-19075 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27412-31040 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27314-56010 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27412-56040 |
5R..RU2#,30 12V 30A |
1 | ||
| 90099-19251 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10120 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 90099-10109 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-10082 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 90099-10126 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-10012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27311 - FRAME, ALTERNATOR DRIVE END | ||||
| 27311-56012 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-33010 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27330-46031 |
B,H..BU2#,30,HU30..ARL,GEN 12V 35A |
1 | ||
| 27330-22012 |
5R..RU2#,30 12V 30A |
1 | ||
| 27330-54040 |
B,2B,3B..BU2#,3#..ARL,GEN,GHI 12V 40A |
1 | ||
| 27330-26050 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07108 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 90099-07048 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 90099-07103 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-31101 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27350-57061 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27350-31090 |
5R..RU2#,30 12V 30A |
1 | ||
| 27350-56013 |
B..BU2#,30 12V 35A,24V 20A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27351-24020 |
5R..RU2#,30 12V 30A |
1 | ||
| 27351-56013 |
B,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20 12V 35A,40A,24V 15A,20A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-26030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27353-56011 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-56010 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27356-26030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-56011 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27357-11014 |
5R..RU2#,30 12V 30A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-60080 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27370-31090 |
5R..RU2#,30 12V 30A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
B,H,2J,5R..BU2#,30,HU30,JU20,RU2#,30 12V 30A,35A,40A,24V 15A,20A |
2 | ||
| 27371-31011 |
H,5R..HU30,RU2#,30 12V 30A,35A,40A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
B,H,2J,5R..BU2#,30,HU30,JU20,RU2#,30 12V 30A,35A,40A,24V 15A,20A |
2 | ||
| 27372-31011 |
H,5R..HU30,RU2#,30 12V 30A,35A,40A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-46031 |
B,H..BU2#,30,HU30..ARL,GEN 12V 35A |
1 | ||
| 27410-26020 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27410-11014 |
5R..RU2#,30 12V 30A |
1 | ||
| 27410-54020 |
B,2B,3B..BU2#,3#..ARL,GEN,GHI 12V 40A |
1 | ||
| 27410-15030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-45010 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27411-57061 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27411-23022 |
5R..RU2#,30 12V 30A |
1 | ||
| 27411-56020 |
B..BU2#,30 12V 35A,24V 20A |
1 | ||
| 27411A - KEY(FOR ALTERNATOR PULLEY) | ||||
| 90097-00465 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-31090 |
5R..RU2#,30 12V 30A |
1 | ||
| 27441-54040 |
B,2B,3B..BU2#,3# 12V 40A,24V 20A |
1 | ||
| 27441-46031 |
B,H,2J..BU2#,30,HU30,JU20 12V 35A,24V 15A,20A |
1 | ||
| 27441-34030 |
5R..RU2#,30..GEN 12V 40A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-38020 |
5R..RU20,30;B,H,5R..BU2#,30,HU30,RU25..ARL,GEN 12V |
1 | ||
| Common parts | ||||
| 27378-31011 | ||||
| 27383-31011 | ||||
| 27445-46031 | ||||
| 27445-56011 | ||||
| 27446-56011 | ||||
| 90092-20582 | ||||
| 90099-00862 | ||||
| 90099-00893 | ||||
| 90099-01014 | ||||
| 90099-01390 | ||||
| 90099-02181 | ||||
| 90099-05060 | ||||
| 90101-10459 | ||||
| 90119-08162 | ||||
| 90201-10283 | ||||
| 91651-40616 | ||||
| 93319-14025 | ||||
| 93319-15008 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| 94521-00500 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
