RU25RD-QRTU3 (1978)
Toyota Dyna

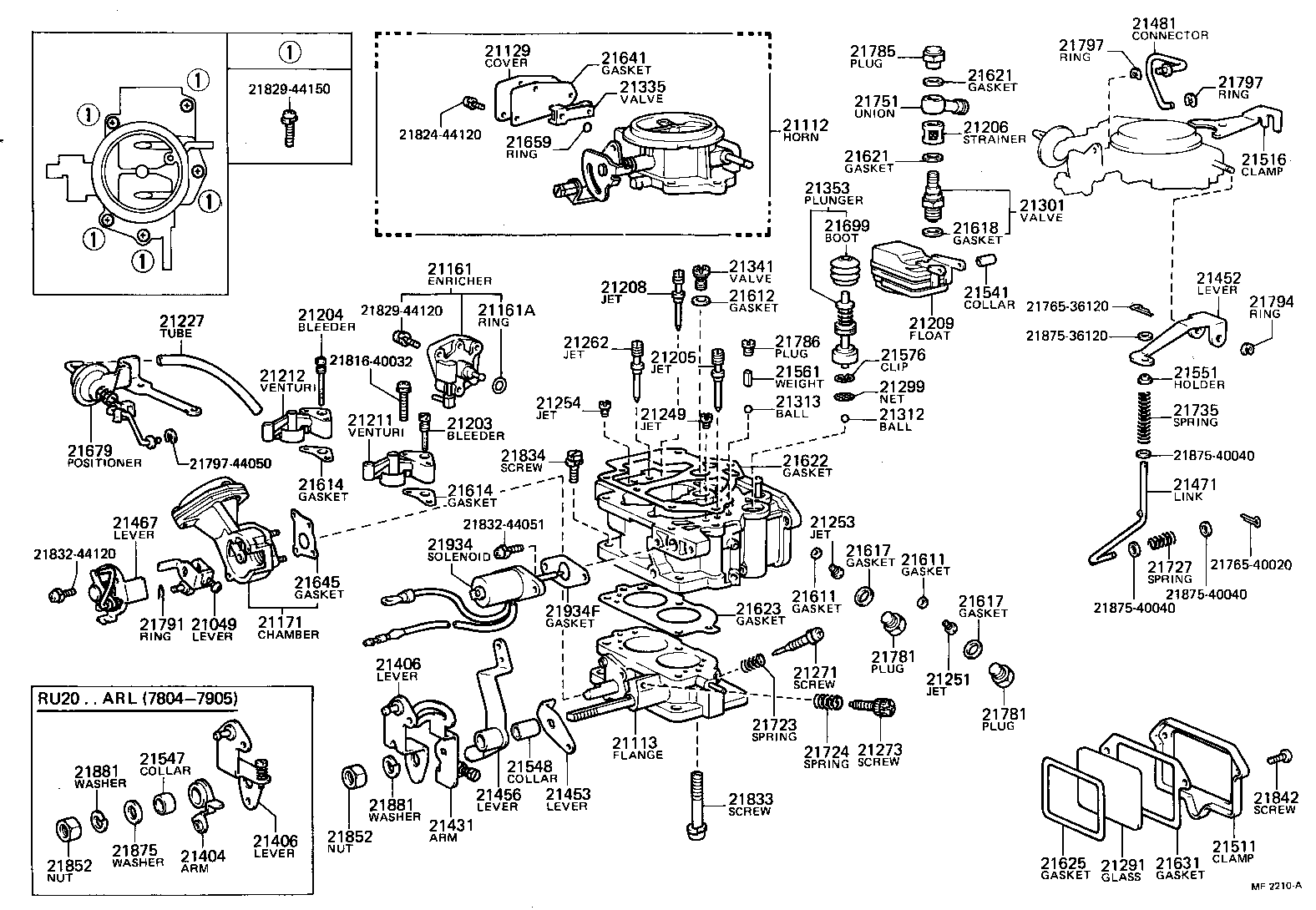

(7708-7904)5R ; (7904-7905)5R..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21049 - LEVER SUB-ASSY, 2ND THROTTLE | ||||
| 21421-44120 |
5R..RU2#,30 |
1 | ||
| 21112 - HORN, AIR | ||||
| 21012-44300 |
5R..RU2#,30 |
1 | ||
| 21012-44122 |
5R..RU2#,30 |
1 | ||
| 21113 - FLANGE, CARBURETOR | ||||
| 21013-44250 |
5R..RU2#,30 |
1 | ||
| 21013-44250 |
5R..RU25,30 |
1 | ||
| 21129 - COVER(FOR THERMOSTATIC VALVE) | ||||
| 21398-44120 |
5R..RU2#,30 |
1 | ||
| 21161 - ENRICHER, COASTING | ||||
| 21161-44120 |
5R..RU2#,30 |
1 | ||
| 21161A - RING, O(FOR COASTING ENRICHER) | ||||
| 21655-44120 |
5R..RU2#,30 |
1 | ||
| 21171 - CHAMBER, DIAPHRAGM | ||||
| 21171-44120 |
5R..RU2#,30 |
1 | ||
| 21203 - BLEEDER SUB-ASSY, 1ST MAIN AIR | ||||
| 21203-44120 |
5R..RU2#,30 |
1 | ||
| 21204 - BLEEDER SUB-ASSY, 2ND MAIN AIR | ||||
| 21203-44051 |
5R..RU2#,30 |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-44250 |
5R..RU2#,30 ID=0.48 |
1 | ||
| 21206 - STRAINER SUB-ASSY | ||||
| 21206-44052 |
5R..RU2#,30 |
1 | ||
| 21208 - JET SUB-ASSY, STEP | ||||
| 21208-44120 |
5R..RU2#,30 ID=0.60 |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-44120 |
5R..RU2#,30 |
1 | ||
| 21211 - VENTURI, 1ST SMALL | ||||
| 21201-44120 |
5R..RU2#,30 |
1 | ||
| 21212 - VENTURI, 2ND SMALL | ||||
| 21202-44122 |
5R..RU2#,30 |
1 | ||
| 21227 - TUBE, AIR VENT | ||||
| 21681-44171 |
5R..RU2#,30 |
1 | ||
| 21249 - JET, AIR BLEED, NO.2 | ||||
| 21249-34400 |
5R..RU2#,30 ID=1.60 |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 21251-44250 |
5R..RU2#,30 ID=1.03 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 21253-34400 |
5R..RU2#,30 ID=1.55 |
1 | ||
| 21254 - JET, STEP AIR BLEED | ||||
| 21204-44122 |
5R..RU2#,30 ID=1.00 |
1 | ||
| 21262 - JET, MAIN AIR BLEED | ||||
| 21262-44250 |
5R..RU2#,30 ID=0.42 |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-44220 |
5R..RU2#,30..ARL,GEN |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-44120 |
5R..RU2#,30 |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-40020 |
5R..RU2#,30 |
1 | ||
| 21299 - NET, PUMP FILTER | ||||
| 21299-40020 |
5R..RU2#,30 |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-44250 |
5R..RU2#,30 |
1 | ||
| 21312 - BALL, STEEL | ||||
| 21312-40020 |
5R..RU2#,30 |
1 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21312-40020 |
5R..RU2#,30 |
1 | ||
| 21335 - VALVE, THERMOSTATIC | ||||
| 21038-44122 |
5R..RU2#,30 |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21302-36120 |
5R..RU2#,30 |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21035-44052 |
5R..RU2#,30 |
1 | ||
| 21406 - LEVER SUB-ASSY, 1ST THROTTLE | ||||
| 21406-44120 |
5R..RU25,30 |
1 | ||
| 21406-44120 |
5R..RU2#,30 |
1 | ||
| 21406 - LEVER SUB-ASSY, 1ST THROTTLE | ||||
| 21406-44120 |
5R..RU25,30 |
1 | ||
| 21406-44120 |
5R..RU2#,30 |
1 | ||
| 21431 - ARM, 1ST THROTTLE SHAFT | ||||
| 21044-44120 |
5R..RU25,30 |
1 | ||
| 21044-44120 |
5R..RU2#,30 |
1 | ||
| 21452 - LEVER, PUMP | ||||
| 21407-44250 |
5R..RU2#,30 |
1 | ||
| 21453 - LEVER, 1ST THROTTLE | ||||
| 21431-44120 |
5R..RU2#,30 |
1 | ||
| 21456 - LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1 | ||||
| 21048-44120 |
5R..RU2#,30 |
1 | ||
| 21467 - LEVER, 2ND THROTTLE RETURN | ||||
| 21467-44120 |
5R..RU2#,30 |
1 | ||
| 21471 - LINK, PUMP CONNECTING | ||||
| 21471-44250 |
5R..RU2#,30 |
1 | ||
| 21481 - CONNECTOR, 1ST IDLE | ||||
| 21475-44120 |
5R..RU2#,30 |
1 | ||
| 21511 - CLAMP, LEVEL GAGE | ||||
| 21511-40020 |
5R..RU2#,30 |
1 | ||
| 21516 - CLAMP, CONNECTOR | ||||
| 21516-44170 |
5R..RU2#,30 |
1 | ||
| 21541 - COLLAR, FLOAT PIN | ||||
| 21541-40020 |
5R..RU2#,30 |
1 | ||
| 21548 - COLLAR, THROTTLE LEVER | ||||
| 21541-44120 |
5R..RU2#,30 |
1 | ||
| 21551 - HOLDER, BACK SPRING | ||||
| 21551-36120 |
5R..RU2#,30 |
1 | ||
| 21561 - WEIGHT, PUMP DISCHARGE | ||||
| 21561-40020 |
5R..RU2#,30 |
1 | ||
| 21576 - CLIP, PUMP STRAINER | ||||
| 21576-40020 |
5R..RU2#,30 |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-40021 |
5R..RU2#,30 |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-40021 |
5R..RU2#,30 |
2 | ||
| 21612 - GASKET, POWER VALVE | ||||
| 21612-31100 |
5R..RU2#,30 |
1 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-44120 |
5R..RU2#,30 |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-44120 |
5R..RU2#,30 |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21633-44150 |
5R..RU2#,30 |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21633-44150 |
5R..RU2#,30 |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-40020 |
5R..RU2#,30 |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21621-31100 |
5R..RU2#,30 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21621-31100 |
5R..RU2#,30 |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-44120 |
5R..RU2#,30 |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-44120 |
5R..RU2#,30 |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21625-31031 |
5R..RU2#,30 |
1 | ||
| 21631 - GASKET, MAIN GUIDE | ||||
| 21631-40020 |
5R..RU2#,30 |
1 | ||
| 21641 - GASKET(FOR THERMOSTATIC VALVE COVER) | ||||
| 21626-44120 |
5R..RU2#,30 |
1 | ||
| 21645 - GASKET, DIAPHRAGM, CAP | ||||
| 21638-44120 |
5R..RU2#,30 |
1 | ||
| 21659 - RING, O(FOR THERMOSTATIC VALVE) | ||||
| 21655-31100 |
5R..RU2#,30 |
1 | ||
| 21679 - POSITIONER | ||||
| 21039-44122 |
5R..RU2#,30 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-30030 |
5R..RU2#,30 |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21722-44120 |
5R..RU2#,30 |
1 | ||
| 21727 - SPRING, PUMP CONNECTING LINK SUPPORT | ||||
| 21723-44120 |
5R..RU2#,30 |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21722-44050 |
5R..RU2#,30 |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-44051 |
5R..RU2#,30 |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21776-44310 |
5R..RU2#,30 |
2 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21776-44310 |
5R..RU2#,30 |
2 | ||
| 21785 - PLUG, CARBURETOR FUEL INLET STRAINER | ||||
| 21811-44051 |
5R..RU2#,30 |
1 | ||
| 21786 - PLUG, PUMP PASSAGE | ||||
| 21787-40021 |
5R..RU2#,30 |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-40020 |
5R..RU2#,30 |
1 | ||
| 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) | ||||
| 21799-40020 |
5R..RU2#,30 |
1 | ||
| 21797 - RING, SNAP, NO.4(FOR CARBURETOR LINK) | ||||
| 21797-44050 |
5R..RU2#,30 |
2 | ||
| 21797 - RING, SNAP, NO.4(FOR CARBURETOR LINK) | ||||
| 21797-44050 |
5R..RU2#,30 |
2 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21804-44170 |
5R..RU2#,30 |
1 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-31100 |
5R..RU2#,30 |
2 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21832-40021 |
5R..RU2#,30 |
3 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-44050 |
5R..RU2#,30 |
1 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-44050 |
5R..RU2#,30 |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-31030 |
5R..RU2#,30 |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-31030 |
5R..RU2#,30 |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21391-44120 |
5R..RU2#,30 |
1 | ||
| 21934F - GASKET | ||||
| 21637-44120 |
5R..RU2#,30 |
1 | ||
| Common parts | ||||
| 21765-36120 | ||||
| 21765-40020 | ||||
| 21797-44050 | ||||
| 21816-40032 | ||||
| 21824-44120 | ||||
| 21829-44120 | ||||
| 21829-44150 | ||||
| 21832-44051 | ||||
| 21832-44120 | ||||
| 21875-36120 | ||||
| 21875-40040 | ||||

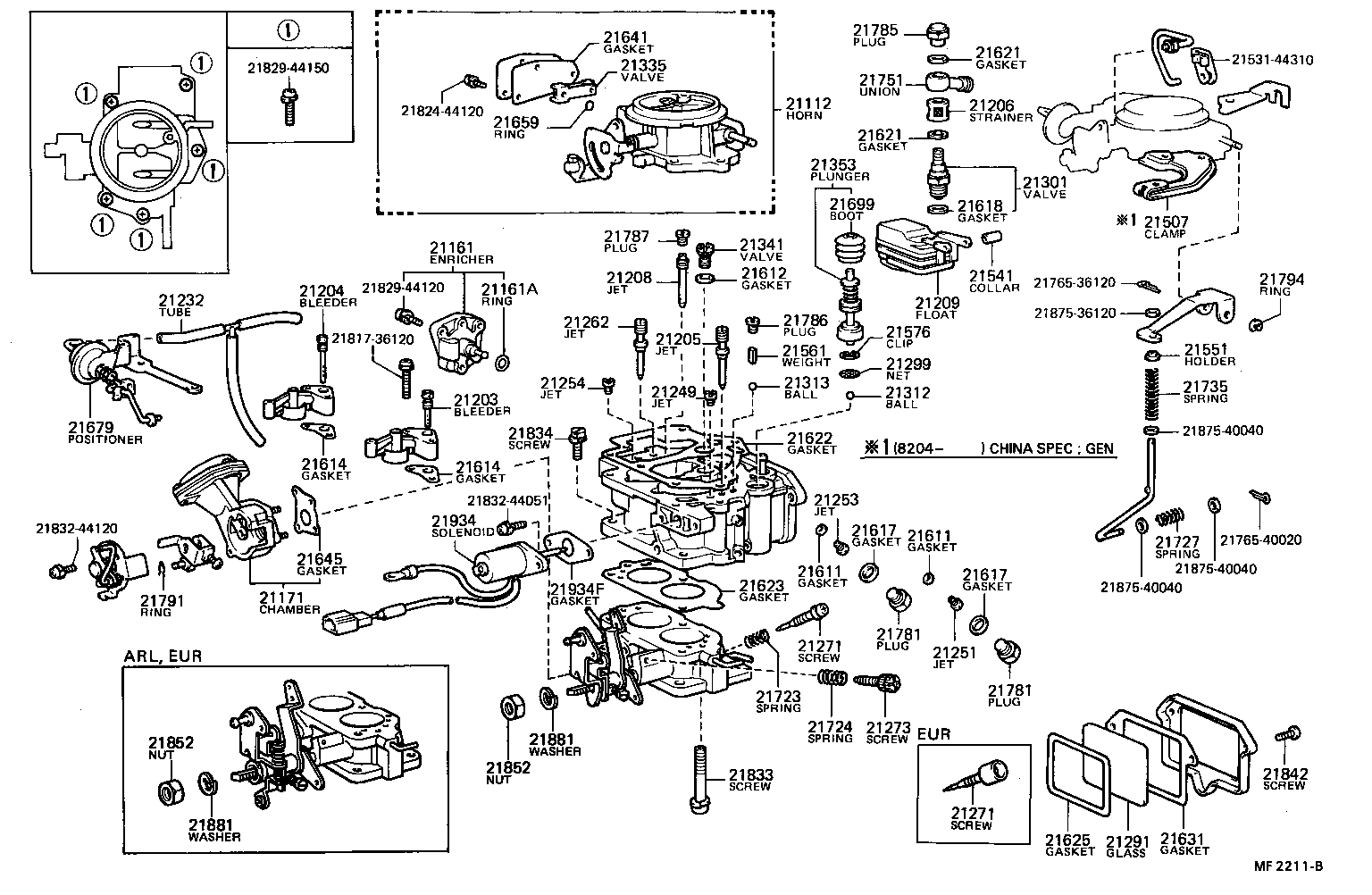

(7904-7905)5R..EUR,GEN ; (7905-8408)5R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21112 - HORN, AIR | ||||
| 21012-44300 |
5R..RU2#,30 |
1 | ||
| 21012-44122 |
5R..RU2#,30 |
1 | ||
| 21161 - ENRICHER, COASTING | ||||
| 21161-44120 |
5R..RU2#,30 |
1 | ||
| 21161A - RING, O(FOR COASTING ENRICHER) | ||||
| 21655-44120 |
5R..RU2#,30 |
1 | ||
| 21171 - CHAMBER, DIAPHRAGM | ||||
| 21171-44120 |
5R..RU2#,30 |
1 | ||
| 21203 - BLEEDER SUB-ASSY, 1ST MAIN AIR | ||||
| 21203-44120 |
5R..RU2#,30 |
1 | ||
| 21204 - BLEEDER SUB-ASSY, 2ND MAIN AIR | ||||
| 21203-44051 |
5R..RU2#,30 |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-44250 |
5R..RU2#,30 ID=0.48 |
1 | ||
| 21206 - STRAINER SUB-ASSY | ||||
| 21206-44052 |
5R..RU2#,30 |
1 | ||
| 21208 - JET SUB-ASSY, STEP | ||||
| 21208-44120 |
5R..RU2#,30 ID=0.60 |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-44120 |
5R..RU2#,30 |
1 | ||
| 21249 - JET, AIR BLEED, NO.2 | ||||
| 21249-34400 |
5R..RU2#,30 ID=1.60 |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 21251-44250 |
5R..RU2#,30 ID=1.03 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 21253-34400 |
5R..RU2#,30 ID=1.55 |
1 | ||
| 21254 - JET, STEP AIR BLEED | ||||
| 21204-44122 |
5R..RU2#,30 ID=1.00 |
1 | ||
| 21262 - JET, MAIN AIR BLEED | ||||
| 21262-44250 |
5R..RU2#,30 ID=0.42 |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-44220 |
5R..RU2#,30..ARL,GEN |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-44220 |
5R..RU2#,30..ARL,GEN |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-44120 |
5R..RU2#,30 |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-40020 |
5R..RU2#,30 |
1 | ||
| 21299 - NET, PUMP FILTER | ||||
| 21299-40020 |
5R..RU2#,30 |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-44250 |
5R..RU2#,30 |
1 | ||
| 21312 - BALL, STEEL | ||||
| 21312-40020 |
5R..RU2#,30 |
1 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21312-40020 |
5R..RU2#,30 |
1 | ||
| 21335 - VALVE, THERMOSTATIC | ||||
| 21038-44122 |
5R..RU2#,30 |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21302-36120 |
5R..RU2#,30 |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21035-44052 |
5R..RU2#,30 |
1 | ||
| 21541 - COLLAR, FLOAT PIN | ||||
| 21541-40020 |
5R..RU2#,30 |
1 | ||
| 21551 - HOLDER, BACK SPRING | ||||
| 21551-36120 |
5R..RU2#,30 |
1 | ||
| 21561 - WEIGHT, PUMP DISCHARGE | ||||
| 21561-40020 |
5R..RU2#,30 |
1 | ||
| 21576 - CLIP, PUMP STRAINER | ||||
| 21576-40020 |
5R..RU2#,30 |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-40021 |
5R..RU2#,30 |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-40021 |
5R..RU2#,30 |
2 | ||
| 21612 - GASKET, POWER VALVE | ||||
| 21612-31100 |
5R..RU2#,30 |
1 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-44120 |
5R..RU2#,30 |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-44120 |
5R..RU2#,30 |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21633-44150 |
5R..RU2#,30 |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21633-44150 |
5R..RU2#,30 |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-40020 |
5R..RU2#,30 |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21621-31100 |
5R..RU2#,30 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21621-31100 |
5R..RU2#,30 |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-44120 |
5R..RU2#,30 |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-44120 |
5R..RU2#,30 |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21625-31031 |
5R..RU2#,30 |
1 | ||
| 21631 - GASKET, MAIN GUIDE | ||||
| 21631-40020 |
5R..RU2#,30 |
1 | ||
| 21641 - GASKET(FOR THERMOSTATIC VALVE COVER) | ||||
| 21626-44120 |
5R..RU2#,30 |
1 | ||
| 21645 - GASKET, DIAPHRAGM, CAP | ||||
| 21638-44120 |
5R..RU2#,30 |
1 | ||
| 21659 - RING, O(FOR THERMOSTATIC VALVE) | ||||
| 21655-31100 |
5R..RU2#,30 |
1 | ||
| 21679 - POSITIONER | ||||
| 21039-44122 |
5R..RU2#,30 |
1 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21656-40021 |
5R..RU2#,30 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-30030 |
5R..RU2#,30 |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21722-44120 |
5R..RU2#,30 |
1 | ||
| 21727 - SPRING, PUMP CONNECTING LINK SUPPORT | ||||
| 21723-44120 |
5R..RU2#,30 |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21722-44050 |
5R..RU2#,30 |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-44051 |
5R..RU2#,30 |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21776-44310 |
5R..RU2#,30 |
2 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21776-44310 |
5R..RU2#,30 |
2 | ||
| 21785 - PLUG, CARBURETOR FUEL INLET STRAINER | ||||
| 21811-44051 |
5R..RU2#,30 |
1 | ||
| 21786 - PLUG, PUMP PASSAGE | ||||
| 21787-40021 |
5R..RU2#,30 |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-40020 |
5R..RU2#,30 |
1 | ||
| 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) | ||||
| 21799-40020 |
5R..RU2#,30 |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21804-44170 |
5R..RU2#,30 |
1 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-31100 |
5R..RU2#,30 |
2 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21832-40021 |
5R..RU2#,30 |
3 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-44050 |
5R..RU2#,30 |
1 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-44050 |
5R..RU2#,30 |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-31030 |
5R..RU2#,30 |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-31030 |
5R..RU2#,30 |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21391-44120 |
5R..RU2#,30 |
1 | ||
| 21934F - GASKET | ||||
| 21637-44120 |
5R..RU2#,30 |
1 | ||
| Common parts | ||||
| 21531-44310 | ||||
| 21765-36120 | ||||
| 21765-40020 | ||||
| 21817-36120 | ||||
| 21824-44120 | ||||
| 21829-44120 | ||||
| 21829-44150 | ||||
| 21832-44051 | ||||
| 21832-44120 | ||||
| 21875-36120 | ||||
| 21875-40040 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
