RU25LD-MRTU (1978)

Toyota Dyna

Production Mar 1978 - Aug 1984
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408)RU25

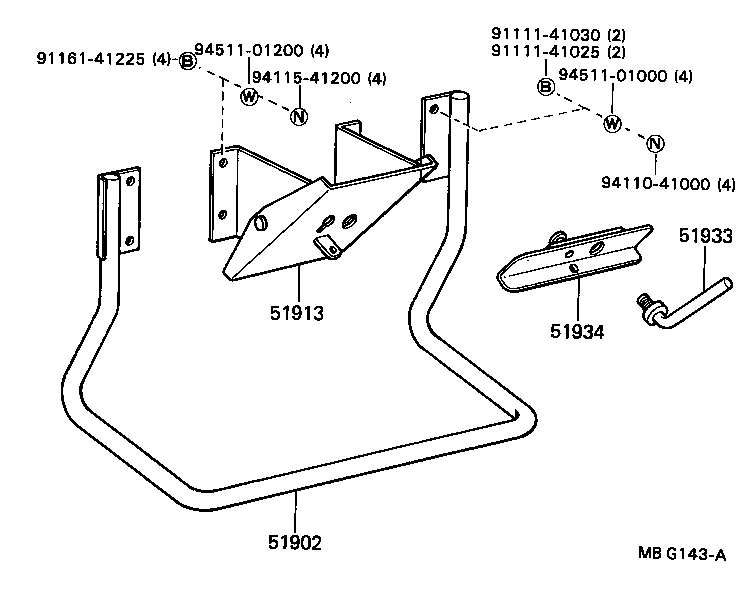

Click highlighted areas on diagram

diagram 51902 51913 51933 51934 9111141025 9111141030 9116141225 9411041000 9411541200 9451101000 9451101200
Part # Description Qty Price
51902 - CARRIER SUB-ASSY, SPARE WHEEL
51932-93100

RU25

SAUDI ARABIA SPEC

 1
51913 - PLATE, SPARE WHEEL CLAMP
51936-93100

RU25

SAUDI ARABIA SPEC

 1
51933 - BOLT, SPARE WHEEL CARRIER EYE
51933-93102

BU25,RU25

 1
51935-93102

RU25

SAUDI ARABIA SPEC

 1
51934 - SEAT, EYE BOLT CLAMP
51934-93102

RU25

SAUDI ARABIA SPEC

 1
51934-93110

BU25,RU25

 1
Common parts
91111-41025
91111-41030
91161-41225
94110-41000
94115-41200
94511-01000
94511-01200
