RU25LD-MRTU (1978)
Toyota Dyna
Production
Mar 1978
-
Aug 1984
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7803-8408)BU25,RU25

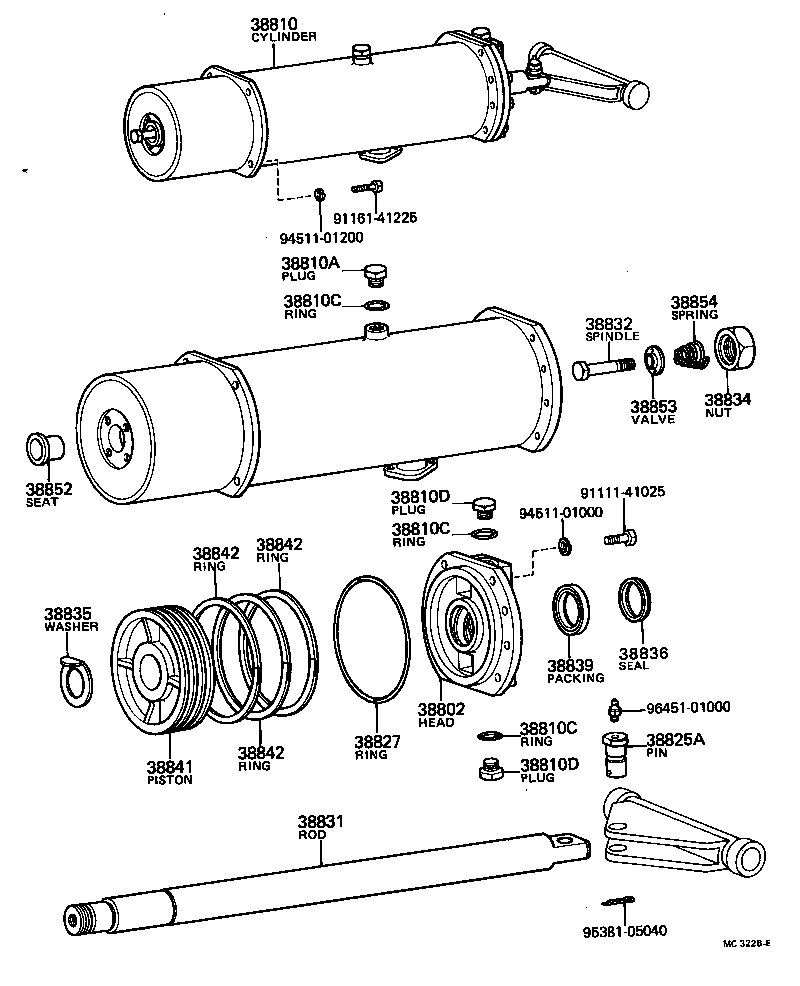

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38802 - HEAD SUB-ASSY, CYLINDER | ||||
| 38821-93102 |
BU25,RU25 |
1 | ||
| 38810 - CYLINDER ASSY, HOIST | ||||
| 38810-93102 |
BU25,RU25 |
1 | ||
| 38810-93101 |
BU25,RU25 |
1 | ||
| 38810A - PLUG, NO.1 (FOR HOIST CYLINDER) | ||||
| 90341-14002 |
BU25,RU25 |
1 | ||
| 38810C - RING, O (FOR HOIST CYLINDER) | ||||
| 96710-02016 |
BU25,RU25 ID=15.8 |
1 | ||
| 96710-02022 |
BU25,RU25 ID=22.1 |
2 | ||
| 38810C - RING, O (FOR HOIST CYLINDER) | ||||
| 96710-02016 |
BU25,RU25 ID=15.8 |
1 | ||
| 96710-02022 |
BU25,RU25 ID=22.1 |
2 | ||
| 38810C - RING, O (FOR HOIST CYLINDER) | ||||
| 96710-02016 |
BU25,RU25 ID=15.8 |
1 | ||
| 96710-02022 |
BU25,RU25 ID=22.1 |
2 | ||
| 38810D - PLUG, NO.2 (FOR HOIST CYLINDER) | ||||
| 90341-20001 |
BU25,RU25 |
2 | ||
| 38810D - PLUG, NO.2 (FOR HOIST CYLINDER) | ||||
| 90341-20001 |
BU25,RU25 |
2 | ||
| 38825A - PIN, CROSSHEAD | ||||
| 38895-93102 |
BU25,RU25 |
1 | ||
| 38895-93103 |
BU25,RU25 |
1 | ||
| 38827 - RING, O (FOR HOIST CYLINDER) | ||||
| 90301-99001 |
BU25,RU25 |
1 | ||
| 38831 - ROD, HOIST CYLINDER PISTON | ||||
| 38831-93101 |
BU25,RU25 |
1 | ||
| 38832 - SPINDLE, FLOW CONTROL VALVE | ||||
| 38852-93101 |
BU25,RU25 |
1 | ||
| 38834 - NUT, DISMOUNTING | ||||
| 90179-33001 |
BU25,RU25 |
1 | ||
| 38835 - WASHER, LOCK (FOR HOIST PISTON SET NUT) | ||||
| 90209-01001 |
BU25,RU25 |
1 | ||
| 38836 - SEAL, HOIST CYLINDER DUST | ||||
| 90304-45004 |
BU25,RU25 |
1 | ||
| 38839 - PACKING, U, HOIST CYLINDER | ||||
| 90304-45003 |
BU25,RU25 |
1 | ||
| 38841 - PISTON, HOIST CYLINDER | ||||
| 38841-93101 |
BU25,RU25 |
1 | ||
| 38842 - RING, HOIST CYLINDER PISTON | ||||
| 38842-93101 |
BU25,RU25 |
3 | ||
| 38842 - RING, HOIST CYLINDER PISTON | ||||
| 38842-93101 |
BU25,RU25 |
3 | ||
| 38842 - RING, HOIST CYLINDER PISTON | ||||
| 38842-93101 |
BU25,RU25 |
3 | ||
| 38852 - SEAT, BUFFER VALVE | ||||
| 38854-93101 |
BU25,RU25 |
1 | ||
| 38853 - VALVE, BUFFER | ||||
| 38851-93101 |
BU25,RU25 |
1 | ||
| 38854 - SPRING, BUFFER VALVE | ||||
| 90502-10001 |
BU25,RU25 |
1 | ||
| Common parts | ||||
| 91111-41025 | ||||
| 91161-41225 | ||||
| 94511-01000 | ||||
| 94511-01200 | ||||
| 95381-05040 | ||||
| 96451-01000 | ||||
