RU20RV-QR (1977)
Toyota Dyna
Production
Aug 1977
-
Aug 1984
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708-8104)H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-44030 |
5R..RU2#,30 |
1 | ||
| 15100-44030 |
5R..RU2#,30 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-44011 |
5R..RU2#,30 |
1 | ||
| 15104-44011 |
5R..RU2#,30 |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15012-44030 |
5R..RU2#,30 |
1 | ||
| 15012-44030 |
5R..RU2#,30 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-24010 |
5R..RU2#,30 |
1 | ||
| 15131-24010 |
5R..RU2#,30 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-40010 |
5R..RU2#,30 |
1 | ||
| 15132-40010 |
5R..RU2#,30 |
1 | ||
| Common parts | ||||
| 91111-70616 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 94512-00600 | ||||
(7708-8408)5R

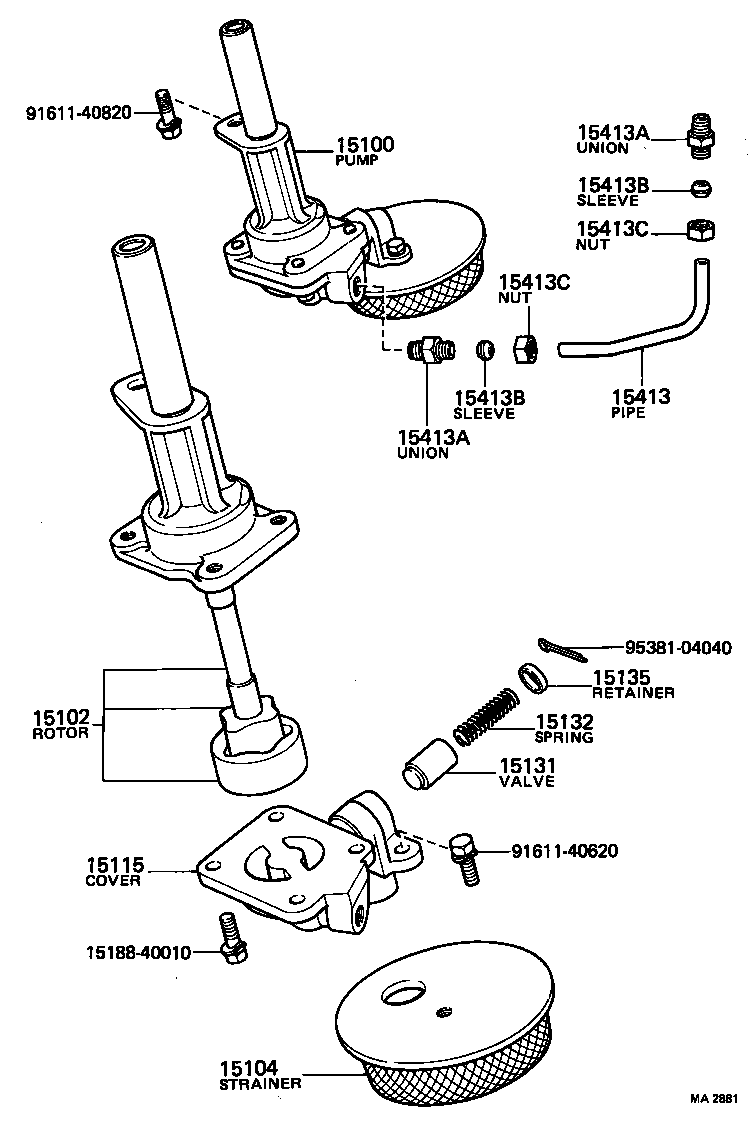

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-44030 |
5R..RU2#,30 |
1 | ||
| 15102 - ROTOR SET, OIL PUMP | ||||
| 15102-44030 |
5R..RU2#,30 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-44011 |
5R..RU2#,30 |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15012-44030 |
5R..RU2#,30 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-24010 |
5R..RU2#,30 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-40010 |
5R..RU2#,30 |
1 | ||
| 15135 - RETAINER, OIL PUMP RELIEF VALVE | ||||
| 15135-77010 |
5R..RU2#,30 |
1 | ||
| 15413 - PIPE, OIL PUMP OUTLET | ||||
| 15413-40010 |
5R..RU2#,30 |
1 | ||
| 15413A - UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90404-16008 |
5R..RU2#,30 |
2 | ||
| 15413A - UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90404-16008 |
5R..RU2#,30 |
2 | ||
| 15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE) | ||||
| 90410-11005 |
5R..RU2#,30 |
2 | ||
| 15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE) | ||||
| 90410-11005 |
5R..RU2#,30 |
2 | ||
| 15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90402-16042 |
5R..RU2#,30 |
2 | ||
| 15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90402-16042 |
5R..RU2#,30 |
2 | ||
| Common parts | ||||
| 15188-40010 | ||||
| 91611-40620 | ||||
| 91611-40820 | ||||
| 95381-04040 | ||||
(7708-8008)B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-44011 |
5R..RU2#,30 |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15012-44030 |
5R..RU2#,30 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-24010 |
5R..RU2#,30 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-40010 |
5R..RU2#,30 |
1 | ||
| Common parts | ||||
| 90201-12009 | ||||
| 91611-60832 | ||||
| 91611-60835 | ||||
| 91651-60816 | ||||
| 93220-16012 | ||||
(8008- )B,2B,3B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-44011 |
5R..RU2#,30 |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15012-44030 |
5R..RU2#,30 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-24010 |
5R..RU2#,30 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-40010 |
5R..RU2#,30 |
1 | ||
| Common parts | ||||
| 90179-08123 | ||||
| 91661-60816 | ||||
| 92122-60832 | ||||
| 93220-16012 | ||||
