RU20R-QRBTQ (1977)

Toyota Dyna

Production Aug 1977 - Apr 1981
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8408)RU20..T3 ; (7708-8408)BU20,HU30,JU20,RU30..T3,TW1..TS

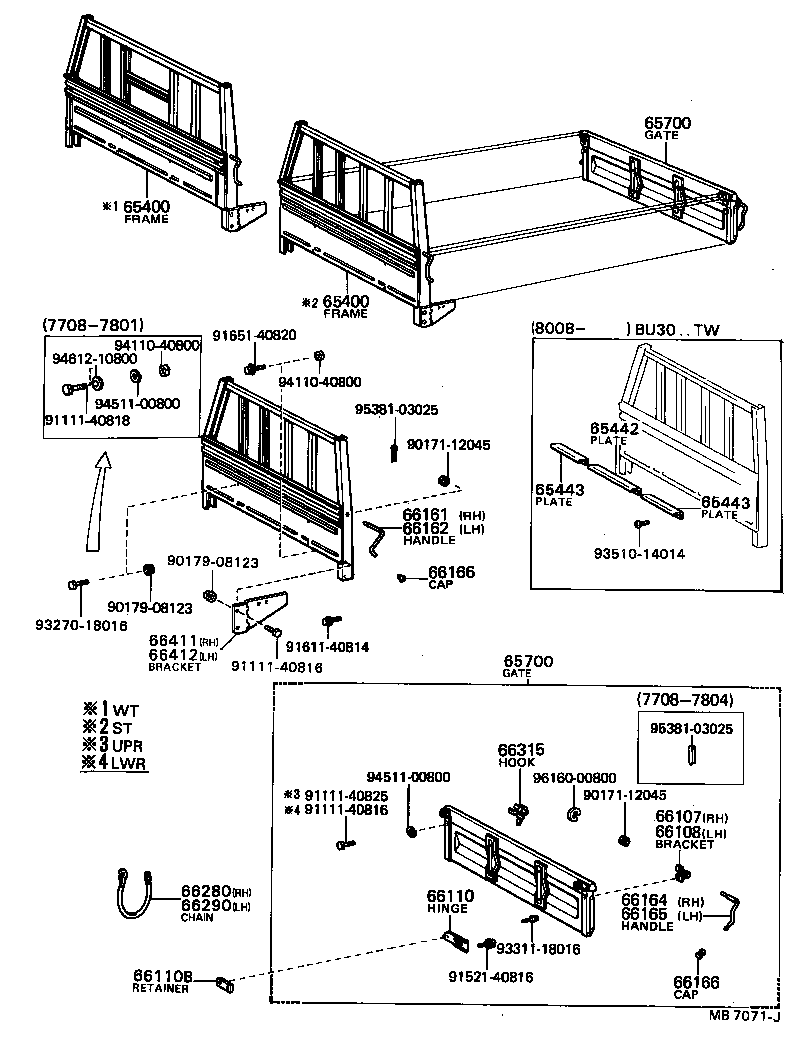

Click highlighted areas on diagram

diagram 65400 65400 65442 65443 65443 65700 66107 66108 66110 66110B 66161 66162 66164 66165 66166 66166 66280 66290 66315 66411 66412 9017112045 9017112045 9017908123 9017908123 9111140816 9111140816 9111140818 9111140825 9152140816 9165140820 9327018016 9331118016 9351014014 9411040800 9411040800 9451100800 9451100800 9461210800 9538103025 9538103025 9616000800
Part # Description Qty Price
65400 - FRAME ASSY, REAR BODY GUARD
65401-95404

BU20,HU30,RU20,30..TS..WT

 1
65400 - FRAME ASSY, REAR BODY GUARD
65401-95404

BU20,HU30,RU20,30..TS..WT

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-95414

BU20,HU30,RU20,30..TS..WT

 1
66107 - BRACKET SUB-ASSY, TAIL GATE, RH
66107-95111

BU20,JU20,RU20..T3

 1
66108 - BRACKET SUB-ASSY, TAIL GATE, LH
66107-95111

BU20,RU20..T3

 1
66108-95110

BU20,JU20,RU20..T3

 1
66110 - HINGE ASSY, TAIL GATE
66110-95407

BU20,JU20,RU20..T3

 4
66110B - RETAINER, TAIL GATE HINGE, LOWER
66115-95012

BU20,JU20,RU20..T3

 4
66161 - HANDLE, SIDE GATE LATCH, RH
66161-95404

BU20,JU20,RU20..T3

 1
66162 - HANDLE, SIDE GATE LATCH, LH
66162-95403

BU20,JU20,RU20..T3

 1
66164 - HANDLE, TAIL GATE LATCH, RH
66163-95111

BU20,JU20,RU20..T3

 1
66165 - HANDLE, TAIL GATE LATCH, LH
66164-95111

BU20,JU20,RU20..T3

 1
66166 - CAP, GATE LATCH HANDLE
66165-95010

BU20,JU20,RU20..T3

 4
66166 - CAP, GATE LATCH HANDLE
66165-95010

BU20,JU20,RU20..T3

 4
66280 - CHAIN ASSY, TAIL GATE, RH
66280-95011

BU20,HU30,JU20,RU20,30..TS

 1
66290 - CHAIN ASSY, TAIL GATE, LH
66280-95011

BU20,HU30,JU20,RU20,30..TS

 1
66315 - HOOK, ROPE
66311-95400

BU20,JU20,RU20..T3

 4
66411 - BRACKET, GUARD FRAME, RH
66401-95401

BU20,HU30,JU20,RU20,30..(T3,TW1)..TS

 1
66412 - BRACKET, GUARD FRAME, LH
66402-95401

BU20,HU30,JU20,RU20,30..(T3,TW1)..TS

 1
Common parts
90171-12045
90179-08123
91111-40816
91111-40818
91111-40825
91521-40816
91651-40820
93270-18016
93311-18016
93510-14014
94110-40800
94511-00800
94612-10800
95381-03025
96160-00800
