RU20R-QRB (1977)

Toyota Dyna

Production Aug 1977 - Aug 1980
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8104)H

Click highlighted areas on diagram

diagram 16100 16100C 16100L 16104 16120 16124 16131 16131A 16131A 16131B 16131C 16145 16171 16193 16271 16371 9161108108 9161160855 9411040800 9451100800
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-49415

5R..RU2#,30

 1
16100C - PLUG, W/HEAD TAPER SCREW
90345-54002

5R..RU2#,30..GEN

W/O HEATER

 1
16100L - ROTOR KIT, WATER PUMP
04162-44020

5R..RU2#,30

 1
16104 - SEAL SET, WATER PUMP
16104-41110

5R..RU2#,30

 1
16131 - ROTOR, WATER PUMP
16131-44070

5R..RU2#,30

 1
16131-56030

B,2B,3B..BU2#,3#

 1
16131A - BEARING, WATER PUMP
90369-30028

5R..RU2#,30

WPB16112-2RS

 1
90369-30063

5R..RU2#,30

WPB16105BRS

 1
90369-30028

B,2B,3B..BU2#,3#,40

WPB16112-2RS

 1
16131A - BEARING, WATER PUMP
90369-30028

5R..RU2#,30

WPB16112-2RS

 1
90369-30063

5R..RU2#,30

WPB16105BRS

 1
90369-30028

B,2B,3B..BU2#,3#,40

WPB16112-2RS

 1
16171 - SEAT, WATER PUMP PULLEY
16171-24031

5R..RU2#,30

 1
16171-56010

B,2B,3B..BU2#,3#

 1
16271 - GASKET, WATER PUMP
16271-44010

5R..RU2#,30

 1
16371 - PULLEY, FAN
16371-44010

5R..RU2#,30

 1
Common parts
91611-08108
91611-60855
94110-40800
94511-00800

(7708-8008)B

Click highlighted areas on diagram

diagram 16100 16100C 16100K 16104 16117 16119 16131 16131A 16141 16171 16271 16371 9011908272 9011908273 9322016014
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-49415

5R..RU2#,30

 1
16100C - PLUG, W/HEAD TAPER SCREW
90345-54002

5R..RU2#,30..GEN

W/O HEATER

 1
16104 - SEAL SET, WATER PUMP
16104-41110

5R..RU2#,30

 1
16117 - PLATE, WATER PUMP
16117-44010

5R..RU2#,30

 1
16119 - GASKET, WATER PUMP BODY
16119-44010

5R..RU2#,30

 1
16131 - ROTOR, WATER PUMP
16131-44070

5R..RU2#,30

 1
16131-56030

B,2B,3B..BU2#,3#

 1
16131A - BEARING, WATER PUMP
90369-30028

5R..RU2#,30

WPB16112-2RS

 1
90369-30063

5R..RU2#,30

WPB16105BRS

 1
90369-30028

B,2B,3B..BU2#,3#,40

WPB16112-2RS

 1
16171 - SEAT, WATER PUMP PULLEY
16171-24031

5R..RU2#,30

 1
16171-56010

B,2B,3B..BU2#,3#

 1
16271 - GASKET, WATER PUMP
16271-44010

5R..RU2#,30

 1
16371 - PULLEY, FAN
16371-44010

5R..RU2#,30

 1
Common parts
90119-08272
90119-08273
93220-16014

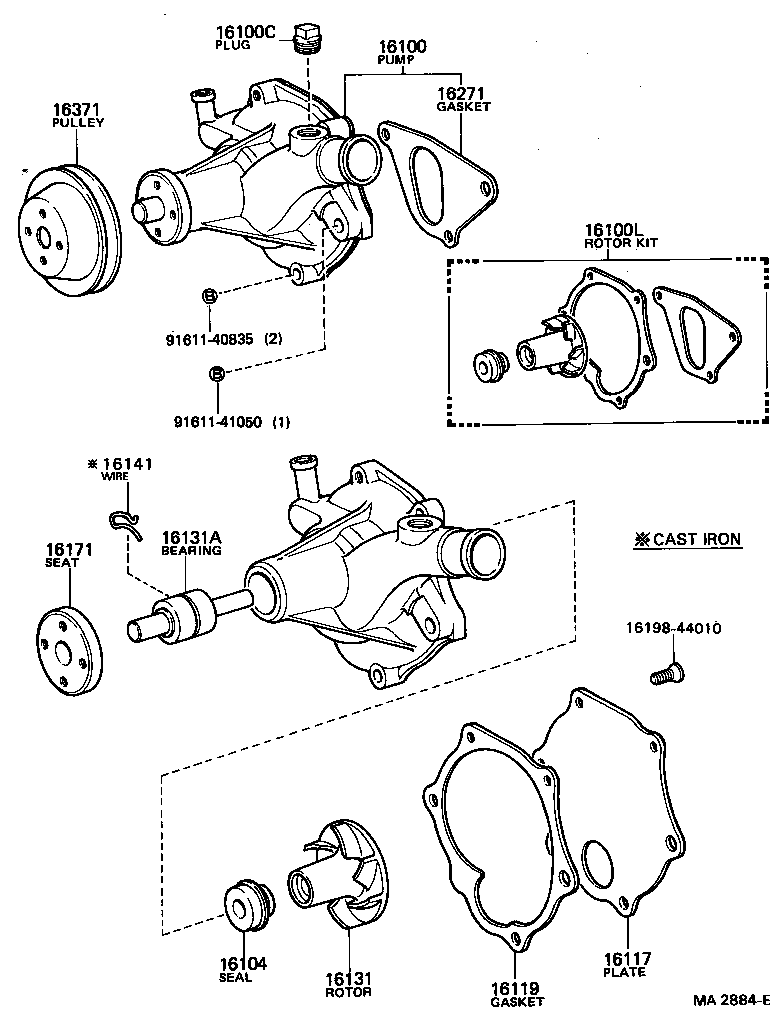

(7708-8208)5R ; (8208-8408)5R..ARL,GEN

Click highlighted areas on diagram

diagram 16100 16100C 16100L 16104 16117 16119 16131 16131A 16141 16171 1619844010 16271 16371 9161140835 9161141050
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-49415

5R..RU2#,30

 1
16100C - PLUG, W/HEAD TAPER SCREW
90345-54002

5R..RU2#,30..GEN

W/O HEATER

 1
16100L - ROTOR KIT, WATER PUMP
04162-44020

5R..RU2#,30

 1
16104 - SEAL SET, WATER PUMP
16104-41110

5R..RU2#,30

 1
16117 - PLATE, WATER PUMP
16117-44010

5R..RU2#,30

 1
16119 - GASKET, WATER PUMP BODY
16119-44010

5R..RU2#,30

 1
16131 - ROTOR, WATER PUMP
16131-44070

5R..RU2#,30

 1
16131-56030

B,2B,3B..BU2#,3#

 1
16131A - BEARING, WATER PUMP
90369-30028

5R..RU2#,30

WPB16112-2RS

 1
90369-30063

5R..RU2#,30

WPB16105BRS

 1
90369-30028

B,2B,3B..BU2#,3#,40

WPB16112-2RS

 1
16171 - SEAT, WATER PUMP PULLEY
16171-24031

5R..RU2#,30

 1
16171-56010

B,2B,3B..BU2#,3#

 1
16271 - GASKET, WATER PUMP
16271-44010

5R..RU2#,30

 1
16371 - PULLEY, FAN
16371-44010

5R..RU2#,30

 1
Common parts
16198-44010
91611-40835
91611-41050
