RU20LV-QR (1977)
Toyota Dyna
(7708-7904)5R..RU20..ST

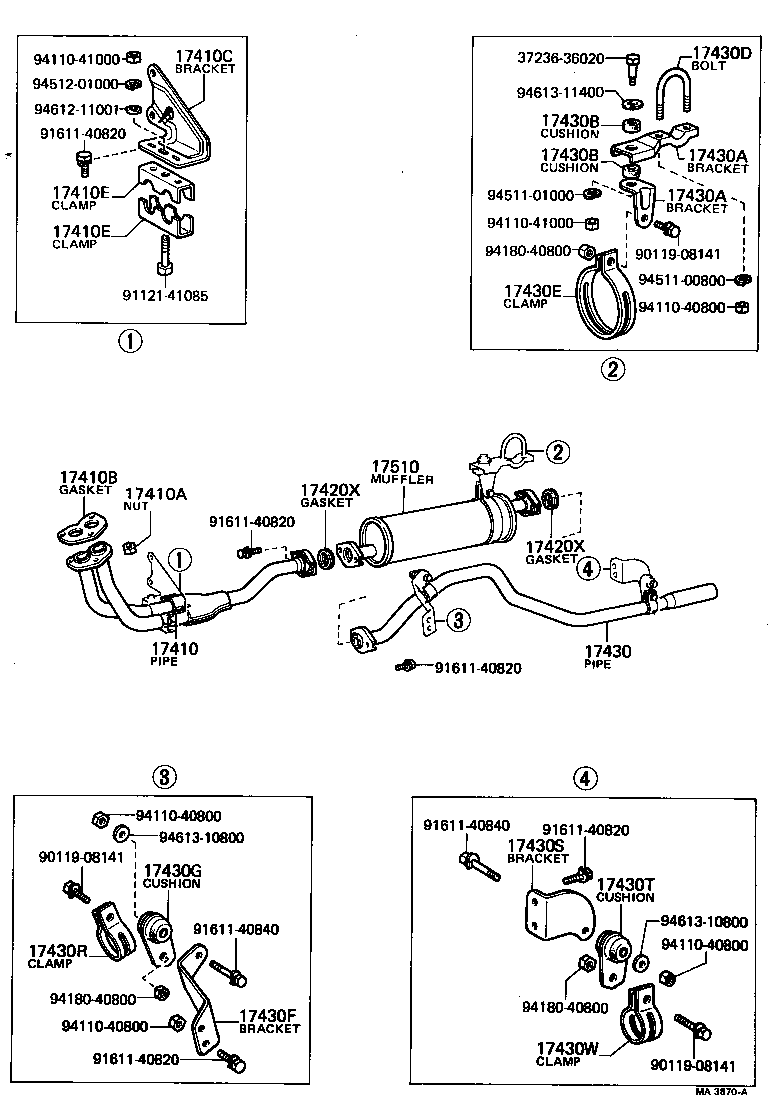

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-44240 |
5R..RU30;5R..RU20..ST |
1 | ||
| 17410-44160 |
5R..RU30;5R..RU20..ST |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10118 |
5R..RU2#,30 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-41010 |
5R..RU2#,30 |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-44050 |
5R..RU2#,30 |
1 | ||
| 17571-44090 |
5R..RU30;5R..RU20..ST |
1 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90917-04036 |
5R..RU30;5R..RU20..ST UPR |
1 | ||
| 90917-04035 |
5R..RU2#,30 LWR |
1 | ||
| 90917-04044 |
5R..RU30;5R..RU20..ST |
2 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90917-04036 |
5R..RU30;5R..RU20..ST UPR |
1 | ||
| 90917-04035 |
5R..RU2#,30 LWR |
1 | ||
| 90917-04044 |
5R..RU30;5R..RU20..ST |
2 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06004 |
B,5R..BU30,RU30;B,2J,5R..BU20,JU20,RU20..ST RR |
1 | ||
| 90917-06008 |
B,5R..BU30,RU30;B,2J,5R..BU20,JU20,RU20..ST FR |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06004 |
B,5R..BU30,RU30;B,2J,5R..BU20,JU20,RU20..ST RR |
1 | ||
| 90917-06008 |
B,5R..BU30,RU30;B,2J,5R..BU20,JU20,RU20..ST FR |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-44090 |
2J,5R..JU20,RU20..ST |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17572-56040 |
2J,5R..JU20,RU20..ST FRAME SIDE |
1 | ||
| 17576-56010 |
B,2J,5R..BU2#,30,JU20,RU2#,30 MUFFLER SIDE |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17572-56040 |
2J,5R..JU20,RU20..ST FRAME SIDE |
1 | ||
| 17576-56010 |
B,2J,5R..BU2#,30,JU20,RU2#,30 MUFFLER SIDE |
1 | ||
| 17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 90540-14001 |
B,2J,5R..BU2#,30,JU20,RU2#,30 |
2 | ||
| 17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 90540-14001 |
B,2J,5R..BU2#,30,JU20,RU2#,30 |
2 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 90117-08005 |
B,2J,5R..BU20,JU20,RU20..ST |
1 | ||
| 17430E - CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17578-56010 |
B,2J,5R..BU2#,30,JU20,RU2#,30 |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17573-44050 |
2J,5R..JU20,RU20..ST |
1 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90917-08004 |
B,2J,5R..BU2#,30,JU20,RU2#,30 |
1 | ||
| 17430R - CLAMP NO.2, EXHAUST TAIL PIPE (FOR CENTER) | ||||
| 90461-23087 |
B,2J,5R..BU2#,30,JU20,RU2#,30 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-44030 |
2J,5R..JU20,RU20..ST |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90917-08004 |
B,2J,5R..BU2#,30,JU20,RU2#,30 |
1 | ||
| 17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90461-23087 |
B,2J,5R..BU2#,30,JU20,RU2#,30 |
1 | ||
| 17510 - MUFFLER ASSY | ||||
| 17501-36011 |
5R..RU20..ST;B,2J,5R..BU30,JU20,RU30 |
1 | ||
| Common parts | ||||
| 37236-36020 | ||||
| 90119-08141 | ||||
| 91121-41085 | ||||
| 91611-40820 | ||||
| 91611-40840 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94180-40800 | ||||
| 94511-00800 | ||||
| 94511-01000 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||
| 94613-10800 | ||||
| 94613-11400 | ||||
(7708-7904)H..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-44240 |
5R..RU30;5R..RU20..ST |
1 | ||
| 17410-44160 |
5R..RU30;5R..RU20..ST |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-44240 |
5R..RU30;5R..RU20..ST |
1 | ||
| 17410-44160 |
5R..RU30;5R..RU20..ST |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-44240 |
5R..RU30;5R..RU20..ST |
1 | ||
| 17410-44160 |
5R..RU30;5R..RU20..ST |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-44240 |
5R..RU30;5R..RU20..ST |
1 | ||
| 17410-44160 |
5R..RU30;5R..RU20..ST |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10118 |
5R..RU2#,30 |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10118 |
5R..RU2#,30 |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10118 |
5R..RU2#,30 |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10118 |
5R..RU2#,30 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-41010 |
5R..RU2#,30 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-41010 |
5R..RU2#,30 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-41010 |
5R..RU2#,30 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-41010 |
5R..RU2#,30 |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-44050 |
5R..RU2#,30 |
1 | ||
| 17571-44090 |
5R..RU30;5R..RU20..ST |
1 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90917-04036 |
5R..RU30;5R..RU20..ST UPR |
1 | ||
| 90917-04035 |
5R..RU2#,30 LWR |
1 | ||
| 90917-04044 |
5R..RU30;5R..RU20..ST |
2 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06004 |
B,5R..BU30,RU30;B,2J,5R..BU20,JU20,RU20..ST RR |
1 | ||
| 90917-06008 |
B,5R..BU30,RU30;B,2J,5R..BU20,JU20,RU20..ST FR |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-44090 |
2J,5R..JU20,RU20..ST |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-44090 |
2J,5R..JU20,RU20..ST |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-44090 |
2J,5R..JU20,RU20..ST |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-44090 |
2J,5R..JU20,RU20..ST |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17572-56040 |
2J,5R..JU20,RU20..ST FRAME SIDE |
1 | ||
| 17576-56010 |
B,2J,5R..BU2#,30,JU20,RU2#,30 MUFFLER SIDE |
1 | ||
| 17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 90540-14001 |
B,2J,5R..BU2#,30,JU20,RU2#,30 |
2 | ||
| 17430E - CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17578-56010 |
B,2J,5R..BU2#,30,JU20,RU2#,30 |
1 | ||
| 17430E - CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17578-56010 |
B,2J,5R..BU2#,30,JU20,RU2#,30 |
1 | ||
| 17510 - MUFFLER ASSY | ||||
| 17501-36011 |
5R..RU20..ST;B,2J,5R..BU30,JU20,RU30 |
1 | ||
| 17510 - MUFFLER ASSY | ||||
| 17501-36011 |
5R..RU20..ST;B,2J,5R..BU30,JU20,RU30 |
1 | ||
| Common parts | ||||
| 90119-08141 | ||||
| 91611-40820 | ||||
| 91611-40840 | ||||
| 91611-41028 | ||||
| 91611-60850 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94180-40800 | ||||
| 94511-00800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
(7904-8104)H..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-44240 |
5R..RU30;5R..RU20..ST |
1 | ||
| 17410-44160 |
5R..RU30;5R..RU20..ST |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-44240 |
5R..RU30;5R..RU20..ST |
1 | ||
| 17410-44160 |
5R..RU30;5R..RU20..ST |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10118 |
5R..RU2#,30 |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10118 |
5R..RU2#,30 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-41010 |
5R..RU2#,30 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-41010 |
5R..RU2#,30 |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-44050 |
5R..RU2#,30 |
1 | ||
| 17571-44090 |
5R..RU30;5R..RU20..ST |
1 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90917-04036 |
5R..RU30;5R..RU20..ST UPR |
1 | ||
| 90917-04035 |
5R..RU2#,30 LWR |
1 | ||
| 90917-04044 |
5R..RU30;5R..RU20..ST |
2 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06004 |
B,5R..BU30,RU30;B,2J,5R..BU20,JU20,RU20..ST RR |
1 | ||
| 90917-06008 |
B,5R..BU30,RU30;B,2J,5R..BU20,JU20,RU20..ST FR |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06004 |
B,5R..BU30,RU30;B,2J,5R..BU20,JU20,RU20..ST RR |
1 | ||
| 90917-06008 |
B,5R..BU30,RU30;B,2J,5R..BU20,JU20,RU20..ST FR |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-44090 |
2J,5R..JU20,RU20..ST |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-44030 |
2J,5R..JU20,RU20..ST |
1 | ||
| Common parts | ||||
| 91611-40820 | ||||
| 91611-60850 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94180-40800 | ||||
