RU20LV-MR (1977)

Toyota Dyna

Production Aug 1977 - Aug 1984
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8408)V

Click highlighted areas on diagram

diagram 63102 63102 63104 63105 63105 63105 63105 63105 63132 63147 63171 63171 63172 63172 63172 63173 63174 63174 63175 66103 66103 66111 66111 9165140614 9165140614 9165640816 9331516014
Part # Description Qty Price
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63102-92605

BU20,RU20..SRF

 1
63102-95400

BU20,RU20..SRF;HU30,RU20,30..TW1

 1
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63102-92605

BU20,RU20..SRF

 1
63102-95400

BU20,RU20..SRF;HU30,RU20,30..TW1

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63301-92605

BU20,RU20..SRF

 1
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63322-92605

BU20,RU20..SRF

 2
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63322-92605

BU20,RU20..SRF

 2
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63322-92605

BU20,RU20..SRF

 2
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63322-92605

BU20,RU20..SRF

 2
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63322-92605

BU20,RU20..SRF

 2
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-95413

BU20,RU20..LHD..SRF;BU2#,30,31,32,HU30,JU20,RU2#,30..LHD..(DMP,TR)

W/O SUN VISOR=ASSISTANT

 1
63147 - BRACKET, ROOF PANEL REINFORCEMENT
63201-92605

BU20,RU20..SRF

 3
63171 - PANEL, ROOF, FRONT
63111-95407

BU20,RU20..V..SRF

 1
63111-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC

 1
63171 - PANEL, ROOF, FRONT
63111-95407

BU20,RU20..V..SRF

 1
63111-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC

 1
63172 - PANEL, ROOF, CENTER
63113-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC,RR

 1
63113-92605

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC,FR

 1
63113-92605

BU20,RU20..V..SRF

 2
63172 - PANEL, ROOF, CENTER
63113-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC,RR

 1
63113-92605

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC,FR

 1
63113-92605

BU20,RU20..V..SRF

 2
63172 - PANEL, ROOF, CENTER
63113-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC,RR

 1
63113-92605

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC,FR

 1
63113-92605

BU20,RU20..V..SRF

 2
63174 - PANEL, ROOF, REAR
63115-92605

BU20,RU20..SRF

 1
63174 - PANEL, ROOF, REAR
63115-92605

BU20,RU20..SRF

 1
66103 - RAIL SUB-ASSY, ROOF BACK, INNER
66103-92605

BU20,RU20..BUS;BU20,JU20,RU20..VSG

 1
66103 - RAIL SUB-ASSY, ROOF BACK, INNER
66103-92605

BU20,RU20..BUS;BU20,JU20,RU20..VSG

 1
66111 - RAIL, ROOF BACK, OUTER
63106-92605

BU20,RU20..BUS;BU20,JU20,RU20..VSG

 1
66111 - RAIL, ROOF BACK, OUTER
63106-92605

BU20,RU20..BUS;BU20,JU20,RU20..VSG

 1
Common parts
91651-40614
91656-40816
93315-16014

(7708-8104)VSG..GEN ; (8104-8408)BUS

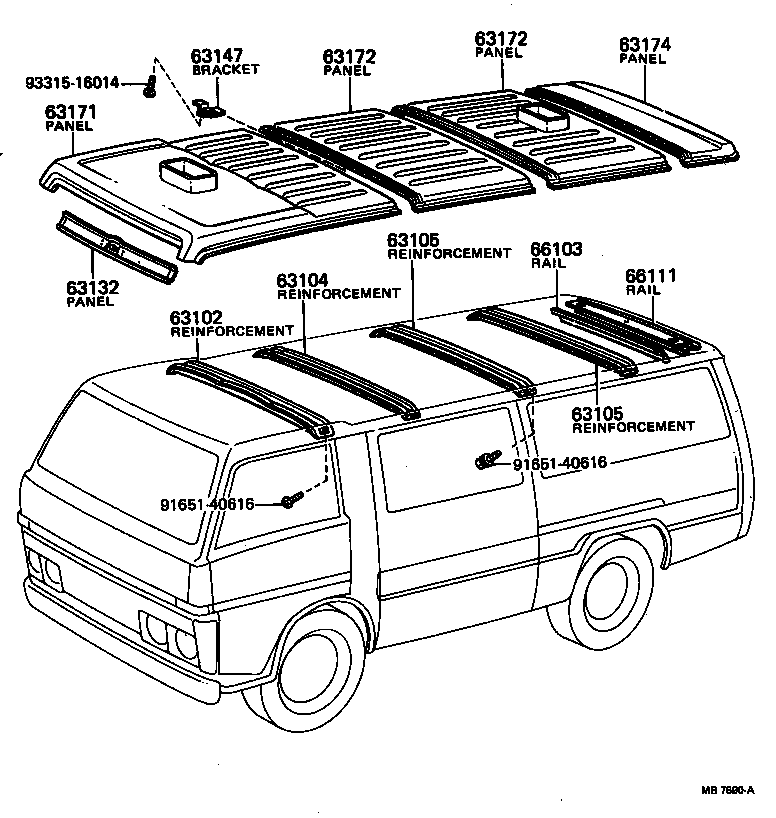

Click highlighted areas on diagram

diagram 63102 63104 63105 63105 63132 63147 63171 63172 63172 63174 66103 66111 9165140616 9165140616 9331516014
Part # Description Qty Price
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63102-92605

BU20,RU20..SRF

 1
63102-95400

BU20,RU20..SRF;HU30,RU20,30..TW1

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63301-92605

BU20,RU20..SRF

 1
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63322-92605

BU20,RU20..SRF

 2
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63322-92605

BU20,RU20..SRF

 2
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-95413

BU20,RU20..LHD..SRF;BU2#,30,31,32,HU30,JU20,RU2#,30..LHD..(DMP,TR)

W/O SUN VISOR=ASSISTANT

 1
63147 - BRACKET, ROOF PANEL REINFORCEMENT
63201-92605

BU20,RU20..SRF

 3
63171 - PANEL, ROOF, FRONT
63111-95407

BU20,RU20..V..SRF

 1
63111-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC

 1
63172 - PANEL, ROOF, CENTER
63113-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC,RR

 1
63113-92605

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC,FR

 1
63113-92605

BU20,RU20..V..SRF

 2
63172 - PANEL, ROOF, CENTER
63113-92120

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC,RR

 1
63113-92605

BU20,RU20..VSG..SRF..GEN

MICRO BUS SPEC,FR

 1
63113-92605

BU20,RU20..V..SRF

 2
63174 - PANEL, ROOF, REAR
63115-92605

BU20,RU20..SRF

 1
66103 - RAIL SUB-ASSY, ROOF BACK, INNER
66103-92605

BU20,RU20..BUS;BU20,JU20,RU20..VSG

 1
66111 - RAIL, ROOF BACK, OUTER
63106-92605

BU20,RU20..BUS;BU20,JU20,RU20..VSG

 1
Common parts
91651-40616
93315-16014
