RU20LHV-KRB (1979)
Toyota Dyna
Production
Dec 1979
-
Apr 1981
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708-8104)H

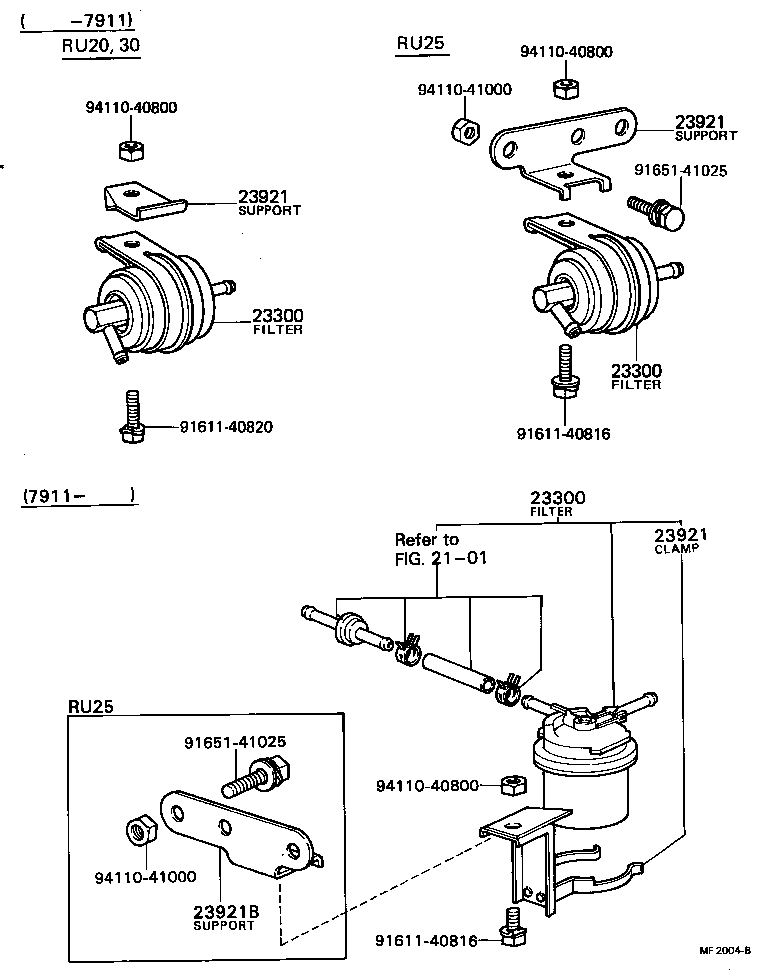

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-44031 |
5R..RU20,30 |
1 | ||
| Common parts | ||||
| 90464-00065 | ||||
| 90464-00184 | ||||
| 91611-61020 | ||||
| 91611-61035 | ||||
| 94712-77121 | ||||
(7708-8008)B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 22125-77020 | ||||
| 91611-61035 | ||||
(7708-8408)5R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300 - FILTER ASSY, FUEL | ||||
| 23030-44050 |
5R..RU2#,30 |
1 | ||
| 23300 - FILTER ASSY, FUEL | ||||
| 23030-44050 |
5R..RU2#,30 |
1 | ||
| 23300 - FILTER ASSY, FUEL | ||||
| 23030-44050 |
5R..RU2#,30 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-44031 |
5R..RU20,30 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-44031 |
5R..RU20,30 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-44031 |
5R..RU20,30 |
1 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91651-41025 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| Linked diagrams | ||||
| 2101 | ||||
(7912- )B,2B,3B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08044 | ||||
| 91611-40820 | ||||
| 91651-40825 | ||||
| 94110-40800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(7912- )H,2H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08044 | ||||
| 91611-40820 | ||||
| 91651-40825 | ||||
| 94110-40800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8008- )B,2B,3B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-61045 | ||||
| 94712-77121 | ||||
(8008- )B,3B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-61045 | ||||
| 94712-77121 | ||||
(7912- )B,2B,3B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08044 | ||||
| 91651-40825 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(7912- )H,2H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08044 | ||||
| 91651-40825 | ||||
| Linked diagrams | ||||
| 8401 | ||||
