RU20L-QRB3 (1977)

Toyota Dyna

Production Aug 1977 - Aug 1980
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8408)RU20..T3 ; (7708-8408)BU20,HU30,JU20,RU30..T3,TW1..TS

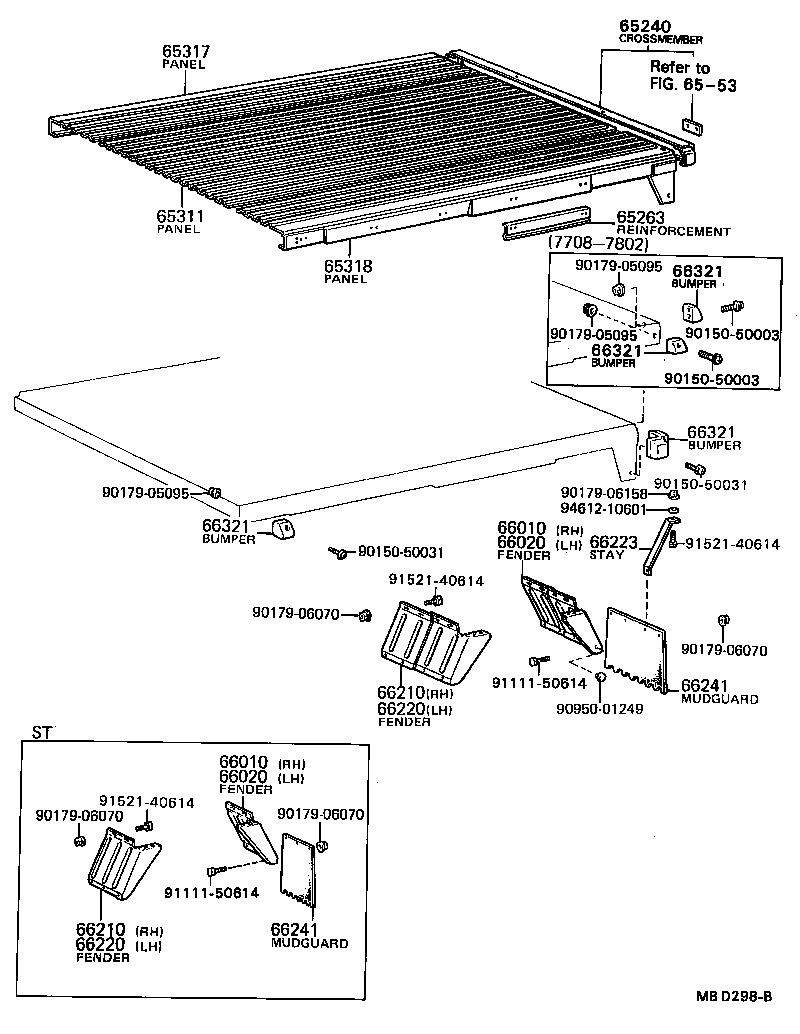

Click highlighted areas on diagram

diagram 65240 65263 65311 65317 65318 6553 66010 66010 66020 66020 66210 66210 66220 66220 66223 66241 66241 66321 66321 66321 66321 9015050003 9015050003 9015050031 9015050031 9017905095 9017905095 9017905095 9017906070 9017906070 9017906070 9017906070 9017906158 9095001249 9111150614 9111150614 9152140614 9152140614 9152140614 9461210601
Part # Description Qty Price
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65240-95419

BU20,JU20,RU20..T3..ST

 1
65263 - REINFORCEMENT, FLOOR SIDE FRAME
65263-95404

BU20,JU20,RU20..T3

 1
65311 - PANEL, FLOOR, CENTER
65311-95409

BU20,JU20,RU20..T3

 1
65317 - PANEL, FLOOR SIDE, RH
65317-95411

BU20,JU20,RU20..T3..ST

 1
65318 - PANEL, FLOOR SIDE, LH
65318-95412

BU20,JU20,RU20..T3..ST

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66233-95011

BU20,JU20,RU20..T3..ST

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66233-95011

BU20,JU20,RU20..T3..ST

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66234-95011

BU20,JU20,RU20..T3..ST

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66234-95011

BU20,JU20,RU20..T3..ST

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66231-95011

BU20,JU20,RU20..T3..ST

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66231-95011

BU20,JU20,RU20..T3..ST

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66232-95011

BU20,JU20,RU20..T3..ST

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66232-95011

BU20,JU20,RU20..T3..ST

 1
66241 - MUDGUARD, REAR
66241-95600

BU20,JU20,RU20..ST

 2
66241 - MUDGUARD, REAR
66241-95600

BU20,JU20,RU20..ST

 2
66321 - BUMPER, GATE RUBBER
66321-95010

BU20,JU20,RU20..T3

W/TAIL GATE

 2
66321-95405

BU20,JU20,RU20..T3

W/SIDE GATE

 4
66321 - BUMPER, GATE RUBBER
66321-95010

BU20,JU20,RU20..T3

W/TAIL GATE

 2
66321-95405

BU20,JU20,RU20..T3

W/SIDE GATE

 4
66321 - BUMPER, GATE RUBBER
66321-95010

BU20,JU20,RU20..T3

W/TAIL GATE

 2
66321-95405

BU20,JU20,RU20..T3

W/SIDE GATE

 4
66321 - BUMPER, GATE RUBBER
66321-95010

BU20,JU20,RU20..T3

W/TAIL GATE

 2
66321-95405

BU20,JU20,RU20..T3

W/SIDE GATE

 4
Common parts
90150-50003
90150-50031
90179-05095
90179-06070
90179-06158
90950-01249
91111-50614
91521-40614
94612-10601
Linked diagrams
6553
