RU20L-QRB (1977)

Toyota Dyna

Production Aug 1977 - Aug 1980
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8408)5R

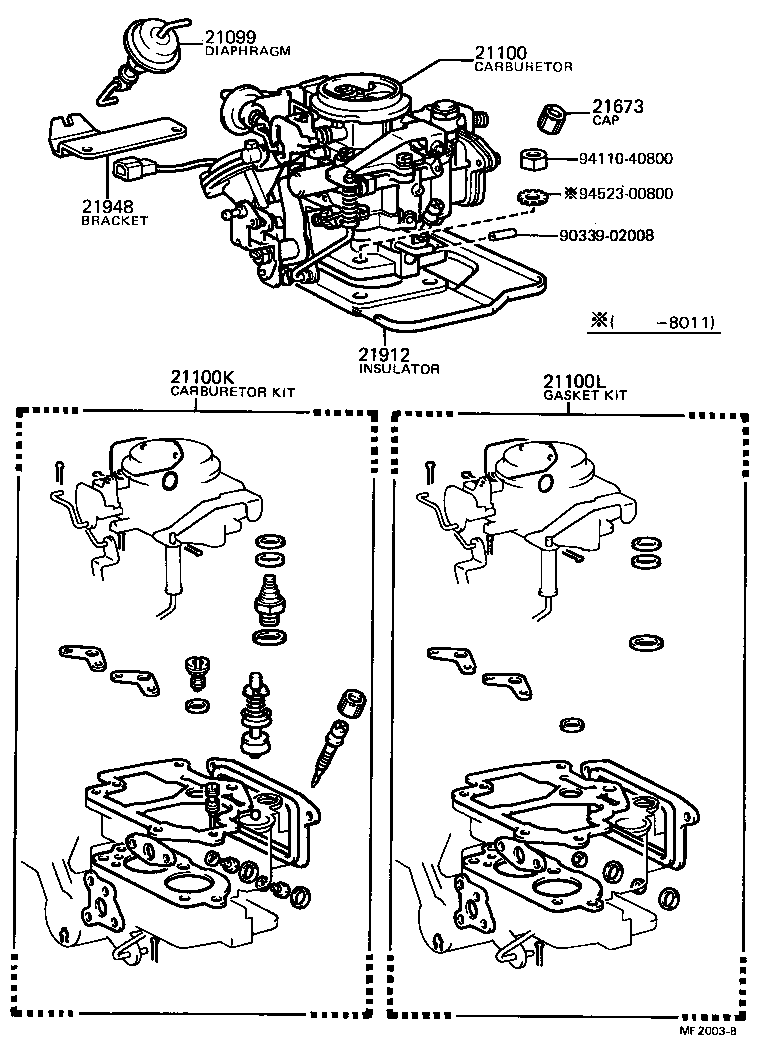

Click highlighted areas on diagram

diagram 21099 21100 21100K 21100L 21673 21912 21948 9033902008 9411040800 9452300800
Part # Description Qty Price
21100 - CARBURETOR ASSY
21100-44270

5R..RU2#,30

 1
21100-44270

5R..RU20..GEN

 1
21100K - CARBURETOR KIT
04211-44090

5R..RU2#,30..ARL,GEN

 1
21100L - GASKET KIT, CARBURETOR
04212-44040

5R..RU2#,30

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-44030

5R..RU2#,30

 1
Common parts
90339-02008
94110-40800
94523-00800
