RU20L-QRB (1977)

Toyota Dyna

Production Aug 1977 - Aug 1980
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8408)5R

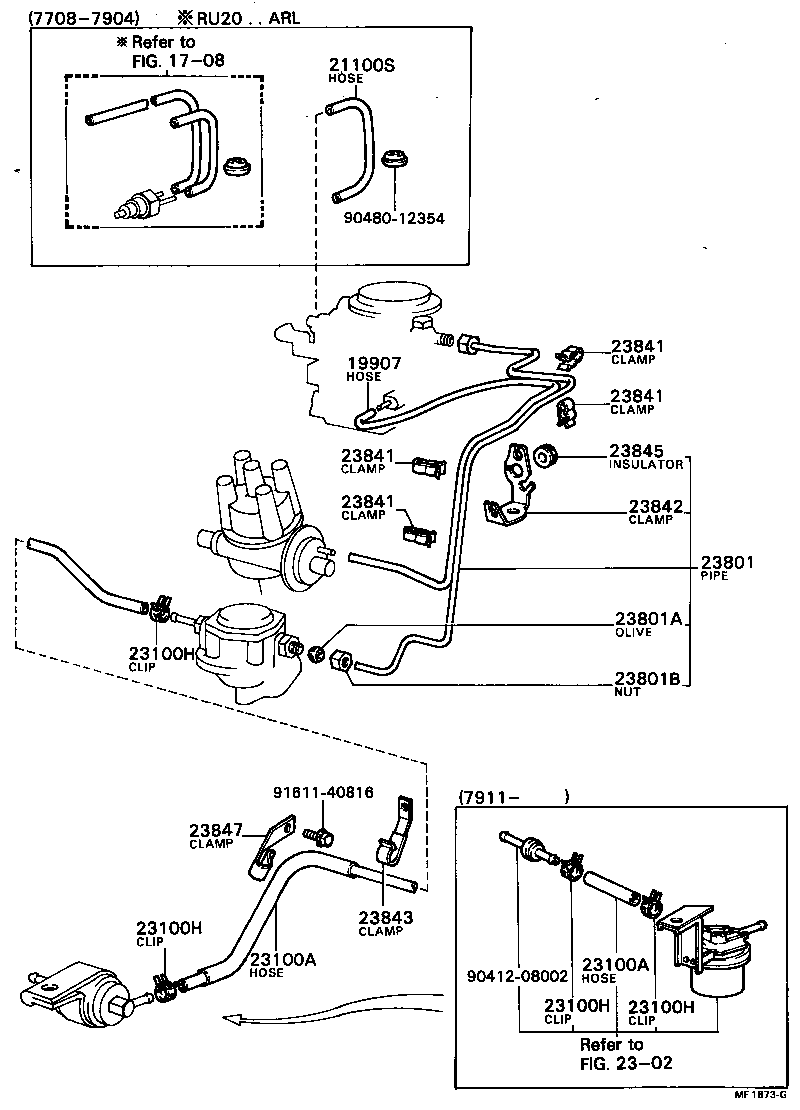

Click highlighted areas on diagram

diagram 1708 19907 21100S 2302 23100A 23100A 23100H 23100H 23100H 23100H 23801 23801A 23801B 23841 23841 23841 23841 23842 23843 23845 23847 9041208002 9048012354 9161140816
Part # Description Qty Price
19907 - HOSE, VACUUM, NO.1
90445-07106

5R..RU20,30

L=730

 1
21100S - HOSE(FOR CARBURETOR TO MANIFOLD)
90445-07055

5R..RU20,30

L=160

 1
95411-19930

5R..RU20..GEN

*H,L=160

 1
23100A - HOSE, FUEL
23271-44010

5R..RU20,30

 1
23100A - HOSE, FUEL
23271-44010

5R..RU20,30

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30800

5R..RU2#,30

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30800

5R..RU2#,30

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30800

5R..RU2#,30

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30800

5R..RU2#,30

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23801-44051

5R..RU2#,30

 1
23801A - OLIVE(FOR FUEL PIPE)
96395-71400

5R..RU2#,30

 2
23801B - NUT, UNION(FOR FUEL PIPE)
90402-13041

5R..RU2#,30

 2
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90468-05025

5R..RU2#,30

 4
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90468-05025

5R..RU2#,30

 4
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90468-05025

5R..RU2#,30

 4
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90468-05025

5R..RU2#,30

 4
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23841-44010

5R..RU2#,30

 1
23843 - CLAMP, FUEL PIPE(HOSE), NO.3
90461-08226

5R..RU2#,30

 1
23845 - INSULATOR, FUEL PIPE
90480-11124

5R..RU2#,30

 1
23847 - CLAMP, FUEL PIPE(HOSE), NO.4
90461-08272

5R..RU2#,30

 1
Common parts
90412-08002
90480-12354
91611-40816
Linked diagrams
1708
2302
