LY235R-TBMFS3 (2001)

Toyota Dyna

Production Jul 2001 - Sep 9999
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0107- )

Click highlighted areas on diagram

diagram 58705 58794B 58794B 58797B 75298 75299A 9017908068 9164180818 9164180818 9164180818 9164180818
Part # Description Qty Price
58794B - SUPPORT, JACK HANDLE
58794-37010

KDY22#,LY22#,23#;KDY23#,25#,26#..15T

 2
58794B - SUPPORT, JACK HANDLE
58794-37010

KDY22#,LY22#,23#;KDY23#,25#,26#..15T

 2
58797B - BAND, JACK CLAMP
58797-37020

KDY22#,LY22#,23#;KDY23#,25#,26#..15T

 1
75298 - PLATE, JACK HOLDER
75298-25021

KDY221,LY225,23#;KDY231,251,261..15T

 1
75298-25020

KDY22#,LY22#,23#;KDY23#,25#,26#..15T

 1
75299A - BASE, JACK HOLDER
75299-25030

KDY221,LY225,23#;KDY231,251,261..15T

 1
75299-25031

KDY221,231,LY225,23#

 1
75299-25020

LY235..ST;KDY220..RHD..IV3;LY225,230..GEN,SA

 1
Common parts
90179-08068
91641-80818

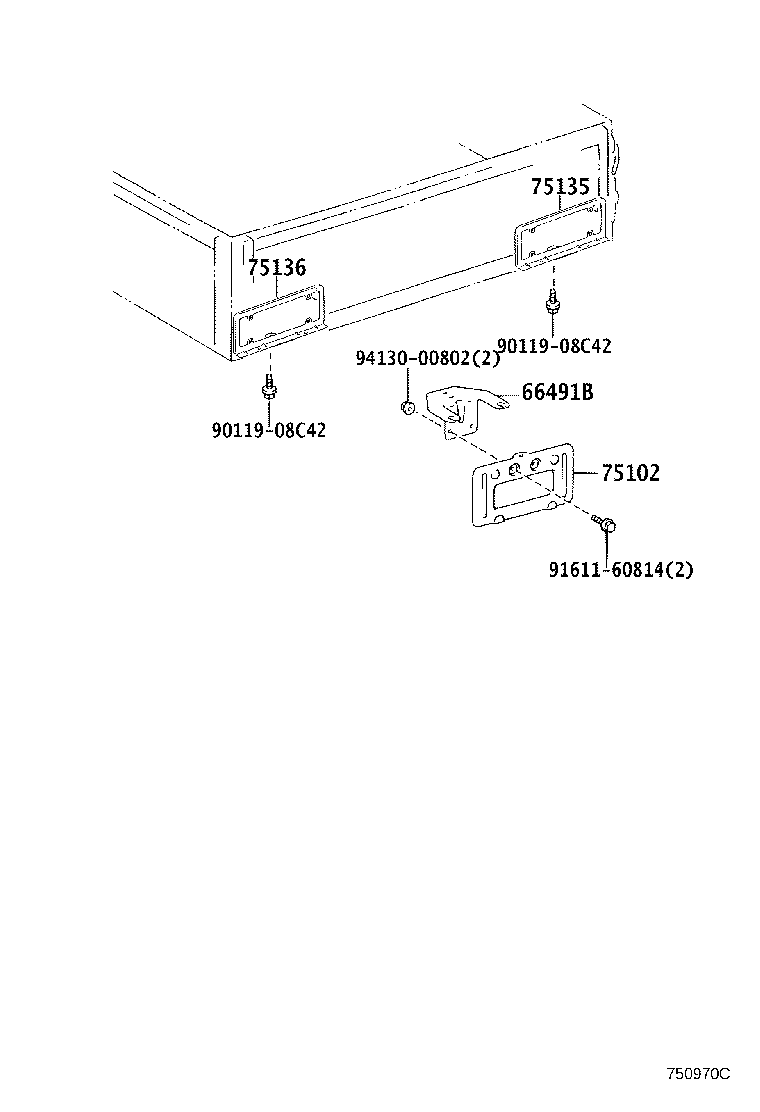

ILLUST NO. 2 OF 2(0107- )LY220,230 ; (0108- )KDY22#,23#,25#,26#..IV3

Click highlighted areas on diagram

diagram 66491B 75102 75135 75136 9011908C42 9011908C42 9161160814 9413000802
Part # Description Qty Price
75135 - BRACKET, COMBINATION REAR LAMP, RH
75103-95411

KDY22#,23#,25#,26#,LY220,230..IV3

 1
75103-25011

LY225,235..IV3

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75103-95411

KDY22#,23#,25#,26#,LY220,230..IV3

 1
75104-25011

LY225,235..IV3

 1
Common parts
90119-08C42
91611-60814
94130-00802

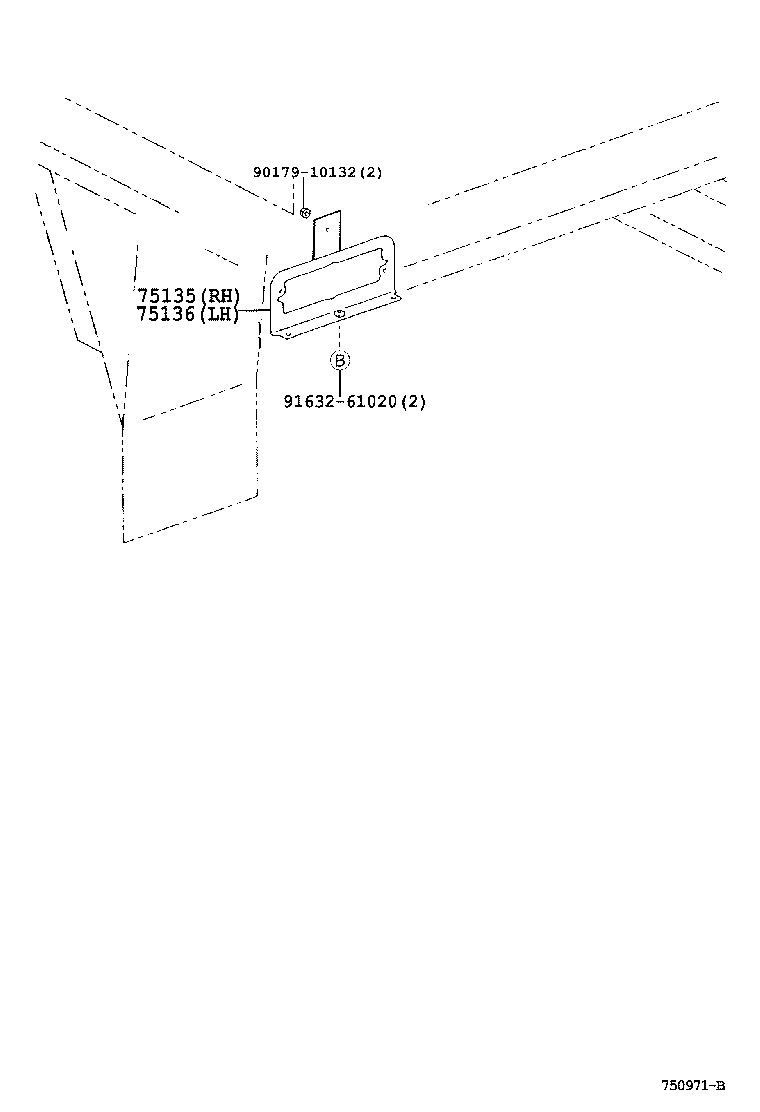

ILLUST NO. 2 OF 2(0107- )LY225,235..IV3

Click highlighted areas on diagram

diagram 75135 75136 9017910132 9163261020
Part # Description Qty Price
75135 - BRACKET, COMBINATION REAR LAMP, RH
75103-95411

KDY22#,23#,25#,26#,LY220,230..IV3

 1
75103-25011

LY225,235..IV3

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75103-95411

KDY22#,23#,25#,26#,LY220,230..IV3

 1
75104-25011

LY225,235..IV3

 1
Common parts
90179-10132
91632-61020
