LY235L-TBMFS3 (2001)
Toyota Dyna

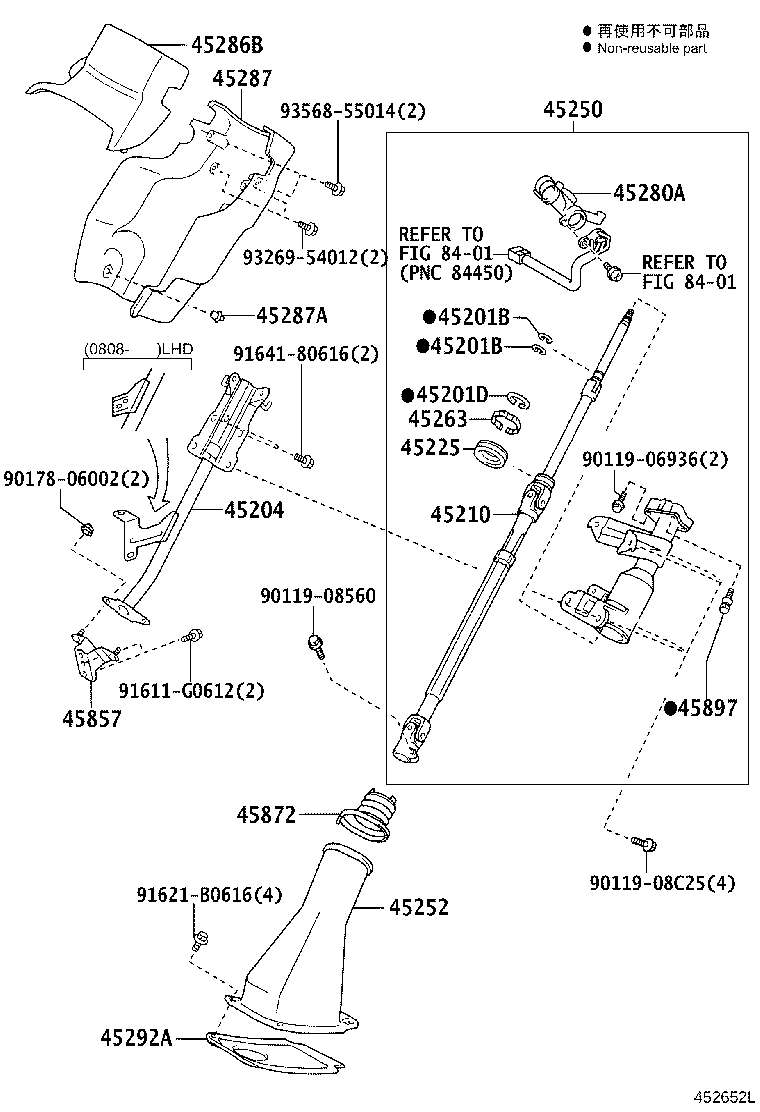

(0107-1610)LY225,235..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
KDY22#,23#,25#,26#,LY22#,23# T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
KDY22#,23#,25#,26#,LY22#,23# T=1.20 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 90520-28065 |
KDY220,230,250,260,LY22#,23# |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-25030 |
KDY22#,23#,25#,26#,LY225,235..LHD |
1 | ||
| 45204-25040 |
KDY221,231,251,261,LY225,235..LHD |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-25030 |
LY225,235..ST |
1 | ||
| 45210-37190 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 45210-25031 |
LY225,235..ST |
1 | ||
| 45225 - BLOCK, BEARING | ||||
| 45225-26010 |
KDY220,230,250,260,LY22#,23# |
1 | ||
| 45274-37020 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-25650 |
LY225,235..ST |
1 | ||
| 45250-37C12C0 |
LY235 BLACK,TRIM1# |
1 | ||
| 45250-25651 |
LY225,235..ST |
1 | ||
| 45252 - TUBE, STEERING COLUMN, LOWER | ||||
| 45252-37041B0 |
KDY221,231,251,261,LY225,235..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 45252-37040B0 |
KDY22#,23#,25#,26#,LY225,235..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 45252-37041C0 |
LY225,235..LHD BLACK,TRIM1# |
1 | ||
| 45252-37070C0 |
LY235..LHD BLACK,TRIM1# |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
KDY220,230,250,260,LY22#,23# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-25050 |
LY235..WT;KDY22#,23#,25#,26# |
1 | ||
| 45307-36230 |
LY225,235..ST |
1 | ||
| 45280-E0010 |
LY23# |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-25170B0 |
LY225,235..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 45286-25171C0 |
LY225,235..LHD BLACK,TRIM1# |
1 | ||
| 45286-37130C0 |
KDY221,231,LY23# BLACK,TRIM1# |
1 | ||
| 45286-25171B0 |
LY225,235..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-25060B0 |
LY225,235..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 45287-37120C0 |
KDY221,231,LY23# BLACK,TRIM1# |
1 | ||
| 45287-25061C0 |
LY225,235..LHD BLACK,TRIM1# |
1 | ||
| 45287-25061B0 |
LY225,235..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 45287A - CLIP(FOR STEERING COLUMN COVER) | ||||
| 90467-07041C0 |
KDY221,231,LY225,23# BLACK,TRIM1# |
1 | ||
| 90467-07041B8 |
KDY22#,23#,25#,26#,LY22#,23# MD.CHARCOAL,TRIM1# |
1 | ||
| 45292A - COVER, MAIN SHAFT LOWER DUST | ||||
| 45292-37010 |
KDY22#,23#,25#,26#,LY225,235..LHD |
1 | ||
| 45857 - BRACKET, TILT STEERING COLUMN TUBE, NO.1 | ||||
| 45857-37040 |
KDY22#,23#,25#,26#,LY225,235..LHD |
1 | ||
| 45872 - COVER, STEERING COLUMN TUBE | ||||
| 45872-37020 |
KDY221,231,LY23# |
1 | ||
| 45872-37010 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-25010 |
KDY22#,23#,25#,26# |
1 | ||
| 45897-12030 |
LY22#,23# |
1 | ||
| 45897-25010 |
LY235..ST;LY22#,230..ARL,GEN |
1 | ||
| 45897-E0020 |
KDY221,231,LY23# |
2 | ||
| Common parts | ||||
| 90119-06936 | ||||
| 90119-08560 | ||||
| 90119-08C25 | ||||
| 90178-06002 | ||||
| 91611-G0612 | ||||
| 91621-B0616 | ||||
| 91641-80616 | ||||
| 93269-54012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0107-1610)KDY22#,23#,25#,26#,LY220,230
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
KDY22#,23#,25#,26#,LY22#,23# T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
KDY22#,23#,25#,26#,LY22#,23# T=1.20 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 90520-28065 |
KDY220,230,250,260,LY22#,23# |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-25040 |
KDY221,231,251,261,LY225,235..LHD |
1 | ||
| 45204-25030 |
KDY22#,23#,25#,26#,LY225,235..LHD |
1 | ||
| 45206A - YOKE SUB-ASSY, STEERING SLIDING W/COUPLING | ||||
| 45206-37020 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-14020 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-25030 |
LY225,235..ST |
1 | ||
| 45210-37190 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 45210-25031 |
LY225,235..ST |
1 | ||
| 45225 - BLOCK, BEARING | ||||
| 45225-26010 |
KDY220,230,250,260,LY22#,23# |
1 | ||
| 45274-37020 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-25650 |
LY225,235..ST |
1 | ||
| 45250-37C12C0 |
LY235 BLACK,TRIM1# |
1 | ||
| 45250-25651 |
LY225,235..ST |
1 | ||
| 45252 - TUBE, STEERING COLUMN, LOWER | ||||
| 45252-37041B0 |
KDY221,231,251,261,LY225,235..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 45252-37040B0 |
KDY22#,23#,25#,26#,LY225,235..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 45252-37041C0 |
LY225,235..LHD BLACK,TRIM1# |
1 | ||
| 45252-37070C0 |
LY235..LHD BLACK,TRIM1# |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
KDY220,230,250,260,LY22#,23# |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12020 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-25050 |
LY235..WT;KDY22#,23#,25#,26# |
1 | ||
| 45307-36230 |
LY225,235..ST |
1 | ||
| 45280-E0010 |
LY23# |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-25170B0 |
LY225,235..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 45286-25171C0 |
LY225,235..LHD BLACK,TRIM1# |
1 | ||
| 45286-37130C0 |
KDY221,231,LY23# BLACK,TRIM1# |
1 | ||
| 45286-25171B0 |
LY225,235..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-25060B0 |
LY225,235..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 45287-37120C0 |
KDY221,231,LY23# BLACK,TRIM1# |
1 | ||
| 45287-25061C0 |
LY225,235..LHD BLACK,TRIM1# |
1 | ||
| 45287-25061B0 |
LY225,235..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 45287A - CLIP(FOR STEERING COLUMN COVER) | ||||
| 90467-07041C0 |
KDY221,231,LY225,23# BLACK,TRIM1# |
1 | ||
| 90467-07041B8 |
KDY22#,23#,25#,26#,LY22#,23# MD.CHARCOAL,TRIM1# |
1 | ||
| 45292A - COVER, MAIN SHAFT LOWER DUST | ||||
| 45292-37010 |
KDY22#,23#,25#,26#,LY225,235..LHD |
1 | ||
| 45312A - BRACKET, STEERING BEVEL GEAR HOUSING | ||||
| 45312-25200 |
KDY22#,23#,25#,26#..LHD |
1 | ||
| 45380 - GEAR ASSY, STEERING BEVEL | ||||
| 45380-37020 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 45390 - SHAFT ASSY, STEERING TORQUE | ||||
| 45390-25010 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 45635 - SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR | ||||
| 45635-25020 |
KDY22#,23#,25#,26#..LHD |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-25020 |
KDY22#,23#,25#,26#..LHD |
1 | ||
| 45637 - PROTECTOR, INTER LINK JOINT, LWR NO.1 | ||||
| 45637-25020 |
KDY22#,23#,25#,26#..LHD |
1 | ||
| 45857 - BRACKET, TILT STEERING COLUMN TUBE, NO.1 | ||||
| 45857-37040 |
KDY22#,23#,25#,26#,LY225,235..LHD |
1 | ||
| 45872 - COVER, STEERING COLUMN TUBE | ||||
| 45872-37020 |
KDY221,231,LY23# |
1 | ||
| 45872-37010 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-25010 |
KDY22#,23#,25#,26# |
1 | ||
| 45897-12030 |
LY22#,23# |
1 | ||
| 45897-25010 |
LY235..ST;LY22#,230..ARL,GEN |
1 | ||
| 45897-E0020 |
KDY221,231,LY23# |
2 | ||
| Common parts | ||||
| 90119-06936 | ||||
| 90119-08560 | ||||
| 90119-08982 | ||||
| 90119-08C25 | ||||
| 90178-06002 | ||||
| 91611-G0612 | ||||
| 91621-B0616 | ||||
| 91622-61040 | ||||
| 91622-B1025 | ||||
| 91641-80616 | ||||
| 91651-B0620 | ||||
| 91651-B0820 | ||||
| 91671-80816 | ||||
| 93269-54012 | ||||
| 93568-55014 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

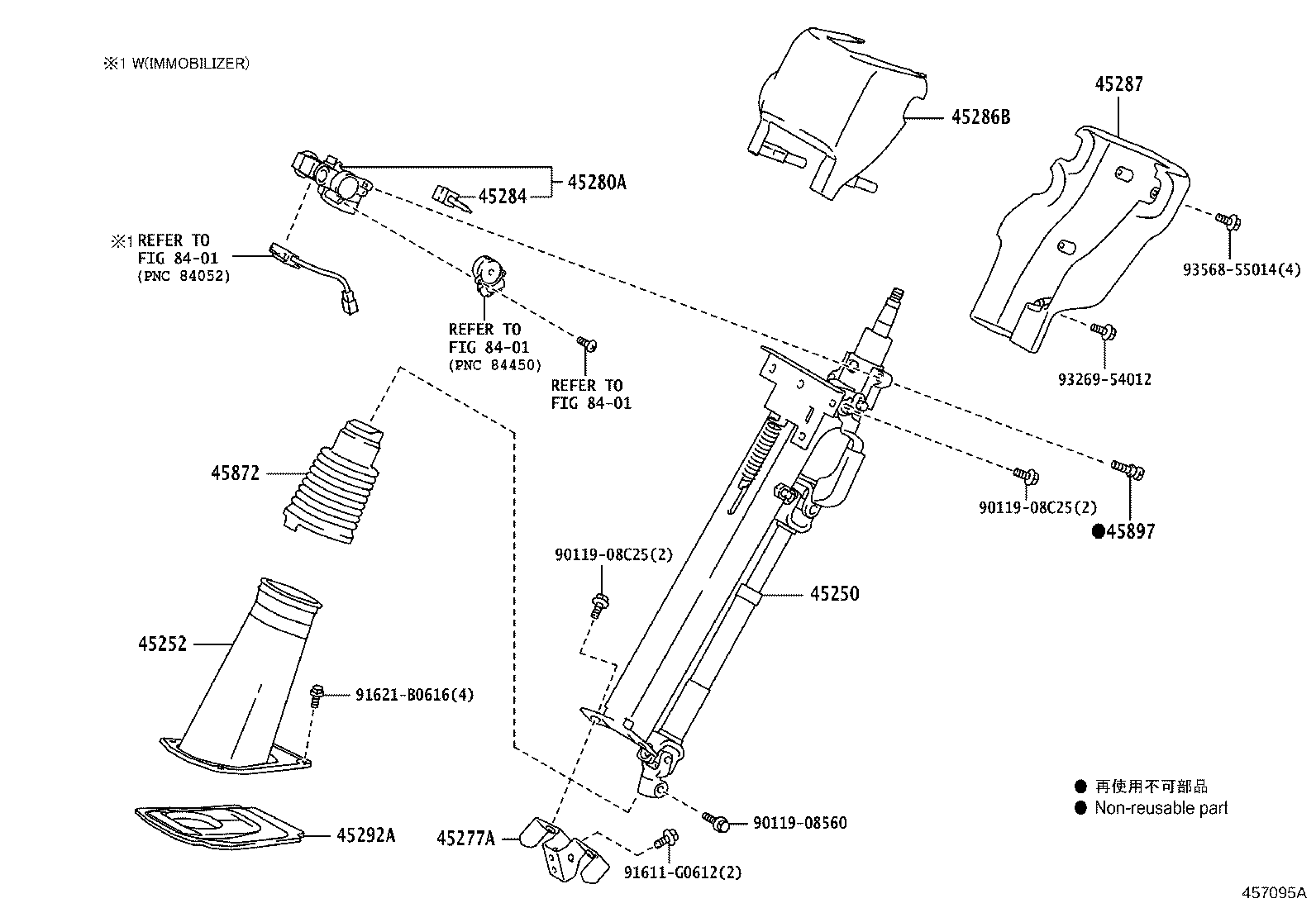

(1610- )LY235
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-25650 |
LY225,235..ST |
1 | ||
| 45250-37C12C0 |
LY235 BLACK,TRIM1# |
1 | ||
| 45250-25651 |
LY225,235..ST |
1 | ||
| 45252 - TUBE, STEERING COLUMN, LOWER | ||||
| 45252-37041B0 |
KDY221,231,251,261,LY225,235..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 45252-37040B0 |
KDY22#,23#,25#,26#,LY225,235..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 45252-37041C0 |
LY225,235..LHD BLACK,TRIM1# |
1 | ||
| 45252-37070C0 |
LY235..LHD BLACK,TRIM1# |
1 | ||
| 45277A - SUPPORT, TILT STEERING | ||||
| 45277-37040 |
LY235..LHD |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-25050 |
LY235..WT;KDY22#,23#,25#,26# |
1 | ||
| 45307-36230 |
LY225,235..ST |
1 | ||
| 45280-E0010 |
LY23# |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-25170B0 |
LY225,235..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 45286-25171C0 |
LY225,235..LHD BLACK,TRIM1# |
1 | ||
| 45286-37130C0 |
KDY221,231,LY23# BLACK,TRIM1# |
1 | ||
| 45286-25171B0 |
LY225,235..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-25060B0 |
LY225,235..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 45287-37120C0 |
KDY221,231,LY23# BLACK,TRIM1# |
1 | ||
| 45287-25061C0 |
LY225,235..LHD BLACK,TRIM1# |
1 | ||
| 45287-25061B0 |
LY225,235..LHD MD.CHARCOAL,TRIM1# |
1 | ||
| 45292A - COVER, MAIN SHAFT LOWER DUST | ||||
| 45292-37010 |
KDY22#,23#,25#,26#,LY225,235..LHD |
1 | ||
| 45872 - COVER, STEERING COLUMN TUBE | ||||
| 45872-37020 |
KDY221,231,LY23# |
1 | ||
| 45872-37010 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-25010 |
KDY22#,23#,25#,26# |
1 | ||
| 45897-12030 |
LY22#,23# |
1 | ||
| 45897-25010 |
LY235..ST;LY22#,230..ARL,GEN |
1 | ||
| 45897-E0020 |
KDY221,231,LY23# |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-08C25 | ||||
| 91611-G0612 | ||||
| 91621-B0616 | ||||
| 93269-54012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
