LY230R-TBMGSN3 (2001)

Toyota Dyna

Production Oct 2001 - Sep 9999
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

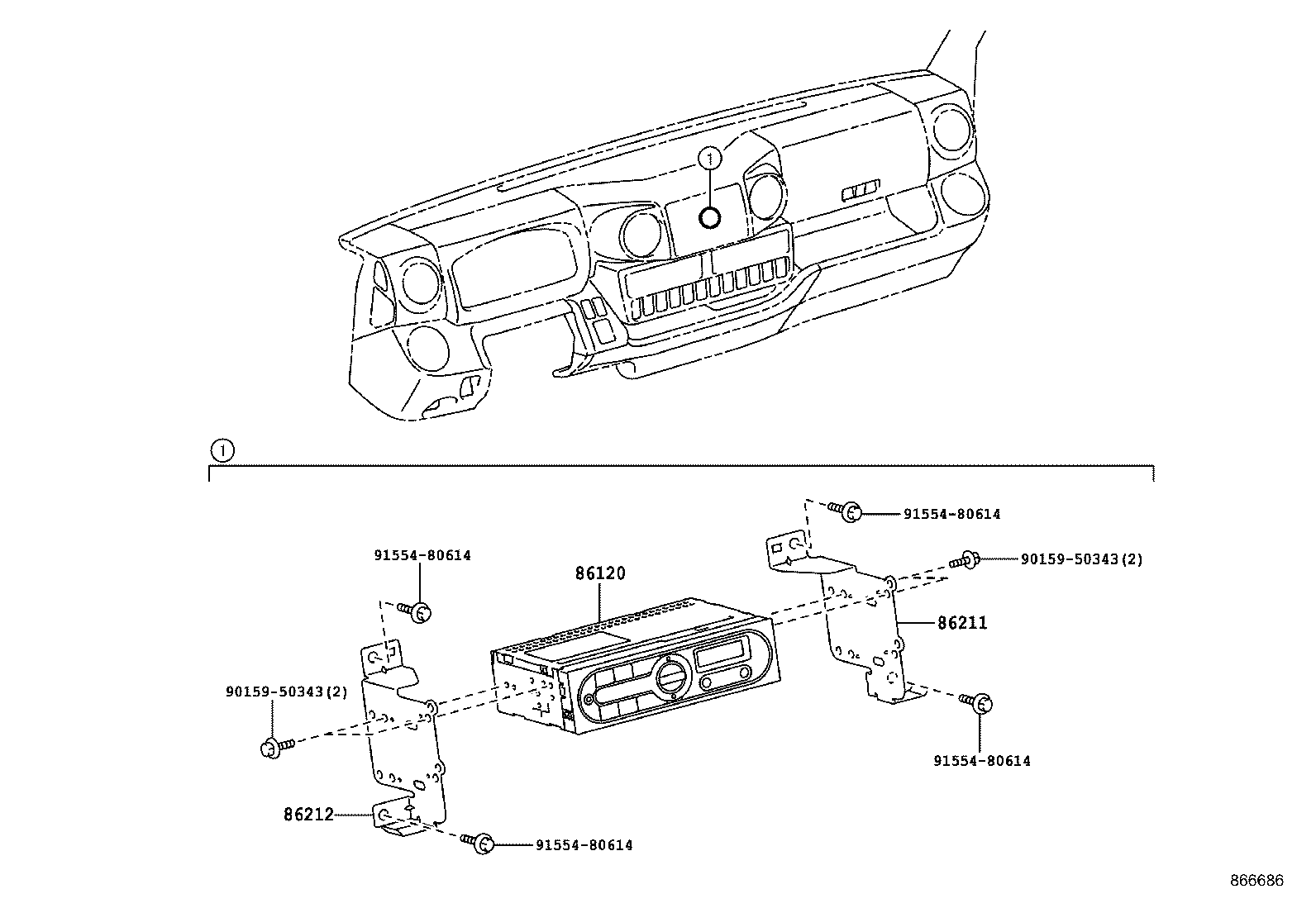

ILLUST NO. 1 OF 2(0107-1610)

Click highlighted areas on diagram

diagram 86120 8612804010 8612812400 8612826020 8612837010 8612837030 8612837030 86211 86212 9015950343 9015950343 9155480614 9155480614
Part # Description Qty Price
86211 - BRACKET, RADIO, NO.1
86211-37110

KDY221,231,LY23#

 1
86211-37050

KDY22#,23#,25#,LY22#,23#..RHD

 1
86212 - BRACKET, RADIO, NO.2
86212-37030

KDY220,230,250,LY22#,23#..RHD

 1
86212-37031

KDY22#,23#,25#,LY225,23#..RHD

 1
86212-37090

KDY221,231,LY23#

 1
Common parts
86128-04010
86128-12400
86128-26020
86128-37010
86128-37030
90159-50343
91554-80614

(1610- )

Click highlighted areas on diagram

diagram 86120 86211 86212 9015950343 9015950343 9155480614 9155480614 9155480614 9155480614
Part # Description Qty Price
86211 - BRACKET, RADIO, NO.1
86211-37110

KDY221,231,LY23#

 1
86211-37050

KDY22#,23#,25#,LY22#,23#..RHD

 1
86212 - BRACKET, RADIO, NO.2
86212-37030

KDY220,230,250,LY22#,23#..RHD

 1
86212-37031

KDY22#,23#,25#,LY225,23#..RHD

 1
86212-37090

KDY221,231,LY23#

 1
Common parts
90159-50343
91554-80614
