LY225R-TBMDS (2001)
Toyota Dyna
ILLUST NO. 2 OF 3(0107- )LY22#,23#..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53089A - MUDGUARD SUB-ASSY, FRONT | ||||
| 53089-25010 |
KDY22#,23#,25#,LY220,230..RHD NO.1 OR NO.2 |
2 | ||
| 53089-25010 |
LY225,235 NO.1 OR NO.2 |
1 | ||
| 53089A - MUDGUARD SUB-ASSY, FRONT | ||||
| 53089-25010 |
KDY22#,23#,25#,LY220,230..RHD NO.1 OR NO.2 |
2 | ||
| 53089-25010 |
LY225,235 NO.1 OR NO.2 |
1 | ||
| 53089B - CLIP, FRONT MUDGUARD | ||||
| 67868-95401 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
10 | ||
| 53089B - CLIP, FRONT MUDGUARD | ||||
| 67868-95401 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
10 | ||
| 53705D - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53705-25020 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53706C - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-25010 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-25021 |
KDY221,LY225,23#;KDY231,251,261..15T |
1 | ||
| 53715-25020 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-25041 |
KDY221,LY225,23#;KDY231,251,261..15T |
1 | ||
| 53716-25040 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53716-37230 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 53719A - BRACE, FENDER APRON | ||||
| 53719-25010 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-25030 |
KDY221,LY225,23#;KDY231,251,261..15T |
1 | ||
| 53881-25020 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53881-25040 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-37110 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 53881-25020 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53881-25030 |
KDY221,LY225,23#;KDY231,251,261..15T |
1 | ||
| 53887E - PLATE, FRONT MUDGUARD | ||||
| 53887-25010 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
2 | ||
| 58142A - APRON, FRONT FLOOR SIDE, NO.1 LH | ||||
| 58142-25030 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| Common parts | ||||
| 90467-0908722 | ||||
| 91551-80820 | ||||
| 91551-A0814 | ||||
| 91651-B0616 | ||||
| 94151-80800 | ||||
ILLUST NO. 3 OF 3(0107- )
HOLE PLUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82819-37280 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90950-01112 | ||||
| 90950-01759 | ||||
| 90950-01808 | ||||
| 90950-01824 | ||||
| 90950-01865 | ||||
| 90950-01945 | ||||
| 90950-06060 | ||||

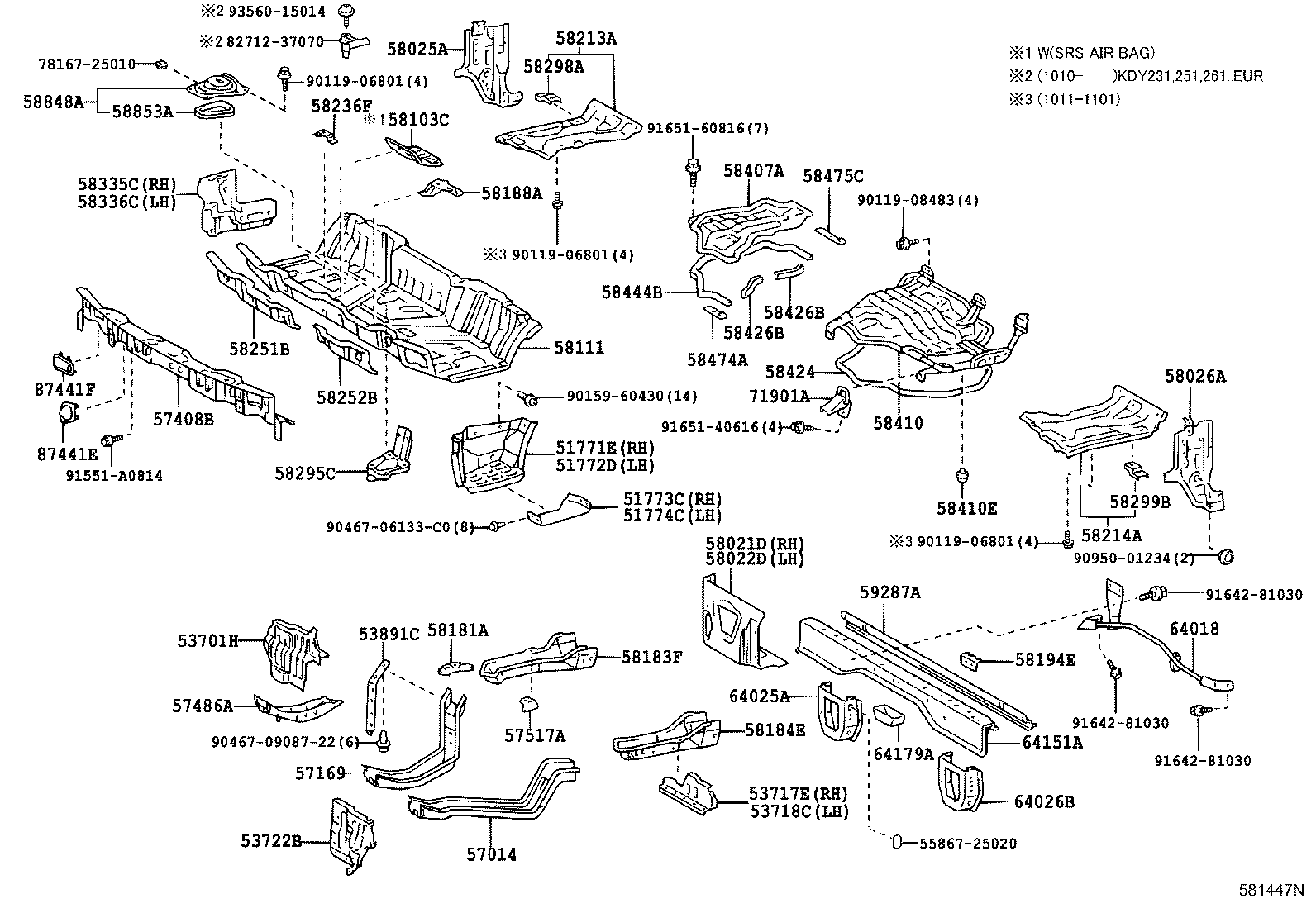

ILLUST NO. 1 OF 3(0108-1502)KDY23#,25#,26#..10T,125T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51771E - PLATE, STEP, RH | ||||
| 51771-37100 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 51771-25020 |
KDY221,231,251,261,LY225,23# |
1 | ||
| 51771-25021 |
KDY221,231,251,261,LY225,23# |
1 | ||
| 51772D - PLATE, STEP, LH | ||||
| 51772-37131 |
KDY221,231,251,LY225,23#..RHD |
1 | ||
| 51772-37130 |
KDY221,231,251,LY225,23#..RHD |
1 | ||
| 51772-37080 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-37020 |
KDY220,230,250,260,LY22#,23# NO PAINT REQ. |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51774-37010 |
KDY220,230,250,260,LY22#,23# NO PAINT REQ. |
1 | ||
| 53701H - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-37031 |
LY225,235 |
1 | ||
| 53701-37030 |
LY225,235 |
1 | ||
| 53701-37040 |
KDY22#,23#,25#,LY220,230..RHD |
1 | ||
| 53701-37032 |
LY225,235 |
1 | ||
| 53717E - APRON, FRONT FENDER, NO.2 RH | ||||
| 53717-37150 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 53718C - APRON, FRONT FENDER, NO.2 LH | ||||
| 53718-37120 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53722-25010 |
LY225,235..RHD |
1 | ||
| 53722-25011 |
LY225,235..RHD |
1 | ||
| 53722-37031 |
KDY22#,23#,25#,LY220,230..RHD |
1 | ||
| 53722-37090 |
LY225,235..RHD |
1 | ||
| 57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH | ||||
| 57014-25020 |
LY225,235 |
1 | ||
| 57014-25030 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 57169 - MEMBER, FRONT FLOOR, FRONT RH | ||||
| 57169-25040 |
LY225,235 |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-37260 |
LY225,235..RHD..ST W(FRONT HEATER) |
1 | ||
| 57408-25340 |
LY225,235..RHD |
1 | ||
| 57408-37261 |
LY225,235..RHD..ST W(FRONT HEATER) |
1 | ||
| 57408-25341 |
KDY221,231,LY225,235..RHD..GEN |
1 | ||
| 57408-37262 |
LY225,235..RHD..ST W(FRONT HEATER) |
1 | ||
| 57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-37011 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 57517A - RETAINER, FRONT FLOOR REINFORCEMENT, REAR | ||||
| 57517-37011 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 58021D - PANEL SUB-ASSY, HEADER, RH | ||||
| 58021-25020 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 58022D - PANEL SUB-ASSY, HEADER, LH | ||||
| 58022-25020 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58025-25030 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 58043-25020 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58044-37090 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 58044-37070 |
KDY220,LY22#,23#;KDY230,250,260..15T |
1 | ||
| 58026-25020 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-25120 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 58111-37304 |
KDY22#,23#,25#,LY230..RHD |
1 | ||
| 58111-25122 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 58111-25121 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 58111-25124 |
LY225,235..RHD |
1 | ||
| 58111-25123 |
LY225,235..RHD |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-37030 |
KDY22#,23#,25#,LY220,230..RHD |
1 | ||
| 58183F - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37071 |
LY230..ARL;KDY23#,25#,26#,LY220..10T,125T |
1 | ||
| 58184E - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-25031 |
LY230..ARL;KDY23#,25#,26#,LY220..10T,125T |
1 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58201-25040 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 58201-25030 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 58214A - PANEL, SEAT FLOOR, LH | ||||
| 58202-25020 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 58202-25030 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 58236F - BRACKET, CLUTCH TUBE | ||||
| 58236-95J01 |
KDY220..IV3;KDY230,250..LHD;KDY220..LHD..CBU;KDY221,231,251,26#,LY225,235 |
1 | ||
| 58251B - BRACE, FLOOR PANEL, FRONT | ||||
| 58251-37031 |
LY225,235..RHD;KDY220..RHD..IV3 |
1 | ||
| 58251-37032 |
KDY22#,23#,25#,LY225,23#..RHD |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-37031 |
KDY220..RHD..IV3;KDY221,231,251,LY225,235..RHD |
1 | ||
| 58295C - BRACKET, FLOOR SHIFT LEVER, NO.1 | ||||
| 58295-37060 |
KDY220..RHD..IV3;KDY221,231,251,LY225,235..RHD |
1 | ||
| 58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH | ||||
| 58298-37020 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 58298-37010 |
KDY220,LY220,230;KDY221..LHD..IV3;KDY23#,25#,26#..15T;KDY221,LY225,235..RHD |
1 | ||
| 58299B - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH | ||||
| 58298-37010 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 58298-37020 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-37040 |
KDY221,231,LY22#,23#..ARL,GEN,SA |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-25010 |
KDY221,231,LY225,235..RHD..GEN |
1 | ||
| 58336-37031 |
LY225,235..RHD..ST W(FRONT HEATER) |
1 | ||
| 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB | ||||
| 58407-37120 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 58407-37121 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 58407-25150 |
LY225,235..RHD |
1 | ||
| 58407-25151 |
LY225,235..RHD |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 59208-25090 |
LY225,235..RHD |
1 | ||
| 58410E - CUSHION, NO.3 | ||||
| 90541-09046 |
LY22#,23#..ARL,GEN;KDY22#,23#,25#,26#..LHD |
4 | ||
| 58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1 | ||||
| 58424-37030 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-95405 |
LY22#,23#..RHD..(ARL,GEN) |
4 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-95405 |
LY22#,23#..RHD..(ARL,GEN) |
4 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-37030 |
LY225,235..RHD |
1 | ||
| 58444-37030 |
LY225,235..RHD..ST |
1 | ||
| 58474A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58474-37010 |
LY22#,23#..ARL,GEN;KDY22#,23#,25#,26#..LHD |
1 | ||
| 58475C - PACKING, ENGIN SUB COVER, NO.3 | ||||
| 58475-37030 |
LY22#,23#..ARL,GEN;KDY22#,23#,25#,26#..LHD |
1 | ||
| 58848A - COVER, SHIFT LEVER HOLE | ||||
| 58840-37010 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 58853A - PACKING, SHIFT LEVER HOLE | ||||
| 58853-37020 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 59287A - BASE, TRANSMISSION COVER, CENTER | ||||
| 59287-37030 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-37090 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 64018-25030 |
KDY22#,23#,25#,LY230..RHD..(EUR,GEN,SA) |
1 | ||
| 64025A - BRACKET SUB-ASSY, REAR MOUNTING, RH | ||||
| 64025-37100 |
LY230..ARL;LY225,235..LHD;KDY23#,25#,26#,LY220..10T,125T |
1 | ||
| 64026B - BRACKET SUB-ASSY, REAR MOUNTING, LH | ||||
| 64026-37130 |
LY230..ARL;LY225,235..LHD;KDY23#,25#,26#,LY220..10T,125T |
1 | ||
| 64151A - FRAME, BACK | ||||
| 64151-25080 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 64151-37181 |
KDY220..RHD..CBU;KDY221,23#,25#..RHD |
1 | ||
| 64151-25071 |
LY225,235..RHD |
1 | ||
| 64151-25073 |
LY225,235..RHD |
1 | ||
| 64151-25071 |
LY225,235..RHD..ST |
1 | ||
| 64179A - PATCH, REAR MOUNTING BRACKET | ||||
| 64179-37030 |
LY230..ARL;LY225,235..LHD;KDY23#,25#,26#,LY220..10T,125T |
2 | ||
| 71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT | ||||
| 71902-37010 |
LY225,235;KDY22#,23#,25#,26#..LHD |
2 | ||
| 87441F - FILTER, HEATER AIR | ||||
| 87441-37010 |
LY225..RHD |
1 | ||
| Common parts | ||||
| 55867-25020 | ||||
| 78167-25010 | ||||
| 82712-37070 | ||||
| 90119-06801 | ||||
| 90119-08483 | ||||
| 90159-60430 | ||||
| 90467-06133C0 | ||||
| 90467-0908722 | ||||
| 90950-01234 | ||||
| 91551-A0814 | ||||
| 91642-81030 | ||||
| 91651-40616 | ||||
| 91651-60816 | ||||
| 93560-15014 | ||||
ILLUST NO. 2 OF 3(0108- )KDY23#,25#,26#..10T,125T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53079A - SEAL SUB-ASSY, FRONT FENDER APRON, LOWER | ||||
| 53079-25050 |
KDY23#,25#,26#..10T,125T NO.2 |
1 | ||
| 53079-25030 |
KDY23#,25#,26#..10T,125T NO.1 |
1 | ||
| 53079A - SEAL SUB-ASSY, FRONT FENDER APRON, LOWER | ||||
| 53079-25050 |
KDY23#,25#,26#..10T,125T NO.2 |
1 | ||
| 53079-25030 |
KDY23#,25#,26#..10T,125T NO.1 |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-25021 |
KDY221,LY225,23#;KDY231,251,261..15T |
1 | ||
| 53715-25020 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-25041 |
KDY221,LY225,23#;KDY231,251,261..15T |
1 | ||
| 53716-25040 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53716-37230 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53747-25010 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 53714D - EXTENSION, FRONT FENDER APRON, LH | ||||
| 53747-25010 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-25020 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 53881-25030 |
KDY221,LY225,23#;KDY231,251,261..15T |
1 | ||
| 53881-25040 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-37110 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 53881-25030 |
KDY221,LY225,23#;KDY231,251,261..15T |
1 | ||
| 53881-25020 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 58142A - APRON, FRONT FLOOR SIDE, NO.1 LH | ||||
| 58142-25030 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| Common parts | ||||
| 90119-06065 | ||||
| 90119-06424 | ||||
| 90467-06046 | ||||
| 90467-08008 | ||||
| 90467-0908722 | ||||
| 91551-A0814 | ||||
ILLUST NO. 1 OF 3(0108- )KDY22#,23#,25#..RHD ; (0110- )SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51771E - PLATE, STEP, RH | ||||
| 51771-37100 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 51771-25020 |
KDY221,231,251,261,LY225,23# |
1 | ||
| 51771-25021 |
KDY221,231,251,261,LY225,23# |
1 | ||
| 51772D - PLATE, STEP, LH | ||||
| 51772-37131 |
KDY221,231,251,LY225,23#..RHD |
1 | ||
| 51772-37130 |
KDY221,231,251,LY225,23#..RHD |
1 | ||
| 51772-37080 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-37020 |
KDY220,230,250,260,LY22#,23# NO PAINT REQ. |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51774-37010 |
KDY220,230,250,260,LY22#,23# NO PAINT REQ. |
1 | ||
| 53701H - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-37031 |
LY225,235 |
1 | ||
| 53701-37030 |
LY225,235 |
1 | ||
| 53701-37040 |
KDY22#,23#,25#,LY220,230..RHD |
1 | ||
| 53701-37032 |
LY225,235 |
1 | ||
| 53717E - APRON, FRONT FENDER, NO.2 RH | ||||
| 53717-37150 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 53718C - APRON, FRONT FENDER, NO.2 LH | ||||
| 53718-37120 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53722-25010 |
LY225,235..RHD |
1 | ||
| 53722-25011 |
LY225,235..RHD |
1 | ||
| 53722-37031 |
KDY22#,23#,25#,LY220,230..RHD |
1 | ||
| 53722-37090 |
LY225,235..RHD |
1 | ||
| 57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH | ||||
| 57014-25020 |
LY225,235 |
1 | ||
| 57014-25030 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 57169 - MEMBER, FRONT FLOOR, FRONT RH | ||||
| 57169-25040 |
LY225,235 |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-37260 |
LY225,235..RHD..ST W(FRONT HEATER) |
1 | ||
| 57408-25340 |
LY225,235..RHD |
1 | ||
| 57408-37261 |
LY225,235..RHD..ST W(FRONT HEATER) |
1 | ||
| 57408-25341 |
KDY221,231,LY225,235..RHD..GEN |
1 | ||
| 57408-37262 |
LY225,235..RHD..ST W(FRONT HEATER) |
1 | ||
| 57467A - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH | ||||
| 57467-37011 |
KDY22#,23#,25#,LY230..RHD..(EUR,GEN,SA) |
1 | ||
| 57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-37011 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 57517A - RETAINER, FRONT FLOOR REINFORCEMENT, REAR | ||||
| 57517-37011 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58025-25030 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 58043-25020 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58044-37090 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 58044-37070 |
KDY220,LY22#,23#;KDY230,250,260..15T |
1 | ||
| 58026-25020 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-25120 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 58111-37304 |
KDY22#,23#,25#,LY230..RHD |
1 | ||
| 58111-25122 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 58111-25121 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 58111-25124 |
LY225,235..RHD |
1 | ||
| 58111-25123 |
LY225,235..RHD |
1 | ||
| 58115B - PANEL, FRONT FLOOR, REAR | ||||
| 58115-37014 |
KDY22#,23#,25#,LY230..RHD..(EUR,GEN,SA) |
1 | ||
| 58119E - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 50819-25010 |
LY225..RHD |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-37010 |
KDY22#,23#,25#,LY230..RHD..(EUR,GEN,SA) |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-37010 |
KDY22#,23#,25#,LY230..RHD..(EUR,GEN,SA) |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-37030 |
KDY22#,23#,25#,LY220,230..RHD |
1 | ||
| 58182B - RETAINER, SEAT RAIL, FRONT LH | ||||
| 58182-37010 |
KDY22#,23#,25#,LY230..RHD..(EUR,GEN,SA) |
1 | ||
| 58183F - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37071 |
LY230..ARL;KDY23#,25#,26#,LY220..10T,125T |
1 | ||
| 58184E - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-25031 |
LY230..ARL;KDY23#,25#,26#,LY220..10T,125T |
1 | ||
| 58192B - PLATE, FRONT FLOOR, REAR | ||||
| 58192-37020 |
KDY22#,23#,25#,LY230..RHD..(EUR,GEN,SA) |
3 | ||
| 58236F - BRACKET, CLUTCH TUBE | ||||
| 58236-95J01 |
KDY220..IV3;KDY230,250..LHD;KDY220..LHD..CBU;KDY221,231,251,26#,LY225,235 |
1 | ||
| 58251B - BRACE, FLOOR PANEL, FRONT | ||||
| 58251-37031 |
LY225,235..RHD;KDY220..RHD..IV3 |
1 | ||
| 58251-37032 |
KDY22#,23#,25#,LY225,23#..RHD |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-37031 |
KDY220..RHD..IV3;KDY221,231,251,LY225,235..RHD |
1 | ||
| 58295C - BRACKET, FLOOR SHIFT LEVER, NO.1 | ||||
| 58295-37060 |
KDY220..RHD..IV3;KDY221,231,251,LY225,235..RHD |
1 | ||
| 58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH | ||||
| 58298-37020 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 58298-37010 |
KDY220,LY220,230;KDY221..LHD..IV3;KDY23#,25#,26#..15T;KDY221,LY225,235..RHD |
1 | ||
| 58299B - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH | ||||
| 58298-37010 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 58298-37020 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-37040 |
KDY221,231,LY22#,23#..ARL,GEN,SA |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-25010 |
KDY221,231,LY225,235..RHD..GEN |
1 | ||
| 58336-37031 |
LY225,235..RHD..ST W(FRONT HEATER) |
1 | ||
| 58412B - REINFORCEMENT, ENGINE SUB COVER | ||||
| 58412-37030 |
KDY22#,23#,25#,LY230..RHD..(EUR,GEN,SA) |
1 | ||
| 58437C - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.3 | ||||
| 58475-25020 |
LY225..RHD |
1 | ||
| 58848A - COVER, SHIFT LEVER HOLE | ||||
| 58840-37010 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 58853A - PACKING, SHIFT LEVER HOLE | ||||
| 58853-37020 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 61335F - RETAINER, SEAT BELT ANCHOR | ||||
| 61335-37010 |
KDY22#,23#,25#,LY230..RHD..(EUR,GEN,SA) |
1 | ||
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-37090 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 64018-25030 |
KDY22#,23#,25#,LY230..RHD..(EUR,GEN,SA) |
1 | ||
| 64025A - BRACKET SUB-ASSY, REAR MOUNTING, RH | ||||
| 64025-37100 |
LY230..ARL;LY225,235..LHD;KDY23#,25#,26#,LY220..10T,125T |
1 | ||
| 64026B - BRACKET SUB-ASSY, REAR MOUNTING, LH | ||||
| 64026-37130 |
LY230..ARL;LY225,235..LHD;KDY23#,25#,26#,LY220..10T,125T |
1 | ||
| 64151A - FRAME, BACK | ||||
| 64151-25080 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 64151-37181 |
KDY220..RHD..CBU;KDY221,23#,25#..RHD |
1 | ||
| 64151-25071 |
LY225,235..RHD |
1 | ||
| 64151-25073 |
LY225,235..RHD |
1 | ||
| 64151-25071 |
LY225,235..RHD..ST |
1 | ||
| 87441F - FILTER, HEATER AIR | ||||
| 87441-37010 |
LY225..RHD |
1 | ||
| Common parts | ||||
| 82712-37070 | ||||
| 90105-08347 | ||||
| 90119-06801 | ||||
| 90159-60430 | ||||
| 90297-03007 | ||||
| 90467-06133C0 | ||||
| 90467-0908722 | ||||
| 91551-80610 | ||||
| 91551-A0814 | ||||
| 91642-81030 | ||||
| 91642-81035 | ||||
| 93560-15014 | ||||
| 94151-80800 | ||||
ILLUST NO. 3 OF 3(0108- )KDY23#,25#,26#..10T,125T
HOLE PLUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90950-01112 | ||||
| 90950-01641 | ||||
| 90950-01759 | ||||
| 90950-01808 | ||||
| 90950-01824 | ||||
| 90950-01945 | ||||
| 90950-06060 | ||||
ILLUST NO. 1 OF 3(0107- )LY22#,23#..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51771E - PLATE, STEP, RH | ||||
| 51771-37100 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 51771-25020 |
KDY221,231,251,261,LY225,23# |
1 | ||
| 51771-25021 |
KDY221,231,251,261,LY225,23# |
1 | ||
| 51772D - PLATE, STEP, LH | ||||
| 51772-37131 |
KDY221,231,251,LY225,23#..RHD |
1 | ||
| 51772-37130 |
KDY221,231,251,LY225,23#..RHD |
1 | ||
| 51772-37080 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-37020 |
KDY220,230,250,260,LY22#,23# NO PAINT REQ. |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51774-37010 |
KDY220,230,250,260,LY22#,23# NO PAINT REQ. |
1 | ||
| 53701H - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-37031 |
LY225,235 |
1 | ||
| 53701-37030 |
LY225,235 |
1 | ||
| 53701-37040 |
KDY22#,23#,25#,LY220,230..RHD |
1 | ||
| 53701-37032 |
LY225,235 |
1 | ||
| 53717E - APRON, FRONT FENDER, NO.2 RH | ||||
| 53717-37150 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 53718C - APRON, FRONT FENDER, NO.2 LH | ||||
| 53718-37120 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53722-25010 |
LY225,235..RHD |
1 | ||
| 53722-25011 |
LY225,235..RHD |
1 | ||
| 53722-37031 |
KDY22#,23#,25#,LY220,230..RHD |
1 | ||
| 53722-37090 |
LY225,235..RHD |
1 | ||
| 53736E - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-25051 |
LY225 |
1 | ||
| 53736-25050 |
LY225,235 |
1 | ||
| 53737D - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-25061 |
LY225 |
1 | ||
| 53737-25060 |
LY225,235 |
1 | ||
| 55827 - DUCT, VENTILATOR AIR GUIDE | ||||
| 55827-25020 |
LY225 |
1 | ||
| 57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH | ||||
| 57014-25020 |
LY225,235 |
1 | ||
| 57014-25030 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 57169 - MEMBER, FRONT FLOOR, FRONT RH | ||||
| 57169-25040 |
LY225,235 |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-37260 |
LY225,235..RHD..ST W(FRONT HEATER) |
1 | ||
| 57408-25340 |
LY225,235..RHD |
1 | ||
| 57408-37261 |
LY225,235..RHD..ST W(FRONT HEATER) |
1 | ||
| 57408-25341 |
KDY221,231,LY225,235..RHD..GEN |
1 | ||
| 57408-37262 |
LY225,235..RHD..ST W(FRONT HEATER) |
1 | ||
| 57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-37011 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 57517A - RETAINER, FRONT FLOOR REINFORCEMENT, REAR | ||||
| 57517-37011 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58025-25030 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 58043-25020 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58044-37090 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 58044-37070 |
KDY220,LY22#,23#;KDY230,250,260..15T |
1 | ||
| 58026-25020 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-25120 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 58111-37304 |
KDY22#,23#,25#,LY230..RHD |
1 | ||
| 58111-25122 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 58111-25121 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 58111-25124 |
LY225,235..RHD |
1 | ||
| 58111-25123 |
LY225,235..RHD |
1 | ||
| 58119E - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 50819-25010 |
LY225..RHD |
1 | ||
| 58119E - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 50819-25010 |
LY225..RHD |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-37030 |
KDY22#,23#,25#,LY220,230..RHD |
1 | ||
| 58183F - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37071 |
LY230..ARL;KDY23#,25#,26#,LY220..10T,125T |
1 | ||
| 58184E - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-25031 |
LY230..ARL;KDY23#,25#,26#,LY220..10T,125T |
1 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58201-25040 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 58201-25030 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 58214A - PANEL, SEAT FLOOR, LH | ||||
| 58202-25020 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 58202-25030 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 58236F - BRACKET, CLUTCH TUBE | ||||
| 58236-95J01 |
KDY220..IV3;KDY230,250..LHD;KDY220..LHD..CBU;KDY221,231,251,26#,LY225,235 |
1 | ||
| 58251B - BRACE, FLOOR PANEL, FRONT | ||||
| 58251-37031 |
LY225,235..RHD;KDY220..RHD..IV3 |
1 | ||
| 58251-37032 |
KDY22#,23#,25#,LY225,23#..RHD |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-37031 |
KDY220..RHD..IV3;KDY221,231,251,LY225,235..RHD |
1 | ||
| 58295C - BRACKET, FLOOR SHIFT LEVER, NO.1 | ||||
| 58295-37060 |
KDY220..RHD..IV3;KDY221,231,251,LY225,235..RHD |
1 | ||
| 58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH | ||||
| 58298-37020 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 58298-37010 |
KDY220,LY220,230;KDY221..LHD..IV3;KDY23#,25#,26#..15T;KDY221,LY225,235..RHD |
1 | ||
| 58299B - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH | ||||
| 58298-37010 |
KDY22#,LY22#,23#;KDY23#,25#,26#..15T |
1 | ||
| 58298-37020 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-37040 |
KDY221,231,LY22#,23#..ARL,GEN,SA |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-25010 |
KDY221,231,LY225,235..RHD..GEN |
1 | ||
| 58336-37031 |
LY225,235..RHD..ST W(FRONT HEATER) |
1 | ||
| 58402J - BAND SUB-ASSY, ENGINE SERVICE COVER SUPPORT | ||||
| 58402-37010 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 58402-25020 |
LY225,235..RHD |
1 | ||
| 58402-37010 |
LY225,235..RHD..ST |
1 | ||
| 58402-37010 |
LY225,235..RHD |
1 | ||
| 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB | ||||
| 58407-37120 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 58407-37121 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 58407-25150 |
LY225,235..RHD |
1 | ||
| 58407-25151 |
LY225,235..RHD |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 59208-25090 |
LY225,235..RHD |
1 | ||
| 58410E - CUSHION, NO.3 | ||||
| 90541-09046 |
LY22#,23#..ARL,GEN;KDY22#,23#,25#,26#..LHD |
4 | ||
| 58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1 | ||||
| 58424-37030 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-95405 |
LY22#,23#..RHD..(ARL,GEN) |
4 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-95405 |
LY22#,23#..RHD..(ARL,GEN) |
4 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-95405 |
LY22#,23#..RHD..(ARL,GEN) |
4 | ||
| 58437C - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.3 | ||||
| 58475-25020 |
LY225..RHD |
1 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-37030 |
LY225,235..RHD |
1 | ||
| 58444-37030 |
LY225,235..RHD..ST |
1 | ||
| 58474A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58474-37010 |
LY22#,23#..ARL,GEN;KDY22#,23#,25#,26#..LHD |
1 | ||
| 58475C - PACKING, ENGIN SUB COVER, NO.3 | ||||
| 58475-37030 |
LY22#,23#..ARL,GEN;KDY22#,23#,25#,26#..LHD |
1 | ||
| 58848A - COVER, SHIFT LEVER HOLE | ||||
| 58840-37010 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 58848A - COVER, SHIFT LEVER HOLE | ||||
| 58840-37010 |
KDY22#,23#,25#,LY22#,23#..RHD |
1 | ||
| 58853A - PACKING, SHIFT LEVER HOLE | ||||
| 58853-37020 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 58853A - PACKING, SHIFT LEVER HOLE | ||||
| 58853-37020 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-37090 |
LY22#,23#..RHD..(ARL,GEN) |
1 | ||
| 64018-25030 |
KDY22#,23#,25#,LY230..RHD..(EUR,GEN,SA) |
1 | ||
| 64025A - BRACKET SUB-ASSY, REAR MOUNTING, RH | ||||
| 64025-37100 |
LY230..ARL;LY225,235..LHD;KDY23#,25#,26#,LY220..10T,125T |
1 | ||
| 64026B - BRACKET SUB-ASSY, REAR MOUNTING, LH | ||||
| 64026-37130 |
LY230..ARL;LY225,235..LHD;KDY23#,25#,26#,LY220..10T,125T |
1 | ||
| 64151A - FRAME, BACK | ||||
| 64151-25080 |
KDY23#,25#,26#..10T,125T |
1 | ||
| 64151-37181 |
KDY220..RHD..CBU;KDY221,23#,25#..RHD |
1 | ||
| 64151-25071 |
LY225,235..RHD |
1 | ||
| 64151-25073 |
LY225,235..RHD |
1 | ||
| 64151-25071 |
LY225,235..RHD..ST |
1 | ||
| 64179A - PATCH, REAR MOUNTING BRACKET | ||||
| 64179-37030 |
LY230..ARL;LY225,235..LHD;KDY23#,25#,26#,LY220..10T,125T |
2 | ||
| 71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT | ||||
| 71902-37010 |
LY225,235;KDY22#,23#,25#,26#..LHD |
2 | ||
| 74631T - HOOK, COAT | ||||
| 74631-12060B5 |
LY22#,23#..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 58448-26010B1 |
LY225,235..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 58448-26010C0 |
LY225,235..RHD BLACK,TRIM1# |
1 | ||
| 87441F - FILTER, HEATER AIR | ||||
| 87441-37010 |
LY225..RHD |
1 | ||
| Common parts | ||||
| 52161-20010 | ||||
| 55815-25020 | ||||
| 78167-25010 | ||||
| 82712-37070 | ||||
| 88897-25040 | ||||
| 90119-06801 | ||||
| 90119-08349 | ||||
| 90119-08483 | ||||
| 90159-60430 | ||||
| 90178-08005 | ||||
| 90467-06133C0 | ||||
| 90467-07152C0 | ||||
| 90467-0908722 | ||||
| 90467-09185 | ||||
| 91551-80610 | ||||
| 91554-80614 | ||||
| 91642-81030 | ||||
| 91651-40616 | ||||
| 91651-60816 | ||||
| 93240-56016 | ||||
| 93560-15014 | ||||
| 94151-80800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
