LY225R-TBMDS (2001)

Toyota Dyna

Production Jul 2001 - Sep 2016
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0107-1610)LY235..WT ; (0107-1610)KDY22#,23#,25#,26#,LY220,230

Click highlighted areas on diagram

2-SPOKE

diagram 45100 45105 45130 45176 45180 45201P 9014950032 9356054012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-26121B1

LY225,235..ST

2SPOKE,POLYPROPYLENE,MD.CHARCOAL,TRIM1#

 1
45100-36140B0

LY235..WT;KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230

2-SPOKE,URETHANE,MD.CHARCOAL,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-36030

LY235..WT;KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230

 1
45130 - BUTTON ASSY, HORN
45130-36120B0

LY235..WT;KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230

MD.CHARCOAL,TRIM1#

 1
45130-26110B1

LY225,235..ST

MD.CHARCOAL,TRIM1#

 1
45176 - RING, HORN CONTACT
45176-36020

LY235..WT;KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230

 1
45176-30070

LY225,235..ST

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-36030B0

LY235..WT;KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230

MD.CHARCOAL,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23#

 1
Common parts
90149-50032
93560-54012

(0107-1610)LY225,235..ST

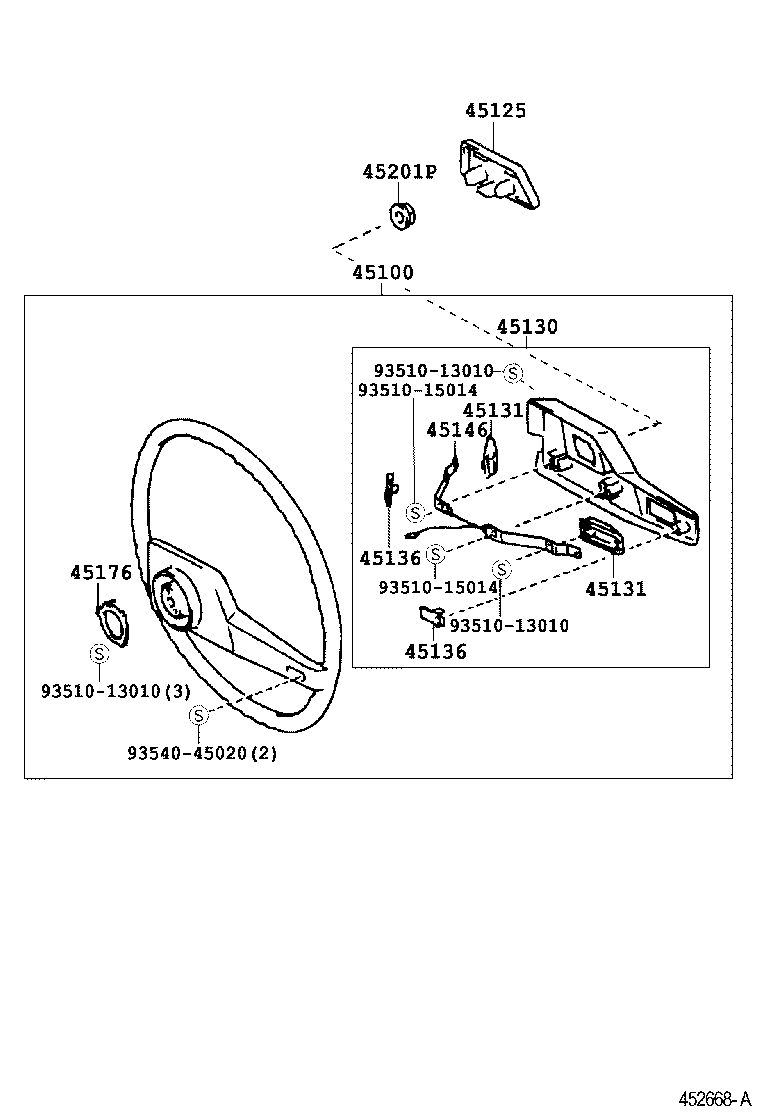

Click highlighted areas on diagram

2-SPOKE

diagram 45100 45125 45130 45131 45131 45136 45136 45146 45176 45201P 9351013010 9351013010 9351013010 9351015014 9351015014 9354045020
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-26121B1

LY225,235..ST

2SPOKE,POLYPROPYLENE,MD.CHARCOAL,TRIM1#

 1
45100-36140B0

LY235..WT;KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230

2-SPOKE,URETHANE,MD.CHARCOAL,TRIM1#

 1
45125 - MARK, STEERING WHEEL PAD
45125-26060C0

LY225

BLACK,TRIM1#

 1
45125-26060B1

LY225,235..ST

MD.CHARCOAL,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-36120B0

LY235..WT;KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230

MD.CHARCOAL,TRIM1#

 1
45130-26110B1

LY225,235..ST

MD.CHARCOAL,TRIM1#

 1
45131 - BUTTON, HORN, NO.1
45131-26050

LY225

 2
45131 - BUTTON, HORN, NO.1
45131-26050

LY225

 2
45136 - PLATE, HORN BUTTON CONTACT
45136-26020

LY225

 2
45136 - PLATE, HORN BUTTON CONTACT
45136-26020

LY225

 2
45146 - SPRING, HORN BUTTON CONTACT
45146-26030

LY225

 1
45176 - RING, HORN CONTACT
45176-36020

LY235..WT;KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY220,230

 1
45176-30070

LY225,235..ST

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23#

 1
Common parts
93510-13010
93510-15014
93540-45020
