LY225L-TBMDS3 (2001)
Toyota Dyna

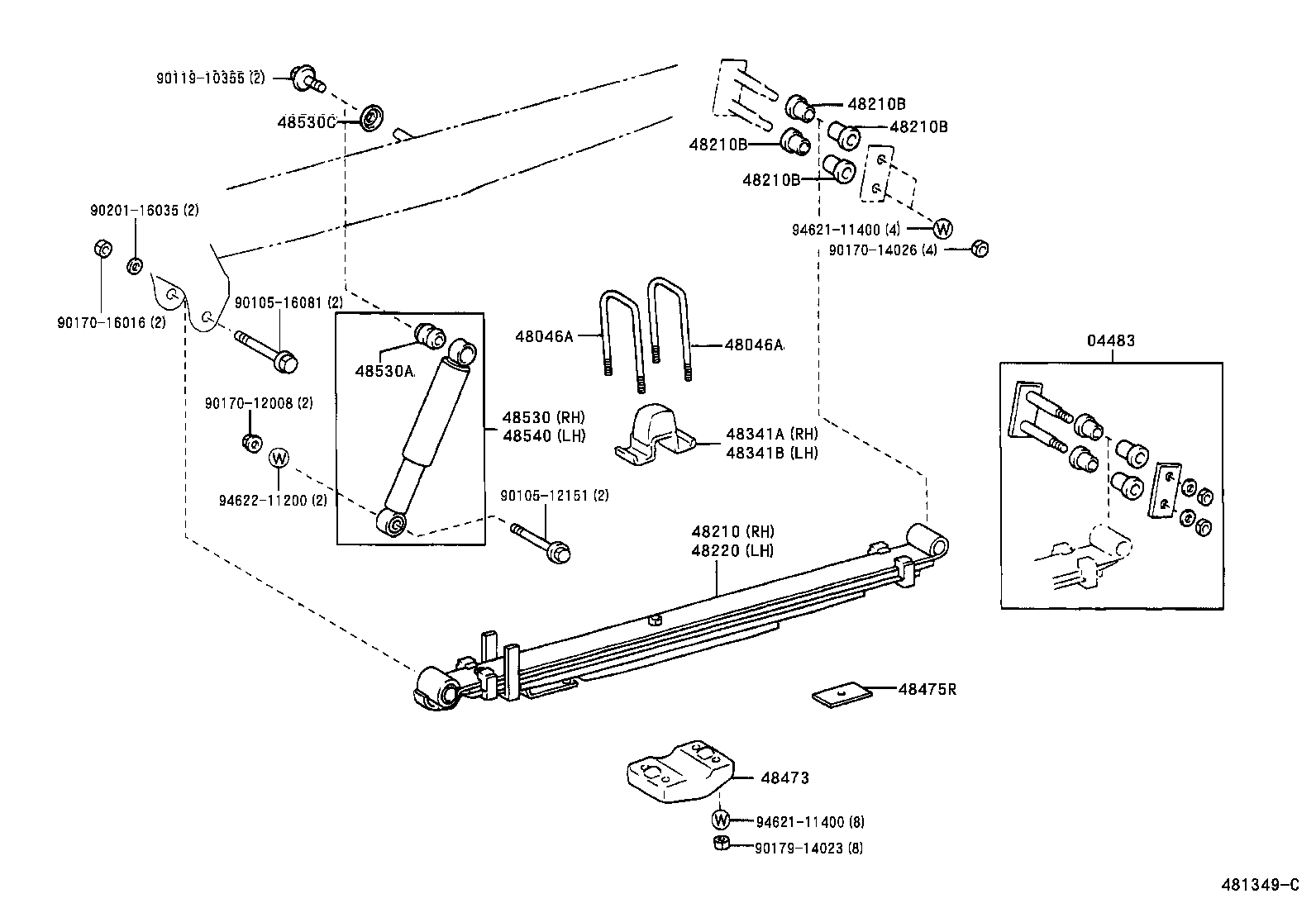

ILLUST NO. 1 OF 2(0107- )LY225,235..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-25030 |
LY225,235;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14035 |
LY225 L=180 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14035 |
LY225 L=180 |
4 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E240 |
LY225 5-LEAF |
1 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18023 |
LY225,235;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA |
8 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18023 |
LY225,235;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA |
8 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18023 |
LY225,235;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA |
8 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18023 |
LY225,235;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA |
8 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E240 |
LY225 5-LEAF |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-25050 |
KDY22#,23#,LY22#..ST |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-25050 |
KDY22#,23#,LY22#..ST |
1 | ||
| 48473 - SEAT, REAR SPRING U BOLT | ||||
| 48473-25080 |
KDY22#,23#,LY22#..ST |
2 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-25010 |
LY225 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-29535 |
LY225 MARK 48531-25210 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16010 |
LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-29535 |
LY225 MARK 48531-25210 |
1 | ||
| Common parts | ||||
| 90105-12151 | ||||
| 90105-16081 | ||||
| 90119-10355 | ||||
| 90170-12008 | ||||
| 90170-14026 | ||||
| 90170-16016 | ||||
| 90179-14023 | ||||
| 90201-16035 | ||||
| 94621-11400 | ||||
| 94622-11200 | ||||

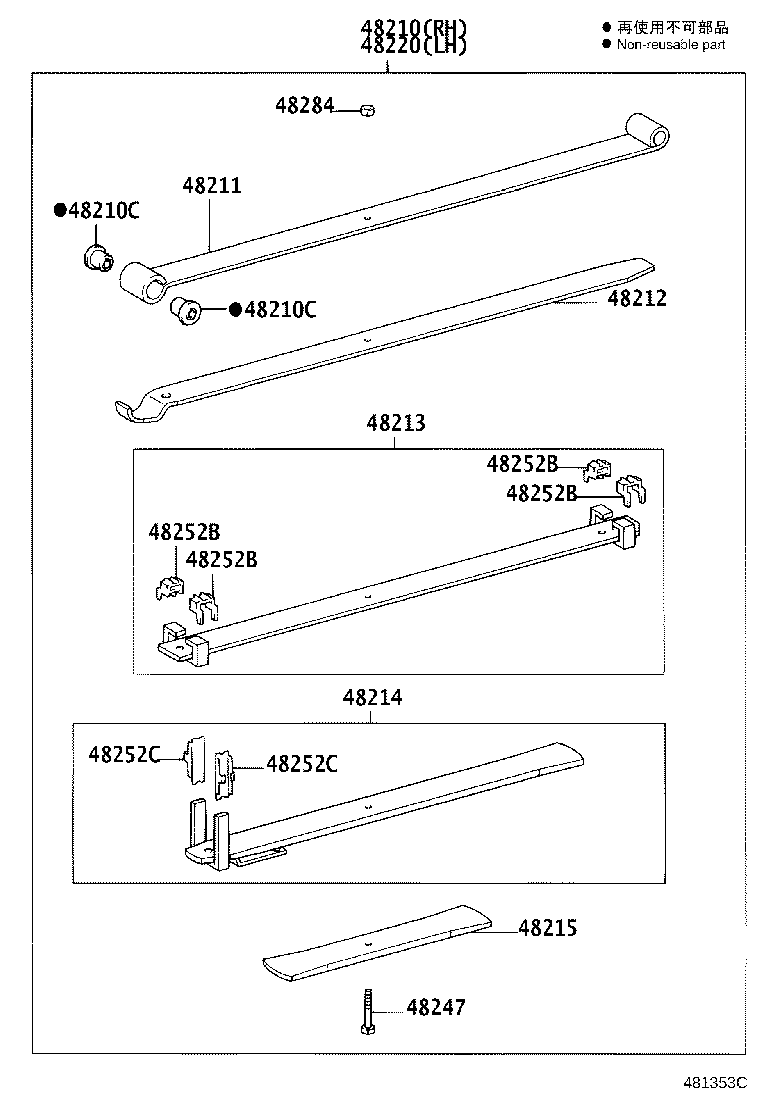

ILLUST NO. 2 OF 2(0107- )LY225,235..ST
5-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E240 |
LY225 5-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
LY225,235;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
LY225,235;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E240 |
LY225 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-2E240 |
LY225 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-2E240 |
LY225 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-2E240 |
LY225 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-2E240 |
LY225 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E240 |
LY225 5-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48147-36180 |
LY225,235..ST |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY22#,23#,25#,26#,LY22#,23# |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY22#,23#,25#,26#,LY22#,23# |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY22#,23#,25#,26#,LY22#,23# |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37380 |
KDY22#,23#,25#,26#,LY22#,23# |
8 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37880 |
KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37880 |
KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
KDY22#,23#,25#,26#,LY22#,23# |
2 | ||
