LY225L-TBMDS3 (2001)
Toyota Dyna
ILLUST NO. 2 OF 2(0107- )LY235..WT ; (0107- )KDY230..ST ; (0107- )KDY231..CBU ; (0107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-25220 |
LY225 |
1 | ||
| 04412-25130 |
LY225 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08334 |
LY225 S=12 & 14,L=44 |
2 | ||
| 90116-08329 |
LY225 S=17 & 12,L=37 |
8 | ||
| 90116-08414 |
KDY221,231,LY225..ST S=17 & 12,L=37 |
8 | ||
| 90116-08329 |
KDY231..CBU;KDY221,LY225;KDY231..ST..IV3 S=17 & 12,L=37 |
8 | ||
| 90116-08416 |
KDY221,231,LY225..ST S=12 & 14,L=44 |
2 | ||
| 90116-08334 |
KDY231..CBU;KDY221,LY225;KDY231..ST..IV3 S=12 & 14,L=44 |
2 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-25450 |
LY22# |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03138 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
KDY221,231,251,261,LY225,23# |
1 | ||
| 90341-18040 |
KDY22#,23#,25#,26#,LY22#,23# |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60020 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 94531-00800 | ||||
| Linked diagrams | ||||
| 4706 | ||||

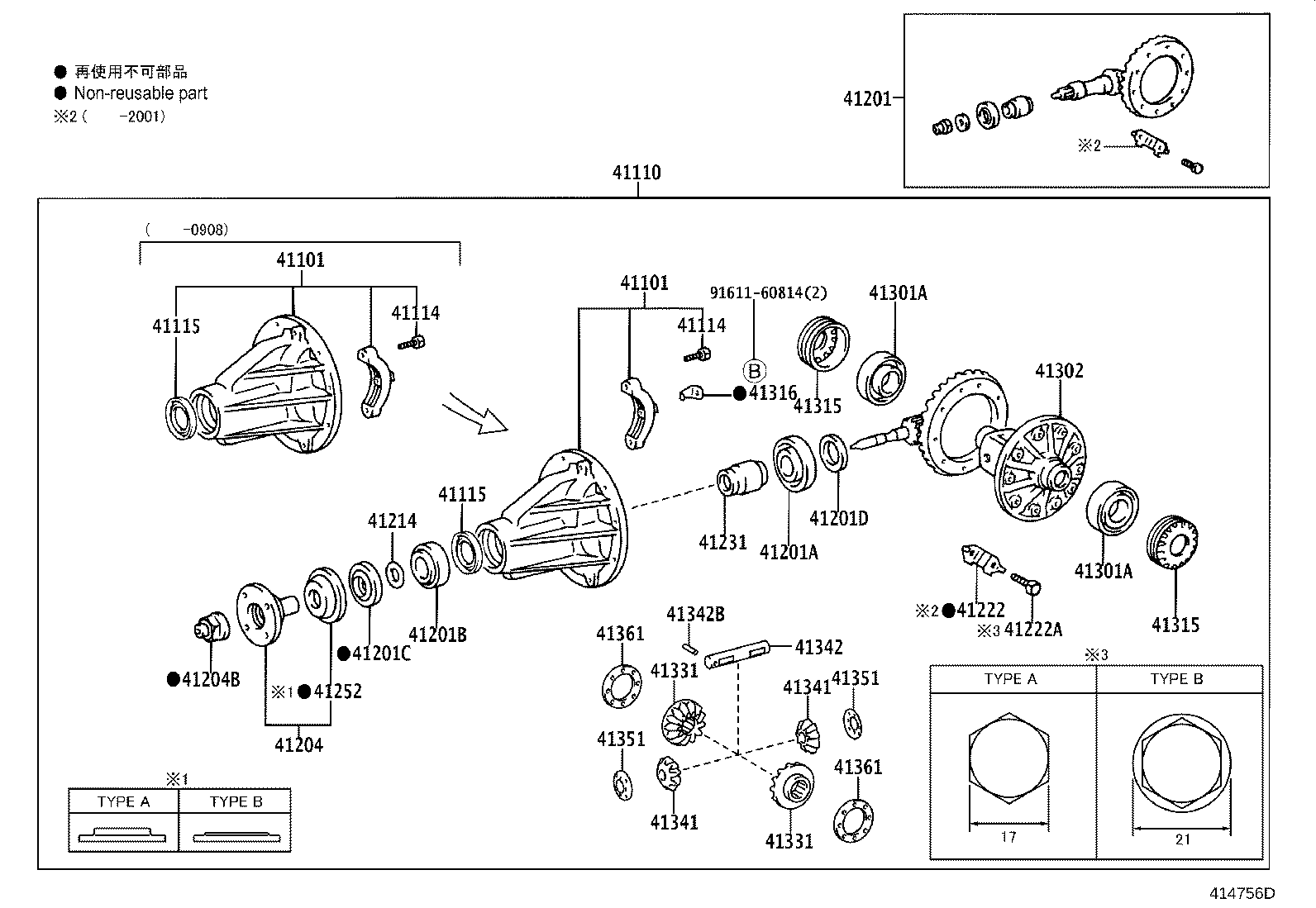

ILLUST NO. 1 OF 2(0107- )LY22# ; (0108- )KDY220,230..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35171 |
KDY231..CBU;KDY221,LY225;KDY231..ST..IV3 |
1 | ||
| 41101-35170 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 |
1 | ||
| 41101-35172 |
KDY221,231,LY225 |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35171 |
KDY231..CBU;KDY221,LY225;KDY231..ST..IV3 |
1 | ||
| 41101-35170 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 |
1 | ||
| 41101-35172 |
KDY221,231,LY225 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-3D260 |
LY225 *FGR=41:9=4.555 |
1 | ||
| 41110-25500 |
LY225 *FGR=41:9=4.555 |
1 | ||
| 41110-25501 |
LY225 *FGR=41:9=4.555 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 |
4 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 |
1 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80105 |
LY225 *FGR=41:9=4.555 |
1 | ||
| 41201-80822 |
LY225 *FGR=41:9=4.555 |
1 | ||
| 41201-80182 |
LY225 *FGR=41:9=4.556 |
1 | ||
| 41201-80680 |
LY225 *FGR=41:9=4.555 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35087 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30105 |
KDY231..CBU;KDY221,LY225;KDY231..ST..IV3 |
1 | ||
| 90366-30067 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38047 |
LY235..WT;KDY220,230,LY22#..ST |
1 | ||
| 90311-41009 |
KDY221,231,LY225..GEN |
1 | ||
| 90311-41018 |
KDY221,231,LY225 PNC 41252=TYPE B |
1 | ||
| 90311-41009 |
KDY231..CBU;KDY221,LY225..GEN;KDY221,231..ST..IV3 PNC 41252=TYPE A |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35497 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=1.70 |
1 | ||
| 90201-35499 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=1.76 |
1 | ||
| 90201-35504 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=1.91 |
1 | ||
| 90201-35501 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=1.82 |
1 | ||
| 90201-35505 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=1.94 |
1 | ||
| 90201-35503 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=1.88 |
1 | ||
| 90201-35506 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=1.97 |
1 | ||
| 90201-35502 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=1.85 |
1 | ||
| 90201-35508 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=2.03 |
1 | ||
| 90201-35500 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=1.79 |
1 | ||
| 90201-35498 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=1.73 |
1 | ||
| 90201-35510 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=2.09 |
1 | ||
| 90201-35511 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=2.12 |
1 | ||
| 90201-35517 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35509 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=2.06 |
1 | ||
| 90201-35518 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35507 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=2.00 |
1 | ||
| 90201-35516 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35512 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=2.15 |
1 | ||
| 90201-35515 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35514 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=2.21 |
1 | ||
| 90201-35513 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=47,T=2.18 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35081 |
LY235..WT;KDY220,230,LY22#..ST |
1 | ||
| 41204-35082 |
KDY231..CBU;KDY221,LY225..GEN;KDY221,231..ST..IV3 PNC 41252=TYPE A |
1 | ||
| 41204-35083 |
KDY221,231,LY225 PNC 41252=TYPE B |
1 | ||
| 41204-35082 |
KDY221,231,LY225..GEN |
1 | ||
| 41204-35080 |
LY235..WT;KDY220,230,LY22#..ST |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20018 |
LY235..WT;KDY220,230,LY22#..ST OD=37 |
1 | ||
| 90177-22003 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
LY235..WT;KDY220,230,LY22#..ST |
1 | ||
| 41214-26011 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 TYPE A:REFER ILLUST. |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35040 |
LY235..WT;KDY220,230,LY22#..ST |
1 | ||
| 41252-35041 |
KDY231..CBU;KDY221,LY225..GEN;KDY221,231..ST..IV3 TYPE A:REFER ILLUST. |
1 | ||
| 41252-35041 |
KDY221,231,LY225..GEN |
1 | ||
| 41252-71040 |
KDY221,231,LY225 TYPE B:REFER ILLUST. |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-60060 |
KDY220,230,LY22#..ST |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
LY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35011 |
KDY220,230,LY22#..ST |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35011 |
KDY220,230,LY22#..ST |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35020 |
KDY220,230,LY22#..ST |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35020 |
KDY220,230,LY22#..ST |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-39610 |
KDY220,230,LY22#..ST |
1 | ||
| 41342B - PIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06085 |
KDY220,230,LY22#..ST |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
KDY220,230,LY22#..ST |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30052 |
KDY220,230,LY22#..ST |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-40021 |
KDY220,230,LY22#..ST T=1.6 |
2 | ||
| 41362-40021 |
KDY220,230,LY22#..ST T=1.7 |
2 | ||
| 41363-40021 |
KDY220,230,LY22#..ST T=1.8 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-40021 |
KDY220,230,LY22#..ST T=1.6 |
2 | ||
| 41362-40021 |
KDY220,230,LY22#..ST T=1.7 |
2 | ||
| 41363-40021 |
KDY220,230,LY22#..ST T=1.8 |
2 | ||
| Common parts | ||||
| 91611-60814 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
