LY225L-TBMDS (2001)
Toyota Dyna

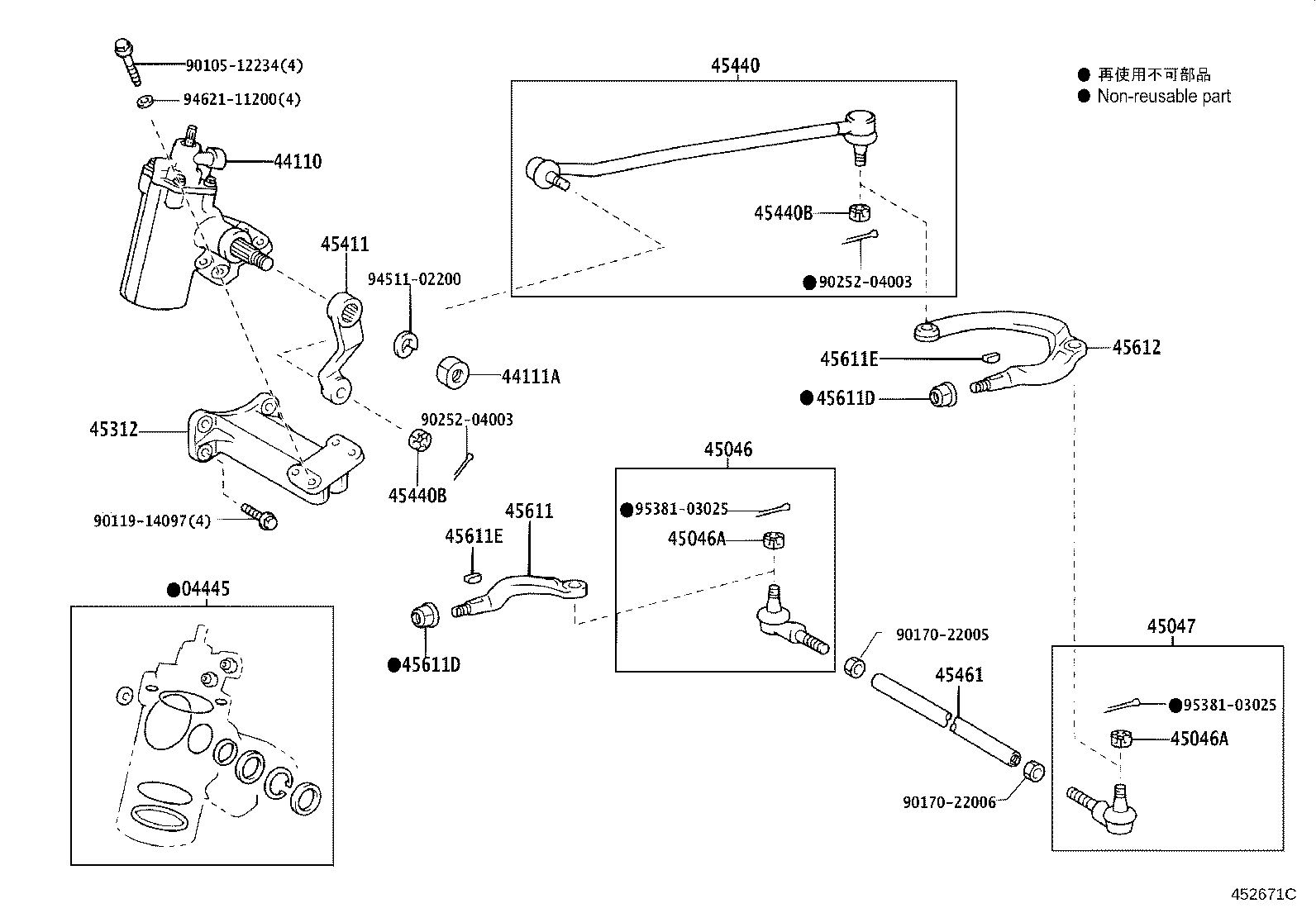

ILLUST NO. 2 OF 2(0107- )KDY22#,23#,25#,26#,LY220,230
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-25080 |
KDY22#,23#,25#,26#,LY230..EUR,GEN,SA |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-37010 |
KDY22#,23#,25#,26#,LY230..EUR,GEN,SA |
1 | ||
(0107- )LY225,235..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-25070 |
LY225 |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-25080 |
LY225,235..LHD |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
LY225,235 |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29416 |
LY225,235 |
1 | ||
| 45046-29405 |
KDY22#,23#,25#,26#,LY230..EUR,GEN,SA |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-16005 |
KDY22#,23#,25#,26#,LY220,230 |
2 | ||
| 90171-14042 |
LY225,235 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-16005 |
KDY22#,23#,25#,26#,LY220,230 |
2 | ||
| 90171-14042 |
LY225,235 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-29146 |
LY225,235 |
1 | ||
| 45046-29405 |
KDY22#,23#,25#,26#,LY230..EUR,GEN,SA |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-25220 |
LY225..LHD |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-25260 |
LY225,235..LHD |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-29285 |
LY225..LHD |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
LY225 |
2 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
LY225 |
2 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-37050 |
LY225 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45612-25080 |
LY225,235..LHD |
1 | ||
| 45611-25120 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90179-22007 |
LY225 |
2 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90179-22007 |
LY225 |
2 | ||
| 45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM) | ||||
| 90280-07012 |
LY225 |
2 | ||
| 45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM) | ||||
| 90280-07012 |
LY225 |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-25090 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 45611-25110 |
LY225,235..LHD |
1 | ||
| Common parts | ||||
| 90105-12234 | ||||
| 90119-14097 | ||||
| 90170-22005 | ||||
| 90170-22006 | ||||
| 90252-04003 | ||||
| 94511-02200 | ||||
| 94621-11200 | ||||
| 95381-03025 | ||||
ILLUST NO. 1 OF 2(0107- )KDY22#,23#,25#,26#,LY220,230
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-25020 |
KDY22#,23#,25#,26#..LHD |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29416 |
LY225,235 |
1 | ||
| 45046-29405 |
KDY22#,23#,25#,26#,LY230..EUR,GEN,SA |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-16005 |
KDY22#,23#,25#,26#,LY220,230 |
2 | ||
| 90171-14042 |
LY225,235 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-16005 |
KDY22#,23#,25#,26#,LY220,230 |
2 | ||
| 90171-14042 |
LY225,235 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-29146 |
LY225,235 |
1 | ||
| 45046-29405 |
KDY22#,23#,25#,26#,LY230..EUR,GEN,SA |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29425 |
KDY22#,23#,25#,26#,LY230..EUR,GEN,SA |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29425 |
KDY22#,23#,25#,26#,LY230..EUR,GEN,SA |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-18002 |
KDY22#,23#,25#,26#,LY220,230 OD=47 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-18002 |
KDY22#,23#,25#,26#,LY220,230 OD=47 |
2 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-25010 |
KDY22#,23#,25#,26#..LHD |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-25010 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-37010 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-62006 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-37010 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-62006 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45612-25080 |
LY225,235..LHD |
1 | ||
| 45611-25120 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 45611J - BOLT(FOR STEERING KNUCKLE ARM RH) | ||||
| 90105-14043 |
KDY22#,23#,25#,26#,LY220,230 |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-25090 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 45611-25110 |
LY225,235..LHD |
1 | ||
| 45612B - BOLT(FOR STEERING KNUCKLE ARM LH) | ||||
| 90105-14043 |
KDY22#,23#,25#,26#,LY220,230 |
2 | ||
| 47351E - BRACKET, FRONT BRAKE FLEXIBLE HOSE, RH | ||||
| 47351-25140 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| 47352E - BRACKET, FRONT BRAKE FLEXIBLE HOSE, LH | ||||
| 47352-25120 |
KDY22#,23#,25#,26#,LY220,230 |
1 | ||
| Common parts | ||||
| 90105-14154 | ||||
| 90119-14048 | ||||
| 90119-14111 | ||||
| 90129-08007 | ||||
| 90179-14062 | ||||
| 90252-04003 | ||||
| 90560-14027 | ||||
| 94130-61800 | ||||
| 96134-42300 | ||||
