LY225L-TBMDS (2001)
Toyota Dyna
(0107- )KDY220,230,LY22#..ST
G54
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

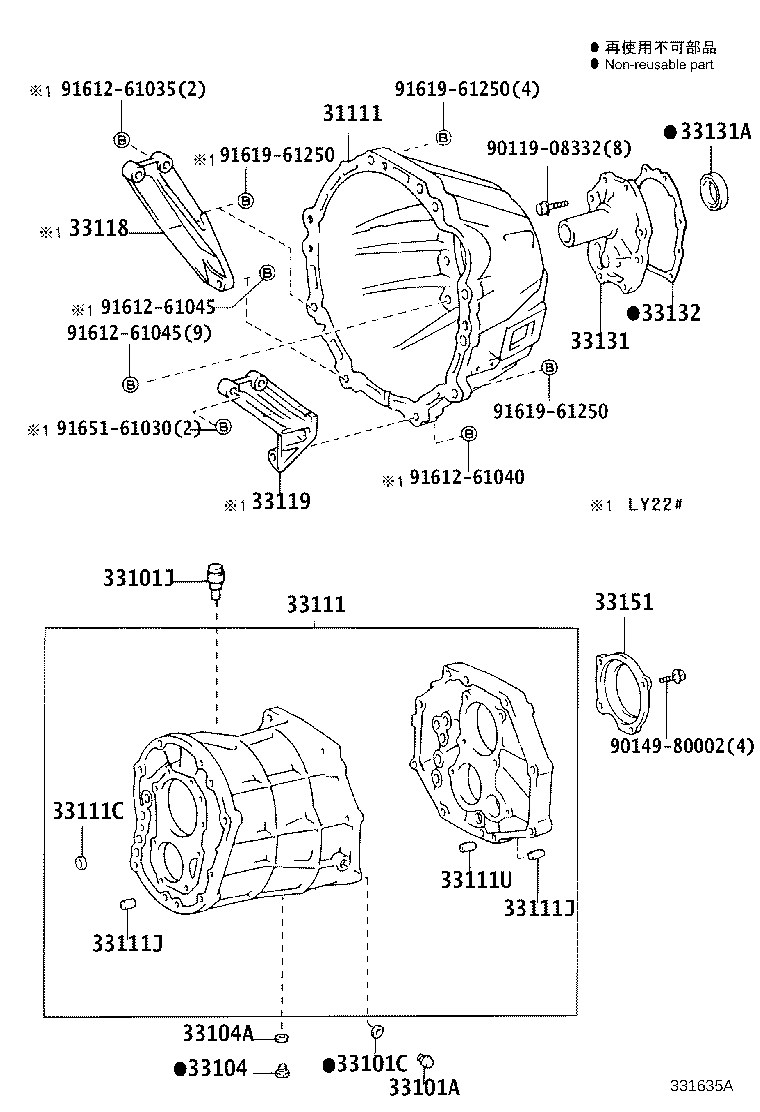

| 31111 - HOUSING, CLUTCH | ||||
| 31111-22114 |
LY22# |
1 | ||
| 31111-35101 |
KDY231;KDY221,230,25#,26#..125T,15T |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
1 | ||
| 33101J - PLUG, BREATHER | ||||
| 90930-03085 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
1 | ||
| 90341-18032 |
KDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-26060 |
LY225 |
1 | ||
| 33101-35060 |
KDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-41800 |
KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T OD=18 |
3 | ||
| 90331-14004 |
KDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3 OD=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T L=16,OD=12 |
2 | ||
| 90250-12002 |
KDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3 L=16,OD=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T L=16,OD=12 |
2 | ||
| 90250-12002 |
KDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3 L=16,OD=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
KDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23# L=11,OD=11 |
2 | ||
| 90253-15001 |
KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T L=14,OD=15 |
4 | ||
| 90253-15001 |
KDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3 L=14,OD=15 |
2 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-25020 |
LY225 |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-25020 |
LY22# |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-35031 |
KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
1 | ||
| 33131-26020 |
KDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30014 |
KDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3 |
1 | ||
| 90311-32012 |
KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-28010 |
KDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-35030 |
KDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3 |
1 | ||
| 33151-35020 |
KDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90149-80002 | ||||
| 91612-61035 | ||||
| 91612-61040 | ||||
| 91612-61045 | ||||
| 91619-61250 | ||||
| 91651-61030 | ||||
