KDY260L-TBMGYW3 (2001)

Toyota Dyna

Production Aug 2001 - Sep 2006
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )KDY22# ; (0108- )KDY23#,25#,26#..15T ; (0110- )SA

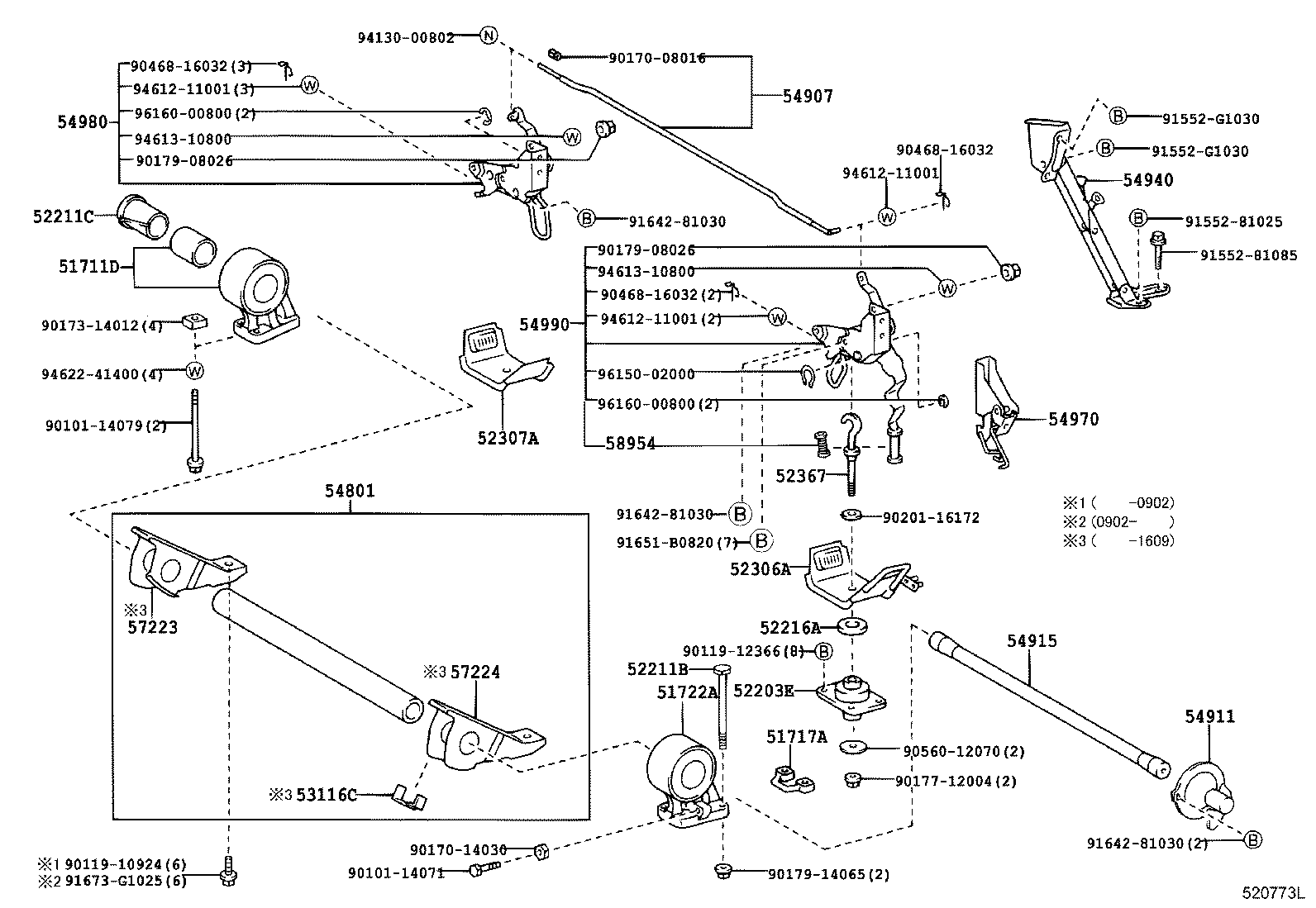

Click highlighted areas on diagram

diagram 51711D 51717A 51722A 52203E 52211B 52211C 52216A 52306A 52307A 52367 53116C 54801 54907 54911 54915 54940 54970 54980 54990 57223 57224 58954 9010114071 9010114079 9011910924 9011912366 9017008016 9017014030 9017314012 9017712004 9017908026 9017908026 9017914065 9020116172 9046816032 9046816032 9046816032 9056012070 9155281025 9155281085 91552G1030 91552G1030 9164281030 9164281030 9164281030 91651B0820 91673G1025 9413000802 9461211001 9461211001 9461211001 9461310800 9461310800 9462241400 9615002000 9616000800 9616000800
Part # Description Qty Price
51717A - PLATE, BODY SUPPORT BRACKET
51717-37100

KDY220,230,250,260,LY220,230

 1
52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2
52203-25050

KDY23#,25#,26#..15T;KDY22#,LY230..EUR,GEN,SA

 2
52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION)
90109-14011

KDY22#,23#,25#,26#,LY220,230

 2
52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION)
52211-37010

KDY22#,23#,25#,26#,LY220,230..ARL,EUR

 2
52216A - STOPPER, CAB MOUNTING CUSHION
52216-25010

KDY23#,25#,26#..15T;KDY22#,LY230..EUR,GEN,SA

 2
52306A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1
52306-37021

KDY230,250,260..15T;KDY220,LY230..EUR,SA

 1
52307A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2
52307-37010

KDY23#,25#,26#..15T;KDY22#,LY230..EUR,GEN,SA

 1
52367 - HOOK, CAB REAR MOUNTING
52367-37020

KDY23#,25#,26#..15T;KDY22#,LY230..EUR,GEN,SA

 2
53116C - BRACKET, RADIATOR GRILLE, NO.2
53116-37030

KDY22#,23#,25#,26#,LY22#,23#

 2
54801 - TUBE SUB-ASSY, TILT CAB, NO.1
54801-25020

KDY220..LHD;KDY230,250,260..LHD..15T

 1
54940 - STAY ASSY, TILT CAB
54940-25030

KDY22#..EUR;KDY23#,25#,26#..15T..IV3

 1
54980 - LOCK ASSY, TILT CAB MOUNTING, RH
54980-25010

KDY22#..EUR;KDY23#,25#,26#..15T..IV3

 1
57223 - BRACKET, FRONT MOUNTING, RH
57223-37011

KDY22#,23#,25#,26#,LY22#,23#

 1
57224 - BRACKET, FRONT MOUNTING, LH
57224-37011

KDY22#,23#,25#,26#,LY22#,23#

 1
Common parts
90101-14071
90101-14079
90119-10924
90119-12366
90170-08016
90170-14030
90173-14012
90177-12004
90179-08026
90179-14065
90201-16172
90468-16032
90560-12070
91552-81025
91552-81085
91552-G1030
91642-81030
91651-B0820
91673-G1025
94130-00802
94612-11001
94613-10800
94622-41400
96150-02000
96160-00800
